| No. | Model | DF3015T |
|---|---|---|
| 1 | Maximum processing range | 3050*1530mm |
| 2 | X-axis travel | 1500mm |
| 3 | Y-axis travel | 3000mm |
| 4 | Z-axis travel | 80-120mm |
| 5 | X/Y axis positioning accuracy | ±0.05mm |
| 6 | X/Y axis repeat positioning accuracy | ±0.03mm |
| 7 | X/Y axis maximum moving speed | 80m/min |
| 8 | Rotating axis chuck Round tube | Round tube φ15-230mm, Square tube 15*15-230*230mm |
| 9 | Rotating axis length | 6M |
| 10 | Chuck | Fully pneumatic self-centering chuck |
| 11 | W axis rotation angle | Unlimited n*360 |
| 12 | W axis maximum speed | 60 rpm |
| 13 | WY axis maximum moving speed | 50m/min |

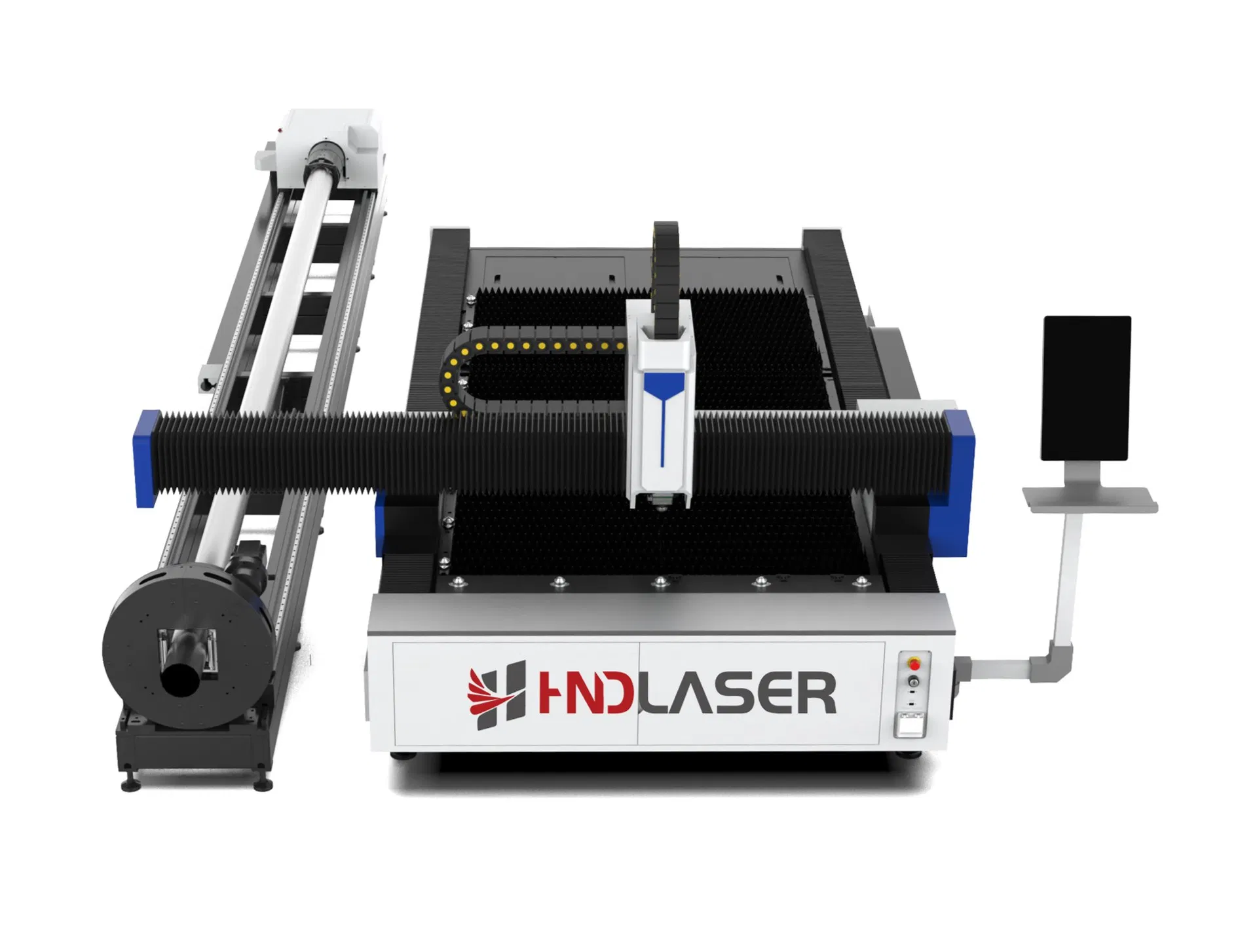

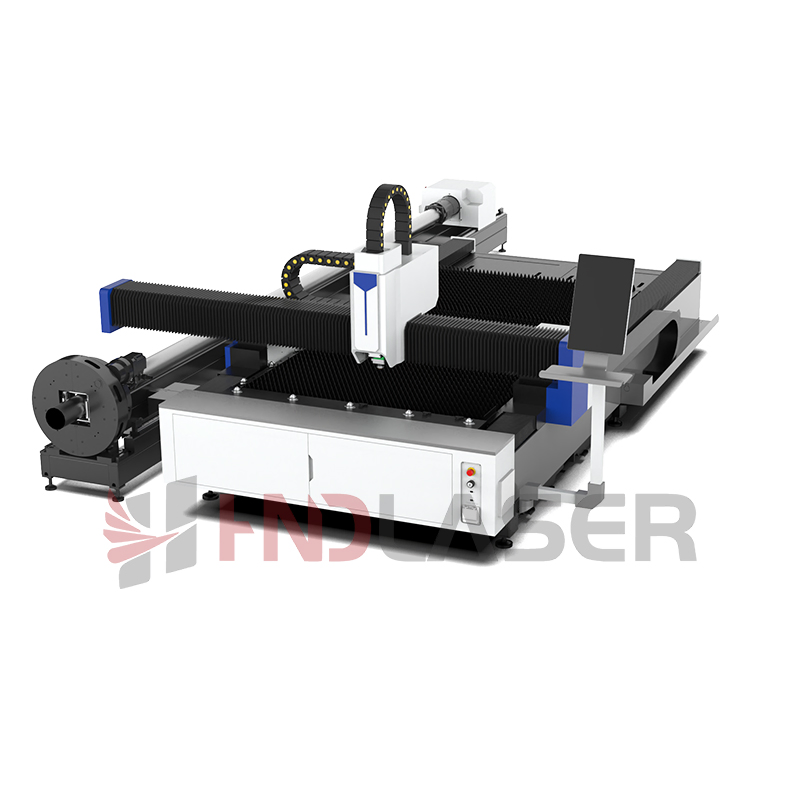

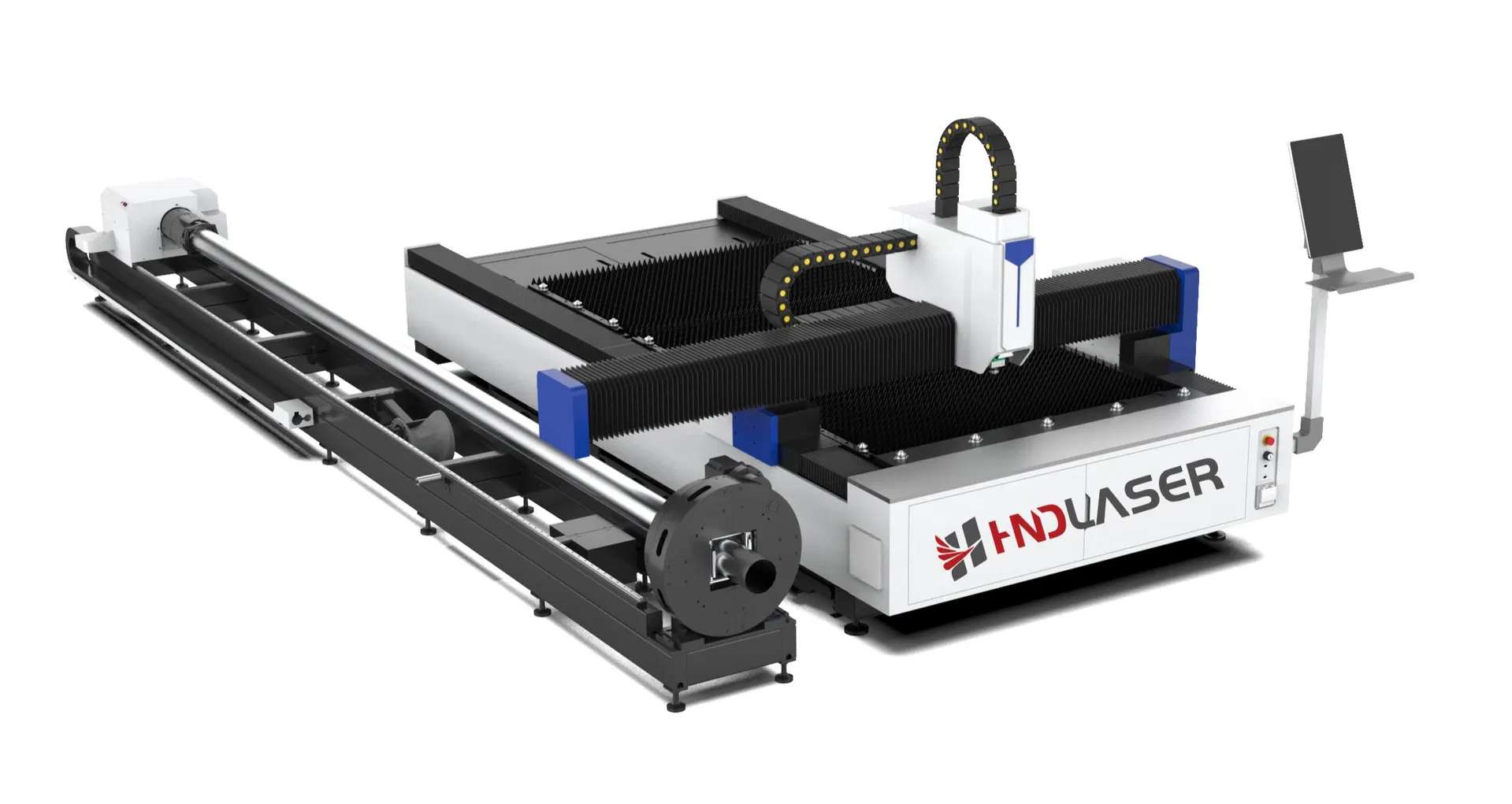

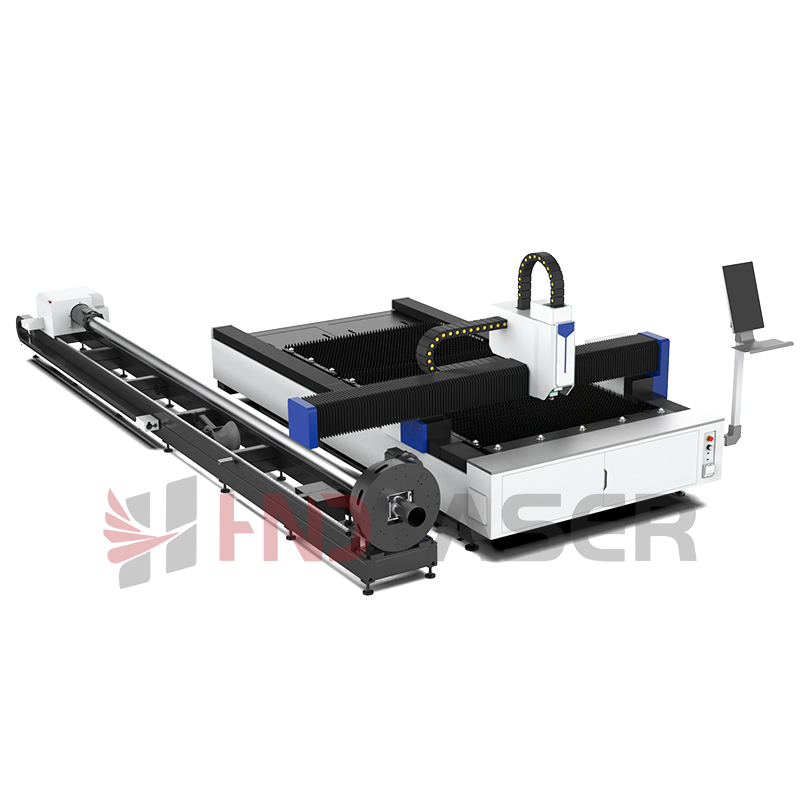

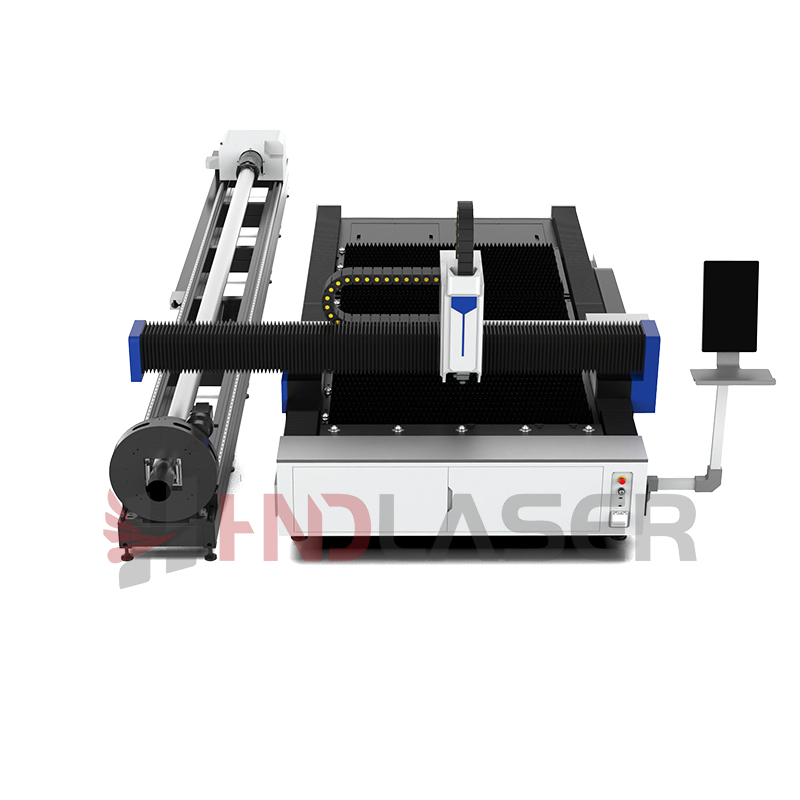

The integrated laser cutting machine is designed for versatile processing of both sheet metal and various pipe materials, making it ideal for a wide range of industrial applications including sheet metal fabrication, advertising signage, kitchen and bathroom equipment manufacturing, engineering machinery, shipbuilding, aerospace, and automotive parts production.
It features easy installation, quick commissioning, and high-performance output, supported by complete solution offerings. With stable and reliable operation, simple deployment, enhanced production safety, and rich functionality, this machine delivers exceptional performance to meet diverse manufacturing needs.

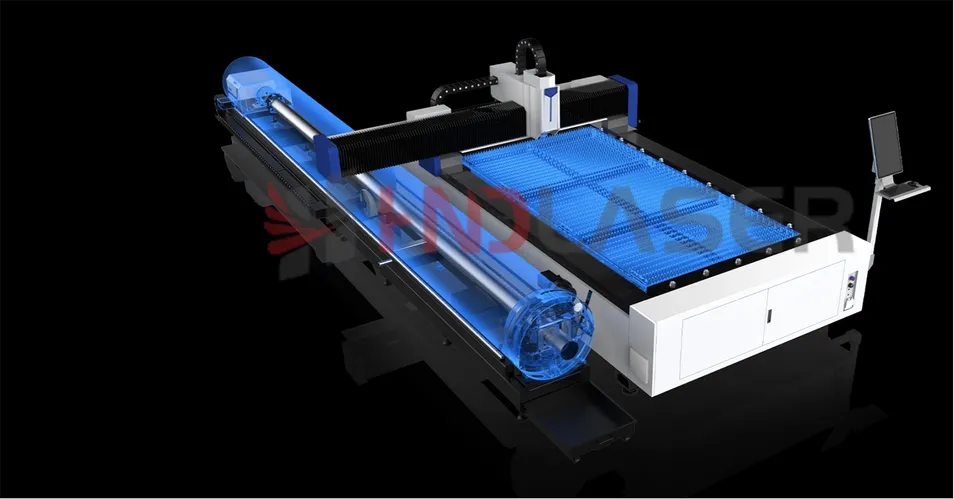

Fully enclosed protection design prevents laser from harming personnel; integrated plate and tube design, dual-purpose machine, can meet more cutting conditions, with high cost performance.

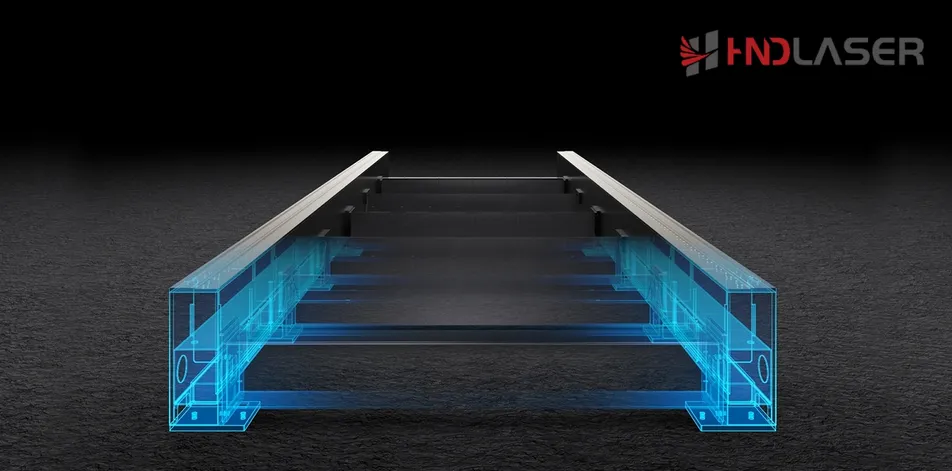

In response to the needs of efficient processing, the self-developed plug-in double keel design will not deform during long-term cutting, ensuring stable operation of the equipment.

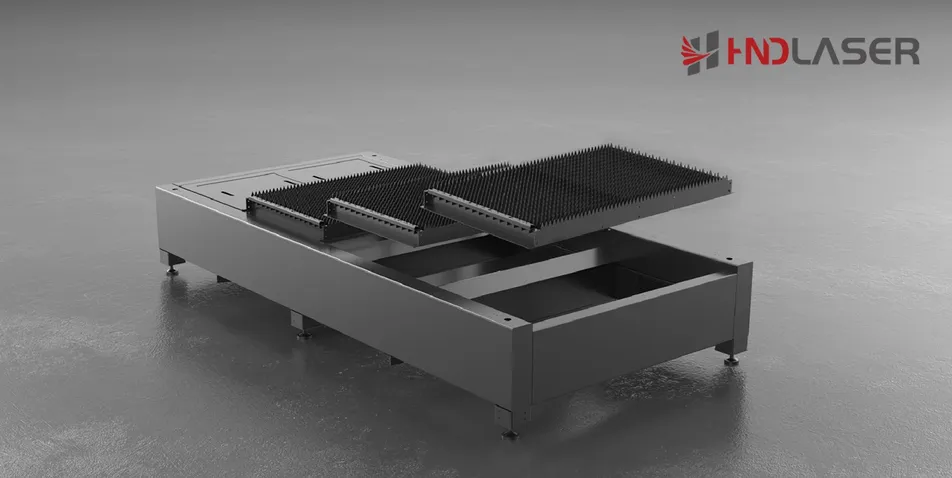

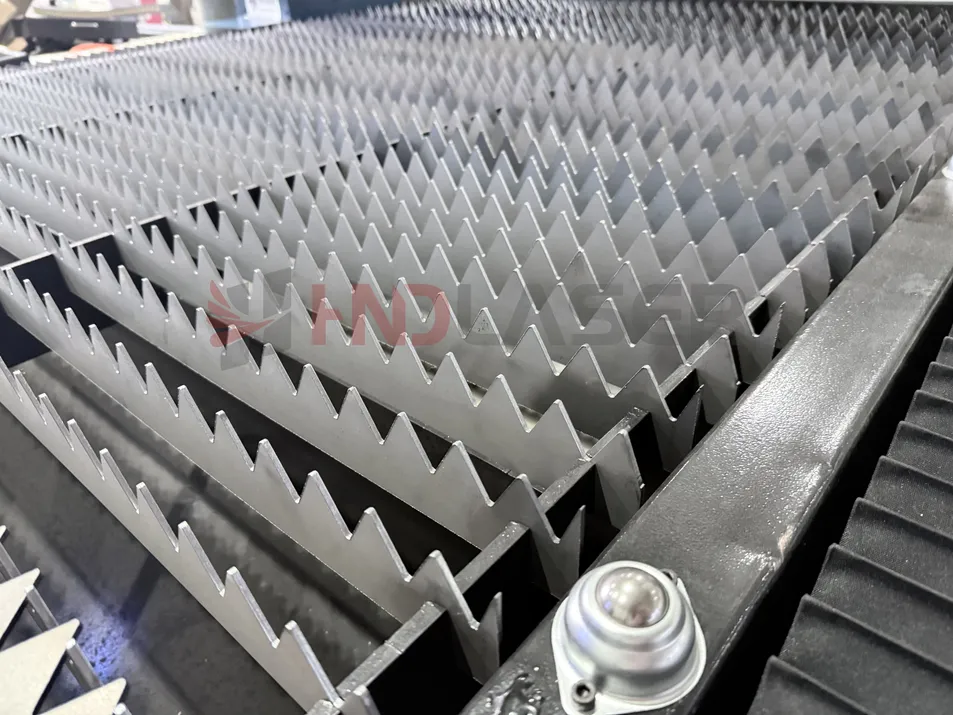

The workbench is of assembled modular design, with a stable table structure, strong load-bearing capacity, and easy disassembly, replacement and maintenance.
One-touch clamping, automatic centering; pneumatic clamping, adjustable clamping force; can cut angle steel and channel steel.

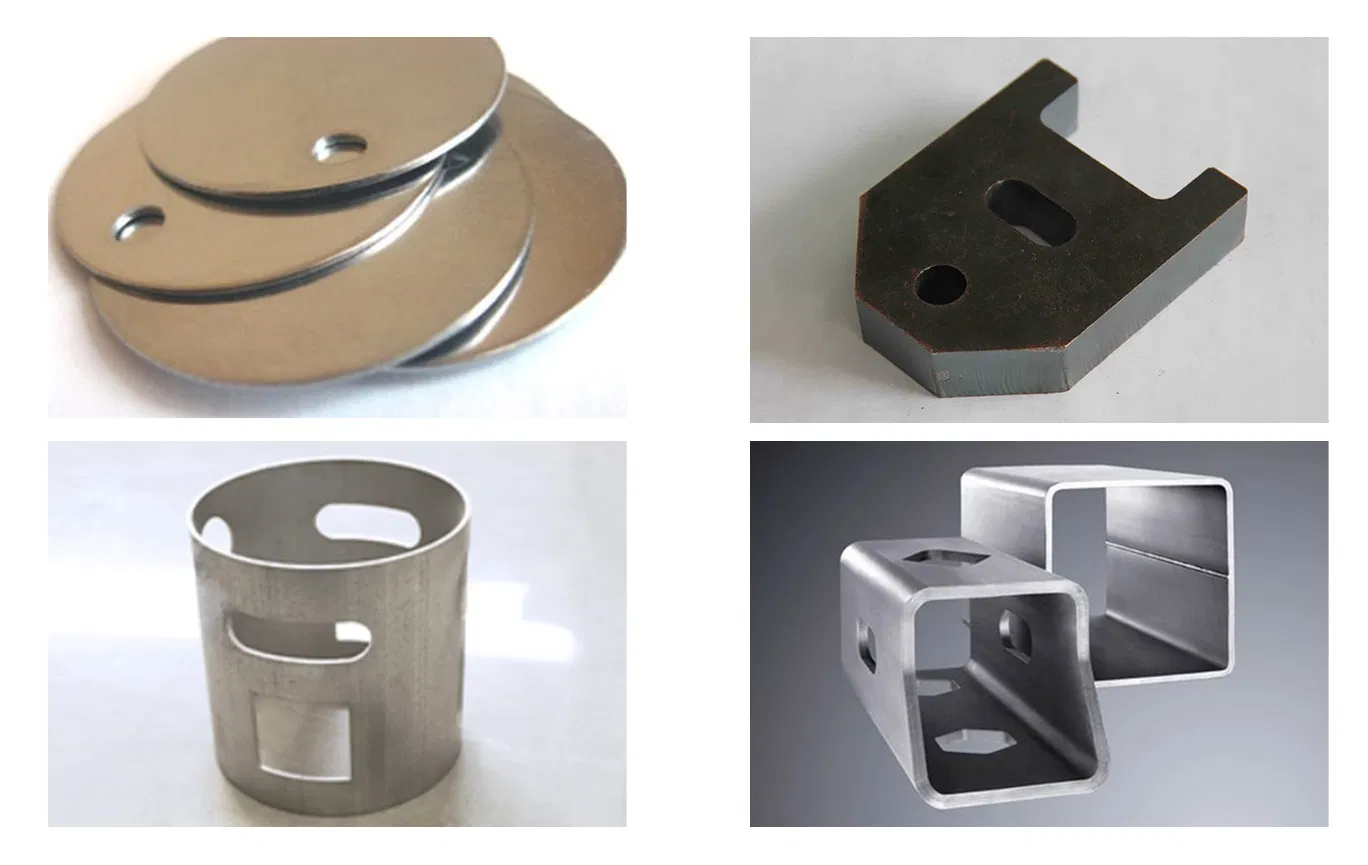

Processing Versatility: The machine excels across a wide range of industries, including metal fabrication, electronics, electrical appliances, agricultural machinery, metal parts manufacturing, and furniture production. It handles a broad spectrum of materials—including carbon steel, stainless steel, iron, aluminum, brass, copper, mild steel, and galvanized steel tubes—making it suitable for both sheet metal and tubular material processing.

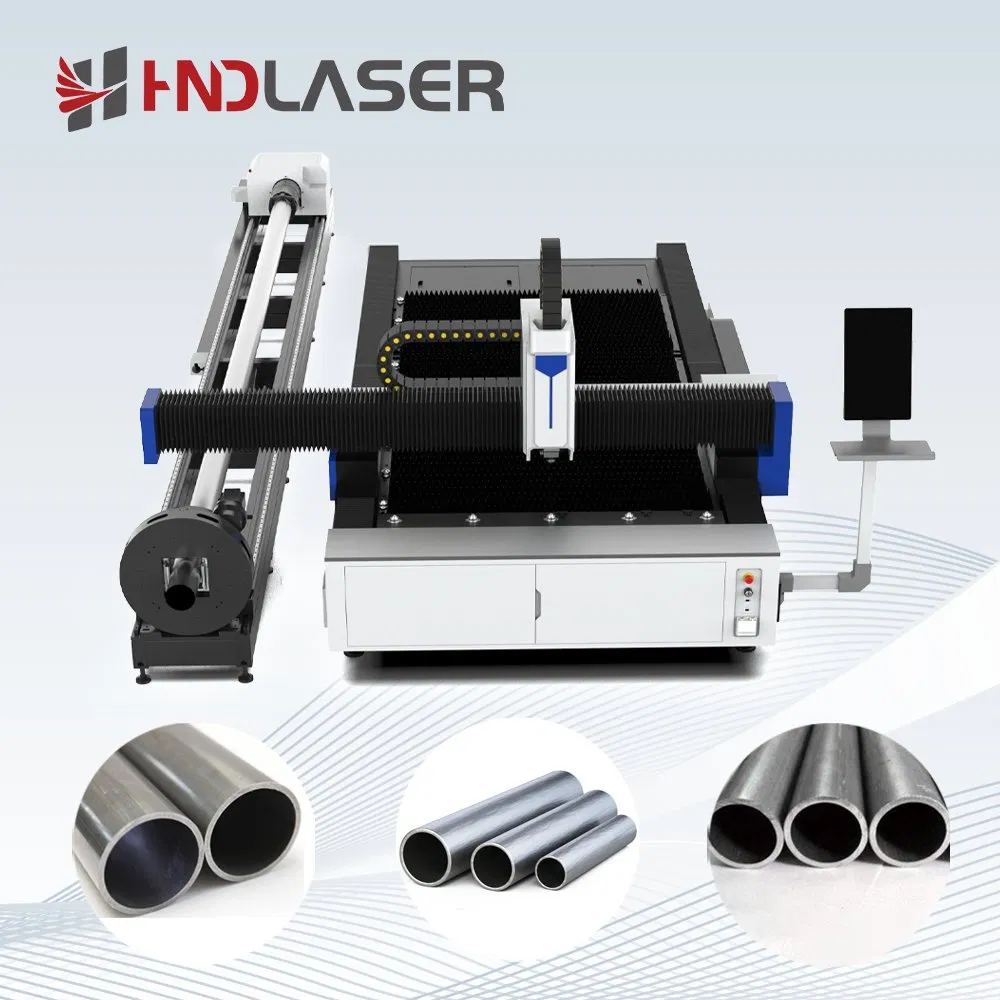

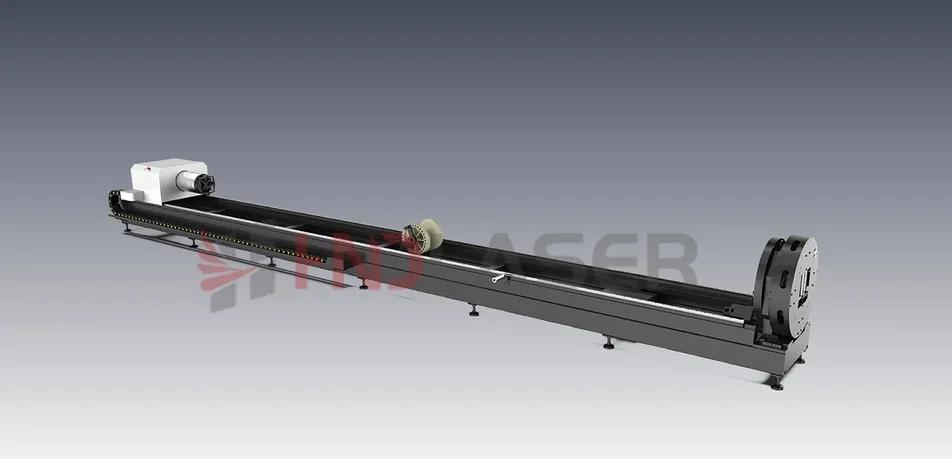

Rotary Support: The rotary axis supports a maximum cutting length of 6000 mm. It features an automatic pneumatic clamping system on both sides, enabling self-centering adjustment. The diagonal adjustable range is 20–230 mm. Equipped with an intelligent tube support design, it effectively prevents deformation during long tube cutting processes.
| Material properties | Maximum thickness (mm) | Quality cutting thickness (mm) |
|---|---|---|
| Carbon steel | 20 | 16 |
| Stainless steel | 12 | 8 |
| Aluminum | 10 | 6 |
| Brass | 6 | 4 |
Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.

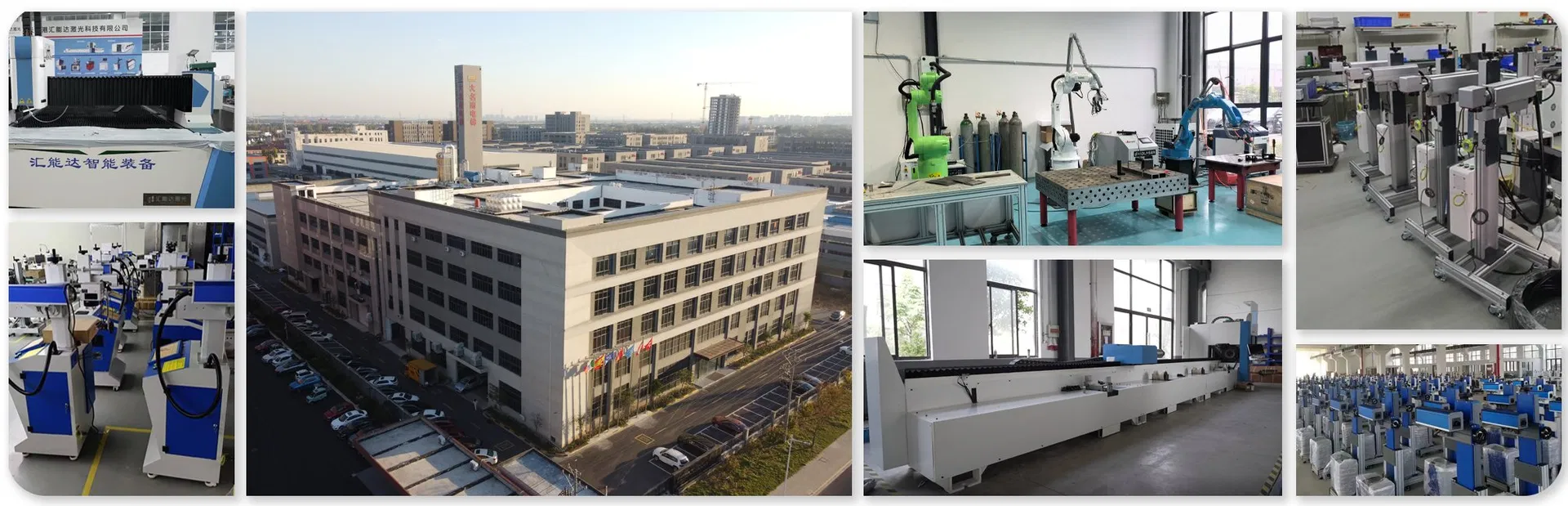

We are a distinguished national high-tech enterprise deeply anchored in the philosophy of people-oriented innovation, driven by scientific and technological progress. Our relentless focus on innovation and talent cultivation serves as the cornerstone for expanding our market presence and enhancing product recognition continuously.
