| Model NO. | QX Series |
| Control Type | Handheld |
| Warranty | 1 Year |
| Laser Source | Jpt/Gz/Ipg |
| Laser Power | 50W, 100W, 200W, 300W, 500W, 1000W |
| Cooling Mode | Air/Water Cooling |
| Supply Voltage | Single-Phase 220V±10%, 50/60Hz AC |
| Power Range (%) | 10-100 (Adjustment) |
| Working Temp/Hum. | 0~40degree / ≤80% |
| Power Consumption | 2500W (With Water Chiller) |
| Cleaning Speed | 10-30 M²/H |
| Specification | 64*43*91CM, 55KG |
| HS Code | 8479899990 |
| Production Capacity | 200sets/Month |
| Package Size | 64.00cm * 43.00cm * 91.00cm |
| Package Gross Weight | 55.000kg |

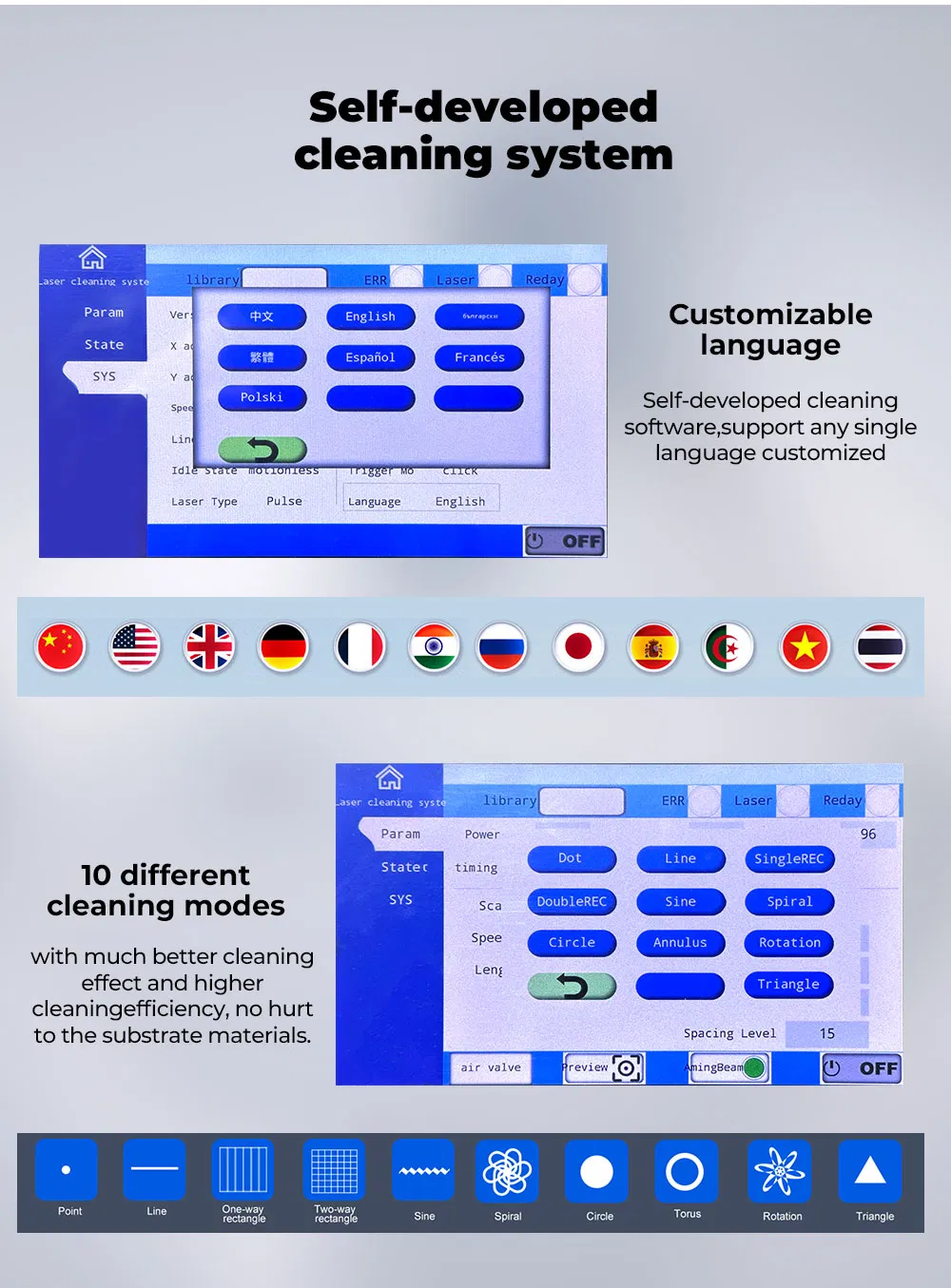

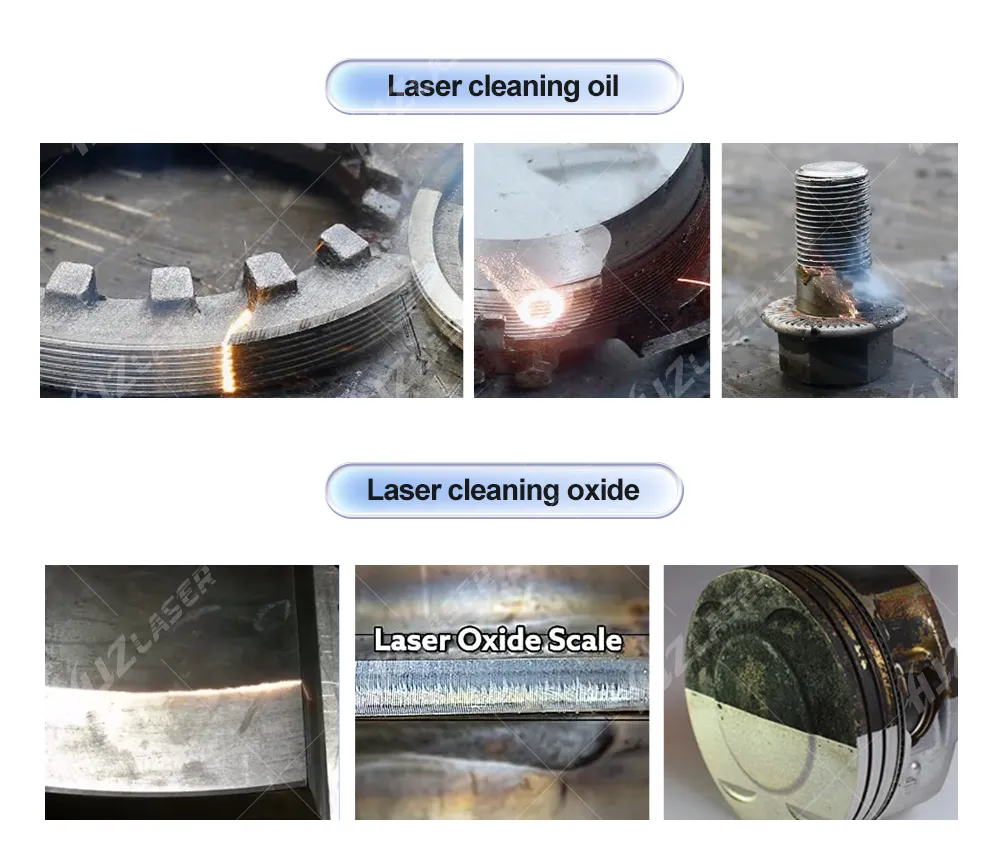

Unique self-developed spiral cleaning mode. Spiral series, scanning length and width can be set according to customer's demands, effectively avoiding the zebra crossing caused by traditional laser cleaning. High cleaning efficiency, uniform cleaning surface, no damage to substrate of components.

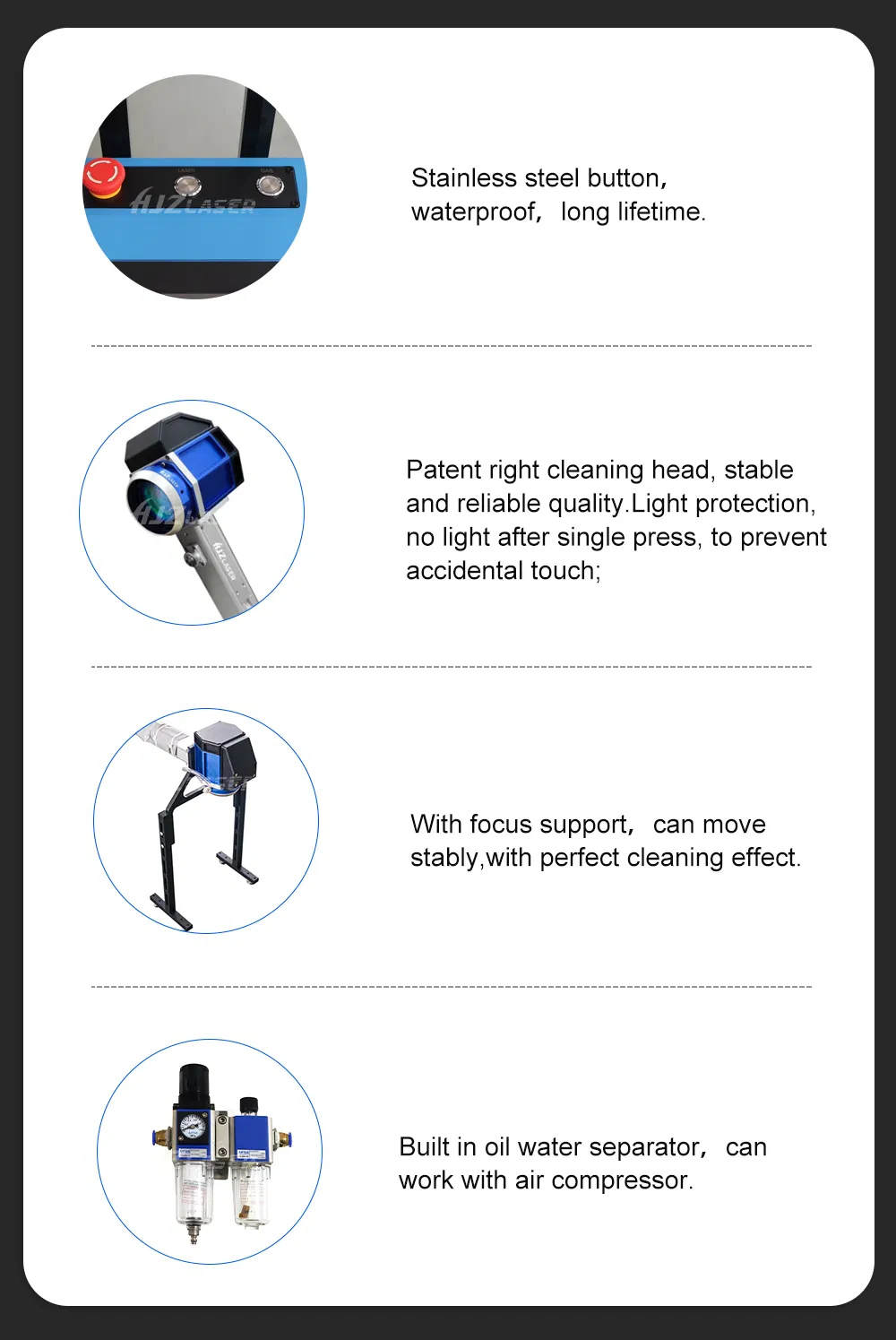

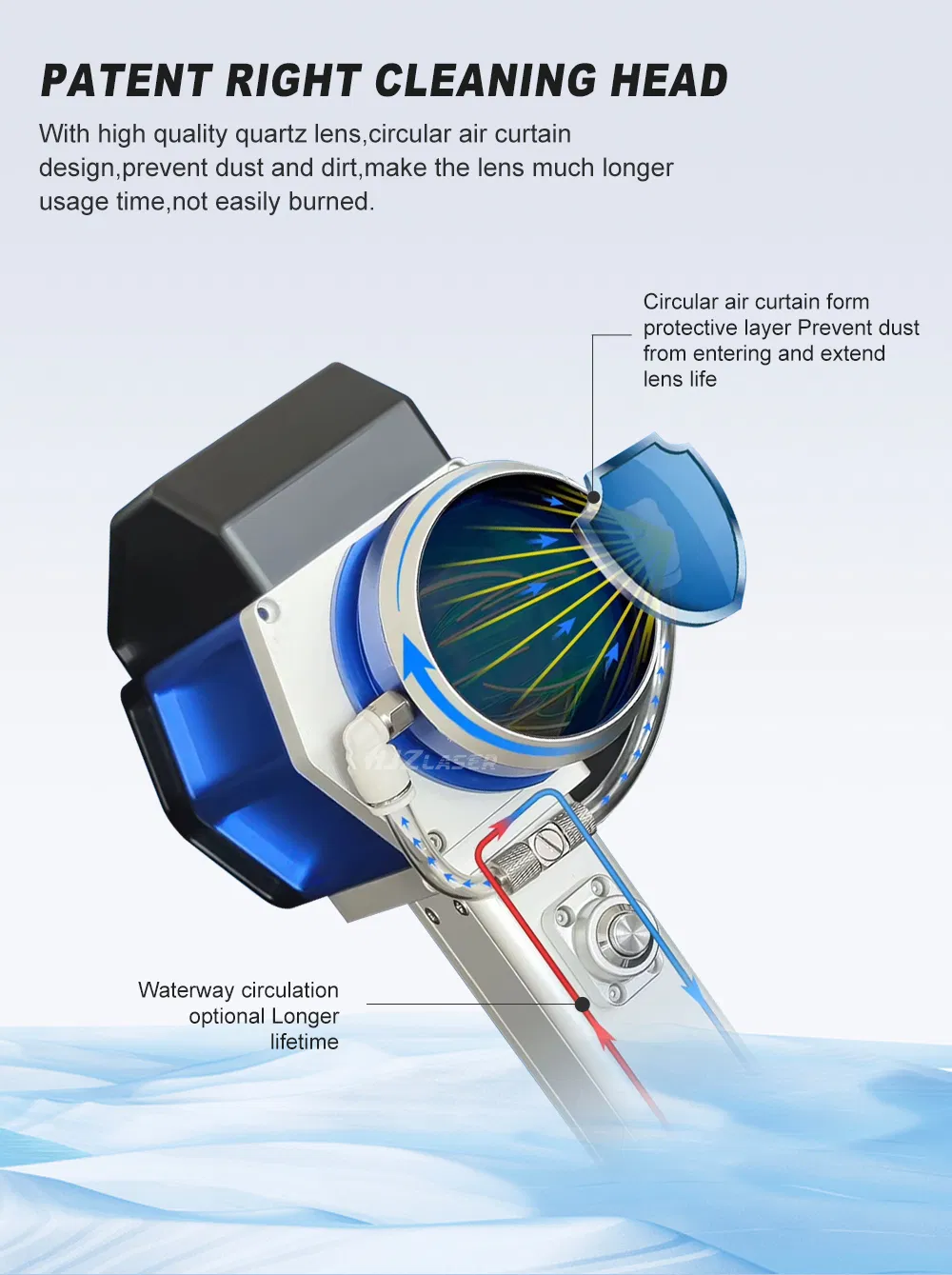

Professional laser cleaning optical design, high damage threshold of scanning mirrors, high beam transmittance and large focus depth of F-theta lens, can meet long-time working of high-power laser cleaning. Special custom laser and galvo scanner head, high cleaning speed, to meet various high-level laser cleaning application demands. Simple structure of hand-held cleaning head, light weight, ergonomic design and easy to operate. Can match with various types of laser, greatly improve the applicable range of this system.
No damage to the base of the material due to the high-efficiency no-touch surface cleaning performance.
Precise cleaning technique for targeted cleanings within selected and specific areas.
No need for chemical consumables, cleaning fluids, or other extra added supplies.

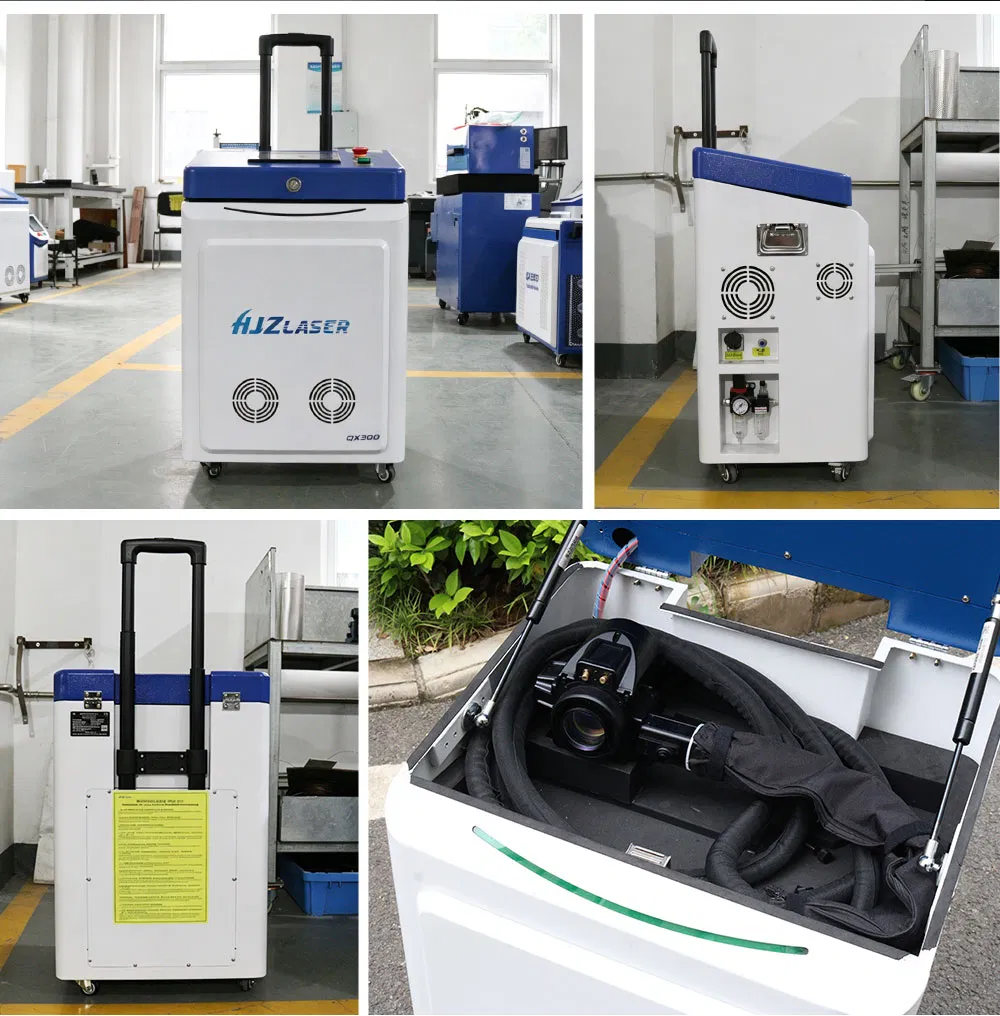

Easy to be operated, can be completely hand-held or auto-cleaned by installing a robotic arm.
Stable integrated design that leads to high reliability and practically zero extra maintenance.

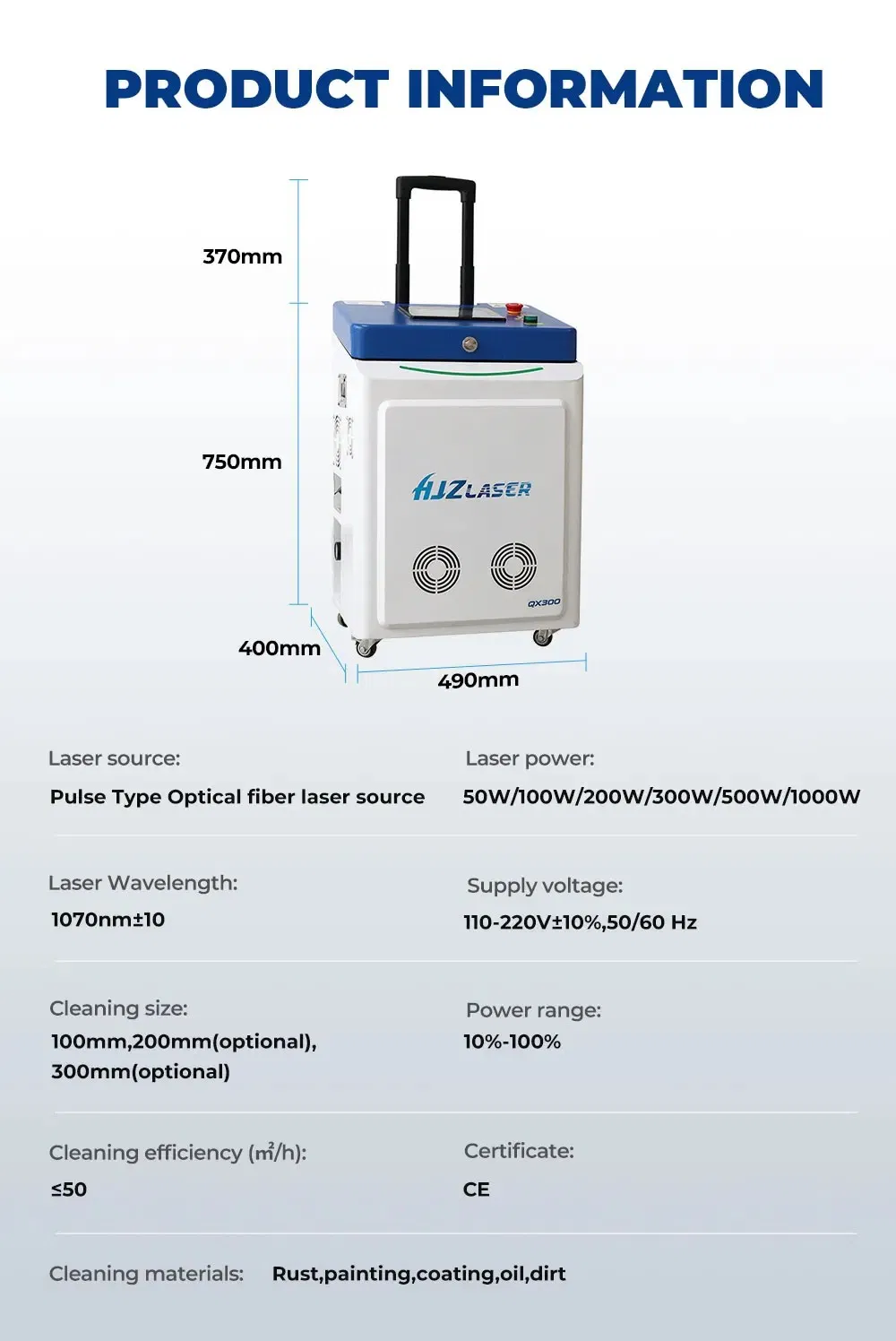

| Parameters | Specifications Details |
|---|---|
| Laser source | JPT/GZ fiber laser |
| Laser power | 50W/100W/200W/300W/500W/1000W |
| Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
| Machine power consumption | 2500W(within water chiller) |
| Setting up environment | Flat, no vibration, no impact |
| Working temperature | 0ºC~40ºC |
| Working humidity | ≤100% |
| Average laser power | ≥200 W |
| Power range (%) | 10-100(adjustment) |
| Repeat frequency (KHz) | 10-50(adjustment) |
| Cleaning efficiency (m2/h) | 12 |
| Focal length (mm) | 210/160 changeable |
| Cooling mode | Air/Water cooling |
| Size | 640mm×430mm×910mm |
| Weight | 55Kg |
| Scanning width | 10-600mm |
| Mobile mode | Handheld |
The CNC machine and accessories are wrapped cleanly with plastic protective sheets first.
The whole package unit is packed tightly into a heavy-duty plywood case designed for export.
The equipment can be shipped smoothly by sea, by railway, or by air freight according to needs.
Operators can get hands-on professional, step-by-step training at our dedicated facility.
Engineers can be dispatched to customer locations. Accommodation and transit costs are covered by clients.
Get fully real-time remote support via instant visual collaboration software (e.g. Skype/Teamviewer).
