Overview
Model NO.
HJZ-DB
Laser Visibility
Visible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Deep Ultraviolet
Laser Classification
Solid Laser
Type
UV Laser
Marking Method
Scanning Marking
Application Material
Metal, Non-Metal
Laser Output Power
3W 5W 10W 15W 20W
Operating Voltage
110-240V
Graphic Format Supported
Plt BMP JPG PNG Tip Pcx Tga Ico Dxf Dst Ai
Working Area
110mm, 150mm, 175mm, 200mm, 300mm...
Certification
CE, FDA, SGS, TUV, ISO
Control Software
Bsl/Ezcad
Operating System
Win7 Win8 Win10
Working Temperature
0~40degree/≤80%
Transport Package
Standard Plywood Packing for Export
Specification
710X510X710MM
HS Code
8456110090
Production Capacity
600sets/Month
Package Size
75.00cm * 38.00cm * 75.00cm
Package Gross Weight
55.000kg

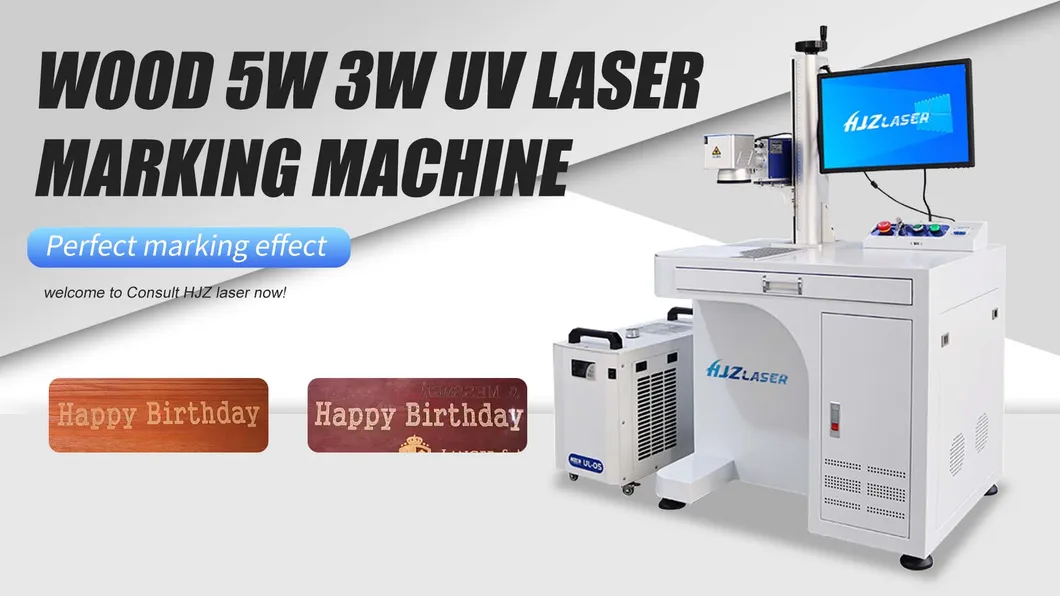

Product Description

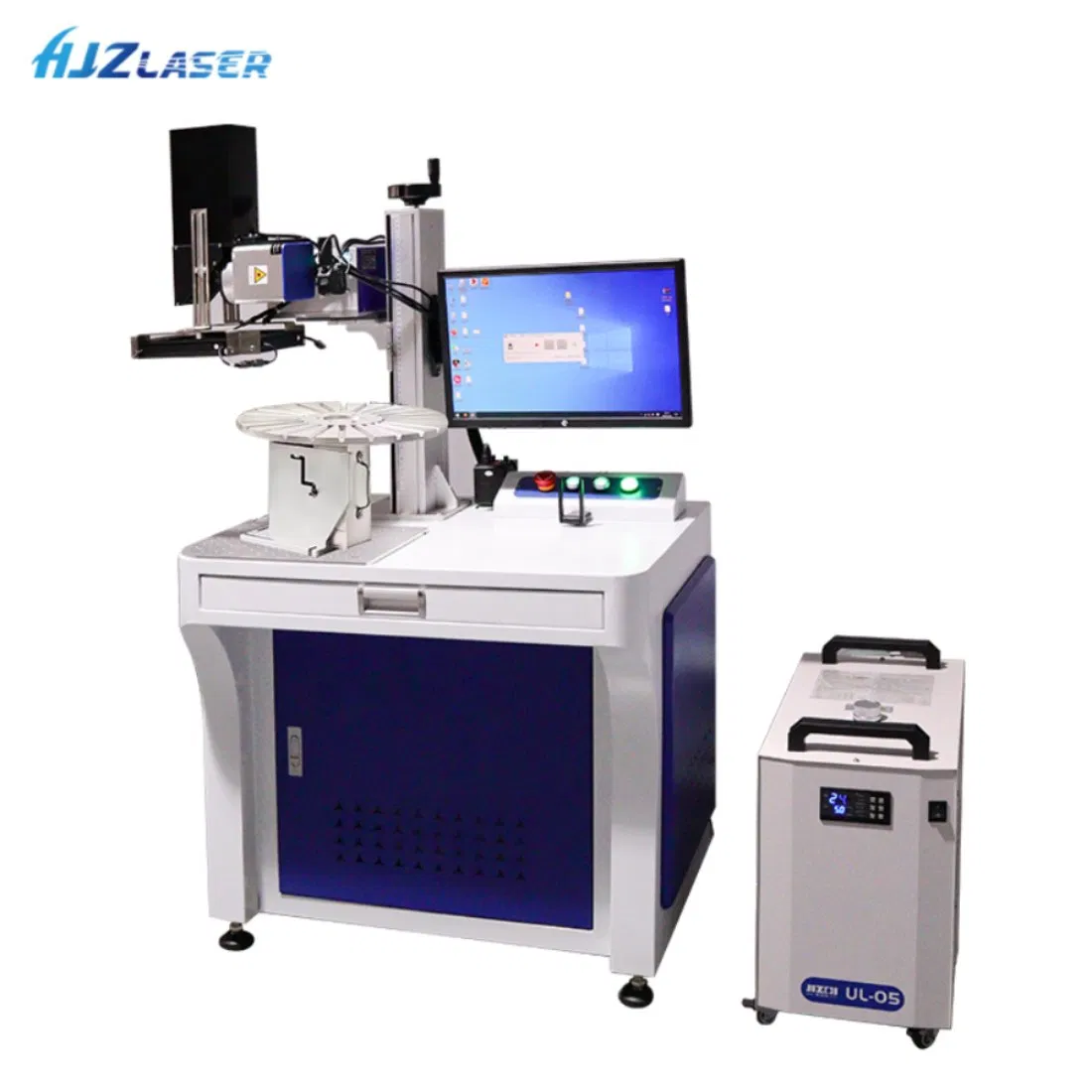

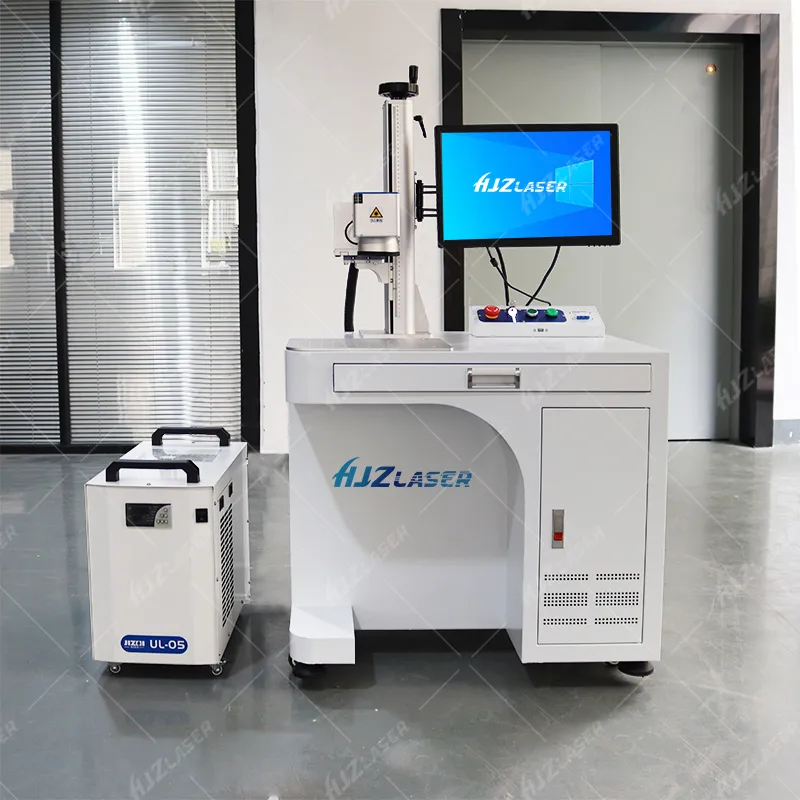

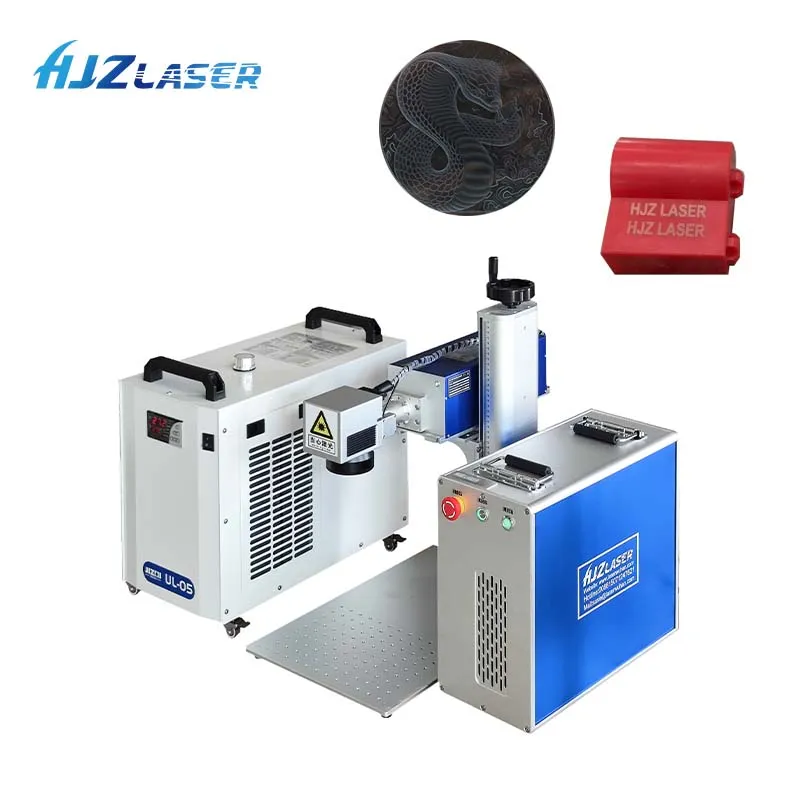

3W 5W 10W UV 20W 30W 50W Color Fiber Metal Laser Marking Cutting Engraving Machine with Rotary Laser Marking Machine for Glass Crystal Metal Plastic
This UV Laser Marking Machine adopts three-order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has an extremely small laser facula, which reduces mechanical deformation to a significant extent and diminishes the influence of the heat-process to a very limited area.
Therefore, it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packaging materials, medicines, mobile phones, keyboards, chargers, etc.
Machine Features
- Stable water-cooling, high-precision temperature control.
- Applied for hyperfine marking and engraving.
- High-quality permanent marking performance.
- Environmentally friendly and safe machinery layout.
- Excellent electro-optical conversion efficiency and long service life.

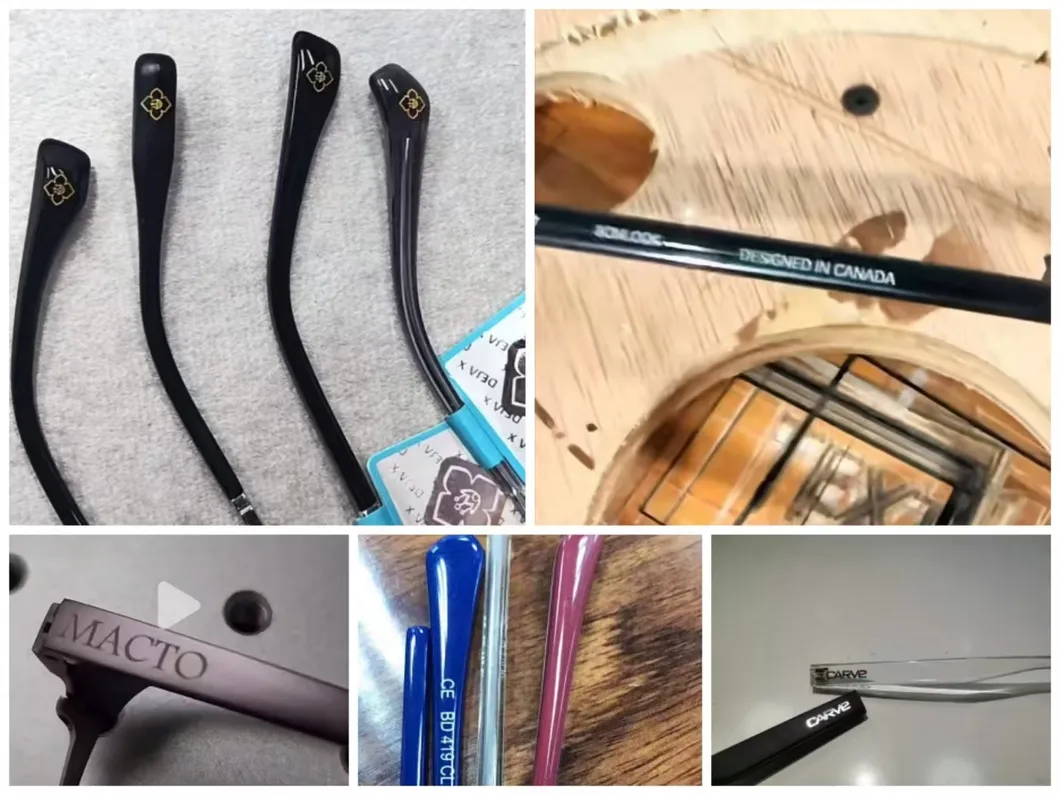

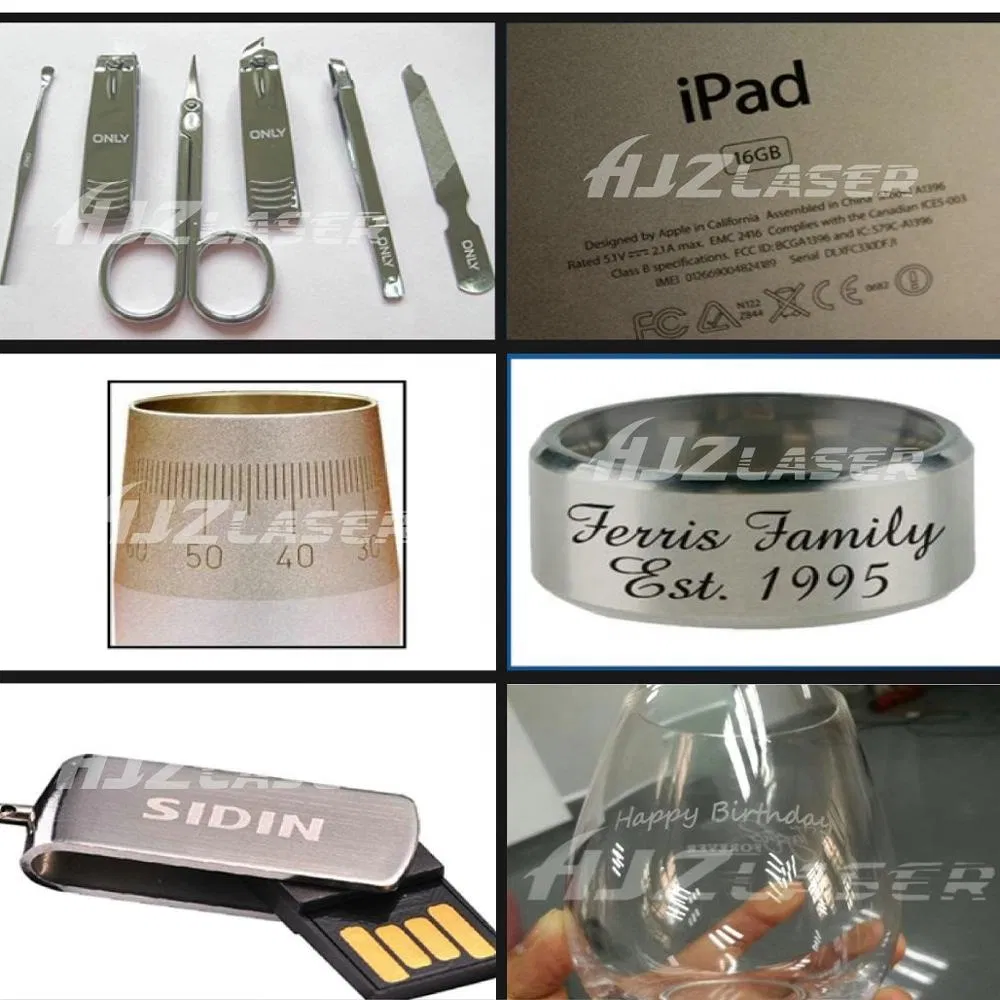

Product Application

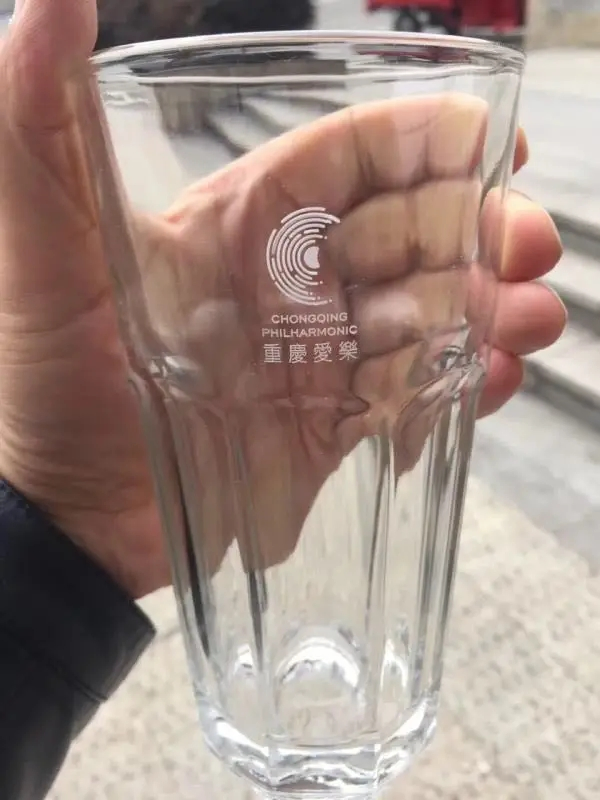

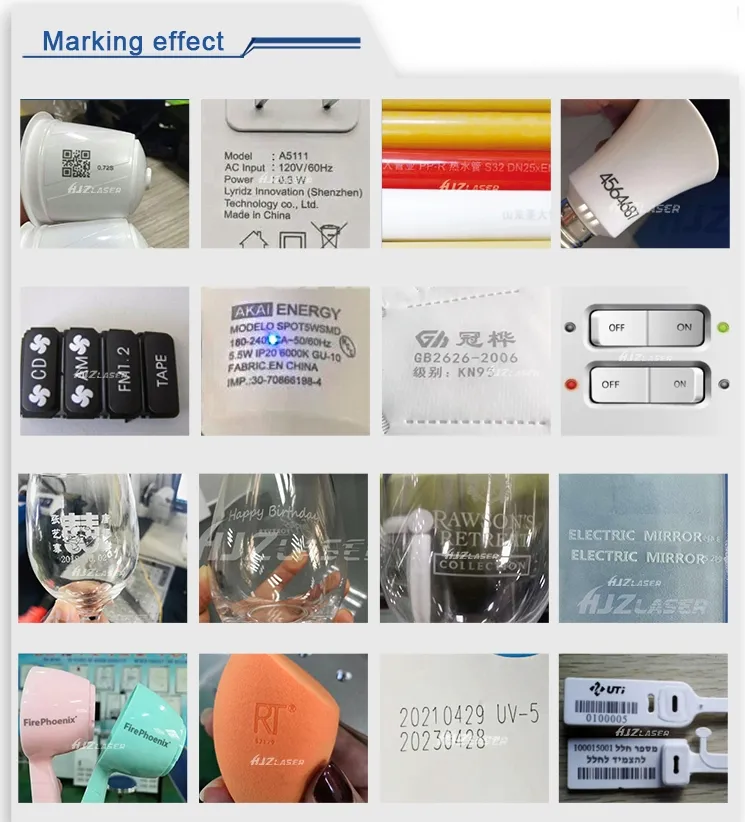

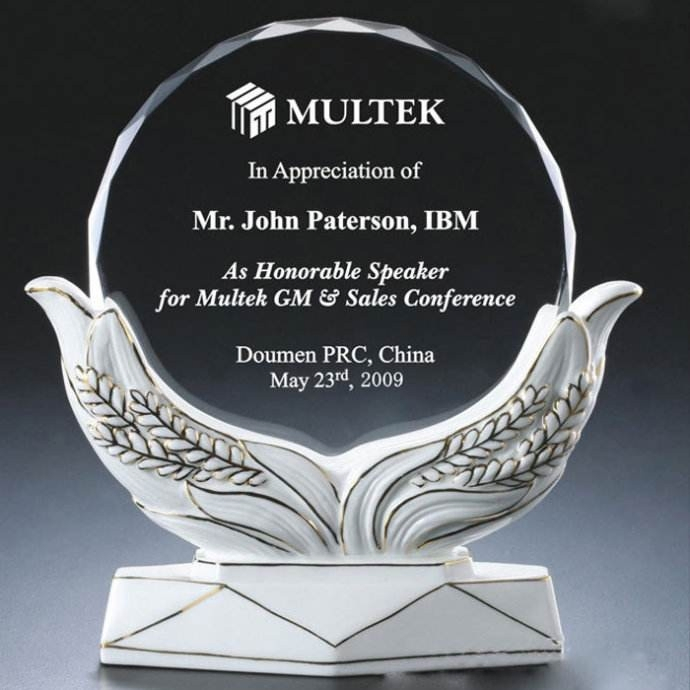

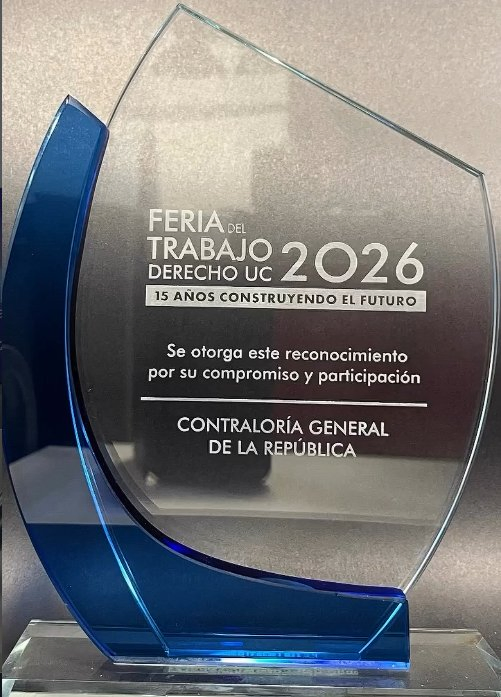

Mainly used for marking and creating micro-holes on all kinds of glass, charger shells, TFT, LCD, plasma screens, textiles, thin ceramics, silicon, IC Crystal, sapphire, polymers, drugs, cosmetics, and polymer materials such as wire and bottles (boxes) surfaces.

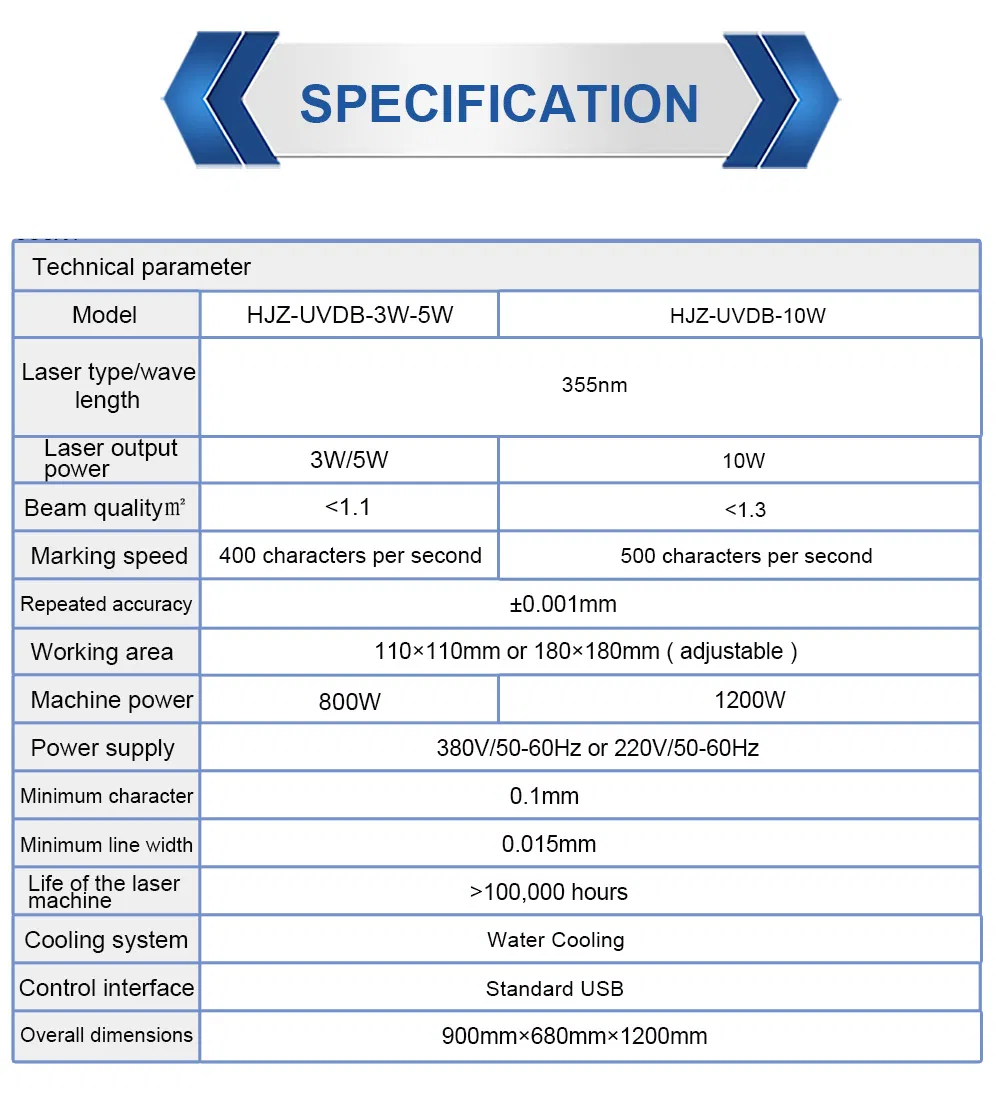

Product Parameters
| Product Name |
UV Laser Engraving Machine |
| Model |
HJZ-UVDB |
| Output Power |
3W/5W/10W/15W/20W... |
| Frequency |
20-150KHZ |
| Beam Quality |
<1.2 |
| Depth of Engraving (based on material) |
<0.3mm |
| Gross Power |
600W |
| Operating Voltage |
220V 50/60HZ 5A |
| Laser Wavelength |
355nm |
| Engraving Range |
100-500mm |
| Repetition Precision |
±0.003mm |
| Engraving Speed |
≤8000mm/s |
| Minimum Line Width |
0.01mm |
| Character Size |
0.5-110mm |
| Cooling System |
Air/Water Cooling |
| Cable Length |
3m (5m optional) |
| Working Temperature Range |
10-30ºC |
| Working Humidity |
20%-80% |
Production & Capability
Packaging & Shipping
After Sales Service
Pre-Sale Service
- Provide professional technical guidance tailored to individual demands.
- Design specific laser engraving/cutting solutions keeping feasibility in focus.
- Provide sample-making, testing, and live machinery demonstrations.
After-Sale Commitment
- 1-year warranty for the laser metal marking machinery.
- Lifelong technical repair services.
- Engineers available to provide service support overseas.
- Comprehensive multi-language support system operating 24 hours daily.
Available Training Methods:
- In-Factory Training: Clients' workers can visit the manufacturing facility to undergo standard, professional hand-by-hand operation training.
- On-Site Training: Expert engineers can be deployed to the customer's facility. (Travel, food, and lodging expenses are managed by the customer).
- Remote Digital Support: Interactive setup and usage training using tools like Skype, TeamViewer, and other communication options.
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturing factory, with more than 10 years of intensive specialization in the industrial laser field.
Q: How long is the standard delivery timeline?
A: Generally, shipping processes range from 3 to 10 days after payment clearance. The final timeline depends on the ordered items and transaction quantity.
Q: What is the main application of the UV Laser Marking Machine?
A: It is ideal for high-precision marking on non-metal and metal materials, specifically glass, charger shells, TFT, LCD, plasma screens, textiles, thin ceramics, sapphire, silicon, IC crystals, and medical or cosmetic packaging.
Q: What operating systems and graphic formats are supported?
A: The setup supports Windows 7, Windows 8, and Windows 10 operating systems running Bsl/Ezcad software, processing format inputs including PLT, BMP, JPG, PNG, DXF, AI, DST, and more.
Q: How does the cooling system work on this machine?
A: The system employs highly efficient air or water cooling structures, delivering stable operations with high-precision temperature control.
Q: What after-sales guarantees do you provide?
A: We offer a robust 1-year product warranty, lifelong technical support, overseas installation options, and 24-hour online technical service.
