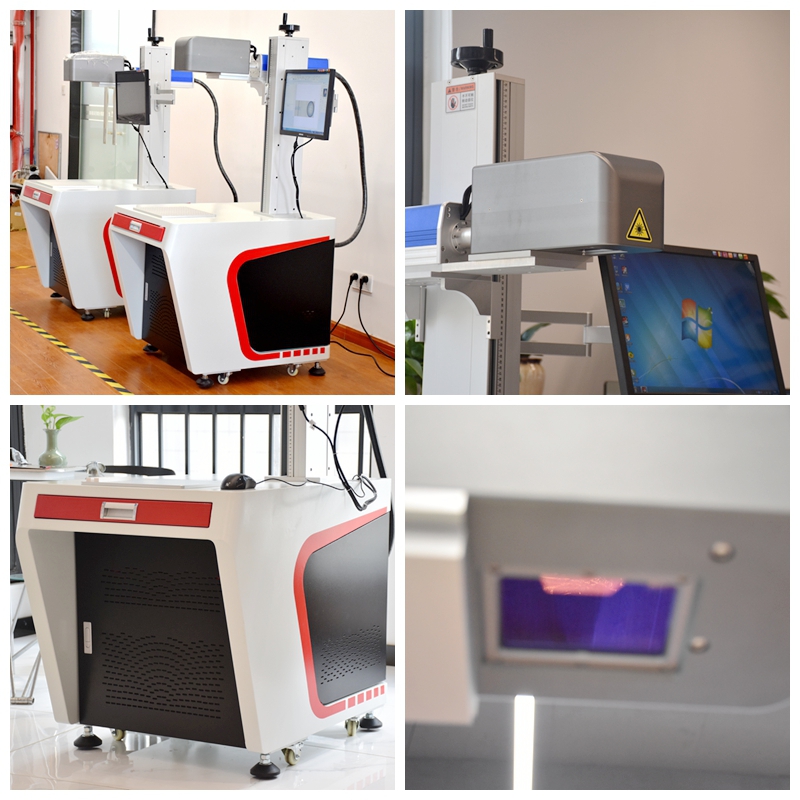

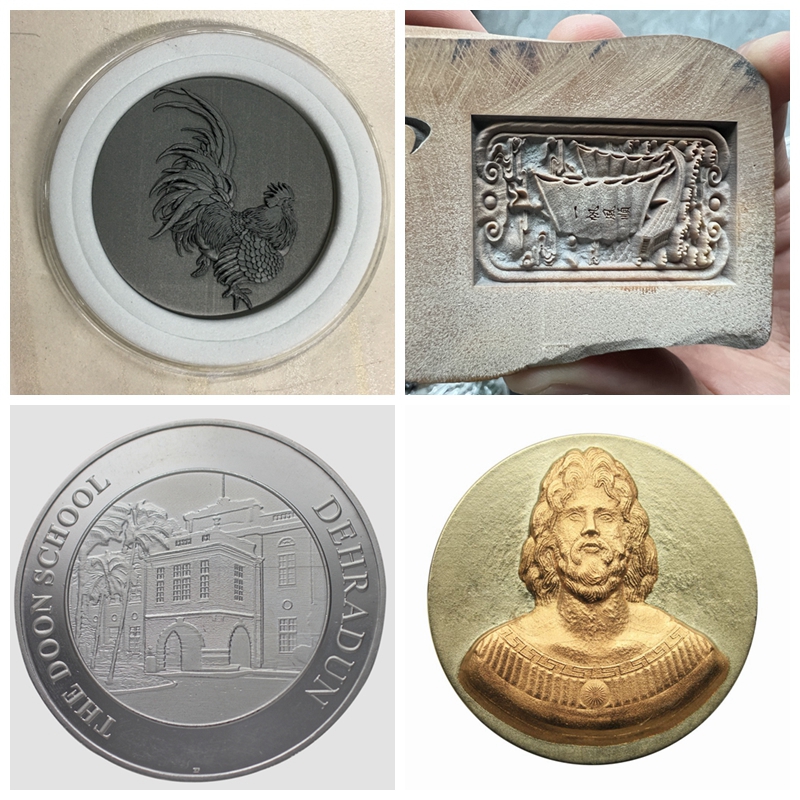

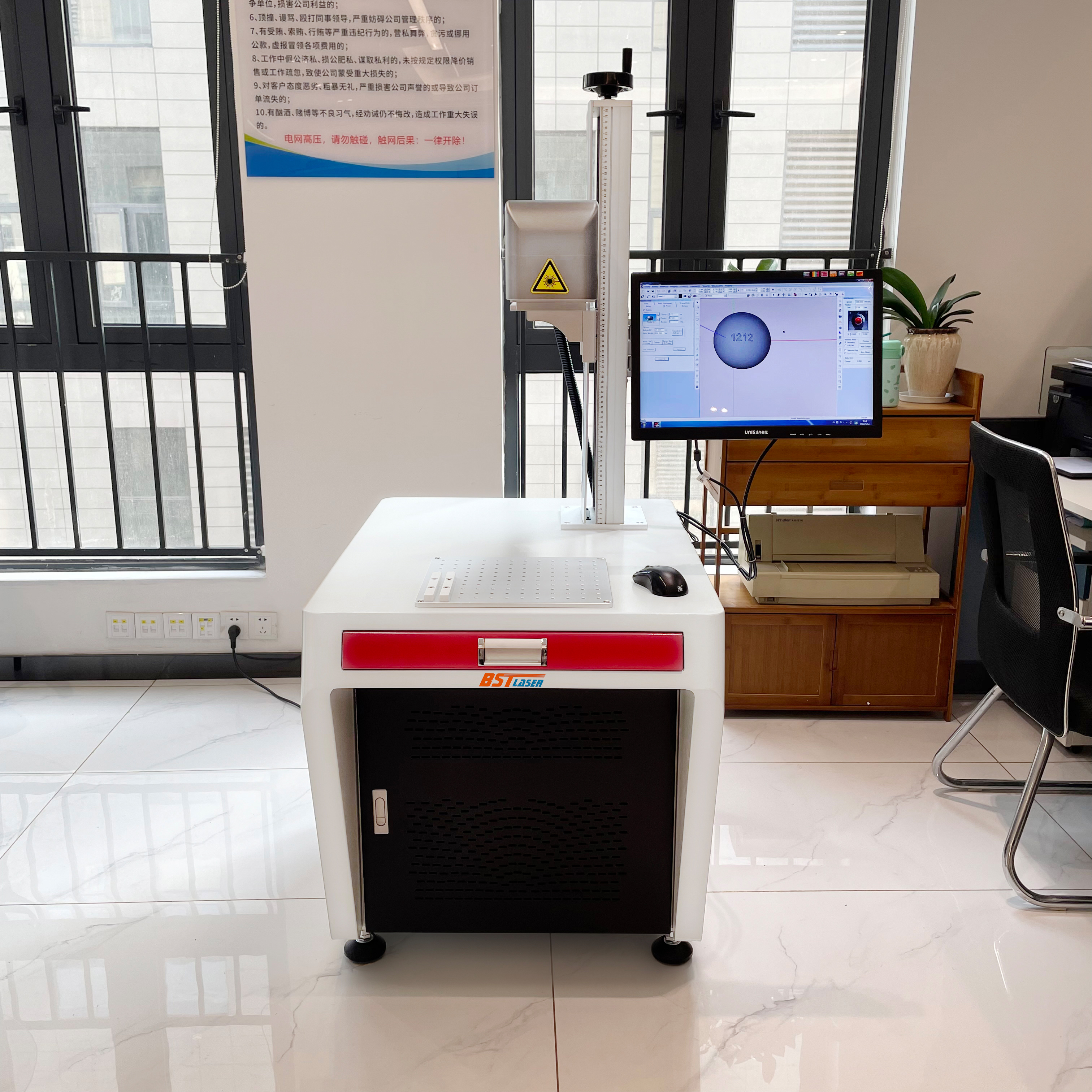

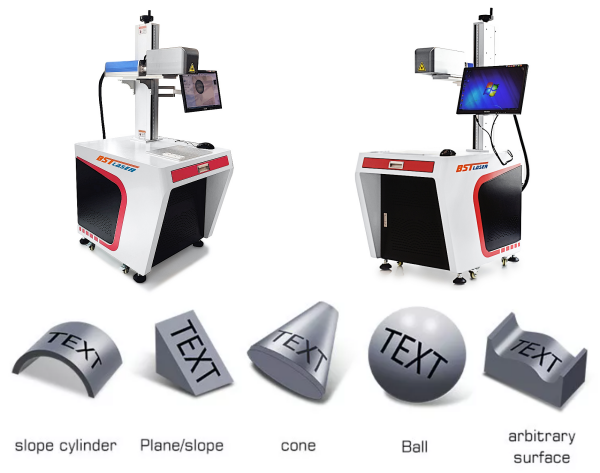

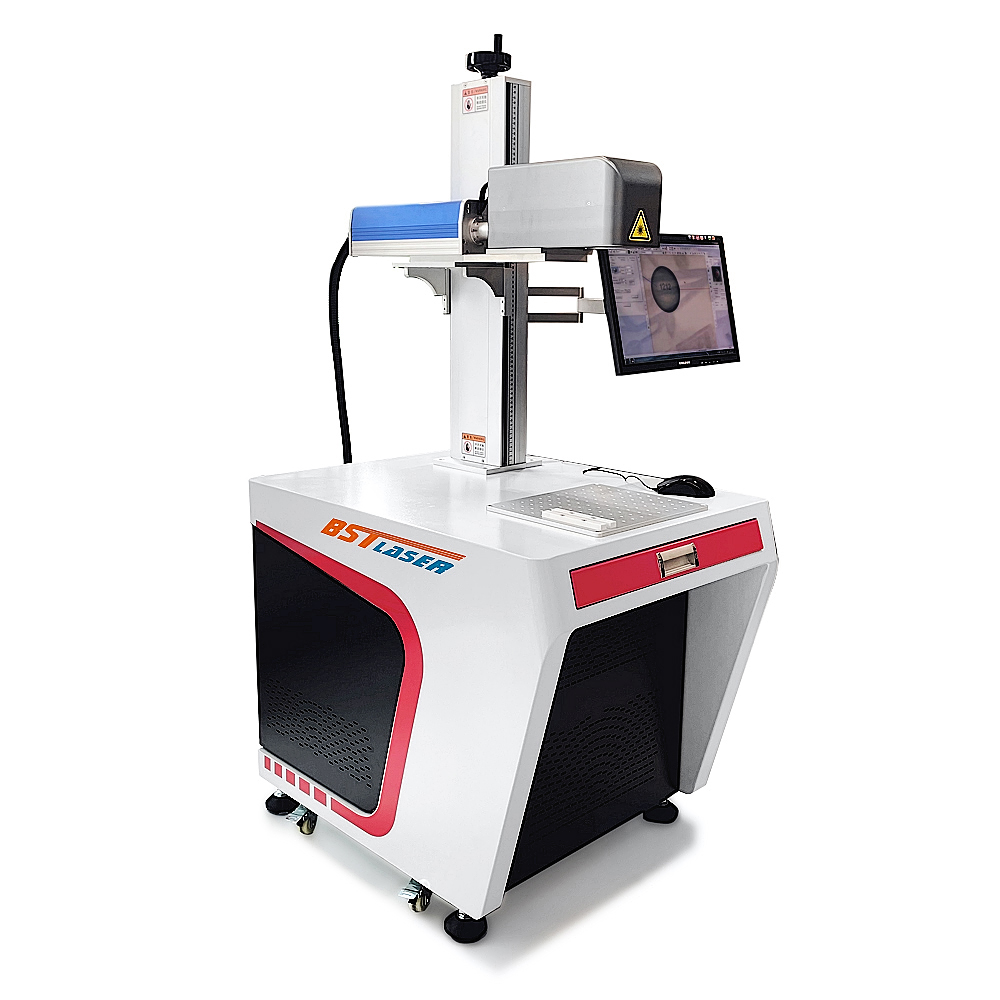

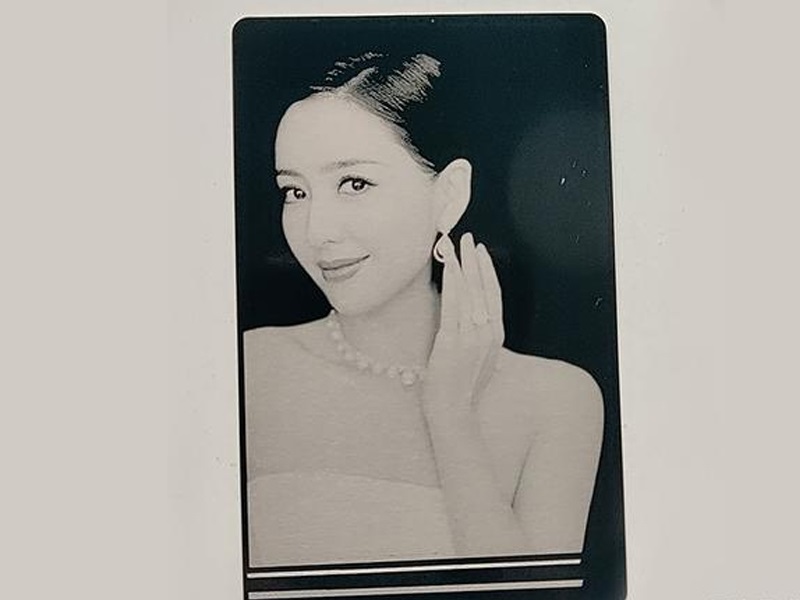

Our newly arrived 3D dynamic fiber engraving marking machine adopts core components with a high-speed and high-precision 3D galvo, combined with optimized 3D software and control system. These ensure it can engrave large-scale areas up to a maximum of 600 x 600mm, curved surfaces with a depth of 60mm/150mm, and deep engraving cravings with a depth of 1mm, delivering high precision and exceptional marking effects.

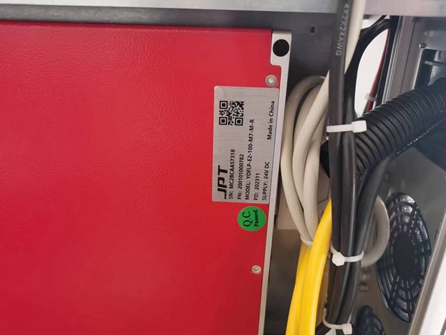

Featuring the JPT MOPA M7 fiber laser device. JPT M7 series high-power pulsed fiber lasers utilize a Master Oscillator Power Amplifier (MOPA) configuration, offering outstanding laser performance and highly controllable temporal pulse shaping. Comes with a 36-month guarantee and lifetime technical support.

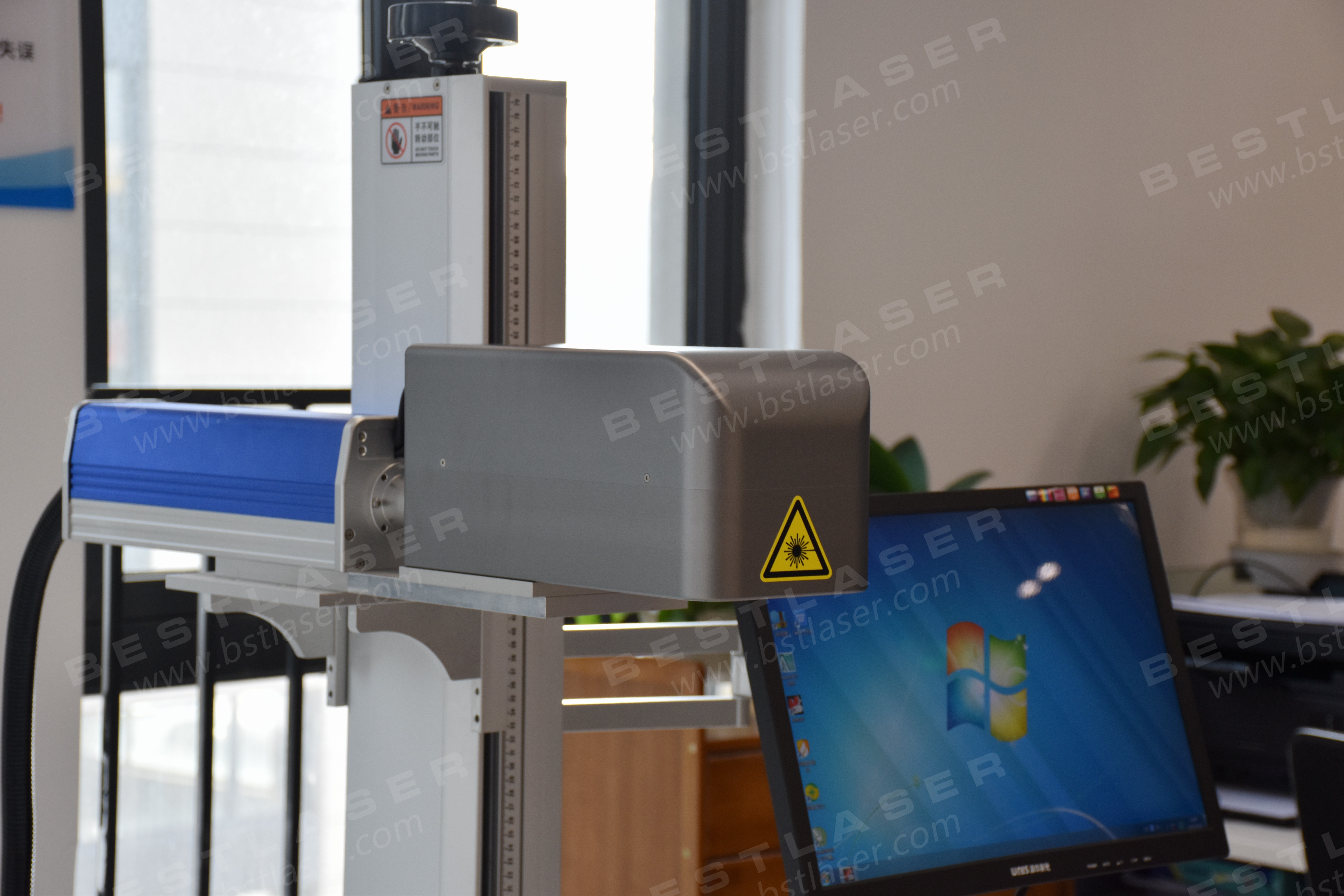

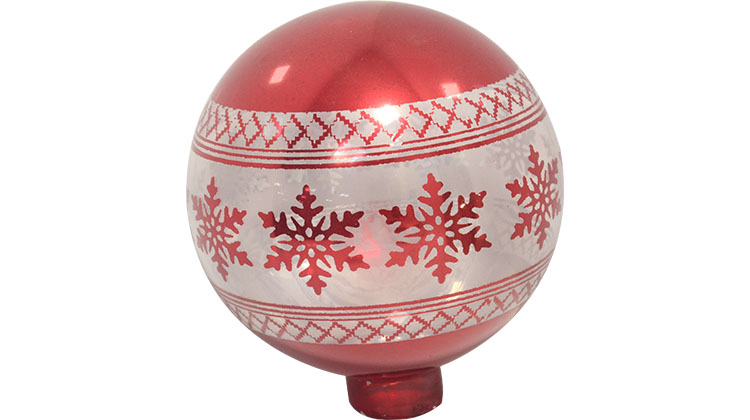

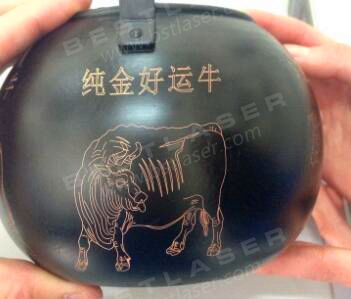

Equipped with an advanced 3D galvanometer scanner allowing uniform marking quality across 3D curved surfaces within a height range of 0-60mm/150mm. Incorporates a reliable brand Sino-Galvo 3D Dynamic Focusing System for curved, large flat surfaces and deep engraving projects.

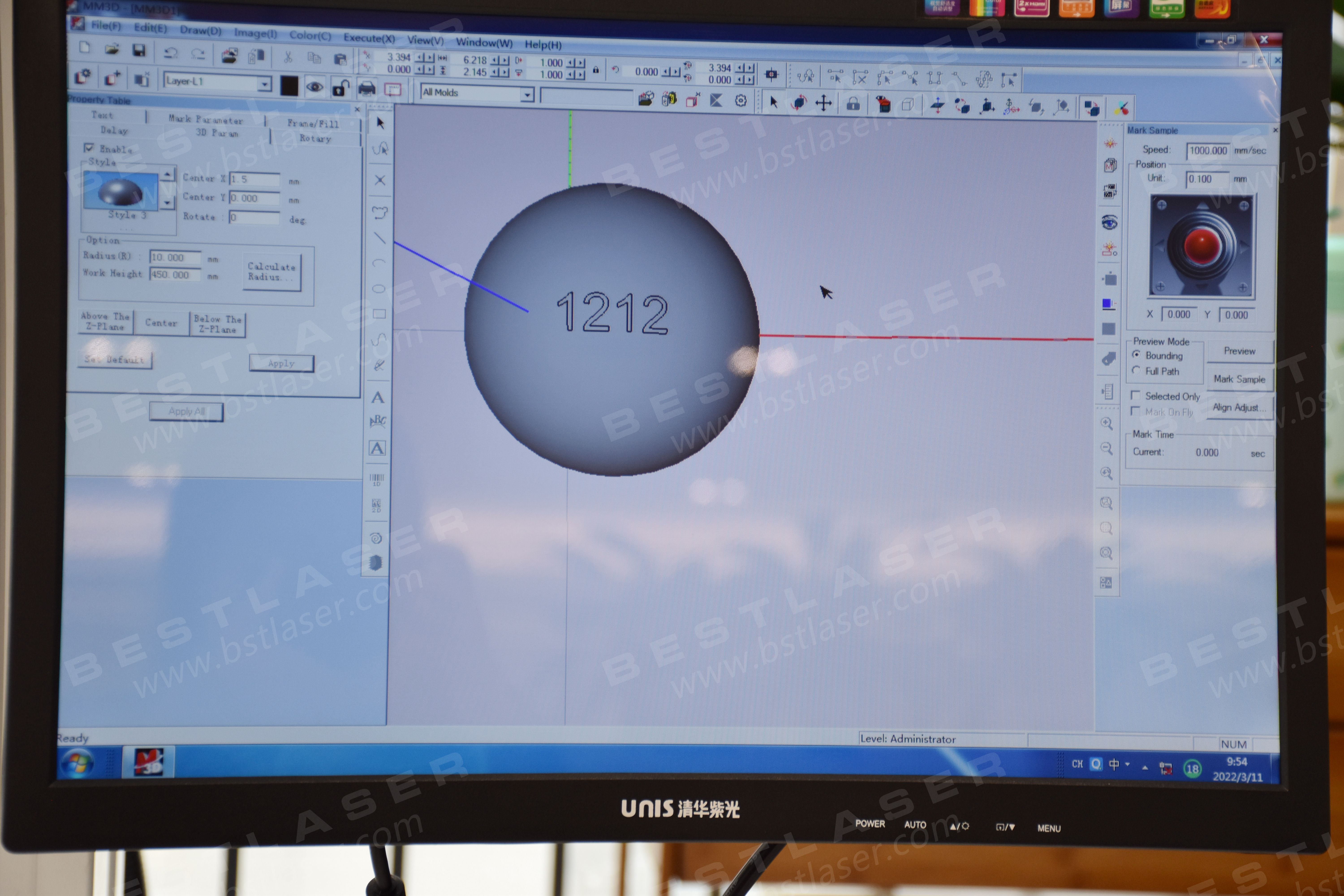

Imported 3D Dynamic Software featuring a user-friendly operating interface. Supports a wide variety of languages and allows simple imports and editing of charts from major 3D design software.

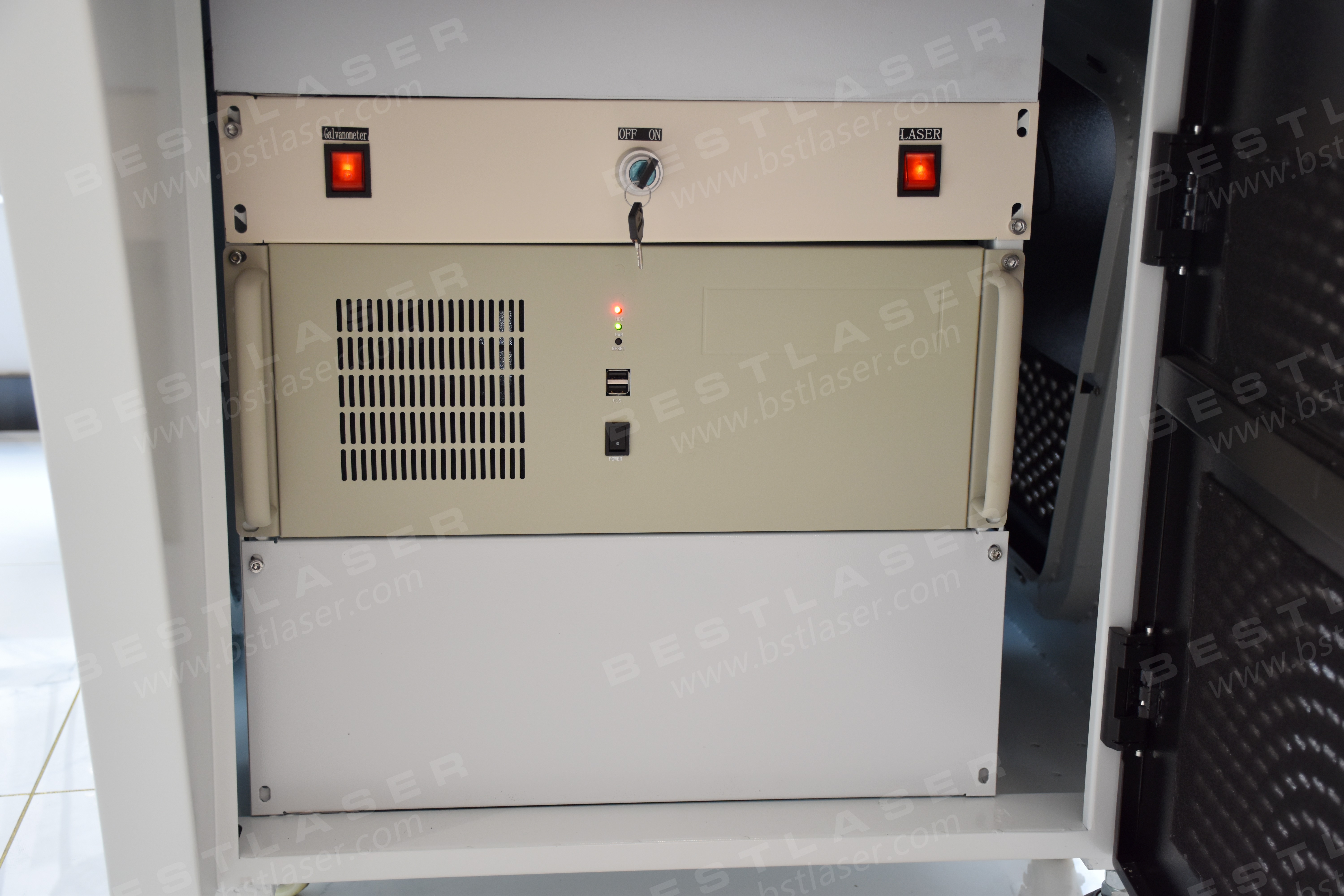

Brand-new, robust industrial PC optimized for parameter setup, eliminating software errors, bugs, or blue screens for smooth daily production.

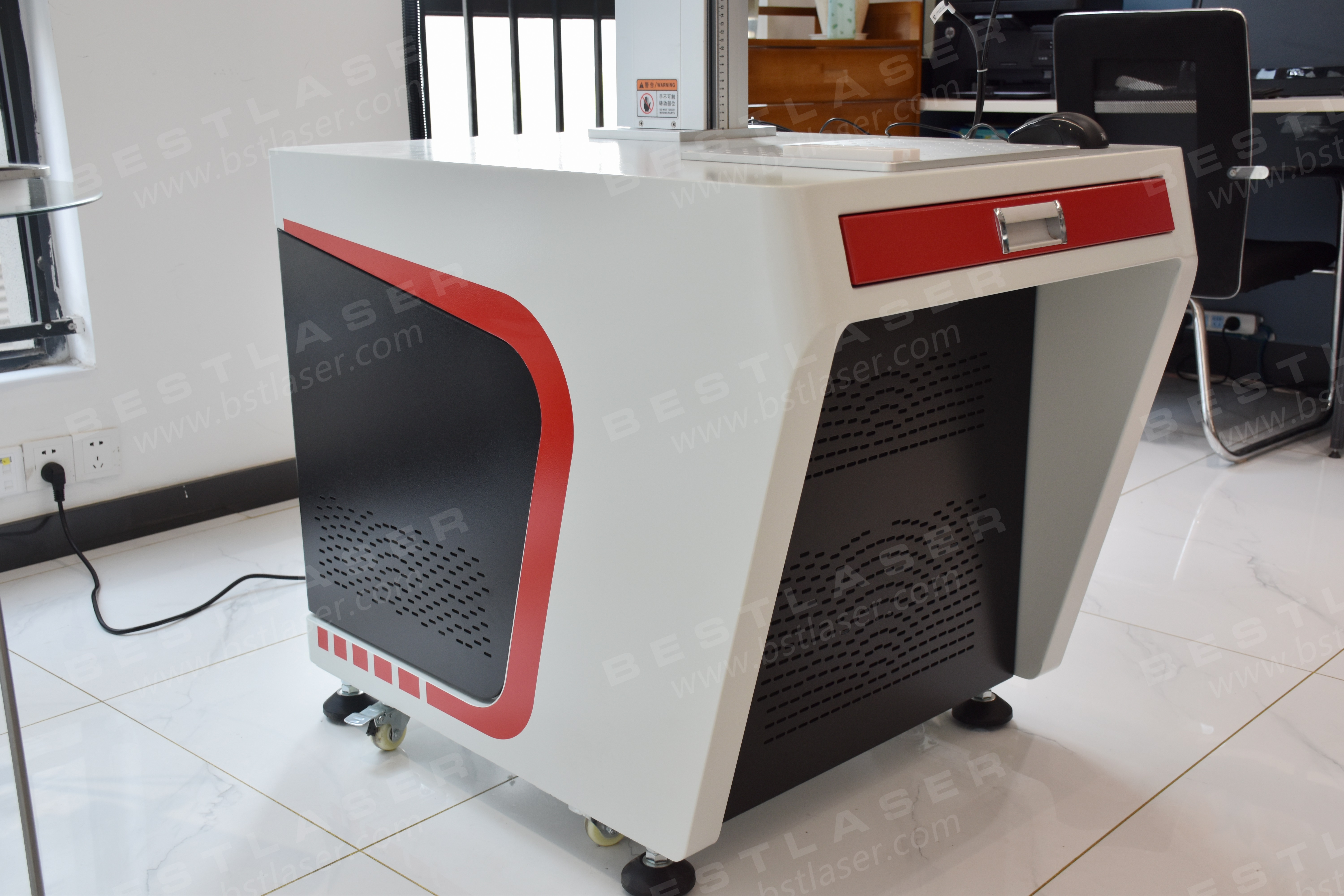

Heavy-duty, thicker structural cabinet designed to handle extensive industrial use without deformation, ensuring long-term optical alignment.

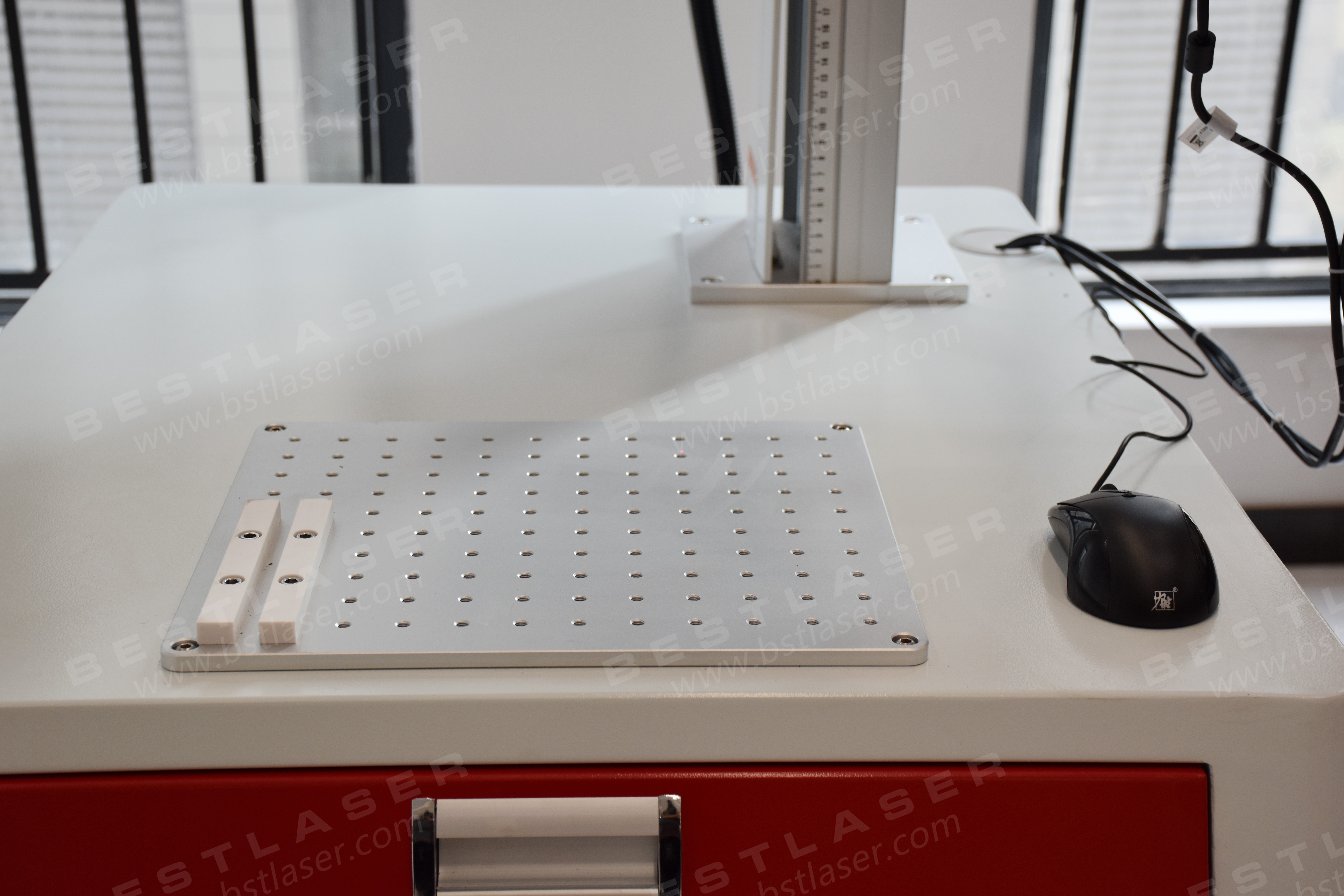

Constructed from premium aluminum alloy. Size options include 300*300mm, 400*400mm, 500*500mm, and 600*600mm. Complete with pre-drilled layout holes for convenient clamping, plus dedicated fixtures for nameplate metal engraving.

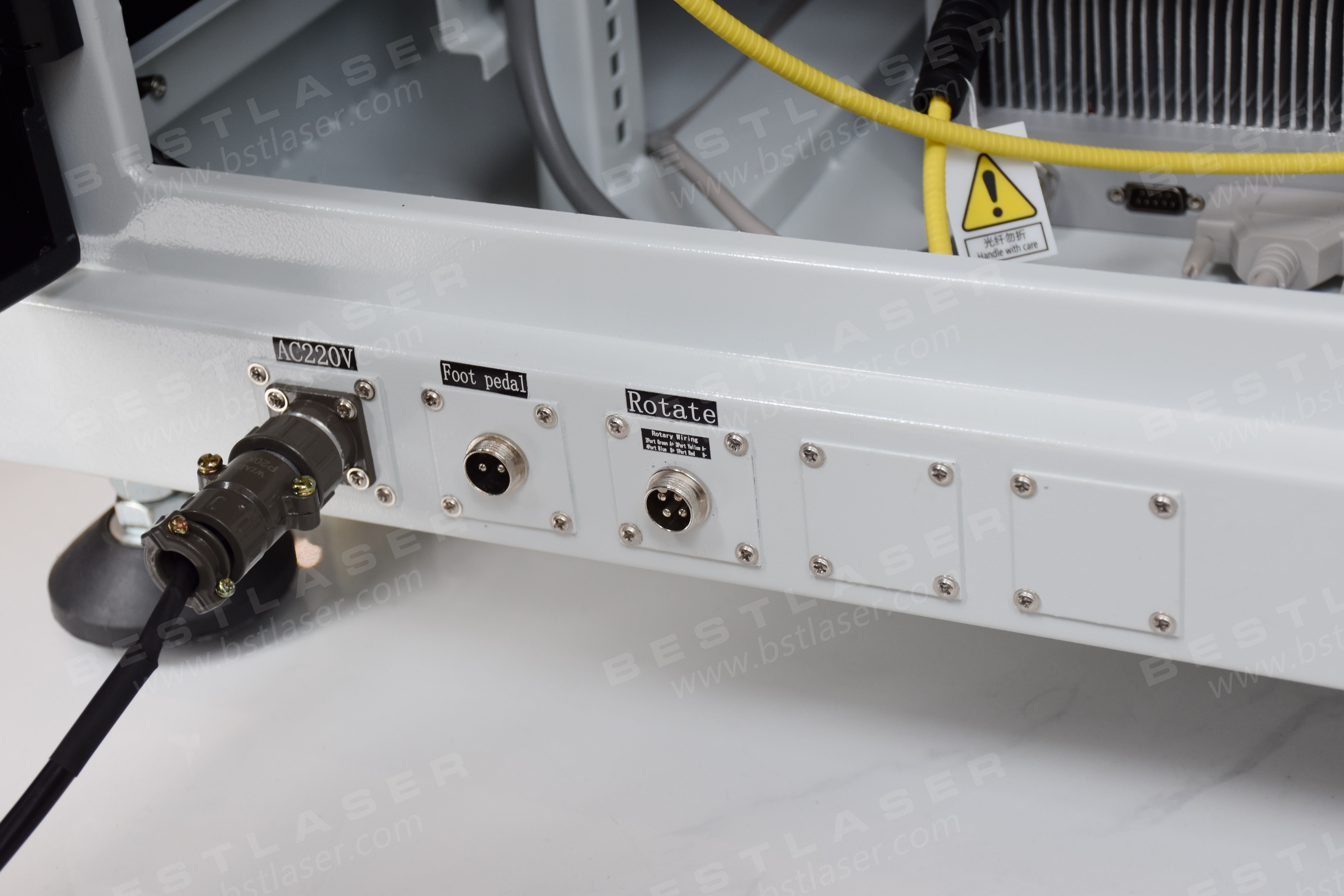

All connection ports are clearly marked with premium-quality, recognizable labels (Power Supply, Foot Pedal, Rotary Device, etc.) for easy installation and maintenance.

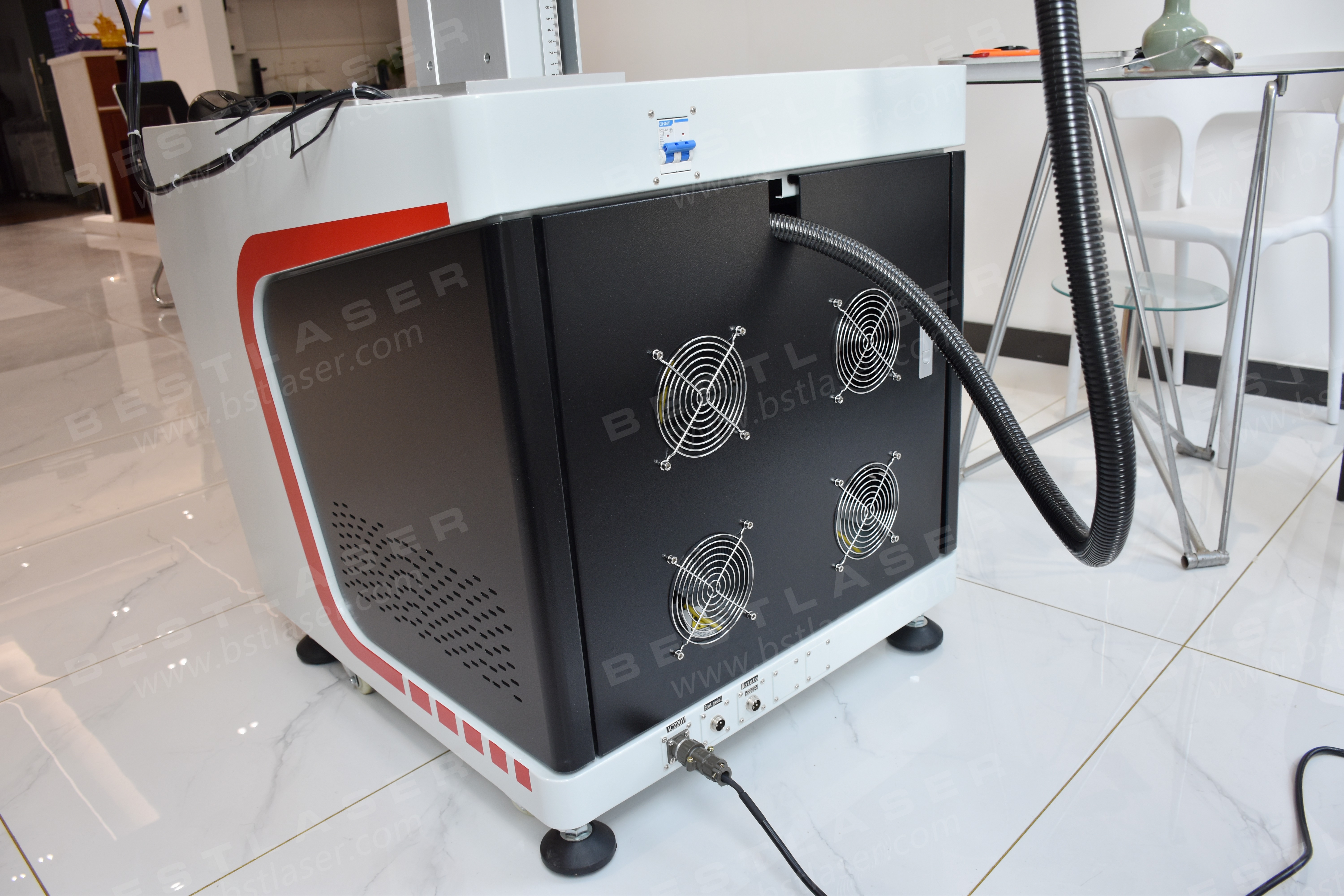

Configured with multiple high-speed exhaust fans to maximize airflow, ensuring optimal temperature maintenance and supporting continuous 24-hour manufacturing.
| Parameter Feature | Configuration & Limits | ||
|---|---|---|---|
| Laser Model | 3D Fiber Laser Engraving Machine BE-F20R | ||
| Wavelength | 1064nm | ||
| Maximum Flat Marking Area | 400 * 400mm | 500 * 500mm | 600 * 600mm |
| Maximum Curved Marking Area | 300 * 300mm | 350 * 350mm | 450 * 450mm |
| Max Height Difference (Z-axis) | 60mm | 60mm | 150mm |
| Beam Quality (M²) | <1.2 | ||
| Pulse Repeatable Frequency | 10kHz ~ 200kHz | ||
| Cooling Method | Air Cooling | ||
| Marking Way | XYZ Triaxial Dynamic Focusing | ||
| Focusing Range | ≤ ±30mm | ||
| Highest Machining Speed | 350 characters/s | ||
| Repeat Marking Accuracy | 8μrad | ||
| Operating Ambient Temperature | Temperature: 10℃ ~ 35℃ | Humidity: 5% ~ 75% | ||
| Power Demand | Single Phase AC110V/220V, 10A | ||

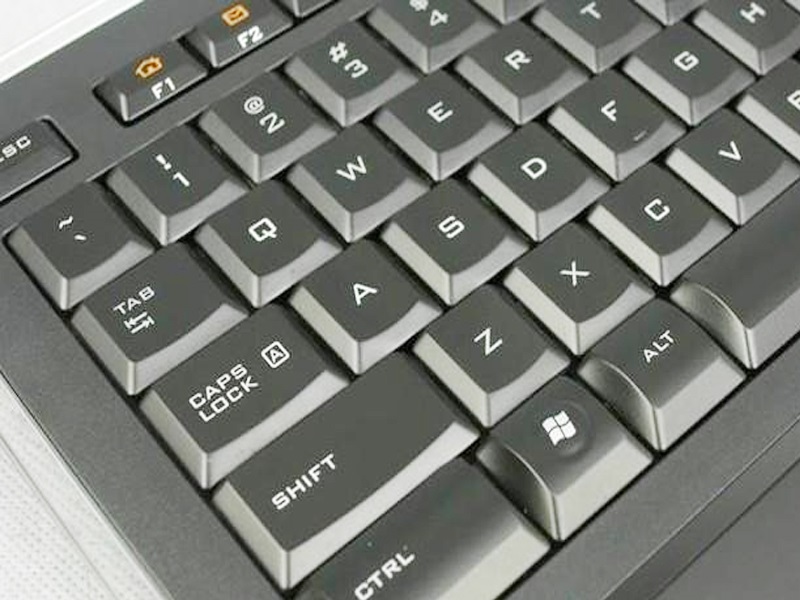

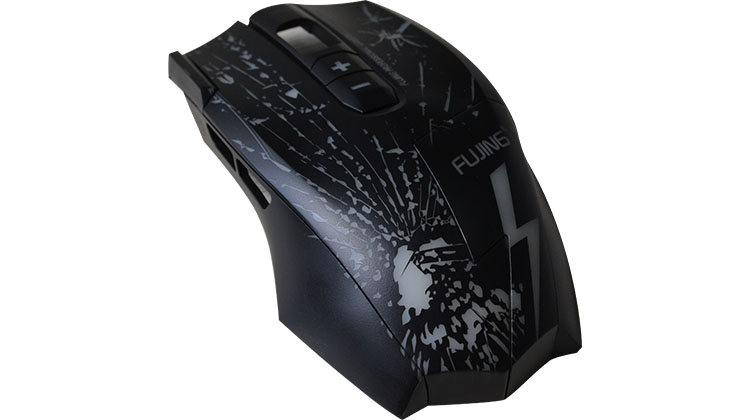

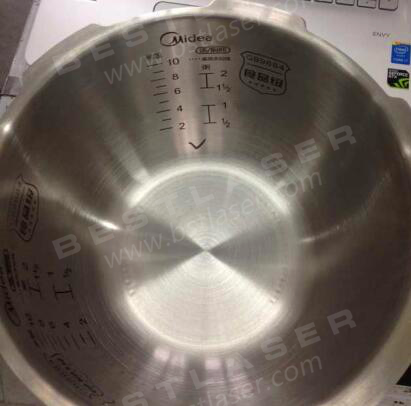

Our high-precision fiber laser marking machine is widely applicable for processing Gold, Silver, Diamond, Sanitary equipment, Food Packaging, Tobacco Labels, Beer/Drink Labels, Eyeglasses & Clocks, Auto Parts, Plastic & Paper Materials, Electronics, and hardware requires precise depth, smoothness, and exact scaling.

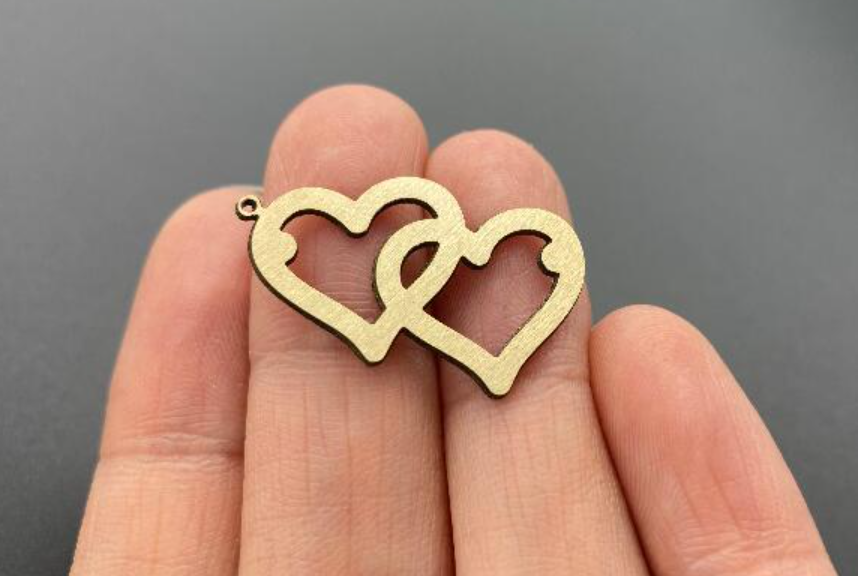

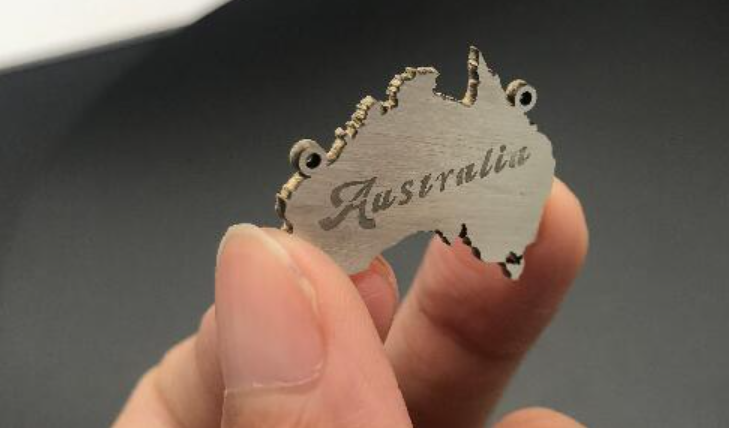

Our high power configurations (60W, 100W, 200W, and 300W) fiber laser marking machines can also be utilized for cutting thin metals under 2mm. This application is widely popular in the jewelry industry for intricate gold and silver cutting (requires dedicated clamp fixtures for securing materials).

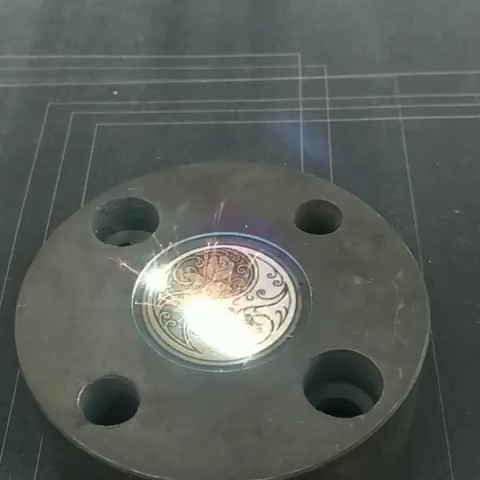

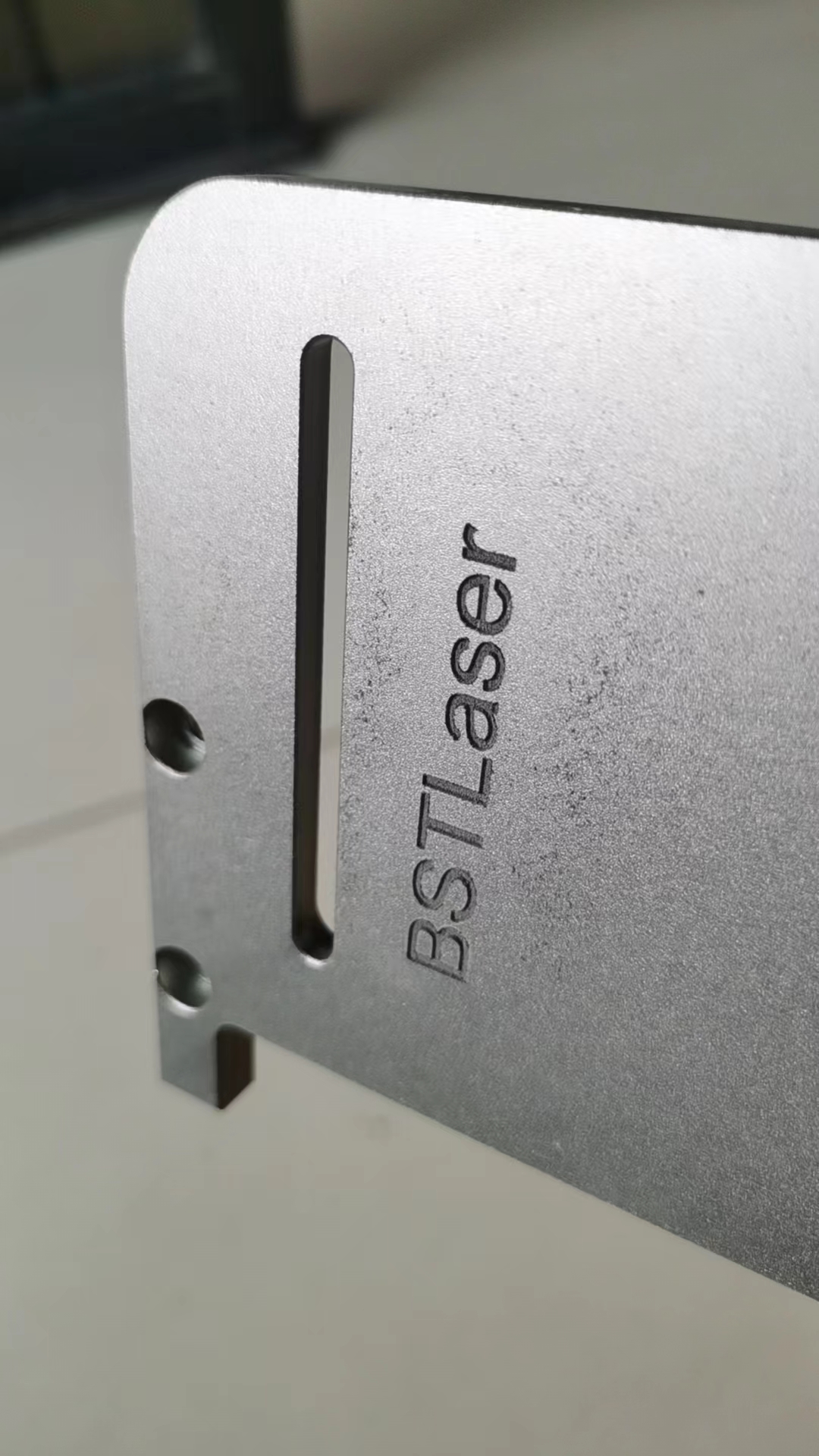

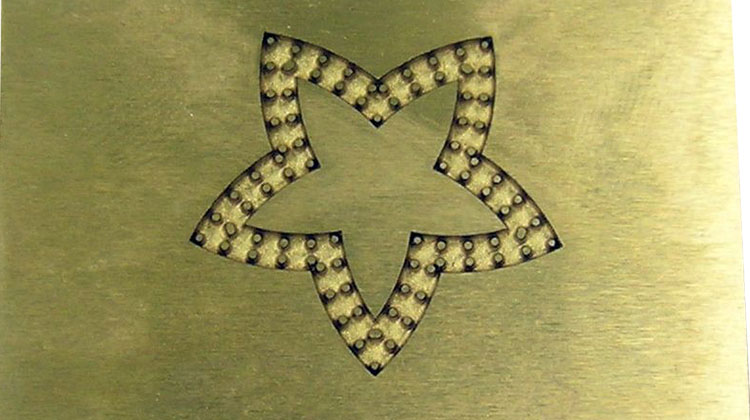

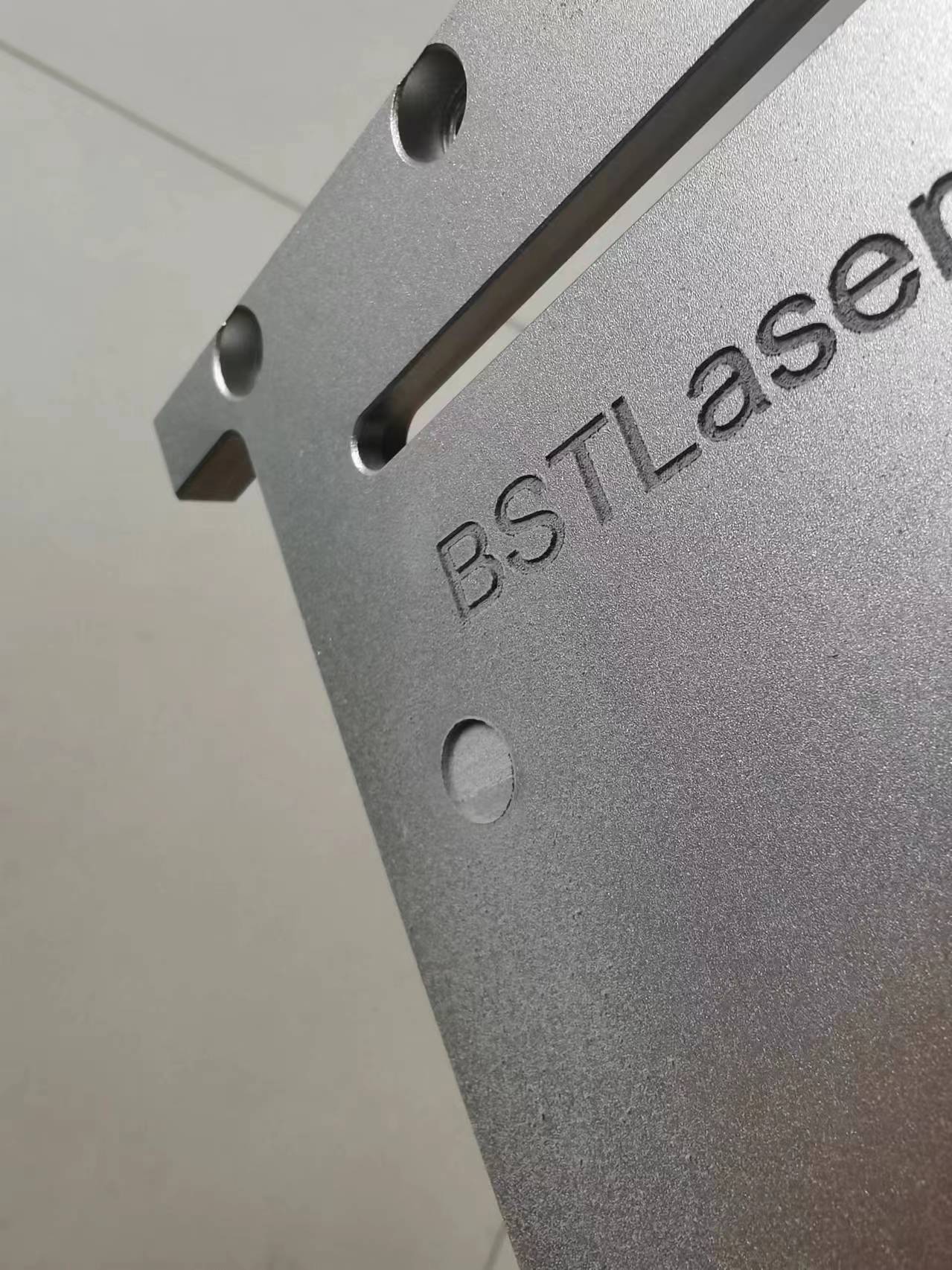

For clients requiring deep engraving effects (0.3mm, 0.6mm, 1.0mm etc.) on metals, upgrading to high-power outputs of 100W or 200W provides highly efficient deep carving and etching results. Below is a demo showcasing a 1mm deep engraving on aluminum achieved with our 200W MOPA fiber laser.
| Packaging Specifications | |
|---|---|
| Dimension Size | 1400mm × 850mm × 1699mm |
| Gross Weight | 240kg |
| Packaging Details |

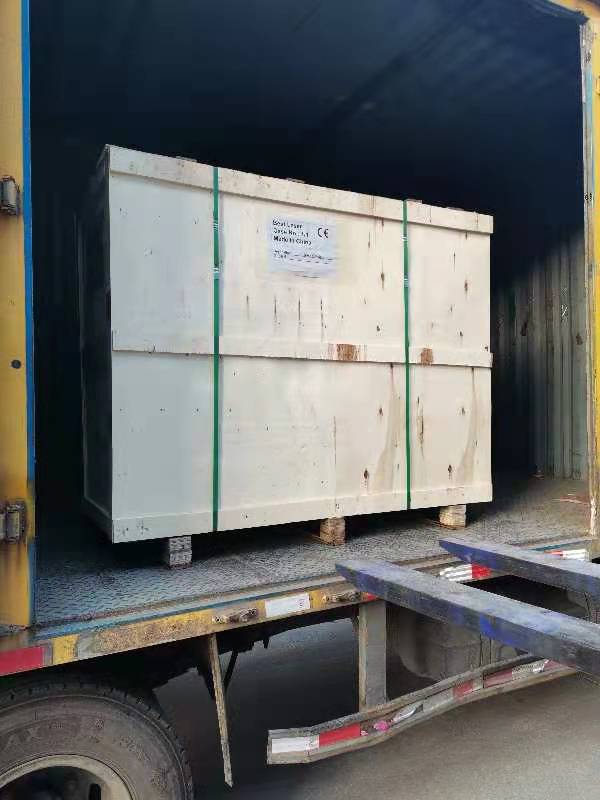

We utilize a highly secure 3-layer packaging system: 1. Outer Layer: Sturdy export wooden craft case. 2. Middle Layer: High-density protective foam wrap to prevent movement and absorbs vibrations. 3. Inner Layer: Thickened plastic bag sealing for reliable waterproofing. |
Below are the systematic procedures we perform for every machine, from order placement up until the equipment arrives safely at your site.
* Technical query and consulting support.
* Free sample testing processing.
* Factory video/site visits.
* Stringent testing of the machine at least 10 times to ensure stability.
* Issuing complete inspection reports and archiving configuration logs for future support.
* Detailed guidance on equipment installation.
* Practical training for operational staff.
* Engineer service options and lifetime free technical assistance.
As a dedicated 15-year laser machinery manufacturer, we are committed to providing global clients with exceptionally high-quality, highly reliable laser systems. Due to our rigorous quality control, our entire lineup of laser cutting machines, laser marking machines, and laser engraving machines holds full CE certifications. High processing precision, minimal energy consumption, standardized automation, and clean environments allow our solutions to play vital roles in modern industries.
Our mission is to stand out as a premier global supplier of laser marking, engraving, etching, and cutting configurations, serving global distributors and industrial end-users with unparalleled equipment and service.
