Portable 20W 30W 50W Handheld Laser Marking Engraving Machine for Metal

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

■Basic Info

Model NO.

LMB20-1

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser

Laser Classification

Semiconductor Laser

Type

Optical Fiber Laser Marking Machine

Marking Method

Scanning Marking

Applicable Industries

Retail, Printing Shops, Advertising Company

OEM

Support

Graphic Format Supported

Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt

Working Accuracy

0.001mm

Power Consumption

145-250W

Optical Quality

M2<1.5

Operation

Touch Screen

Laser Power

20W/30W/50W Optional

Marking Area

100mm*100mm

Control Software

Linux System

Product Features 1

Fast Welding Speed

Product Features 2

Smaller Size, Lighter Weight, Convenient

Product Features 3

Simple Operation, Flexible

Product Features 4

No Welding Deformation

Transport Package

Wooden Case

Specification

312mm*155mm*275mm

Production Capacity

500 Pieces/ Month

■Product Description

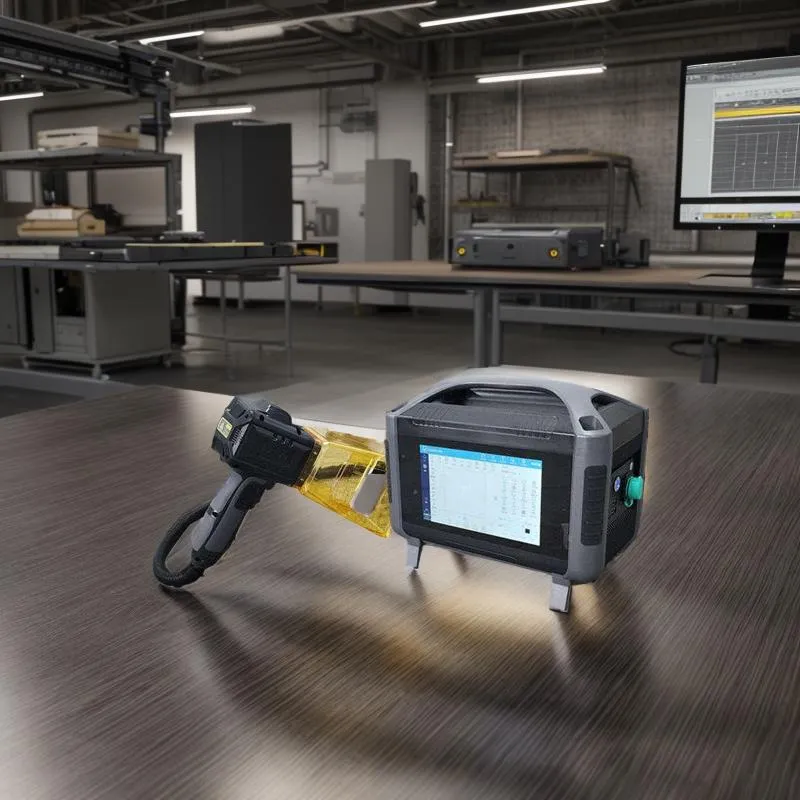

Portable 20w 30w 50w Handheld Laser Marking Engraving Machine for Metal

An advanced, high-precision industrial engraving solution engineered for mobility, featuring seamless marking capabilities on a vast spectrum of substrates.

✓

Outstanding Features

Compact, portable, and lightweight design for easy mobility and storage. Highly adaptable for dynamic workshop environments and field work.

✓

Broad Application Materials

This laser marking machine is versatile, working seamlessly with a wide range of metal marking applications including Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron and many non-metal materials such as ABS, Nylon, PES, PVC, and Makrolon.

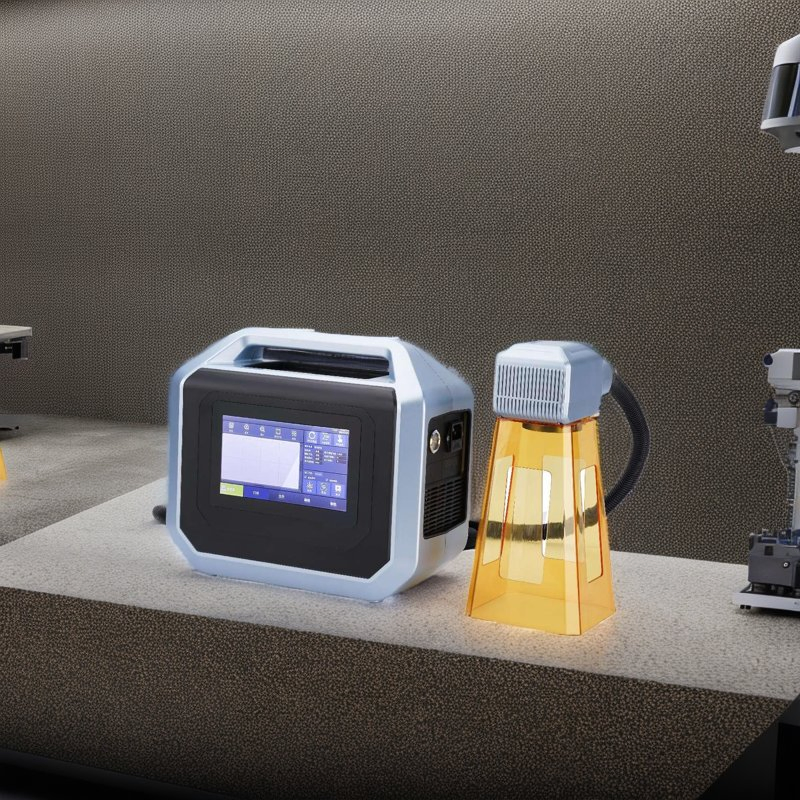

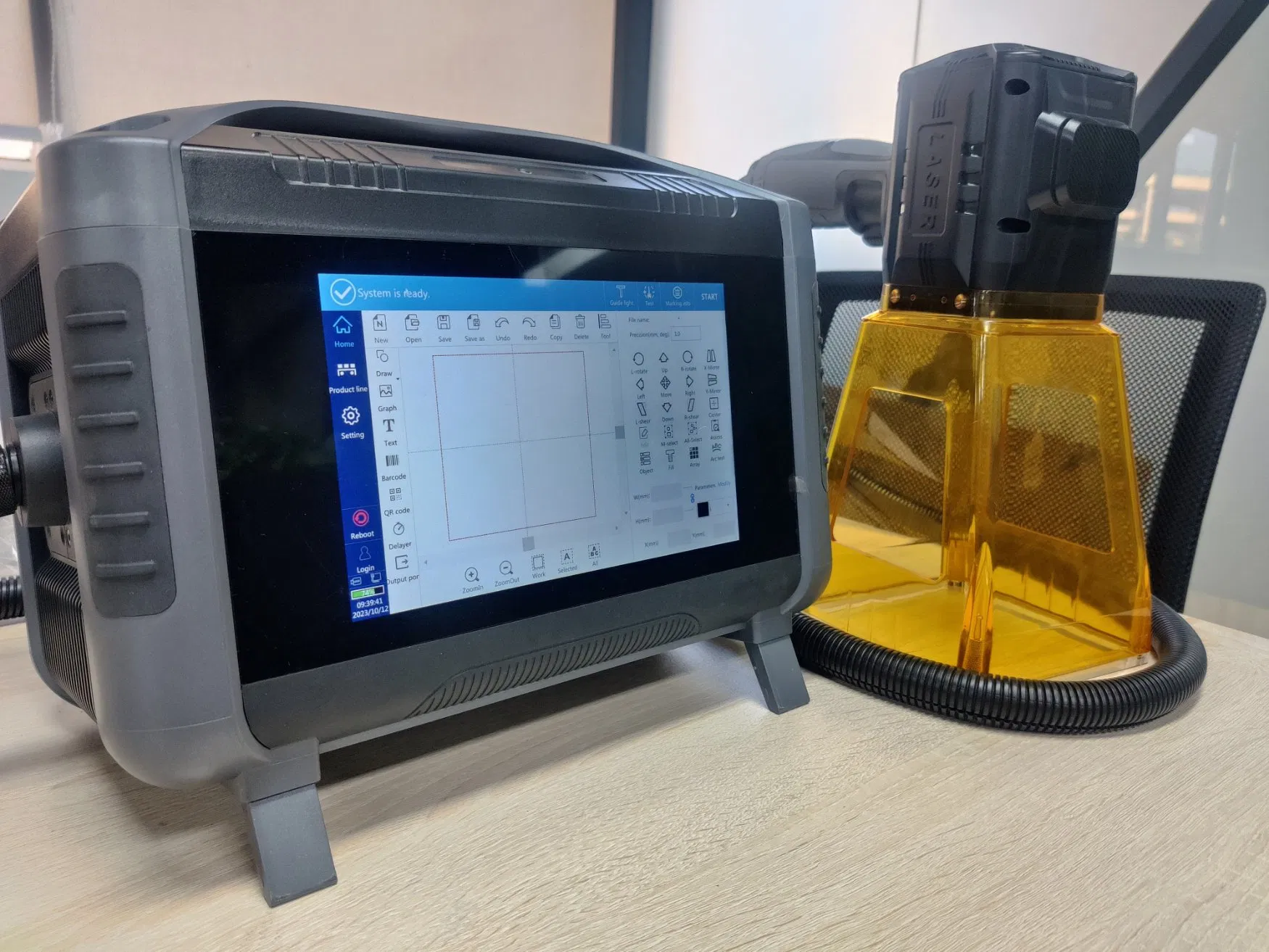

Portable 20W 30W 50W Handheld Laser Marking Engraving Machine for Metal

★Key Advantages

01

Compact size and portable structure for effortless relocation.

02

Exceptional longevity of fiber laser source: Over 100,000 hours of operation.

03

Premium scanning galvanometer with superior sealing, small footprint, and efficient performance.

04

Advanced Scaps controller with USB interface for fast and stable data transmission, compatible with laptops.

05

Unmatched precision: Achieves up to 0.0012mm for extraordinary marking quality.

06

Superior laser beam clarity: 1-micron definition, outperforming traditional products by tenfold.

07

No consumables required: Durable fiber marker with over 10 years of maintenance-free operation.

08

Remarkable speed: Processes 800 standard characters per second, 3 to 5 times faster than conventional methods.

09

No need to adjust the laser optical path, ensuring consistent performance.

10

Energy-efficient: Consumes less than 400W, vastly more economical and environmentally friendly than Diode and YAG systems.

11

Extensive compatibility: Supports TTF Font, SHX, BMP, DXF, AI, PLT, and other formats from CorelDraw, PS, AutoCAD, etc.

12

Integrated air cooling system: Superior to YAG laser water cooling, requiring no maintenance.

13

Deeper marking capabilities: Up to 1.2mm on stainless steel, ideal for industries demanding high precision and depth.

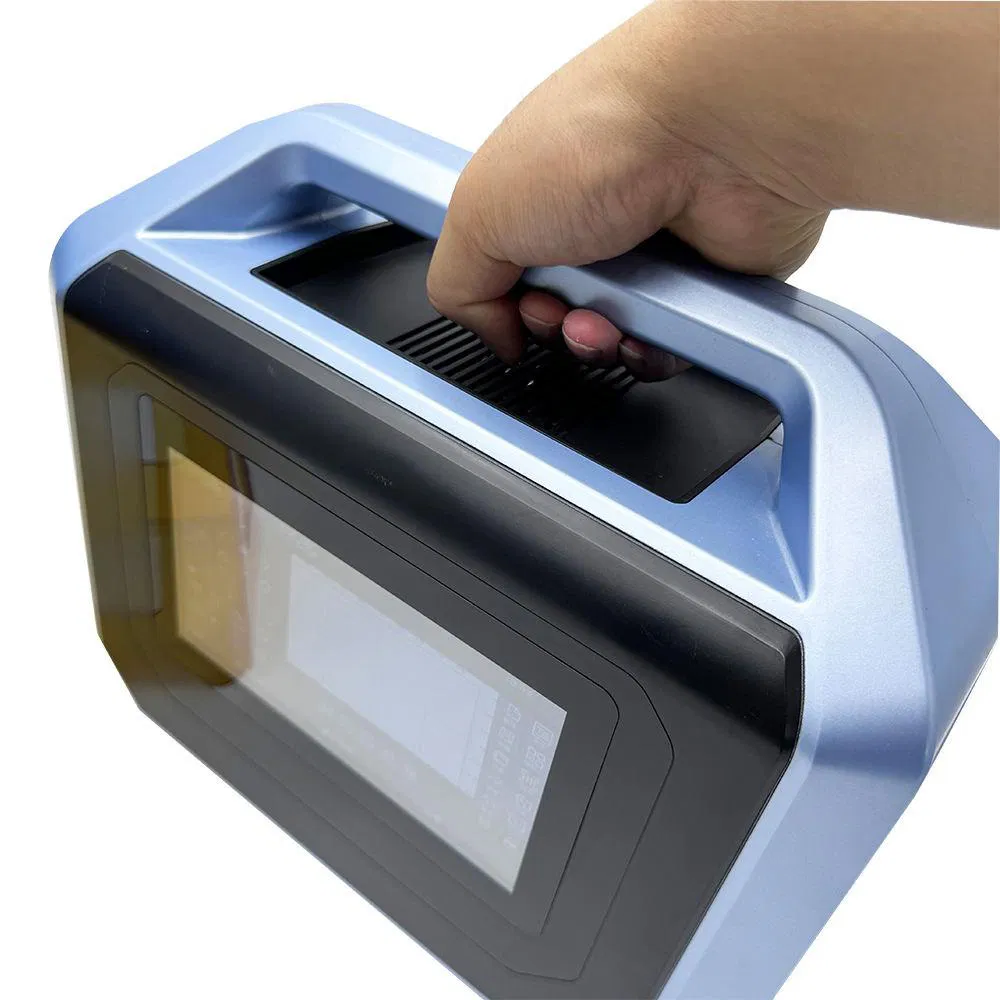

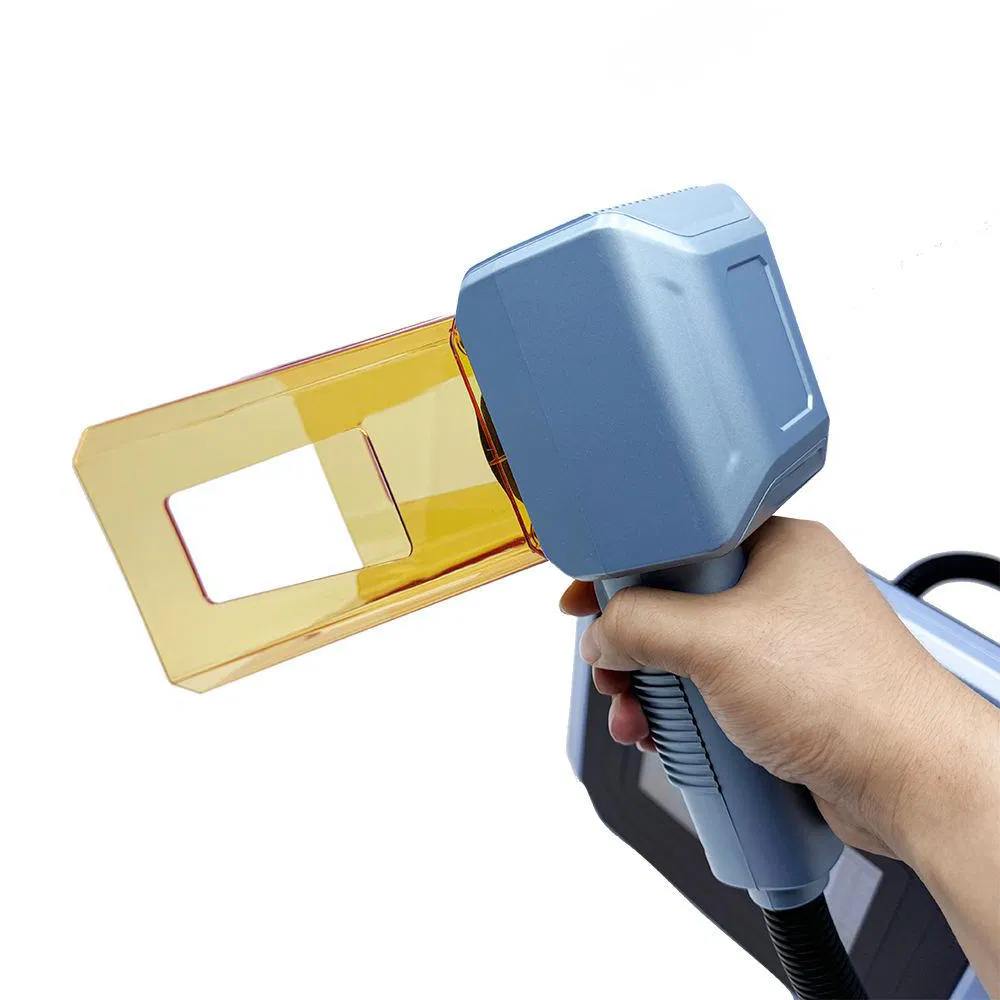

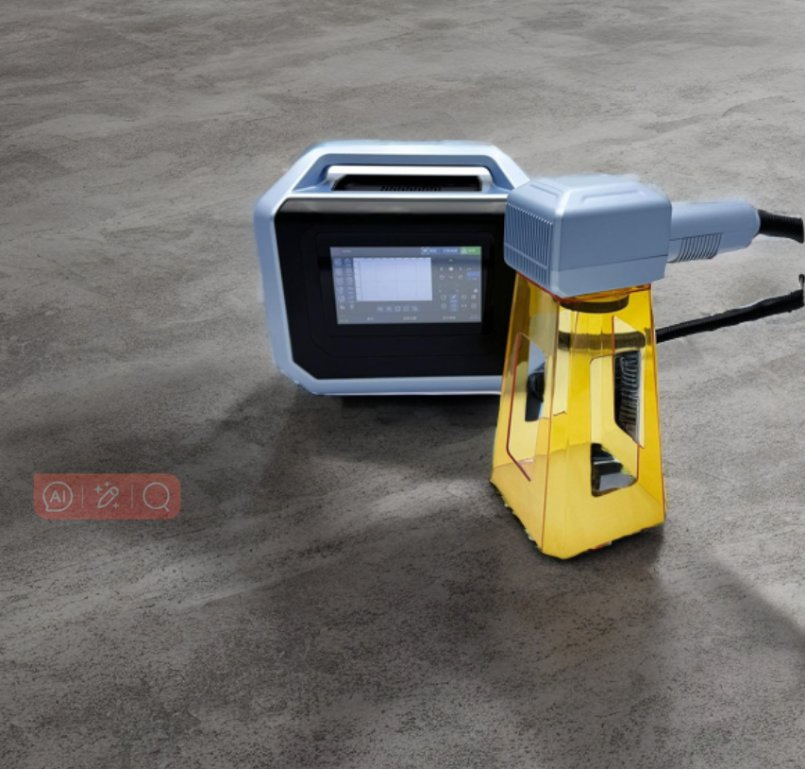

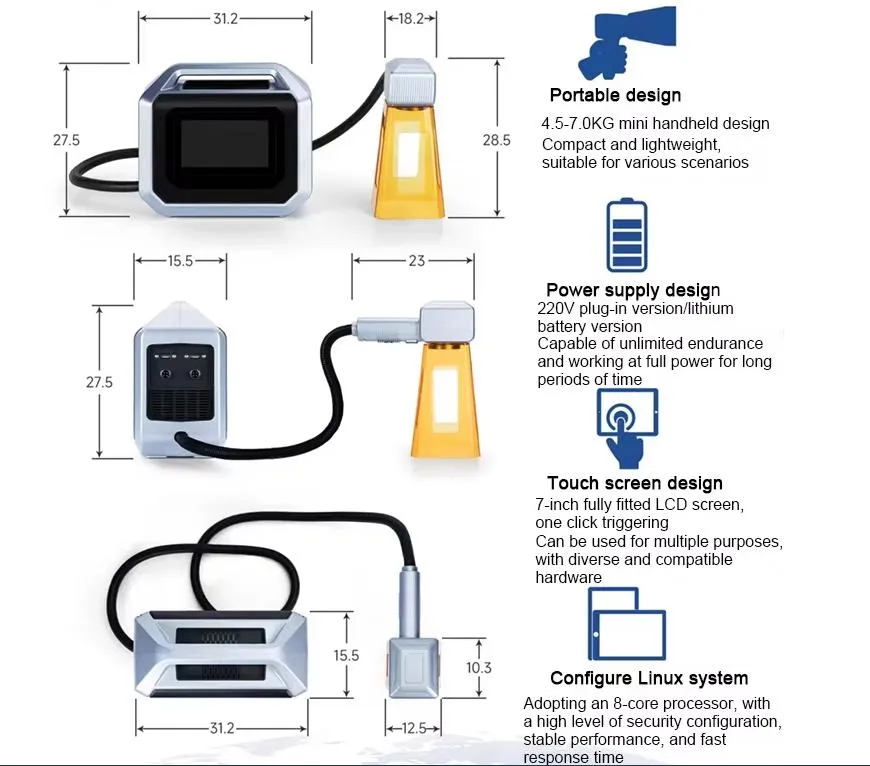

Portable 20W 30W 50W Handheld Laser Marking Engraving Machine for Metal Detail View

■Technical Specifications

Laser Type	Fiber laser generator	Power Consumption	≤250W
Output Power	20W-50W	Power Supply	220VAC
Deflection Galvanometer	High precision digital scanner	Operating System	Linux system
Laser Wavelength	1064nm	Marking Speed	≤7000mm/s
Focus Lens	130mm	Master Control	Integrated motherboard, 8-inch capacitor fully bonded screen
Line Width	0.03mm	Targeting Method	Red light positioning & focusing
Repeat Positioning Accuracy	0.01mm	Engraved Character Lines	Any line within the valid marking range
Print Speed	About 800 characters/sec	Supported Fonts	English, Chinese, numbers, Traditional characters and standard fonts
File Format Support	BMP, DXF, HPGL, JPEG, PLT	Total Weight	4.5-7kg

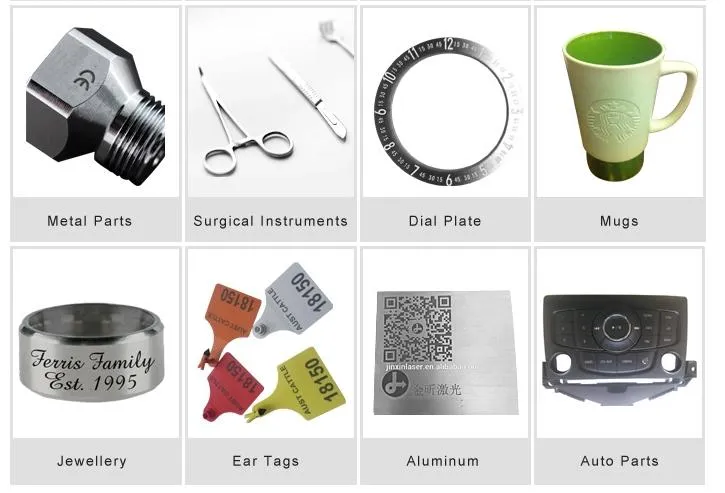

■Classic Cases & Applications

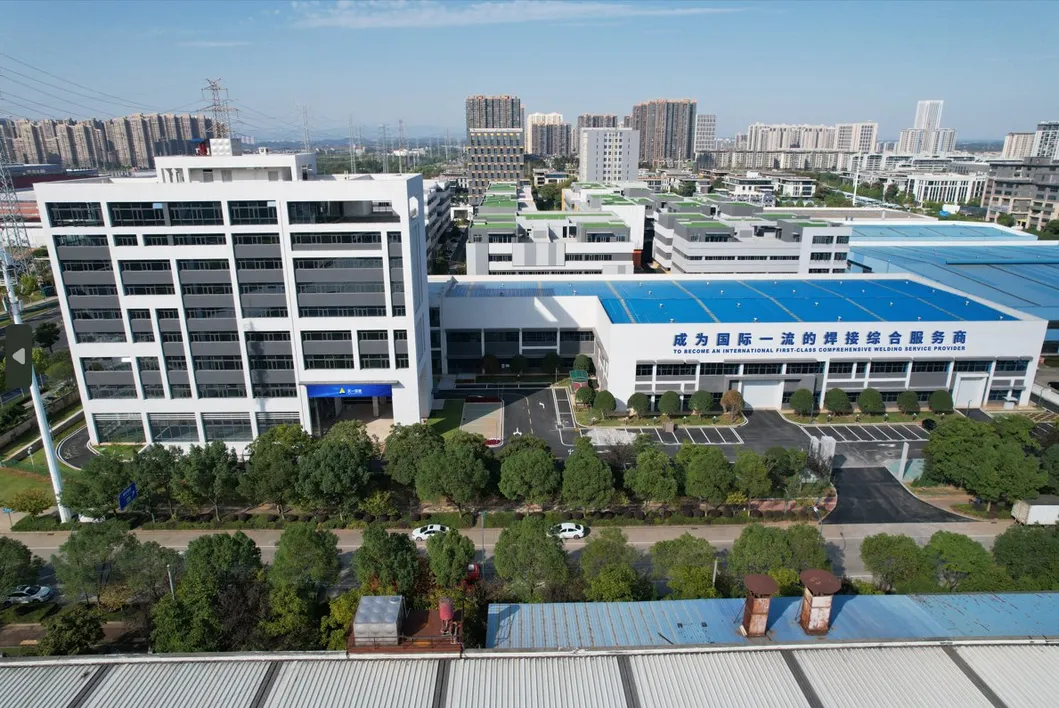

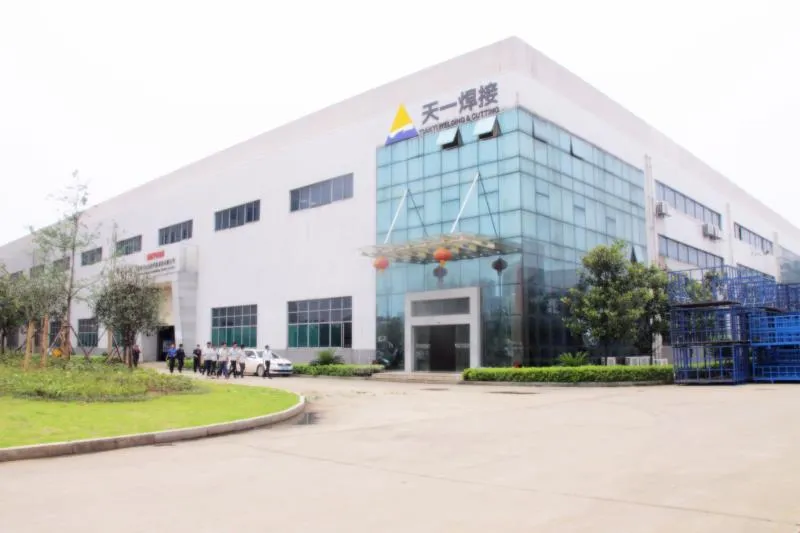

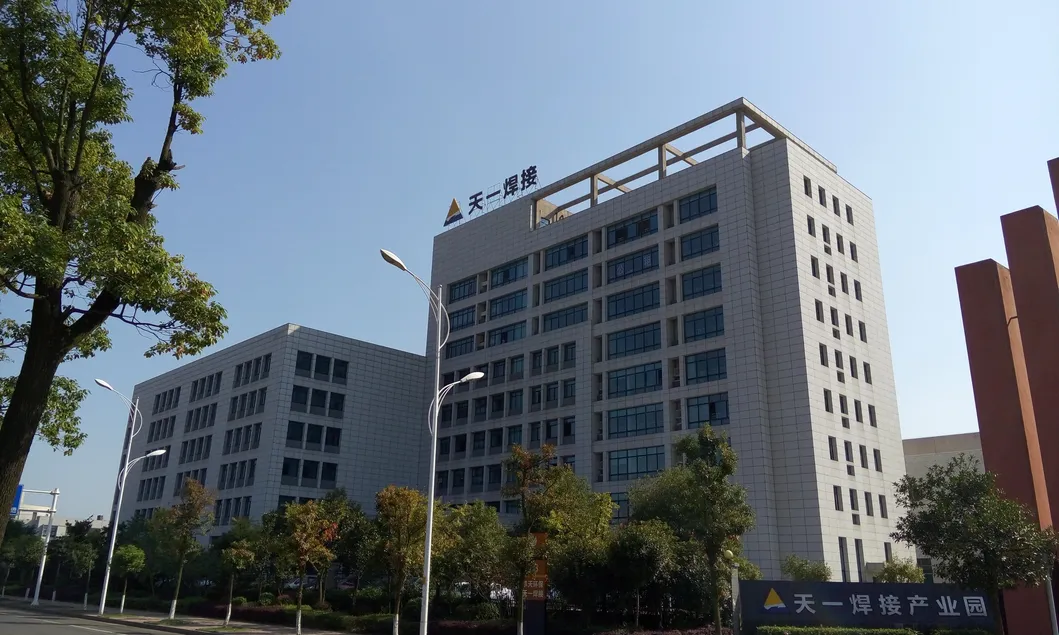

■Manufacturing Strengths

Established in 1992, our factory has evolved over the past three decades to become a frontrunner in the welding, cutting, and laser marking industry. As a multifaceted conglomerate, we specialize in the development of cutting-edge welding and laser marking technologies, the crafting of intelligent equipment, and the advancement of superior product performance.

Our extensive expertise spans the creation of internet-based system software management, professional technical training, and meticulous quality testing services. With eight specialized subsidiary branches, three expansive manufacturing bases, and five state-of-the-art research and technology platforms, we stand at the absolute industry forefront. We pride ourselves on a core team of over 300 technical experts and an impressive portfolio of over 100 patents, serving a vast global clientele and collaborating with renowned corporations worldwide.

■Global Footprint & Customers

■Frequently Asked Questions (FAQ)

Q1: What materials can this portable fiber laser marking machine engrave?

A1: This machine is highly versatile and works perfectly with various metals including Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, and Iron. It is also compatible with non-metal materials such as ABS, Nylon, PES, PVC, and Makrolon.

Q2: What are the main benefits of the handheld design over traditional systems?

A2: The handheld design offers outstanding portability, compact sizing for easy storage, and great flexibility for marking heavy, large, or awkwardly shaped objects. It requires no consumables, offers over 100,000 hours of laser source lifetime, and features an integrated maintenance-free air cooling system.

Q3: How accurate and fast is the marking process?

A3: It delivers exceptional precision with a working accuracy of up to 0.001mm and a repeat positioning accuracy of 0.01mm. The processing speed is remarkably fast, marking up to 800 standard characters per second (with scanning speeds ≤7000mm/s), which is 3 to 5 times faster than conventional methods.

Q4: Does this machine require liquid water cooling?

A4: No, this laser marking machine features an advanced integrated air cooling system. Unlike traditional YAG laser systems that require liquid cooling and regular maintenance, our air-cooling design is completely maintenance-free and highly energy-efficient.

Q5: Which file formats and design software are supported?

A5: Running on a stable, built-in Linux system, it supports extensive graphic and document formats including BMP, DXF, HPGL, JPEG, PLT, and AI. These files can be easily generated and exported from standard design software such as CorelDraw, Photoshop, and AutoCAD.

Q6: What is the power consumption of this handheld engraving machine?

A6: The machine is highly energy-efficient, with maximum power consumption of ≤250W (typically between 145W and 250W). This makes it significantly more economical and environmentally friendly than older Diode and YAG laser setups.
