i Overview & Basic Info
Model NO.
LME-CPL
Control Type
Automatic
Warranty
2 Years
Type of Cooling
Air Cooling
Pulse Energy
1mj/5mj/10mj
Center Wavelength
1064nm
Power Adjustment Range
0-100%
Length of Fiber Optic Cable
5m/10m
Laser Protection Class
Class 4
Supply Voltage
110/220V
Laser Mode
Gaussian Beam/Flat-Top Beams
Laser Type
Pulse Fiber
Pulse Width
2-500ns
Laser Pulse Frequency
1-40000kHz
Scanning Range
100mm/200mm
Laser Source
Jpt
Suitable Material
Wood Metal Paper Glass
Transport Package
Wood Case
Specification
610x430x1020mm 80kg
Trademark
Laser Machine
Origin
China
HS Code
8456110090
Production Capacity
5000 Pieces/Year
📦 Packaging & Delivery
Package Size
47.50cm * 42.50cm * 89.50cm
Package Gross Weight
65.000kg
📄 Product Description

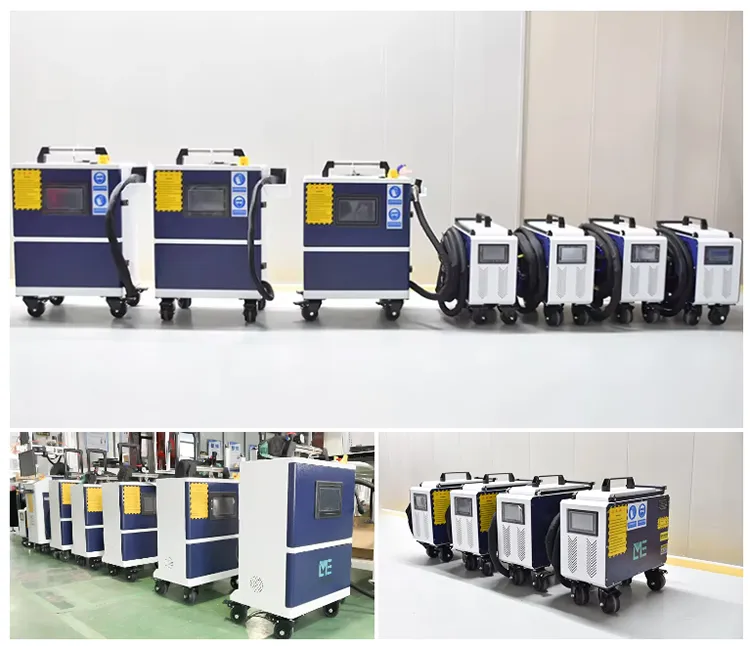

Luggage type Pulse Laser Cleaning Machine have 100w 200w 300w 500w 1000w power, it is a new laser cleaning tool, portable, lightweight, flexible and adjustable parameters and many other advantages, can efficiently remove the workpiece surface rust, stains, oil, plating, etc., can be applied to machining, cultural relics, restoration, mold cleaning, food processing, electronic circuits, and other industries, the use of accurate positioning features to meet a variety of shapes of the workpiece processing, to achieve the effect of efficient cleaning.
★ Our Advantages

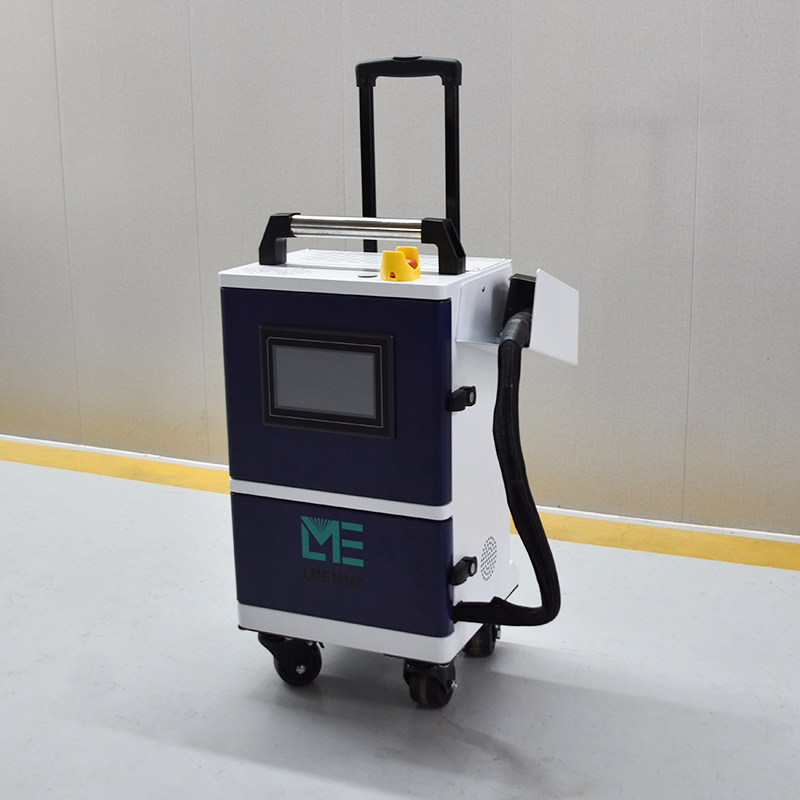

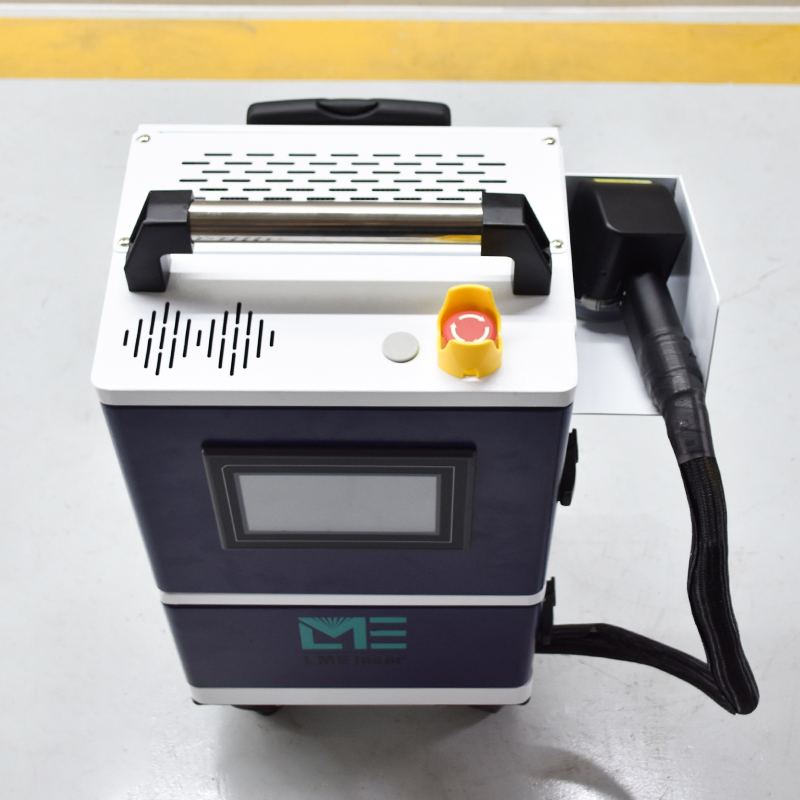

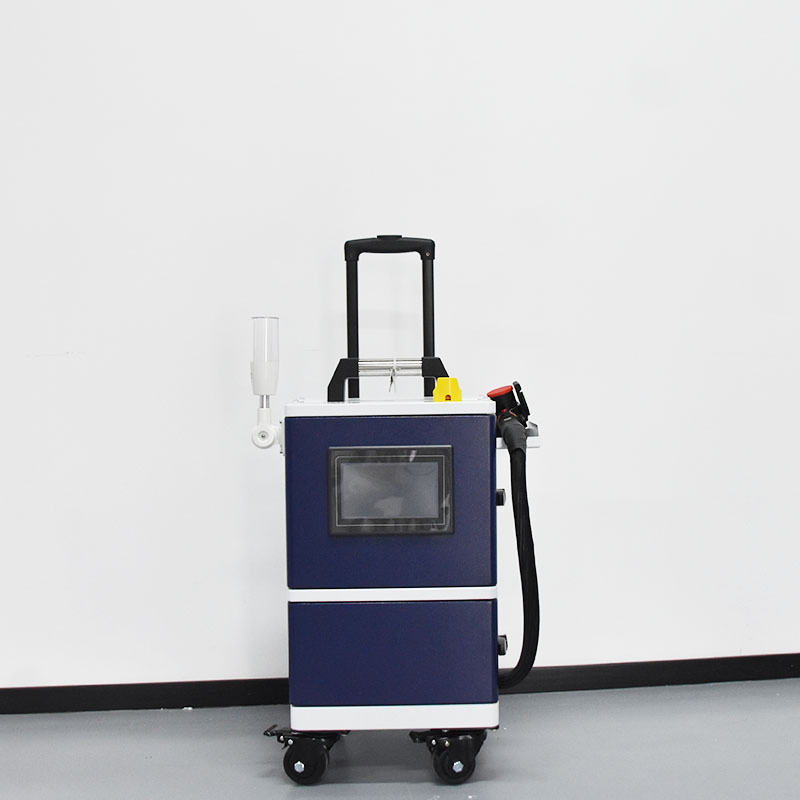

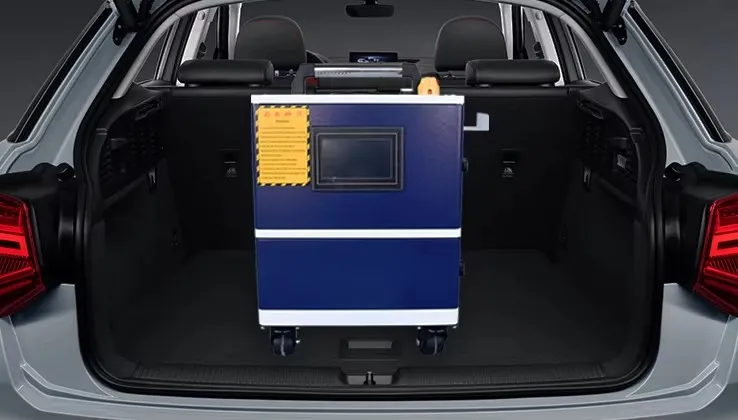

Luggage design makes work more convenient

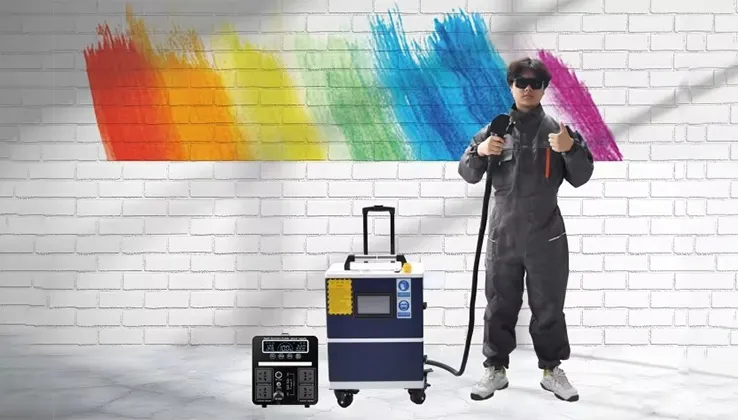

Portability: Luggage style design makes the cleaner easy to carry, with wheels and telescopic handle, it can be easily moved in various occasions, such as plaza, park, factory or home.
Efficient use of space: Luggage-type pulse cleaners have storage space, which can reasonably organize and store items, maximize the use of internal space, and enhance the efficiency of use.

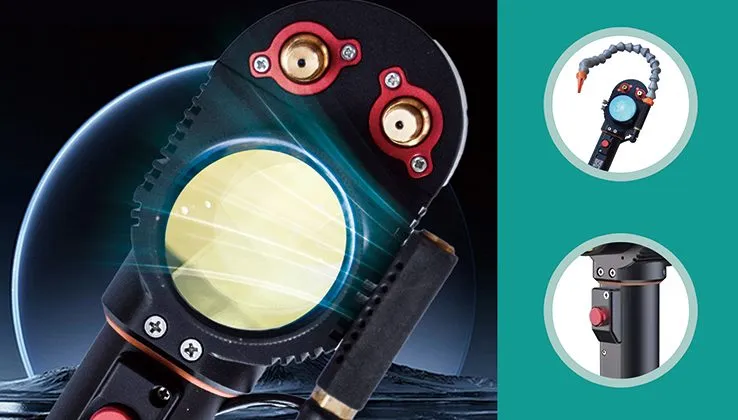

Double Red Light independent development high speed Galvo
Strategic cooperation with top manufacturers, adopting self-developed double red light design for higher stability. Easy to find the focal point, so that the cleaning efficiency is more efficient.

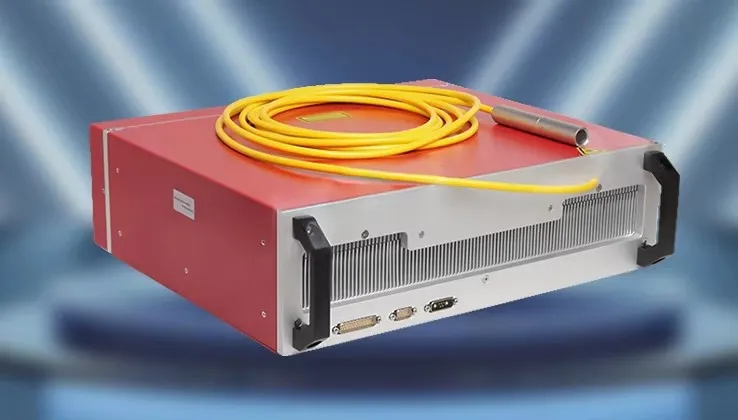

JPT laser source
The Geput CL series is a high power fiber laser using a direct electrically modulated semiconductor laser as a seed source (MOPA) solution, with perfect laser characteristics and good pulse shape control ability, using a lightweight laser output head, while maintaining the excellent performance of laser anti-high reaction, which has outstanding advantages in laser cleaning.

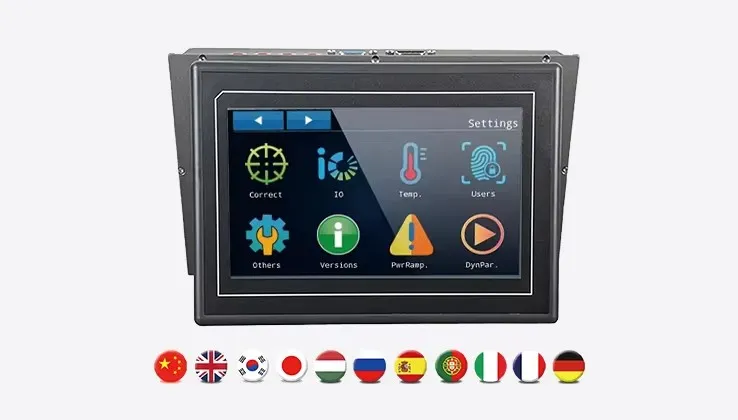

Powerful software, support 25 language switching
With 25 languages and user-defined process parameters, users can quickly select welding parameters according to different materials and thicknesses. The operation is simple and faster, saving novice training and production costs.

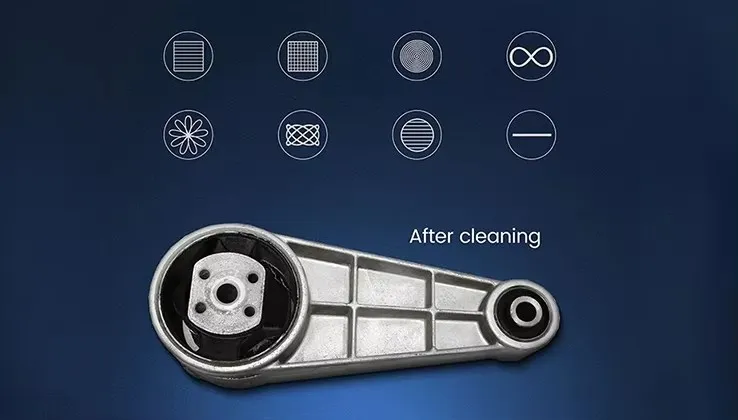

Better cleaning effect 8 cleaning modes optional
Supports 8 cleaning modes, which can be applied to many kinds of complex cleaning scenarios. Support slow rise and slow drop of laser power real time control, better cleaning effect, no damage to the substrate.

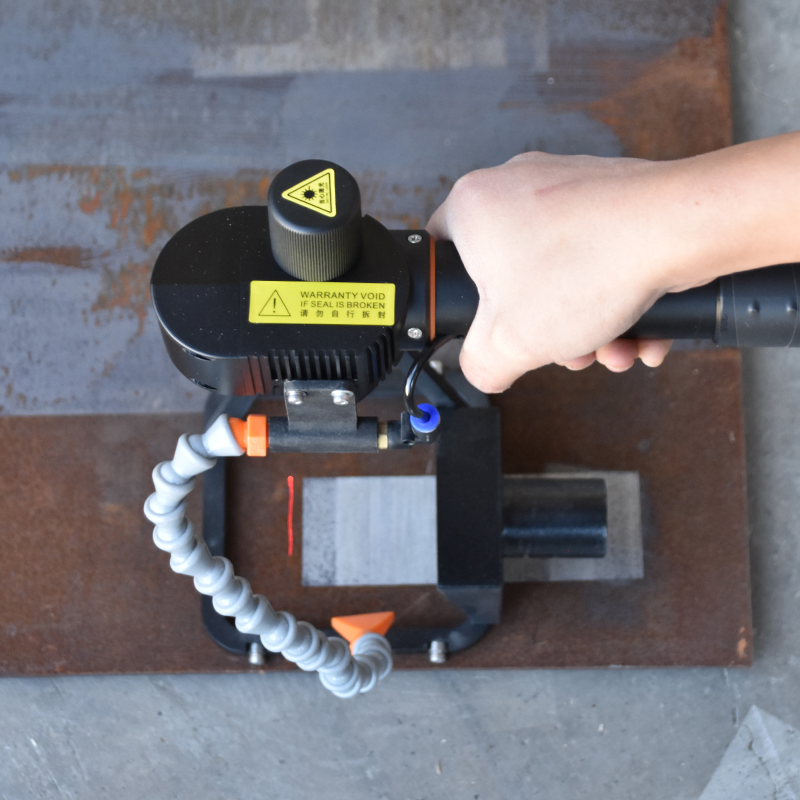

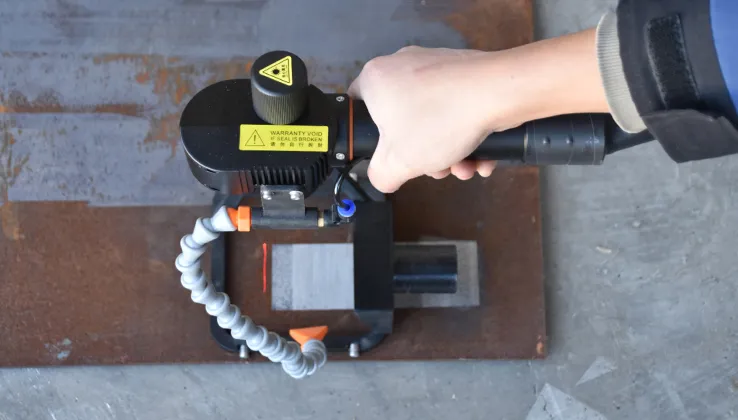

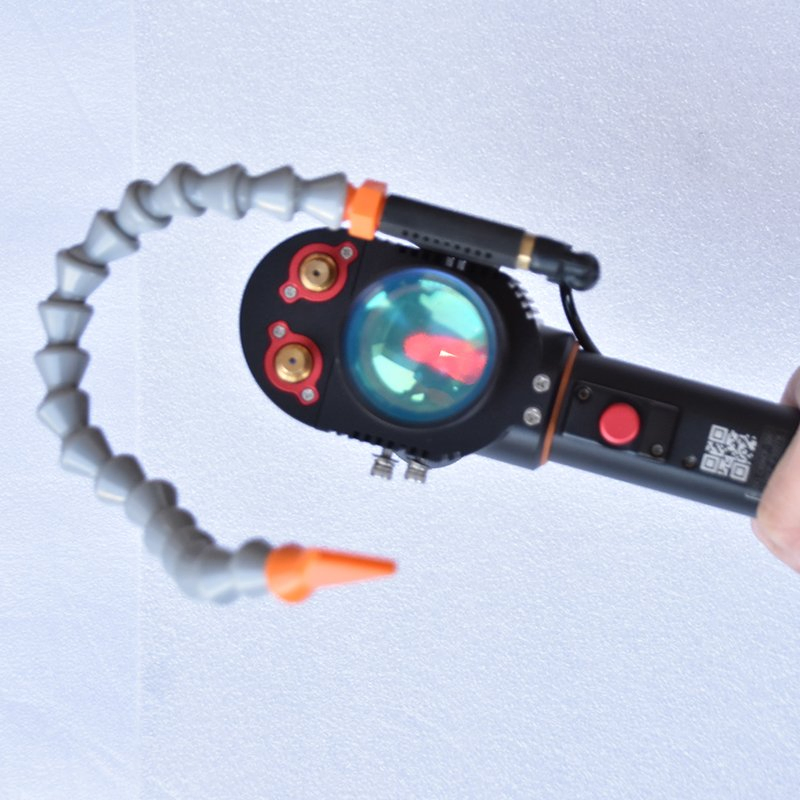

Cleaning head can be held or wheel propelled
Adopts self-developed holder, the product structure design is more reasonable and the stability is higher, better improve cleaning efficiency.
Wheel propelled device, fixed focal length and clean more evenly. It can maintain the ideal focal length without adjustment high cleaning finish.
All directional protection and protection of the lens, can be more safe and stable in the working environment, better improve cleaning efficiency.
2 years warranty
The machine comes with a 2 years warranty, stable and highly cost-effective. All machines use famous brand parts, with strict quality inspection. It is the customer's best choice. Welcome the masses of customers to buy with confidence.
📋 Product Parameters
| No. |
Parameter Name |
Description |
| 1 | Product Name | Pulse fiber laser cleaning machine |
| 2 | Laser power | 100W / 200W / 300w |
| 3 | Wavelength type | Pulse |
| 4 | Power stability | better than 5% |
| 5 | Power adjustment range(%) | 10-100 (gradient adjustable) |
| 6 | Repetition frequency(KHz) | 20-200 (gradient adjustable) |
| 7 | Fiber length | 5m |
| 8 | Cooling method | Air-cooling |
| 9 | Scanning range | 5mm ~ 120mm , Continuously adjustable |
| 10 | Focal length of field lens ( mm ) | 160mm (Optional 160mm-500mm ) |
| 11 | Depth of focus | max 10mm |
| 12 | cleaning head weight | about 1kg |
| 13 | voltage | 110V/ 220V |
| 14 | working temperature | 5ºC~ 40ºC |
🚚 Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

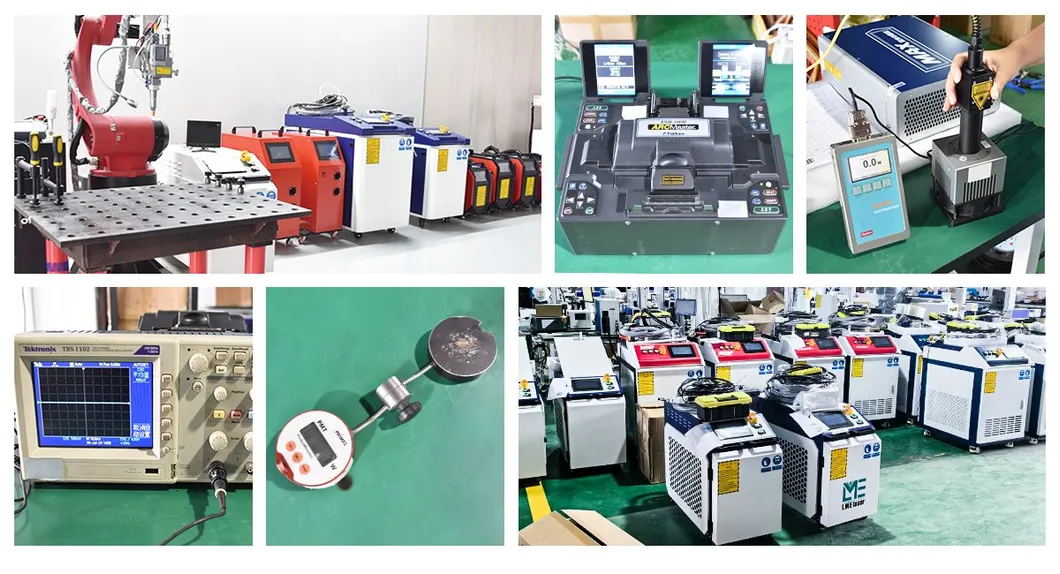

🏭 Production & Industry Standards

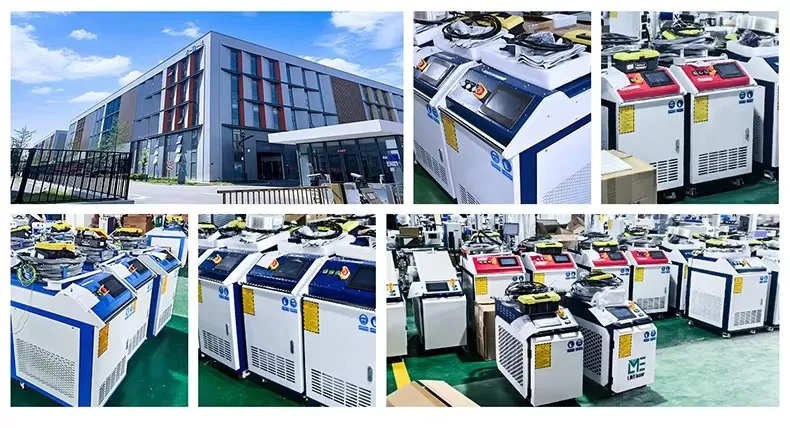

Our manufacturing base is a professional facility engaged in the research, development, production, and sales of high-performance laser machines. Spanning an area of 6,000 square meters and employing over 100 highly skilled personnel, we specialize in providing tailored laser machine solutions for globally diverse factories.
Our specialized product lineup includes fiber laser welding machines, fiber laser cleaning machines, fiber laser markers, CO2 laser markers, UV laser markers, and fly marking machines. Engineered with advanced technology and processed under the highest manufacturing standards, our systems deliver exceptional cost-effectiveness, reliability, and advanced operational control.
🎖 Certifications & Testing
Our entire system, from design to finished product shipment, operates under continuous monitoring and is strictly controlled in accordance with ISO9001 quality management guidelines. All laser machines comply fully with internationally recognized CE and FDA certification standards, ensuring reliability, maximum efficiency, and leading-edge technology.

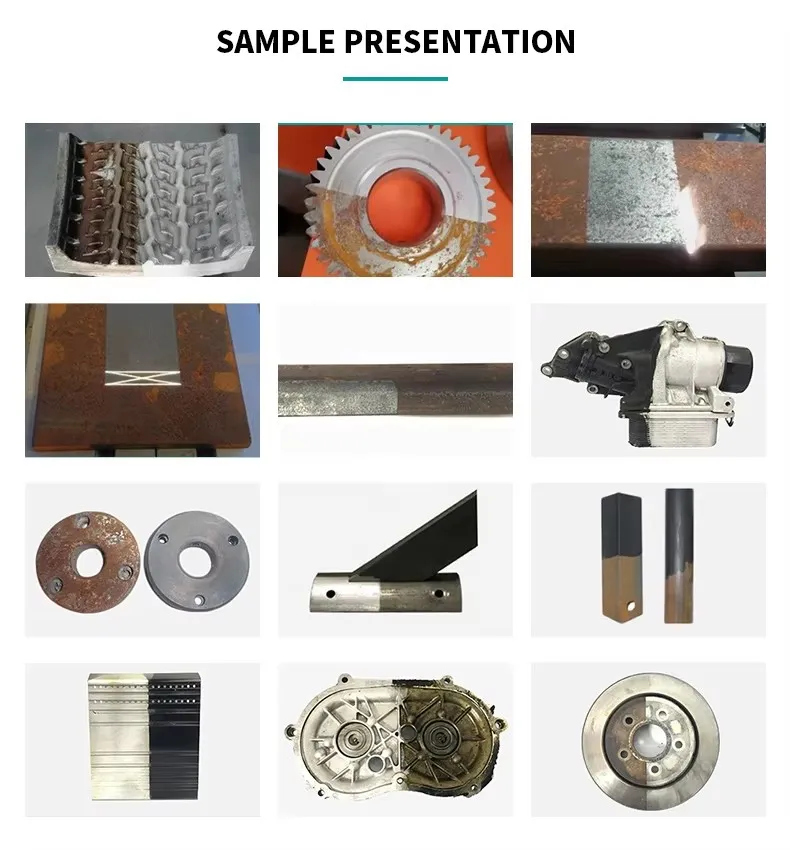

🛠 Applications & Cleaning Demos
Our Pulse Laser Cleaning Systems are exceptionally suited for heavy-duty metal rust removal, industrial paint stripping, residue glue removal, coating removal, and selective plating removal. It is ideal for cleaning heavy rust layers and thick paint layers, surface texturing/roughening, weld seam preparation, and many other process links with high throughput efficiency. Widely integrated across aviation, shipbuilding, cultural relic restoration, automobile manufacturing, food processing, rail transit, and rubber mold maintenance industries.
? Frequently Asked Questions
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the most suitable machine and share customized solutions. Please share the following details with us:
- What material you will be cleaning
- The exact application purpose of the machine (e.g., manufacturing, repair, restoration, or other purposes)
Q2: When I receive the machine, I do not know how to operate it. What should I do?
We provide a comprehensive operation video along with a detailed user manual for the machine. In addition, our experienced engineers can perform online training as needed. You can also send operators to our facility, or request engineers to be sent directly to your site for complete training.
Q3: If problems happen to the machine, how do I get support?
We provide a standard two-year comprehensive warranty. During this period, if any component issues arise (excluding artificial damage), we will provide replacement parts entirely free of charge. Beyond the warranty period, we continue to provide lifelong service and technical support.
Q4: What specific support services do you offer?
Our standard service package includes:
- Full machine warranty coverage for 2 years.
- Technical maintenance support for the entire lifetime of the equipment.
- Consumable parts provided directly at standard agency rates.
- 24-hour online customer service and technical support free of charge.
Q5: Is the machine adjusted before shipment?
Yes, every machine is fully adjusted, calibrated, and tested prior to shipping. An operation disk containing instructions is included in the package so that you can run it out of the box.
Q6: Do you provide software installation instructions?
Yes, we include a comprehensive manual instruction package and CD/digital guiding videos that cover software installation, standard system operation, daily maintenance, and general safety parameters.
