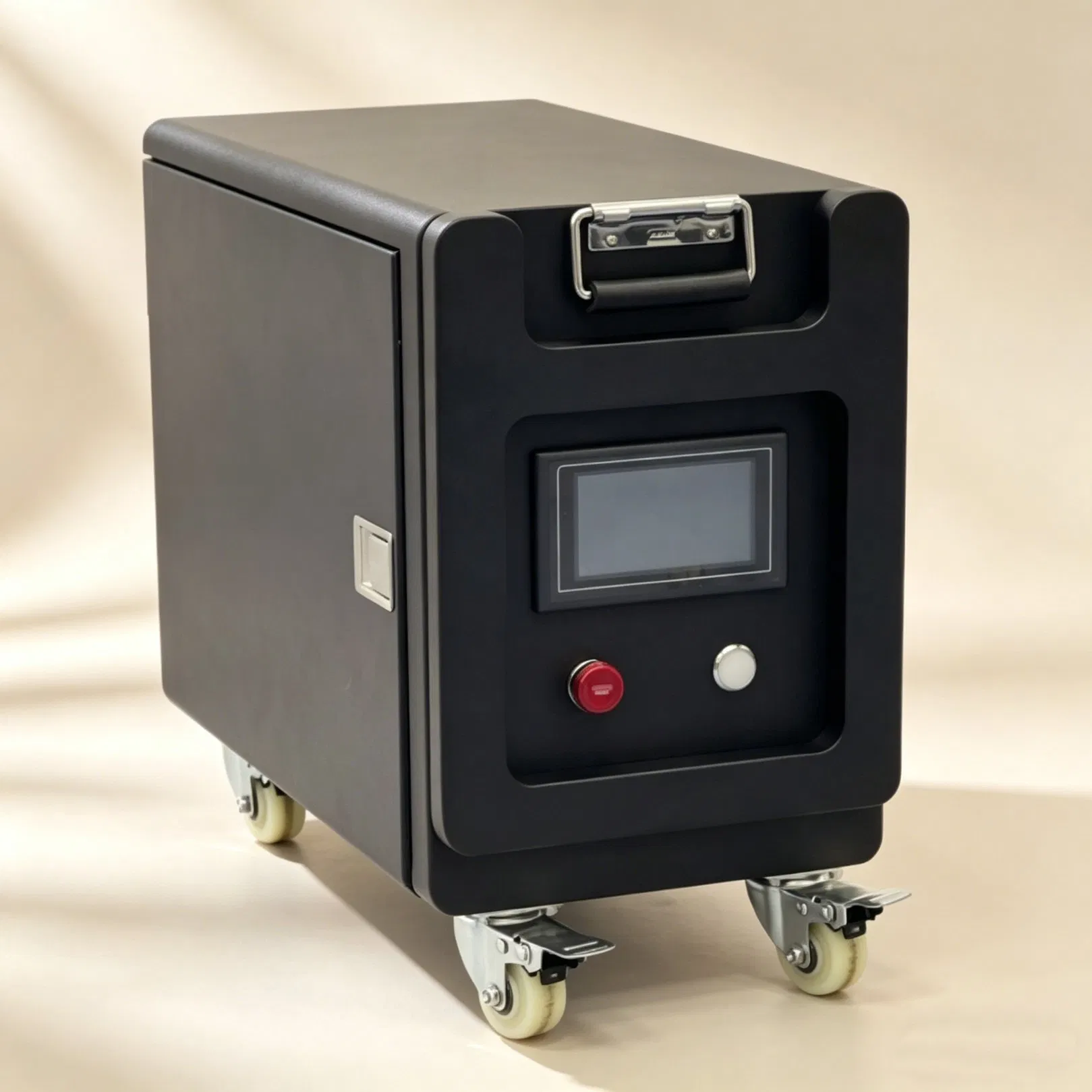

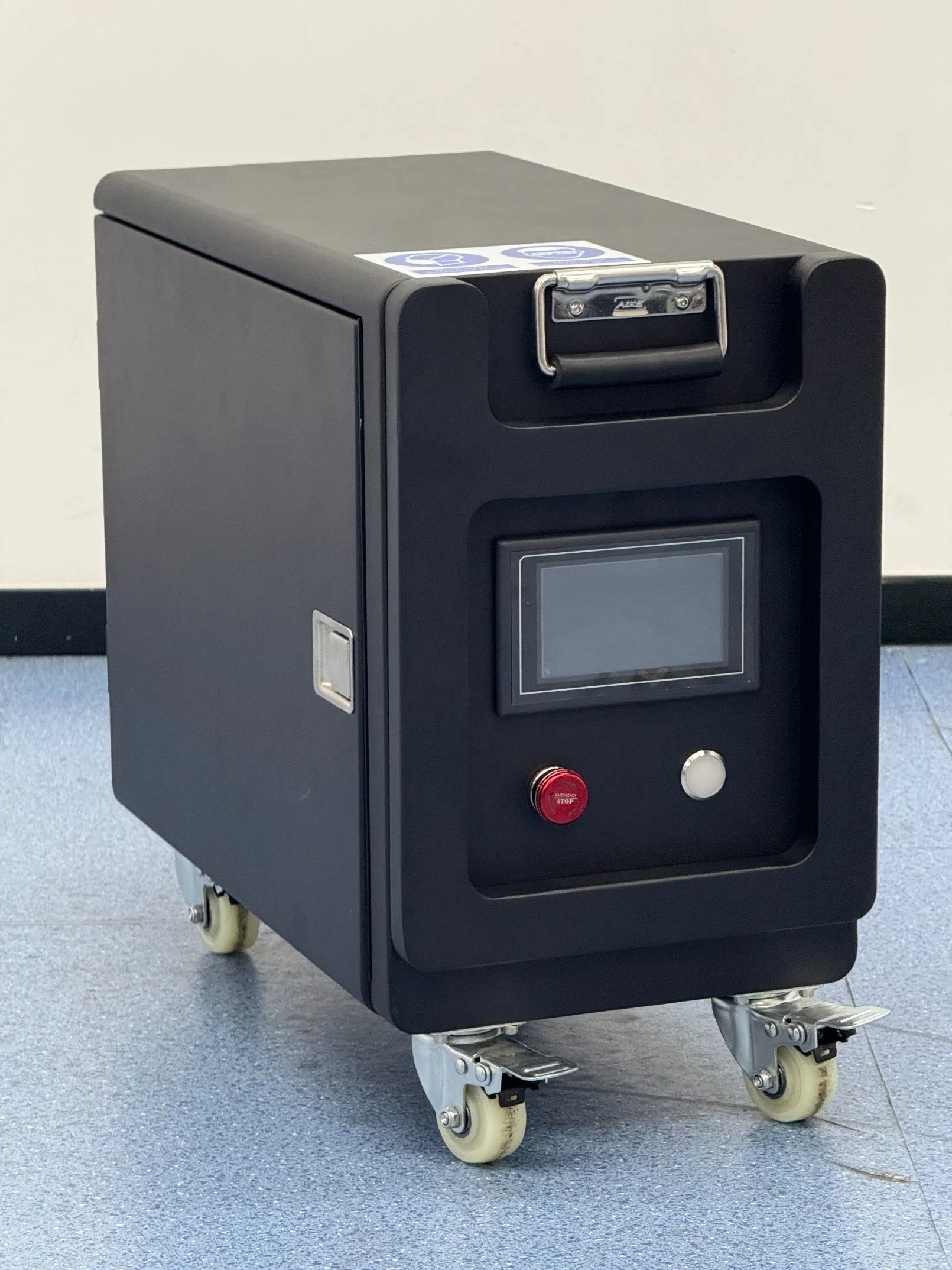

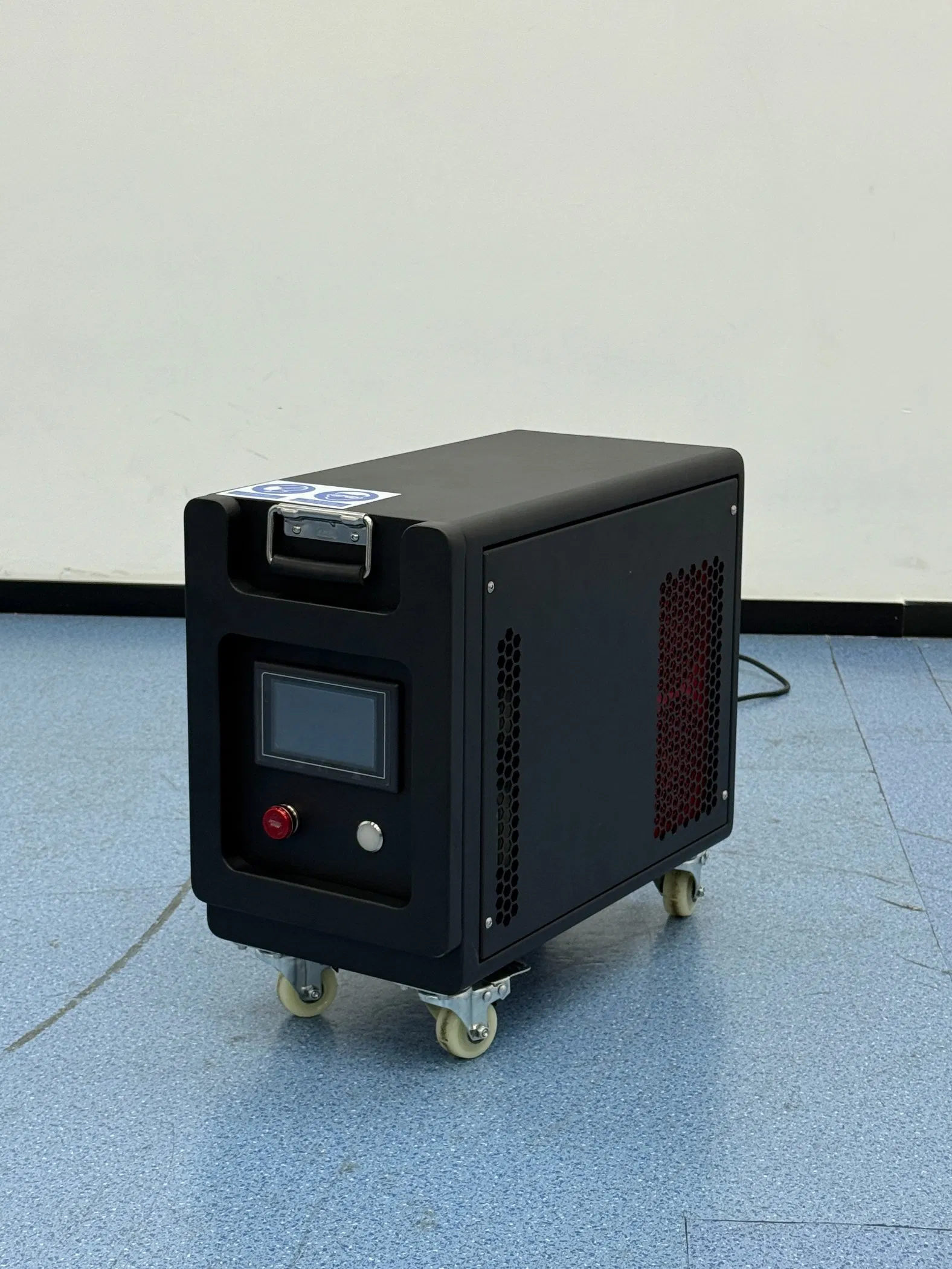

100W 200W 300W Portable Pulsed Fiber Laser Rust Remover Handheld Cleaning Machine for Metal Paint Wood Plastic

Customization: Available
After-sales Service: 24-Hour Online Service
Power: 200w

Product Description

  • Overview
  • Specification
  • Product parameters
  • Packing & Delivery
  • After Sales Service
  • Customer visit
  • Certifications
  • FAQ

Laser cleaning is a new type of non-contact cleaning method. It does not damage the parts themselves. The laser cleaning head is lightweight, allowing for long-term handheld operation. It requires no chemical cleaning fluids, has no consumables, and is safe and environmentally friendly. The operation is simple—just power it on and use it. It can be operated by hand or combined with a manipulator to achieve automated cleaning.

Basic Info.
Model NO.SAN-Cleaner
Control TypeHandheld
Warranty1 Year
Model No.100W 200W 300W
Laser SourceJpt
Weight31kg
Cooling MethodAir Cooling
Running ModeImpulse
Laser HeadZbtk
ColorBlack
OEM ServiceYes
Pulse Length10-500ms
Electricity Demand220V±5V
Key Selling PointsEasy to Operate
Transport PackageWooden Box
Specification500*250*440mm/31KG
OriginChina
HS Code8515809090
Production Capacity3000 Sets
Packaging & Delivery Info.
Package Size50.00cm * 25.00cm * 44.00cm
Package Gross Weight31.000kg
Lead Time5 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
Specification
Innovative Design

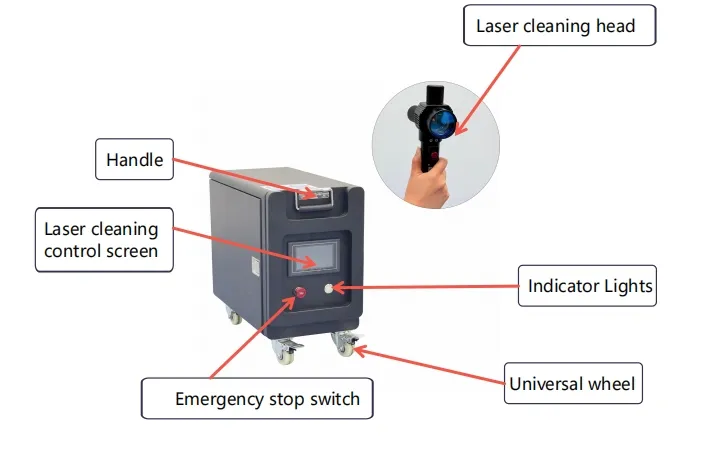

Pulsed Fiber Laser Rust Remover Handheld Cleaning Machine
Portable Pulsed Fiber Laser Rust Remover Details
Configuration List
  • One set of laser
  • One set of cleaning system
  • One set of LCD display system
  • One set of main cabinet
  • One set of laser fiber
Key Features
  • Compact dimensions: 500×250×440mm saves space, fits easily in small storage areas or narrow workspaces.
  • Lightweight (31KG): Easy to handle solo, no need for heavy lifting tools; convenient for on-site transfers.
  • Handheld-friendly: No fixed installation required. Pair with handheld cleaning heads for flexible operation in hard-to-reach areas; quick to deploy.

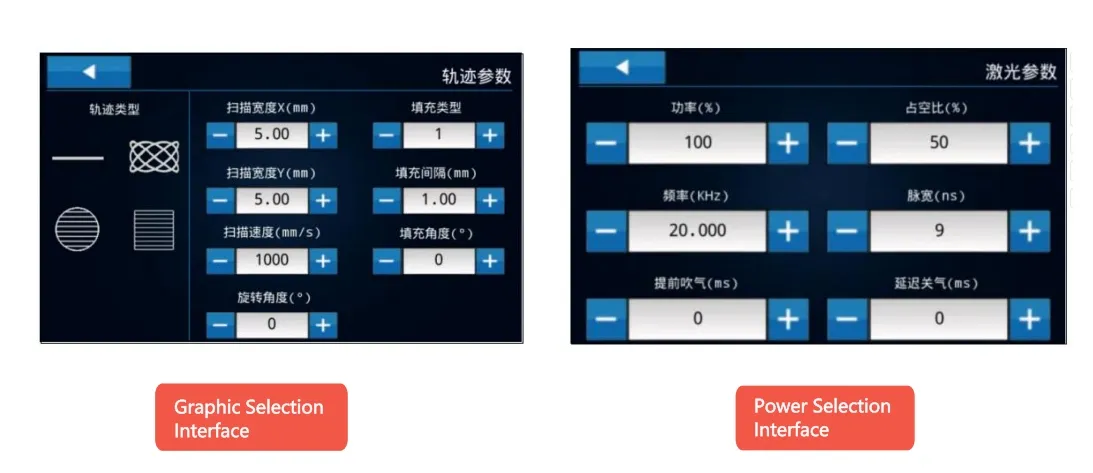

Software Interface
Laser Software Interface Layout

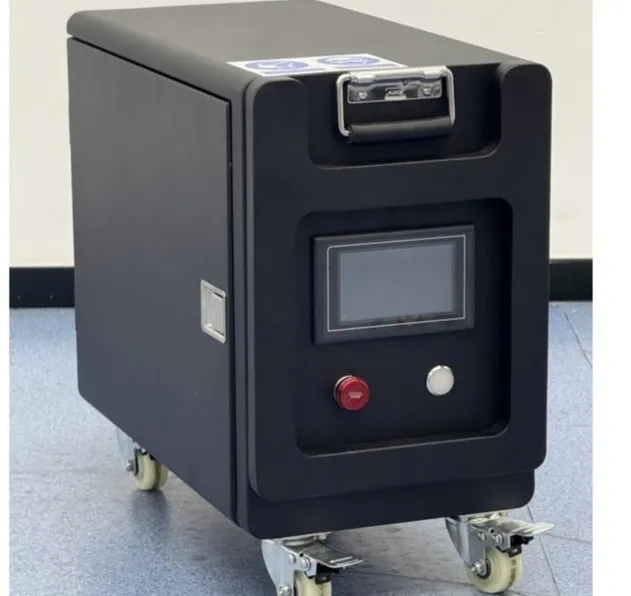

Left Elevation
Left Elevation

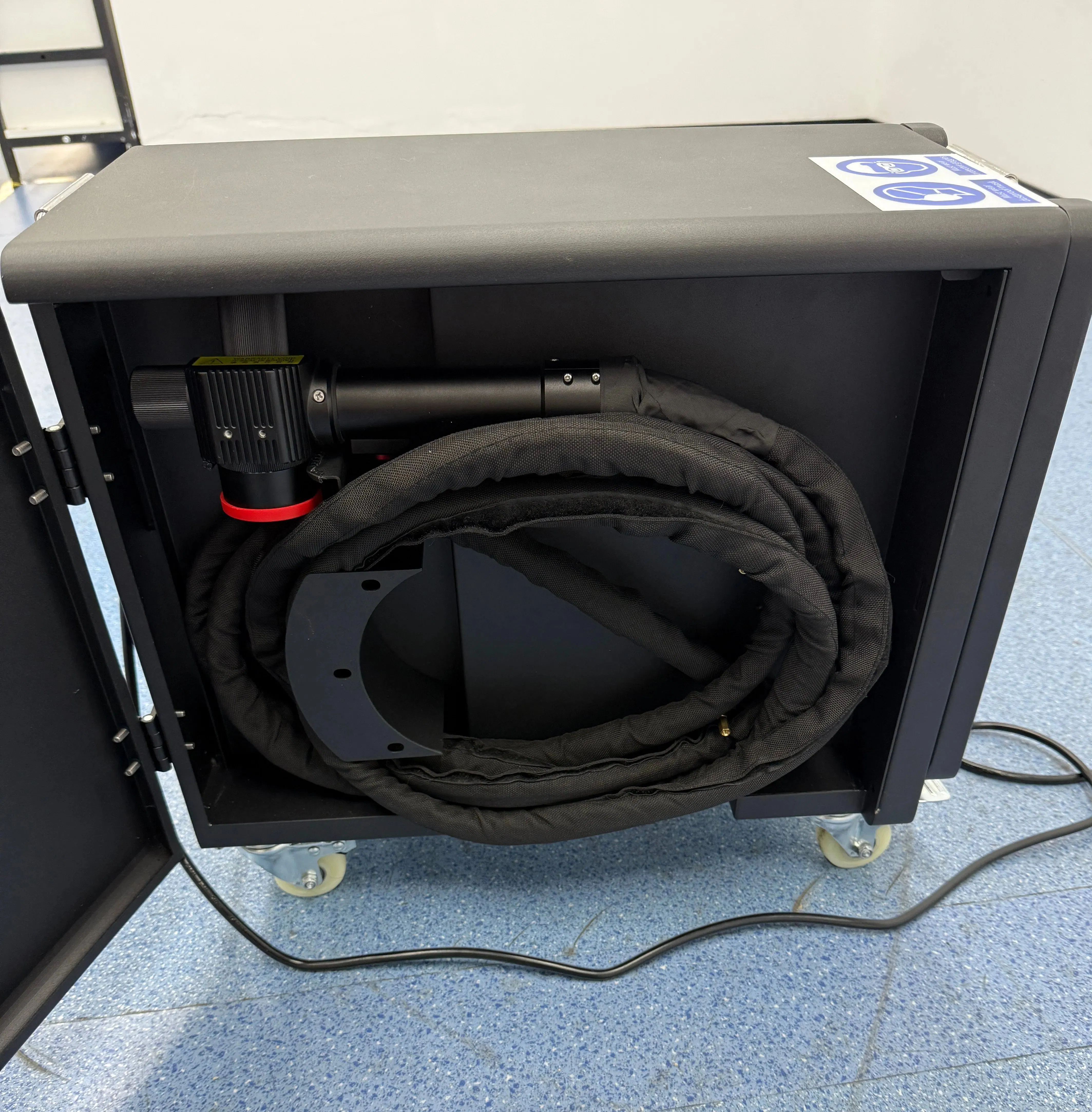

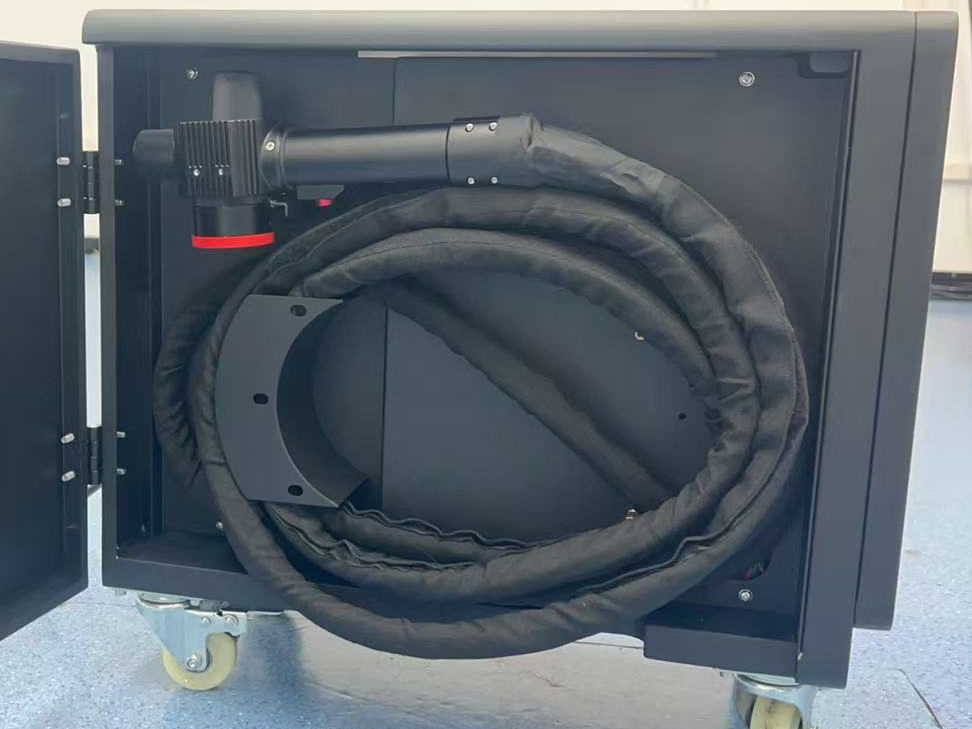

Inside the machine
Inside the machine

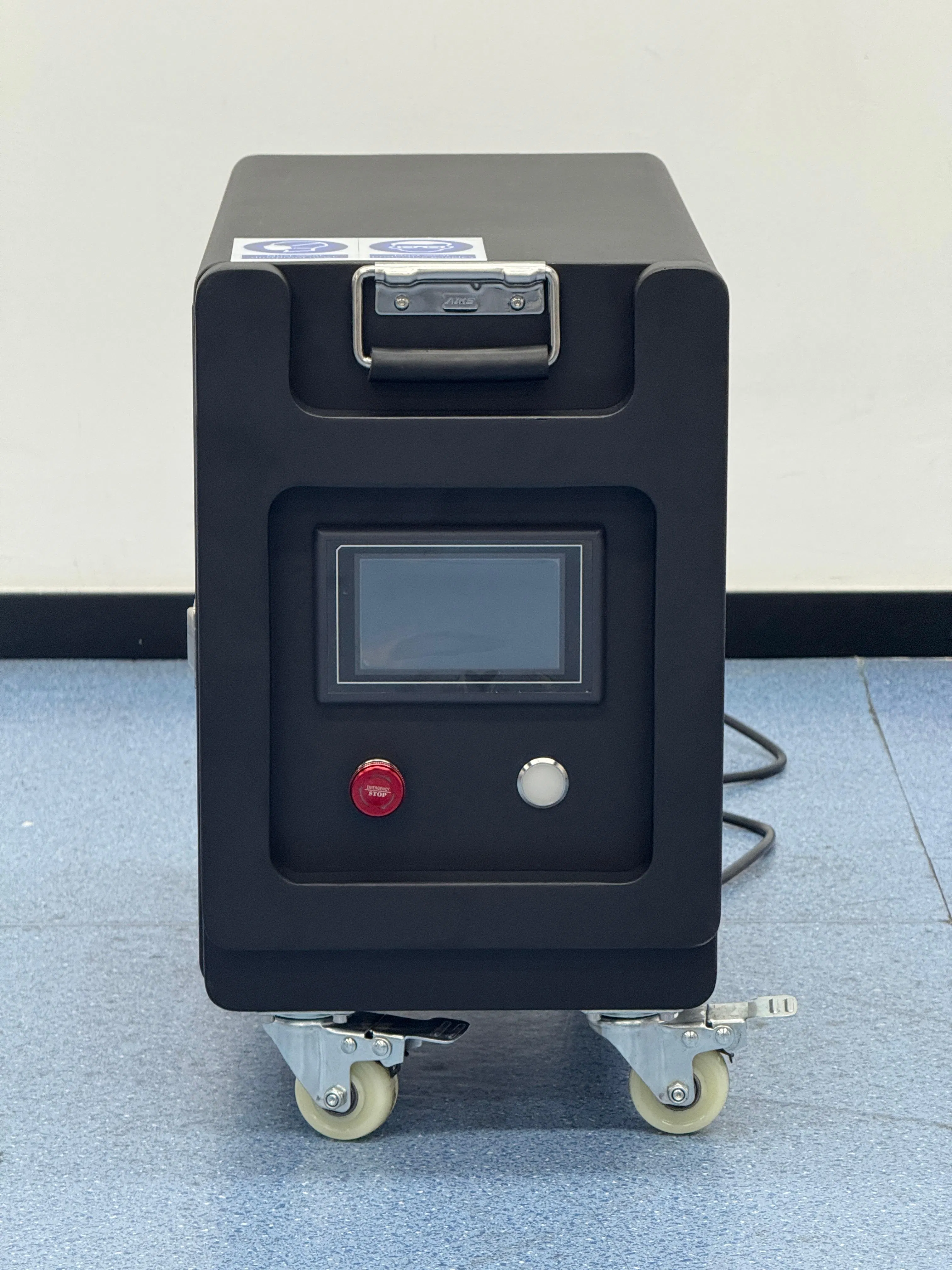

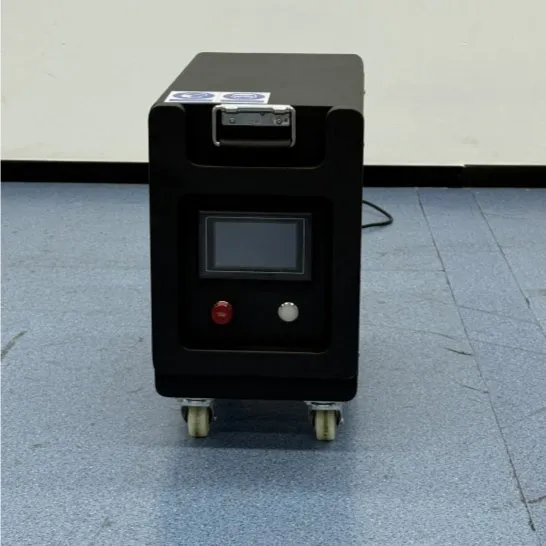

Front Elevation
Front Elevation
Product parameters
Model 200W-QX 300W-QX
Maximum laser power 150W 300W
laser wavlength 1064nm
Operation Mode Pulsed
Laser frequency 1-3000HZ 1-3000HZ
Pulse Width (ns) 10-500Ms 10-500Ms
Adjustable amplitude (length, width) 1-120mm
Cooling Method Air-cooled Air-cooled
Rated Power 1kw 1.2kw
Power Requirement 220V±5v -
External dimensions/net weight Main unit: 500*250*440mm / 31KG

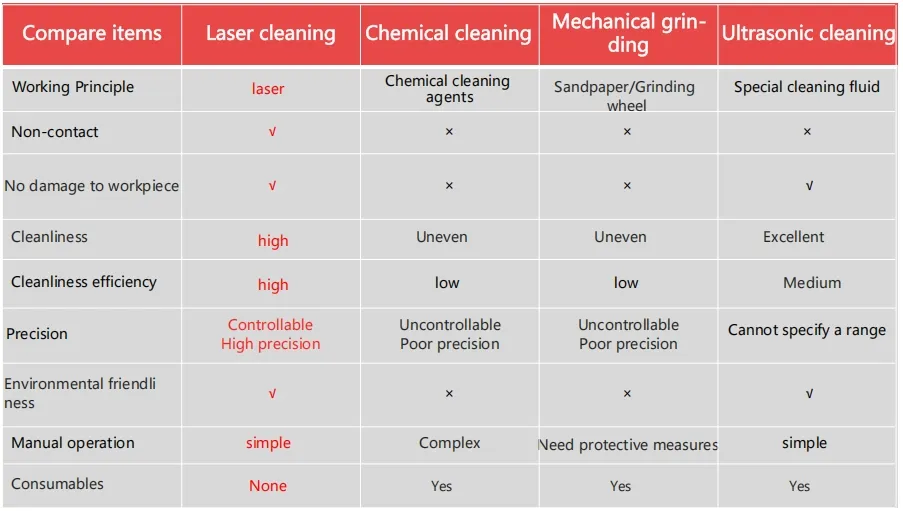

Comparison between laser cleaning and traditional cleaning
Comparison between laser cleaning and traditional cleaning method details
Packing & Delivery
Pulsed Laser Cleaning Machine Packing step 1
Pulsed Laser Cleaning Machine Packing step 2
Pulsed Laser Cleaning Machine Delivery ready
After Sales Service
18-month warranty
against manufacturing defects
Water damage coverage
(unlike traditional headphones)
Battery replacement program
(after 500 cycles)
Customer visit
International Customers Visiting Factory 1
International Customers Visiting Factory 2
Customer Showcase Photo 1
Please enter the title here

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

Customer Showcase Photo 2
Please enter the title here

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

Customer Showcase Photo 3
Please enter the title here

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

Certifications
Certificates gallery
FAQ
1. What is a portable pulsed laser cleaning machine? What is it used for?
It is a non-contact, eco-friendly cleaning equipment that uses high-energy pulsed laser to strip contaminants from surfaces. It is widely used for rust removal, paint stripping, oil degreasing, oxide layer removal, weld cleaning, and coating removal in industrial maintenance, automotive, shipbuilding, mold and hardware industries.
2. What materials and contaminants can it clean?
Applicable materials: Carbon steel, stainless steel, aluminum, copper, brass, plastic, wood, glass, stone
Removable contaminants: Rust, paint, oil, grease, oxide scale, weld slag, plating, graffiti, mold residue, carbon deposits
3. What are the advantages over traditional cleaning methods?
No damage to substrate: Adjustable laser energy, only removes contaminants, no abrasion or chemical corrosion
100% eco-friendly: No chemicals, no dust, no waste water, no secondary pollution
High efficiency: 5-10 times faster than sandblasting and manual grinding
Portable & flexible: Only 25-40kg, plug-and-play, suitable for on-site and hard-to-reach areas
Low operating cost: No consumables, only electricity consumption, 100,000+ hours laser lifespan
4. Which power should I choose?
100W: Best for precision cleaning of small parts, thin rust/paint, and delicate surfaces (jewelry, electronics, molds)
200W: Most popular all-round model, covers 80% of daily industrial cleaning needs
300W: For heavy-duty cleaning, thick rust (over 1mm), large-area paint stripping and ship maintenance
5. Will it damage the original surface of the workpiece?
No. The laser energy is precisely adjustable. It only vaporizes the surface contaminants without touching or damaging the base material. It is even suitable for cleaning precision parts, antique metalware and mold surfaces.
6. What is the maintenance cost? Are there any consumables?
Almost zero maintenance cost. No consumables required (no sand, no chemicals, no brushes). Only need to clean the optical lens regularly (once every 1-3 months). The laser source has a lifespan of over 100,000 hours.
