Applicable Industries: Advertising production, sheet metal processing, kitchenware manufacturing, duct manufacturing, automobile assembly, and shipbuilding. Built to deliver excellence and unparalleled structural reliability.
Applicable Materials: Cold-rolled sheets, galvanized sheets, carbon steel, stainless steel, aluminum, and copper sheets.
| LASER CUTTING MACHINE TECHNICAL SPECIFICATIONS | |
|---|---|
| Working size | 2000*6000mm |
| Table | Single Table (or Exchangeable Dual Tables as optional spec) |
| Machine size | 3100*8500*2400 mm |
| System | Ncstudio with Original HP PC and original WIN10 |

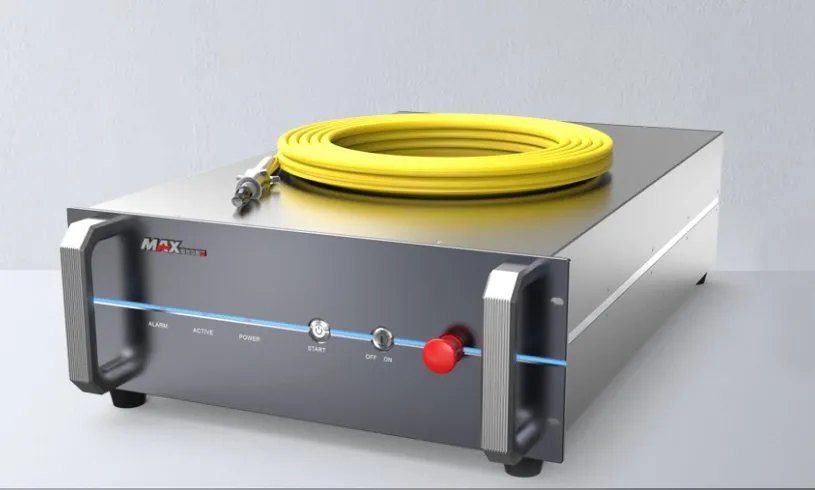

| Laser power | Max 6000W MFSC-6000C |
| Transmission system | Taiwan brand rack and pinion |

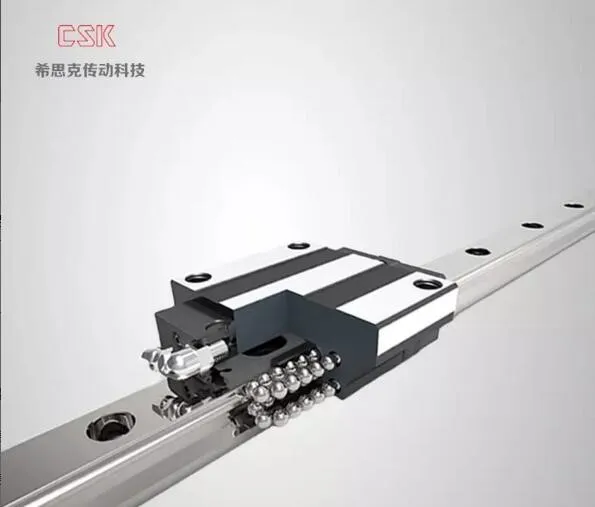

| Guide rail | Taiwan brand CSK |
| Laser Head | Raytools BM06G with auto focus |
| Air control | SMC, Japan |
| Electric parts | CHNT made in China |
| Working voltage | AC 380V, 50-60HZ, 3 phases |
| Cooling system | Teyu Water Chiller CWFL-6000ENS04 |

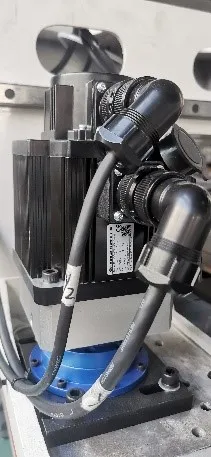

| Servo Motor model | Ncstudio Absolute Value AC Servo Motor and driver 1500W |
| Max Travel Speed | 80m per min |
| Laser type | Fiber laser |
| Laser wavelength | 1070nm |
| X/Y/Z axis stoke | 1500 / 3000 / 300mm |
| X/Y axis positioning accuracy | ±0.05mm/m |
| X/Y axis re-position accuracy | ±0.03mm/m |

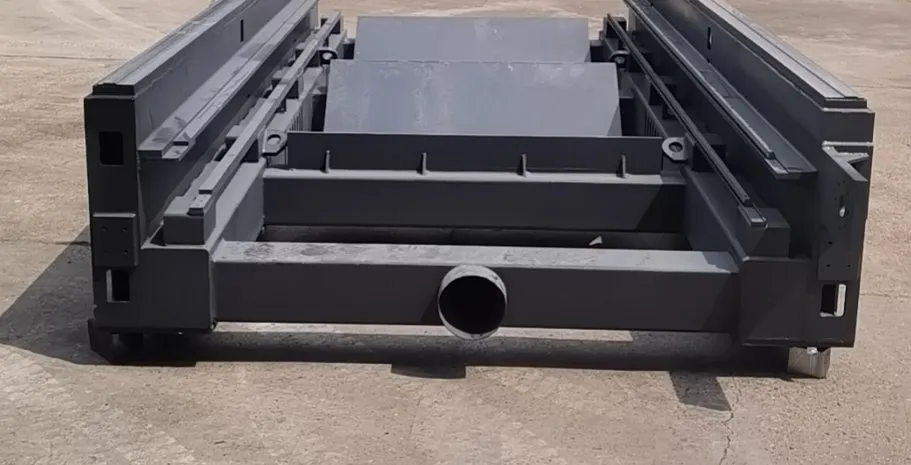

| Machine bed | Plate and tube welding |
| Working table max. loading | 1500kgs |
| MFSC-6000C CUTTING PARAMETERS REFERENCE TABLE | ||||||||
|---|---|---|---|---|---|---|---|---|
| Material | Thickness (mm) | Speed (mm/min) | Power (W) | Gas | Pressure (Bar) | Nozzle (mm) | Focus (mm) | Cut height (mm) |
| Carbon Steel | 1 | 60-80 | 6000 | N2/Air | 10 | 2.0 S | 0 | 0.6 |
| 2 | 40-45 | 6000 | N2/Air | 12 | 2.0S | -0.5 | 0.5 | |
| 3 | 23-28 | 6000 | N2/Air | 14 | 3.0S | -1.5 | 0.5 | |
| 4 | 15-20 | 6000 | N2/Air | 14 | 3.0S | -3 | 0.5 | |
| 5 | 10-13 | 6000 | N2/Air | 16 | 3.5S | -3.5 | 0.5 | |
| 6 | 7-9 | 6000 | N2/Air | 18 | 3.5S | -4 | 0.5 | |
| Carbon Steel (O2) | 3 | 3.6-4.5 | 3000 | O2 | 0.6 | 1.0 D | +6.5 | 0.6 |
| 4 | 3.2-3.5 | 3000 | O2 | 0.6 | 1.0 D | +6.5 | 0.6 | |
| 5 | 2.6-3.2 | 3500 | O2 | 0.6 | 1.0 D | +6 | 0.6 | |
| 6 | 2.5-2.8 | 4000 | O2 | 0.6 | 1.0 D | +6 | 0.6 | |
| 8 | 2.2-2.5 | 5000 | O2 | 0.6 | 1.2D | +6 | 0.6 | |
| 10 | 2.0-2.2 | 6000 | O2 | 0.6 | 1.2D | +7 | 0.6 | |
| 12 | 1.8-2.0 | 6000 | O2 | 0.6 | 1.2D | +9 | 0.6 | |
| 14 | 1.4-1.7 | 6000 | O2 | 0.5 | 1.4D | +12 | 0.6 | |
| 16 | 0.9-1.2 | 2200 | O2 | 0.5 | 5.0D | +3.5 | 0.6 | |
| 18 | 0.7-1.0 | 2200 | O2 | 0.5 | 5.0D | +3.5 | 1.5 | |
| 20 | 0.6-0.8 | 2300 | O2 | 0.5 | 5.0D | +3.5 | 1.5 | |
| 22 | 0.55-0.65 | 2400 | O2 | 0.5 | 5.0D | +3.5 | 1.5 | |
| Stainless Steel | 1 | 60-80 | 6000 | N2 | 10 | 2.0 S | 0 | 0.6 |
| 2 | 30-35 | 6000 | N2 | 12 | 2.0 S | 0 | 0.5 | |
| 3 | 20-24 | 6000 | N2 | 12 | 3.0 S | -0.5 | 0.5 | |
| 4 | 13-16 | 6000 | N2 | 12 | 3.0 S | -1 | 0.5 | |
| 5 | 9-12 | 6000 | N2 | 14 | 3.0S | -1.5 | 0.5 | |
| 6 | 6.0-8.5 | 6000 | N2 | 14 | 4.0S | -2 | 0.5 | |
| 8 | 3.0-4.8 | 6000 | N2 | 16 | 4.0S | -4 | 0.5 | |
| 10 | 1.8-2.5 | 6000 | N2 | 16 | 4.5S | -7.5 | 0.5 | |
| 12 | 1.5-1.8 | 6000 | N2 | 18 | 4.5S | -8 | 0.5 | |
| 14 | 0.8-1.2 | 6000 | N2 | 16 | 4.5S | -10 | 0.5 | |
| 16 | 0.7-0.95 | 6000 | N2 | 18 | 4.5S | -11.5 | 0.5 | |
| 18 | 0.6-0.7 | 6000 | N2 | 18 | 5.0S | -12.5 | 0.5 | |
