3D Laser Cutting Machine S Type Bending Pipe Cutting, Segmentation, a Molding

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Technical Specs
  • Detailed Photos
  • Our Advantages
  • FAQ

Overview

Basic Specifications
ApplicationHome Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling SystemWater Cooling
Technical ClassFiber Laser
Applicable MaterialMetal
Structure TypeGantry Type
Laser ClassificationFiber Laser
Laser TechnologyLaser Cutting
Weight2000 Kg
Operational Capacity
Working Area1500mmx3000mm / 2000mmx4000mm / 2000mmm
Cutting Area3000mm*3000mm
Cooling ModeWater Cooling
Laser Power500W / 1000W / 2000W / 3000W
Control BrandFanuc ABB/Yaskawa/Staubi
Transport PackageWooden Package
Specification3240*3000*5060mm
OriginChina
HS Code8456110090
Packaging & Delivery
Package Size3240.00cm * 3000.00cm * 5060.00cm
Package Gross Weight2000.000kg

Laser Cutting Robot OEM Custom Manufacturing

Technical Specifications

Parameter Specification Details
ModelRC-1000/2000/3000
Laser sourceRaycus 1000w/2000w/3000w
Laser working modeContinuous
Wavelength1064nm
Rated output power1000W/2000w/3000w
Beam quality6mm*mrad
Output power stability±2%
Modulation frequency5KHz
Output fiber diameter50-100mm
Rated input voltage220VAC
Power consumption2kW
Working area of Robot Arm1.4m-2.0m
SoftwareCYPCUT
Cooling systemWater chiller
Weight3500KG

Detailed Photos

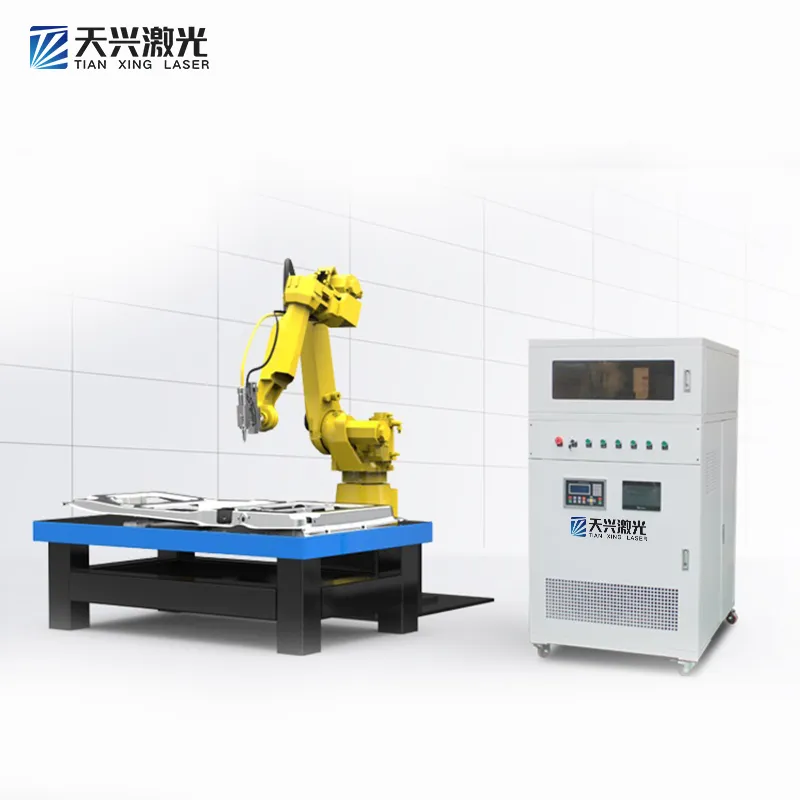

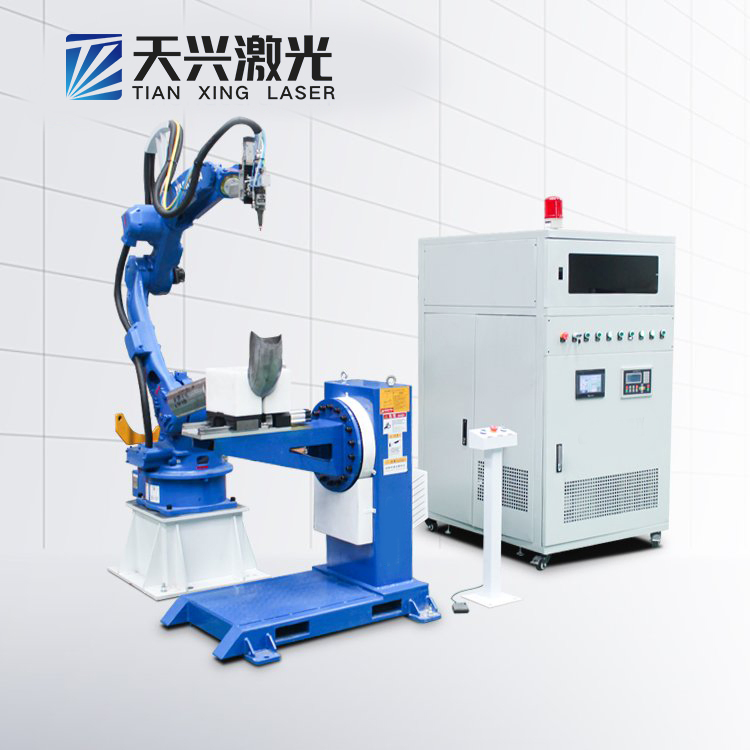

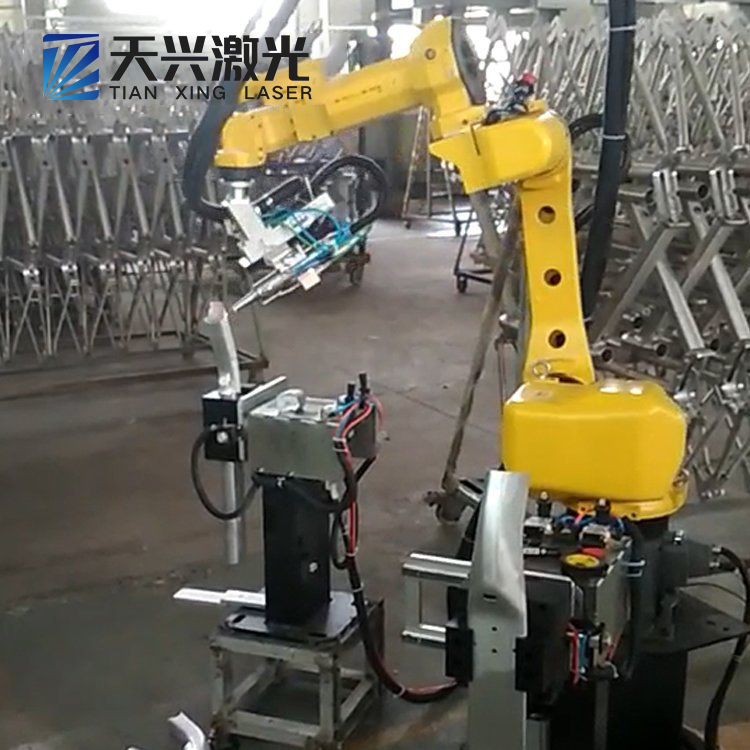

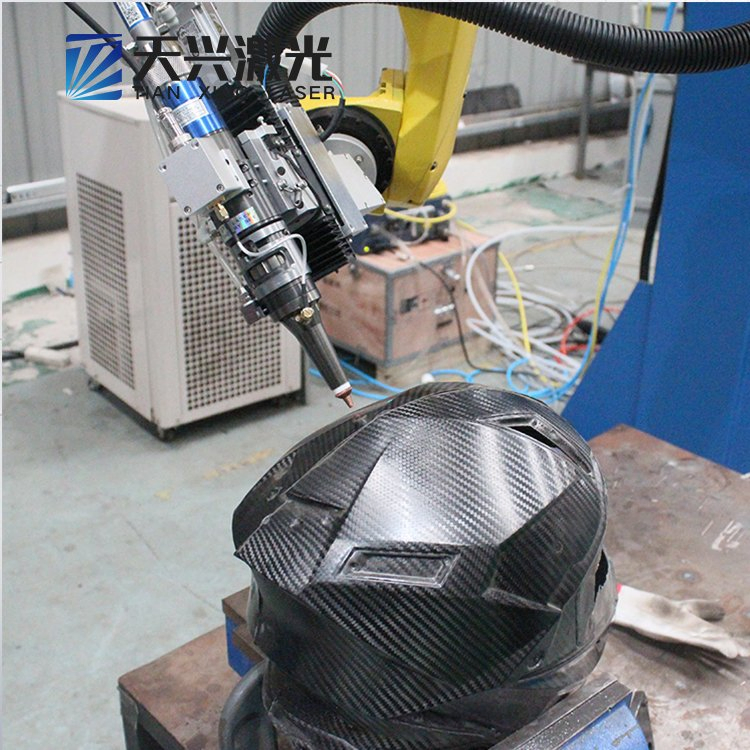

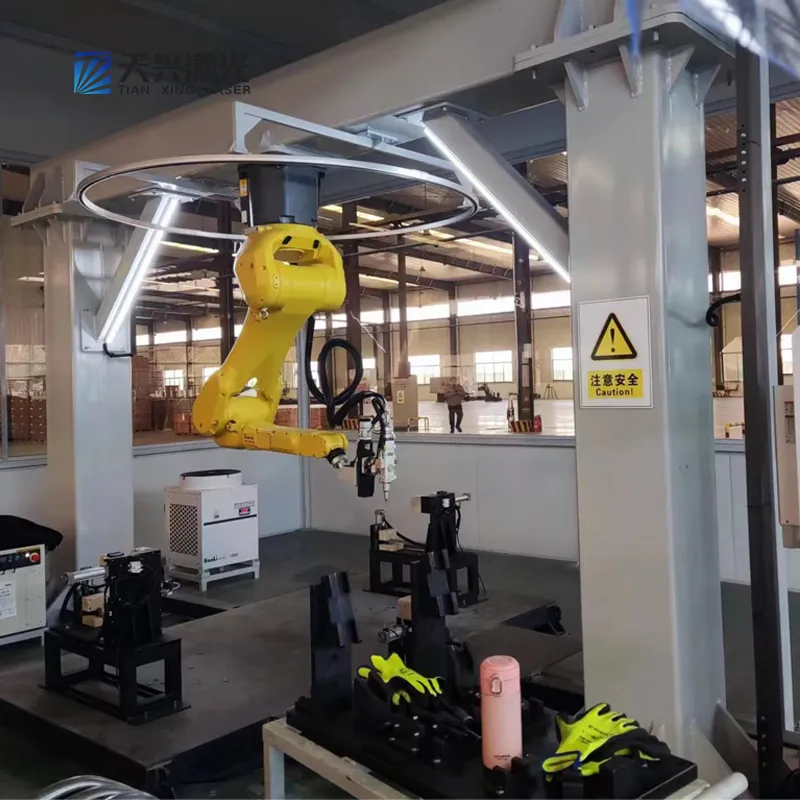

3D Laser Cutting Machine S Type Bending Pipe Cutting, Segmentation, a Molding

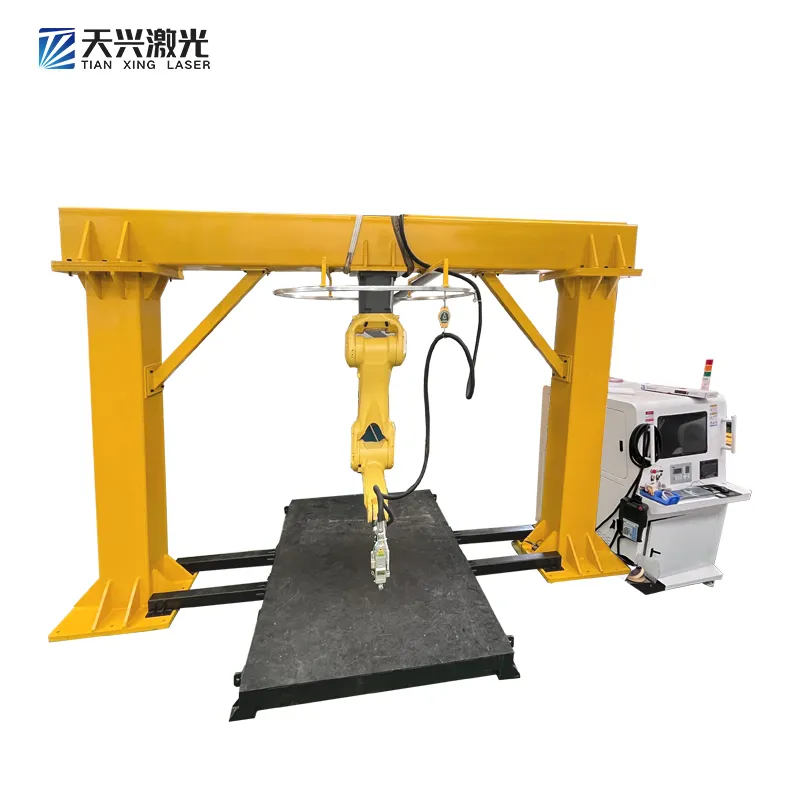

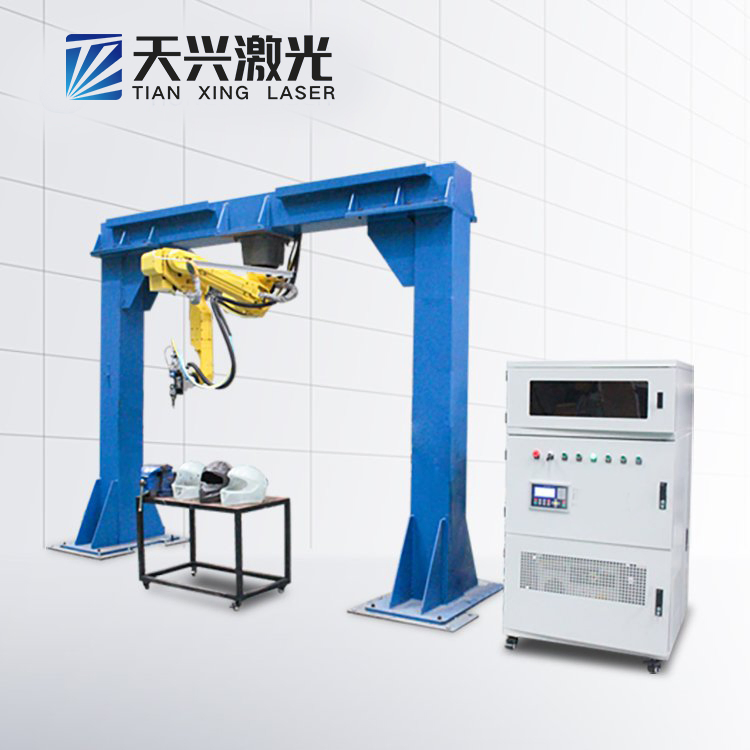

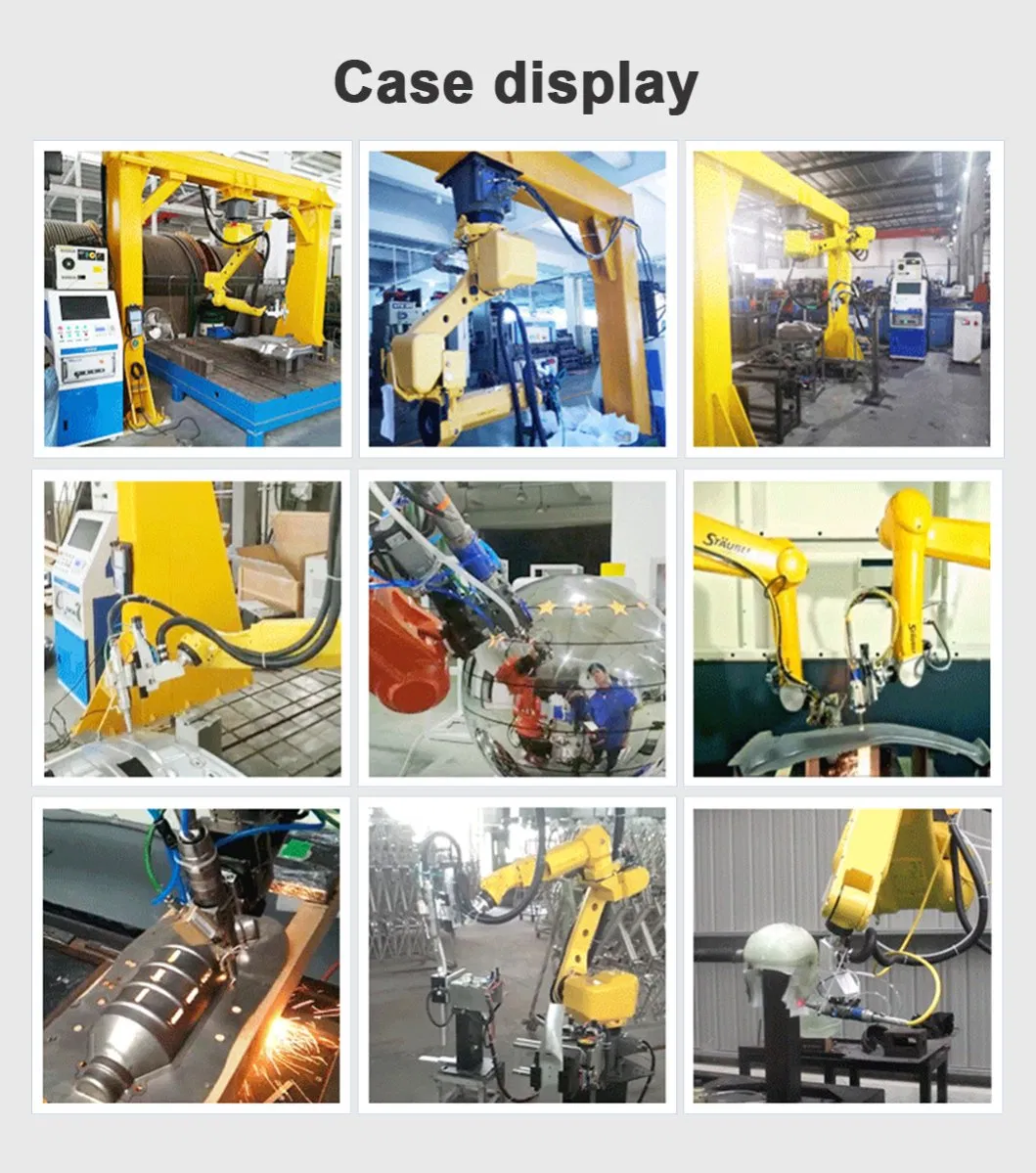

Professional 3D Robotic Integration

The fiber laser Robotic flexible 3D cutting system is extensively used for Automobile manufacturing, engineering machinery, metal-plate processing and aerospace industry etc. The successful application has gained huge market effect in the domestic automobile manufacturing, auto-parts and engineering machinery processing field.

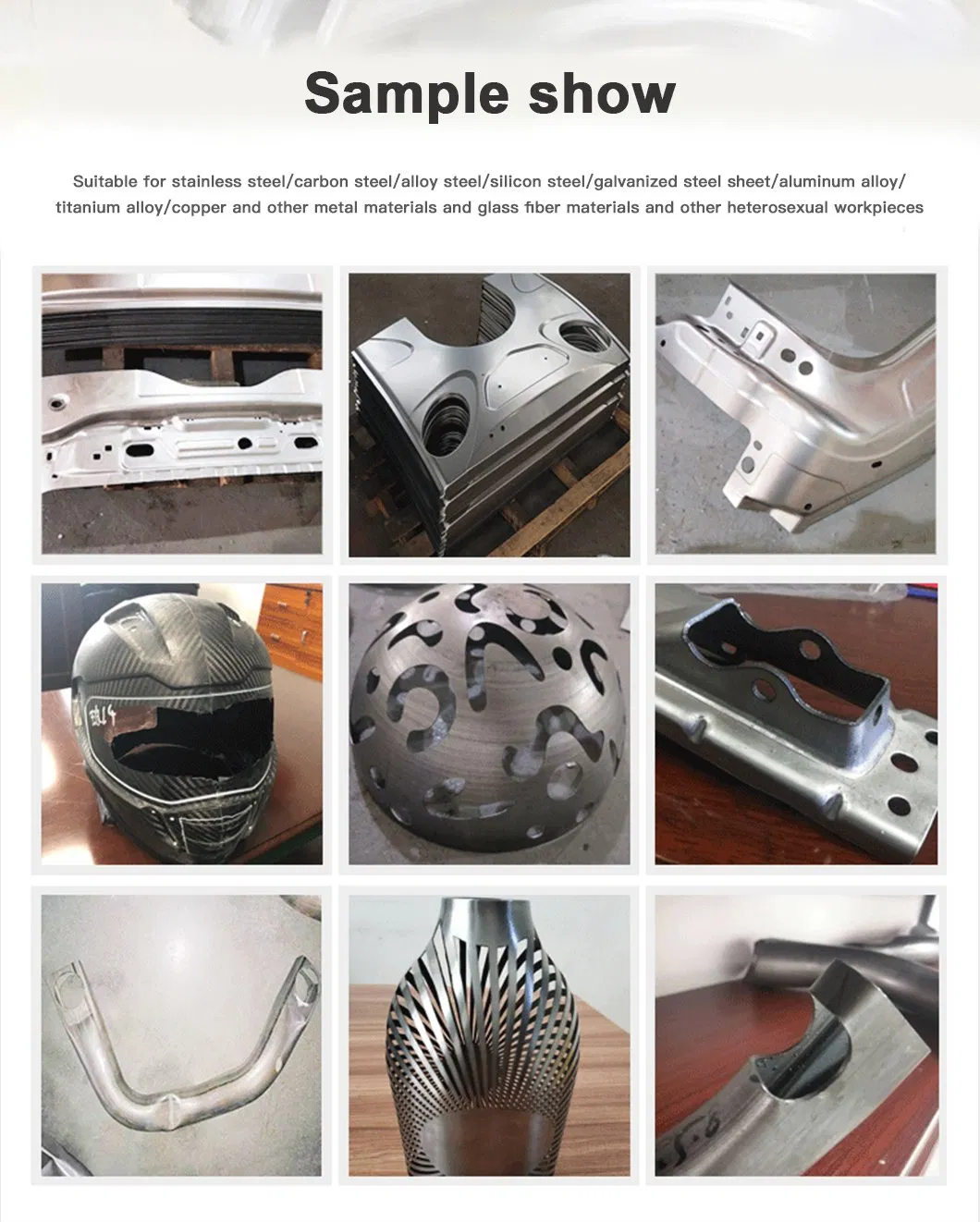

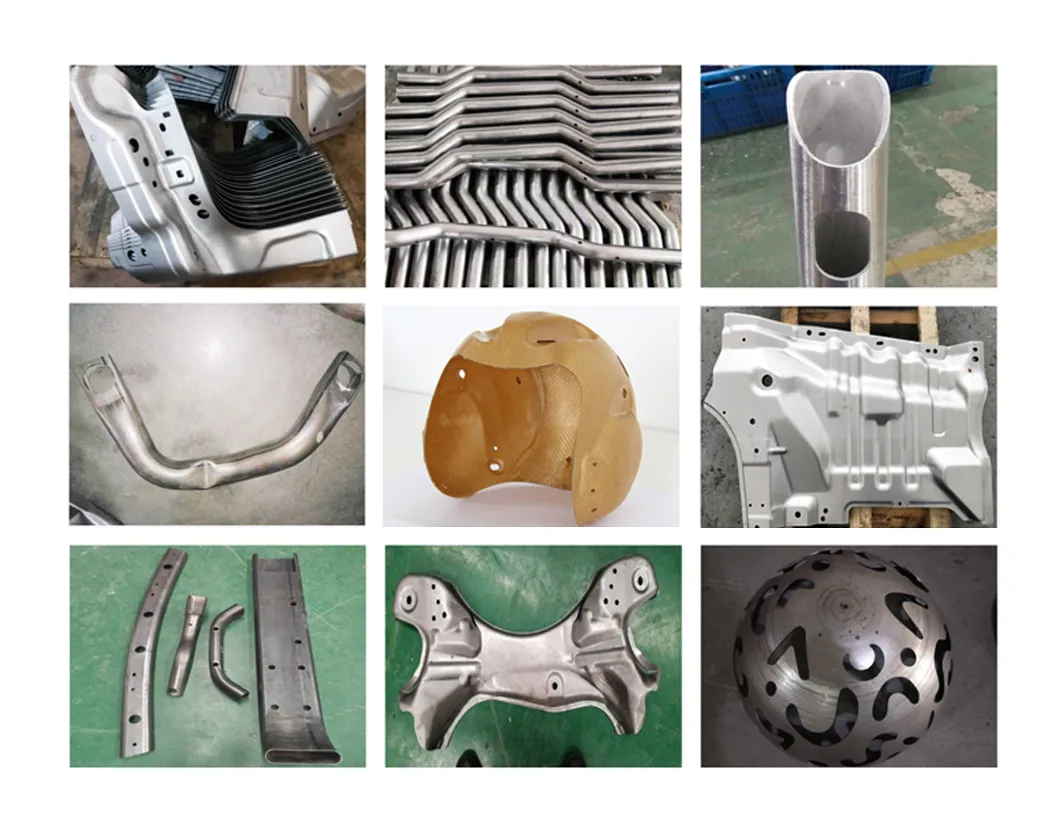

3D Laser Cutting Machine Application Details

Manufacturing & Development Profile

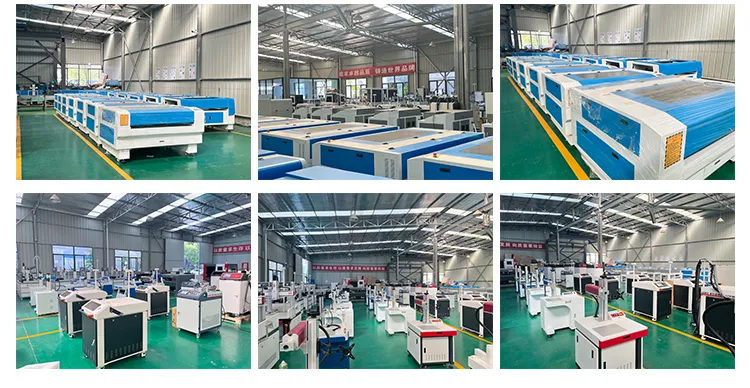

Manufacturing Center and Facilities

Our Core Advantages

Global Standard Solutions

As a global enterprise, we are committed to providing better laser cutting solutions to customers around the world insisting on quality, focusing on service, and continuous core technological innovation and R&D.

Diverse Ecosystem & Premium Services

The product lines are serialized and diversified to meet various needs of customers. The overall quality is highly durable, creating maximum value for customers. We support timely after-sales service, professional and efficient handing of problems, free sample cutting, free customer training, and high volume exhibition support.

Frequently Asked Questions (FAQ)

How can I install and debug the machine?
We will provide detailed instructions and installation videos alongside the machine. We also provide online, step-by-step guidance from our English-speaking engineers to ensure your machine operates seamlessly, enabling your local team to quickly learn operations and maintenance procedures.
Can I customize the machine according to my specific requirements? Do you offer OEM?
Yes. We are a specialized research, development, and manufacturing enterprise. We deliver highly customized machinery tailored directly to the specific applications and operational needs of our clients, alongside complete OEM services.
Can you arrange logistics and transportation for me?
Absolutely. For all international trade, we offer flexible shipping options including EXW, FOB, and CIF services. Customers with urgent project deadlines can also opt for swift air freight logistics.
What is the warranty period of the machine?
Depending on the specific machinery models, we provide a robust two-year or three-year warranty period. During this period, all repairs and replacements of damaged components are provided free of charge. Beyond the warranty period, we guarantee lifelong free maintenance support and software upgrade services.
What are the consumables of the machine and their expected lifetime?
The machine is designed to be highly maintenance-friendly. Only the optics lens, laser tube, and power supply elements serve as standard consumables. The premium laser tube has an operational lifetime of approximately 10,000 hours, whereas optical lenses and power units will not degrade under normal operational circumstances.
What materials can this laser cutting robot process?
This robotic 3D cutting system is engineered to handle various metals with high efficiency. It is widely used across specialized industries such as automotive, aerospace, structural engineering, home appliances, and custom fabrication to process highly complex spatial geometry workpieces.
