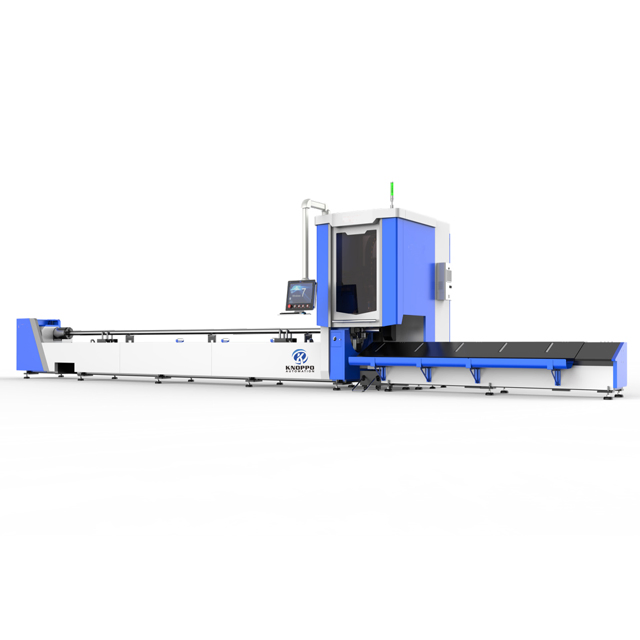

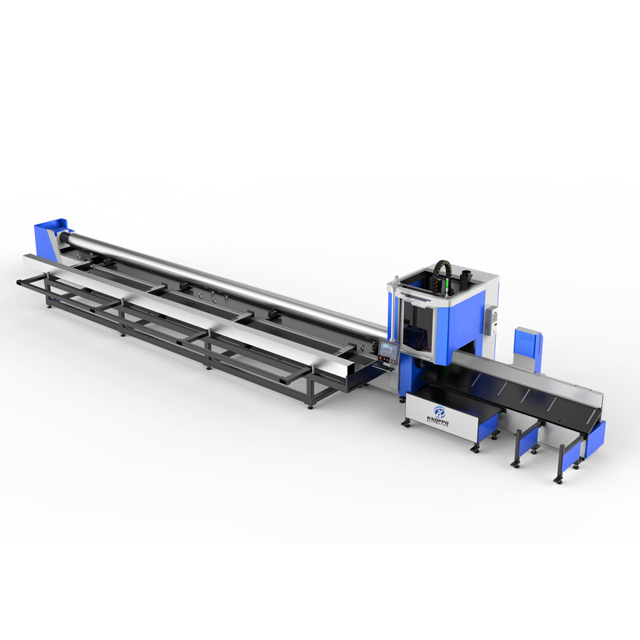

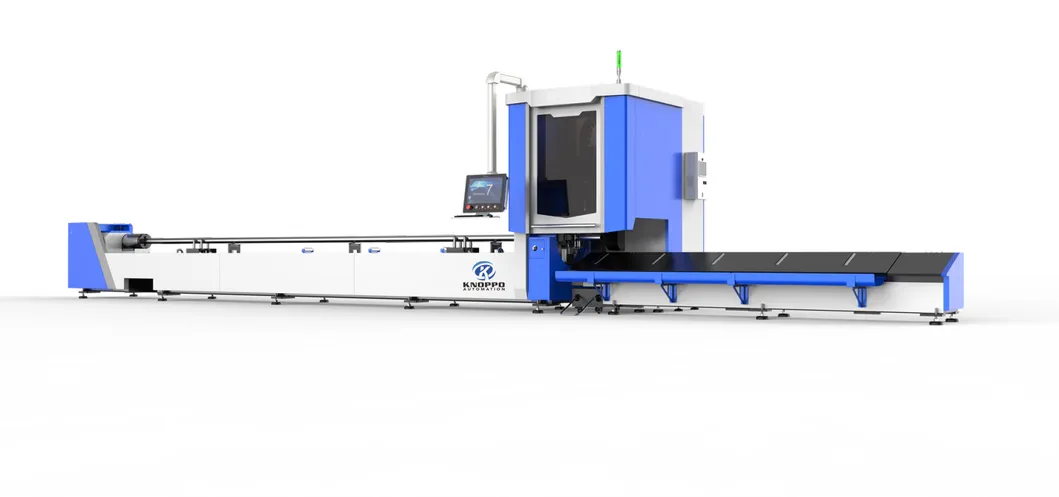

The equipment meets the parts processing requirements of most industries, working accuracy is stable. Selecting the optimal force and supporting structure, the overall mechanical property of equipment is perfect. Adopting cutting-edge optical concept to improve cutting performance. High speed cutting, auxiliary loading and unloading and efficient production reduce labor costs. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
| Parameter | Value / Details | |
|---|---|---|
| Model | KT6 | |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 12KW / 20KW | |

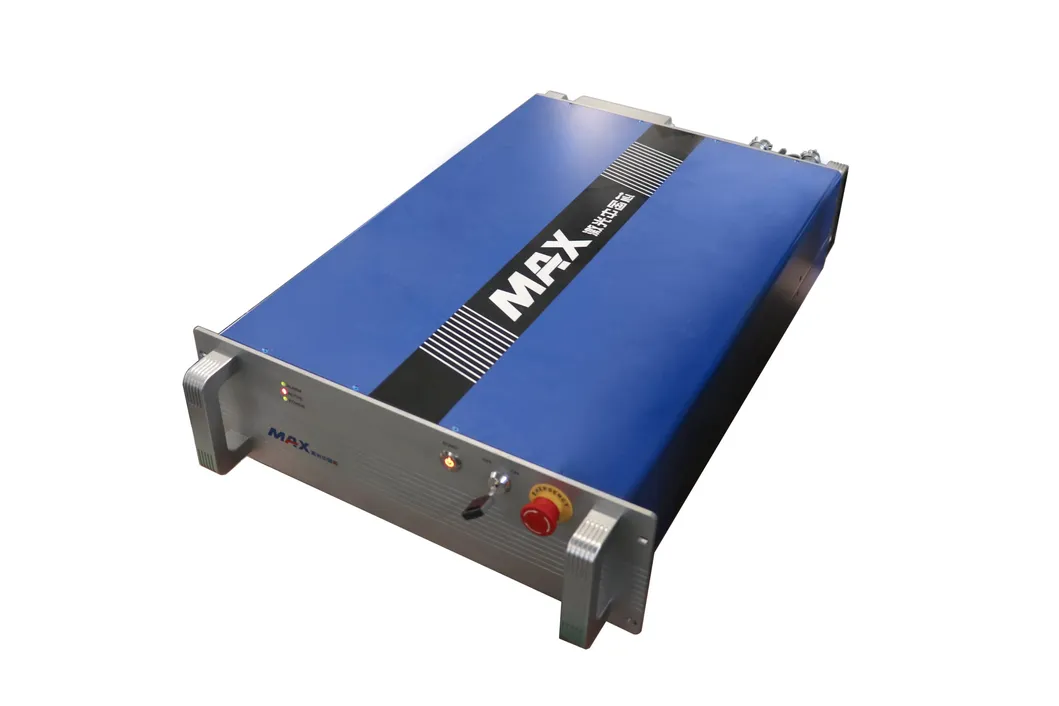

| Laser Source | Raycus / Max | |
| Tube Cutting Length | 12m / 6m | |
| Tube Cutting Diameter | 20~240mm / 320mm / 520mm | |
| Machine overall dimensions | 13500×3200×2500mm | |
| Machine weight | 5400kg | |
| Max. linkage speed | 140m/min | |
| Max. acceleration | 1.5G | |
| Positioning accuracy | 0.03mm | |
| Repositioning accuracy | 0.02mm | |
High-performance focus control with stable optical pathways and superior durability:
Provides top-tier dynamic acceleration and highly stable performance:
High positional accuracy, long life with high motion accuracy. High speed motion is possible with a low driving force, equal loading capacity in all directions, easy installation, easy lubrication, and complete interchangeability.
Automatic electric chuck, claw DC motor drive. The clamping motor current is sensitive, adjustable and stable, making clamping range wider and clamping force larger:
Excellent build quality featuring a 3-year warranty. The system is designed and optimized for heavy-duty, 24 hours continuous working operations.
High compressive strength and high hardness with outstanding properties:
We offer a comprehensive 3-year warranty on the entire machine, backed by lifetime maintenance services provided completely free of charge to guarantee optimal operation.
Equipped with a Switzerland Raytools Auto Focus Laser Head, the machine automatically optimizes focus to minimize manual adjustments. It includes dual water cooling, three protective cover glasses, and IP65 dustproofing for continuous, high-efficiency output.

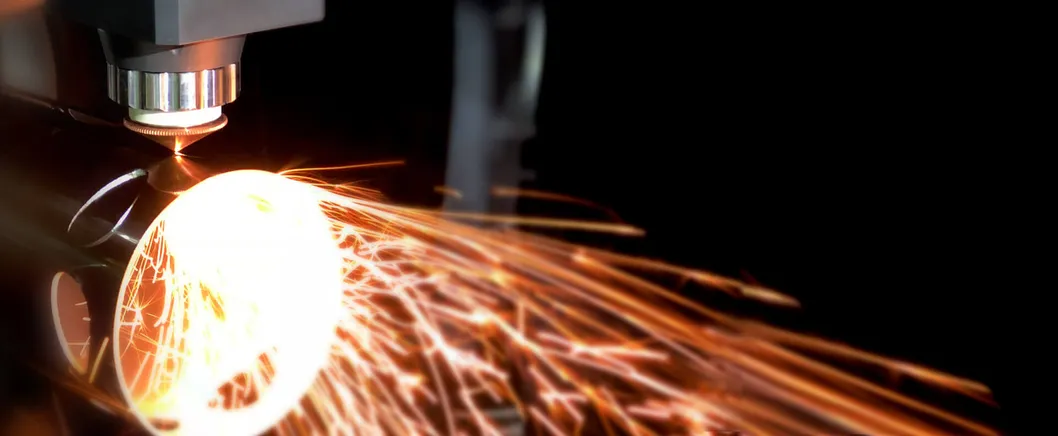

The machine supports tube diameters ranging from 20-240mm, 320mm, and 520mm, with selectable cutting lengths of either 6m or 12m. The self-centering electric chuck delivers non-destructive, powerful, and stable clamping.

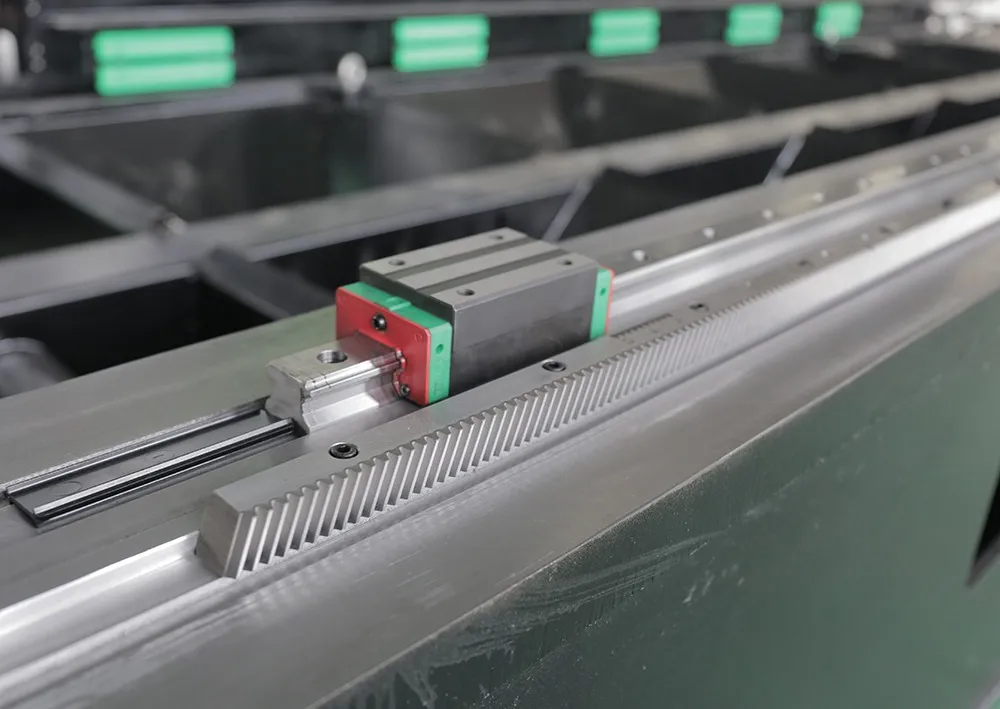

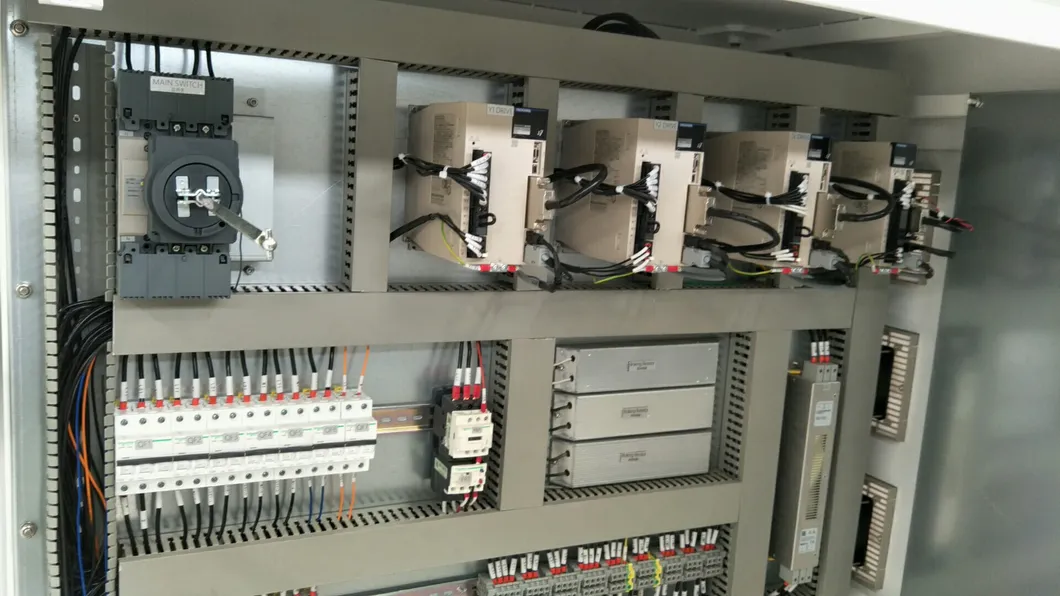

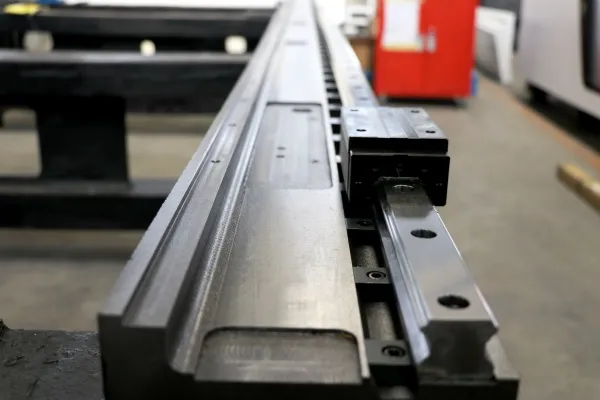

The machine utilizes reliable Japan YASKAWA Servo Motors and Drivers paired with high-precision Taiwan HIWIN Rails and YYC Racks. This provides highly accurate closed-loop control, 1.5G acceleration, and dynamic linkage speeds up to 140m/min.
The heavy-duty welded machine body offers high compressive strength, high hardness, low thermal sensitivity, and strong shock absorption. This structure significantly reduces wear and structural degradation, ensuring long-term positioning accuracy throughout the machine's life cycle.
We use a standard marine export plywood case for the outer layer and a stretchy plastic film internally to prevent humidity and moisture damage. Custom packaging options can also be arranged to meet specific transport requirements.
