Product Description

Product Overview

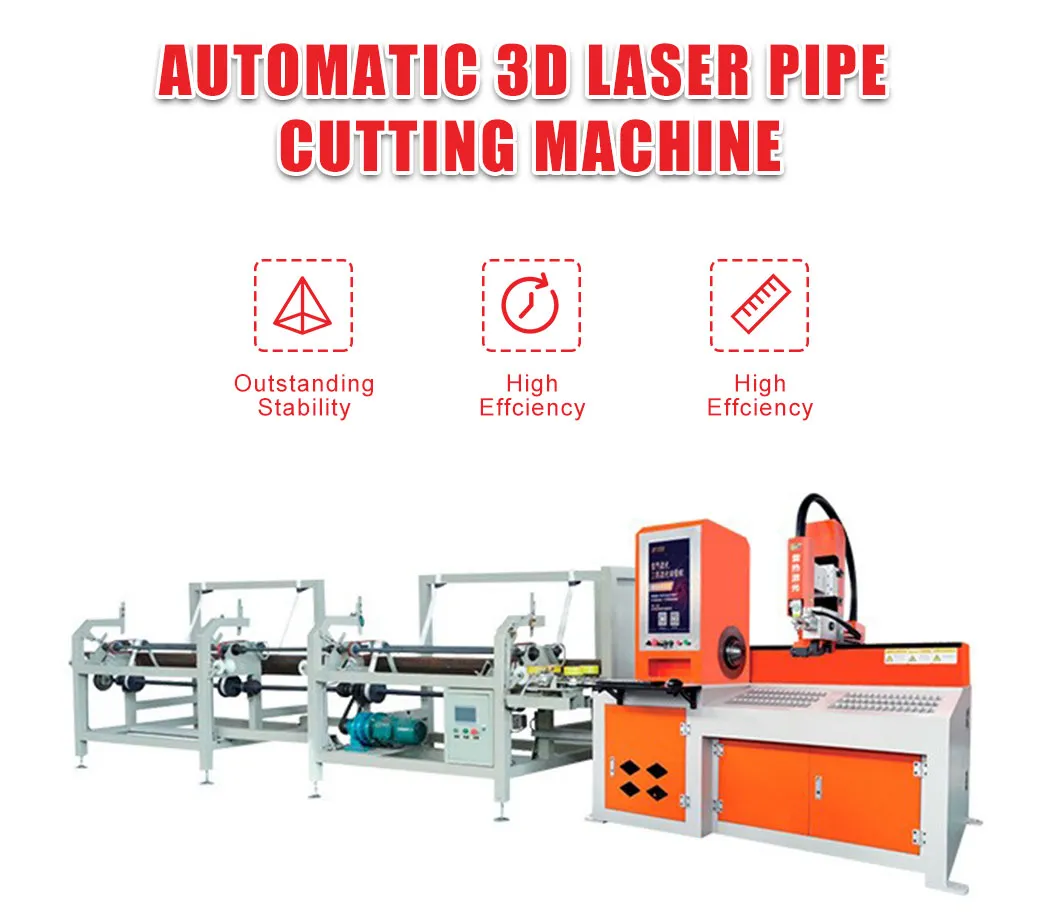

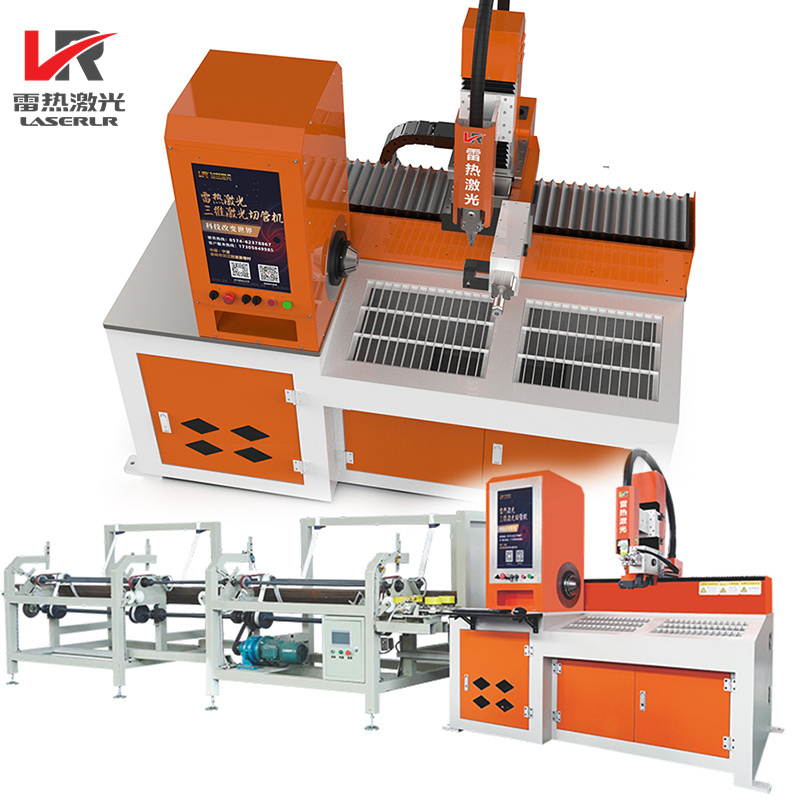

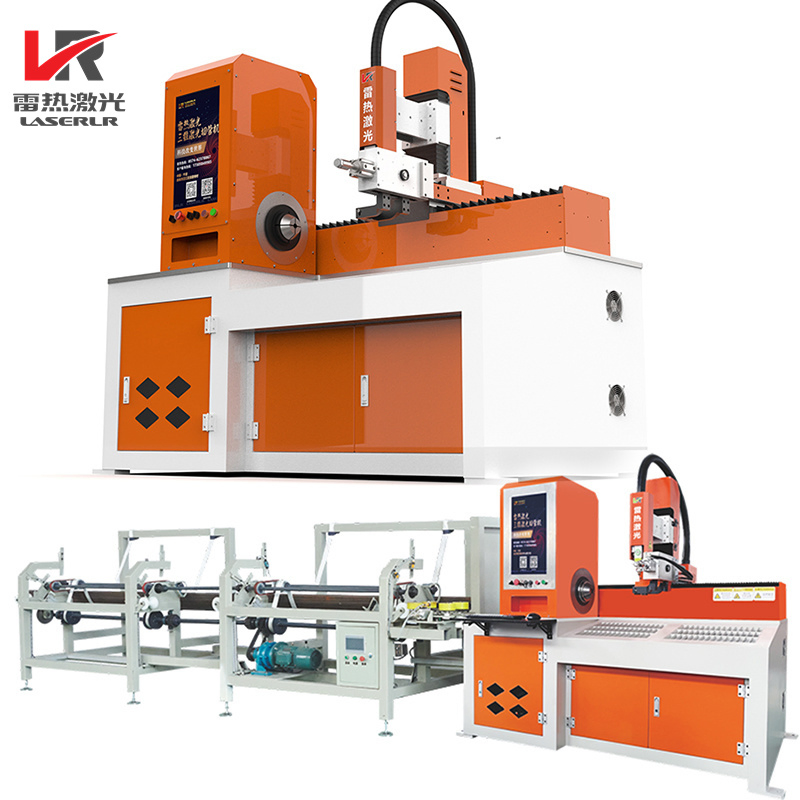

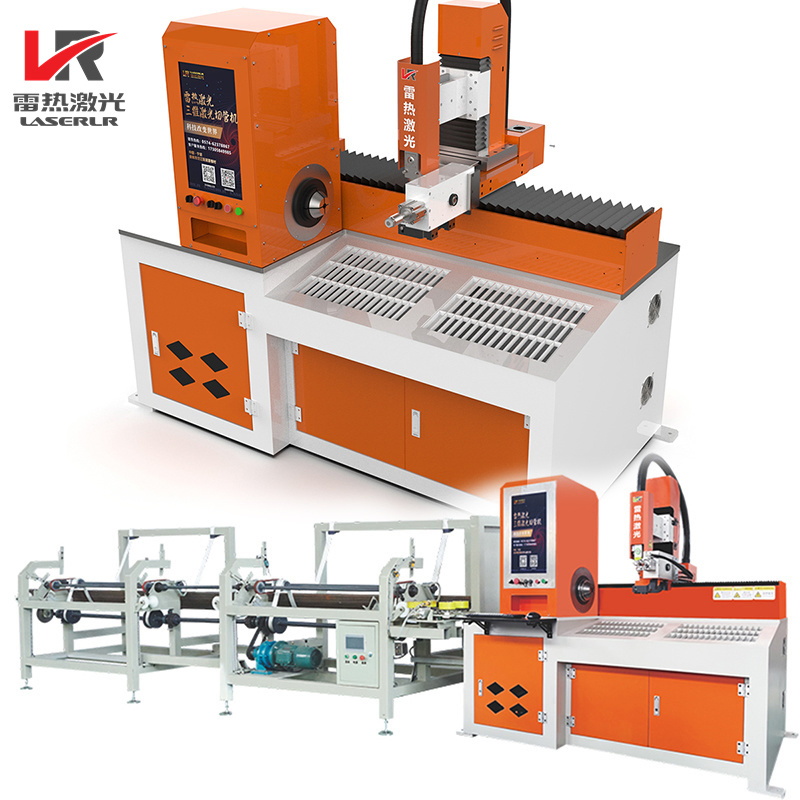

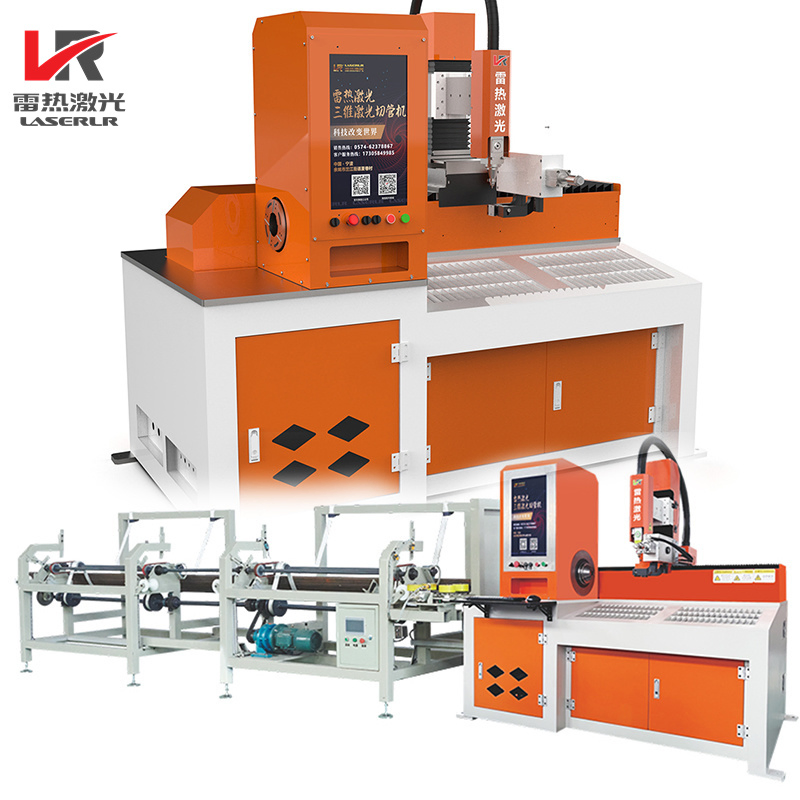

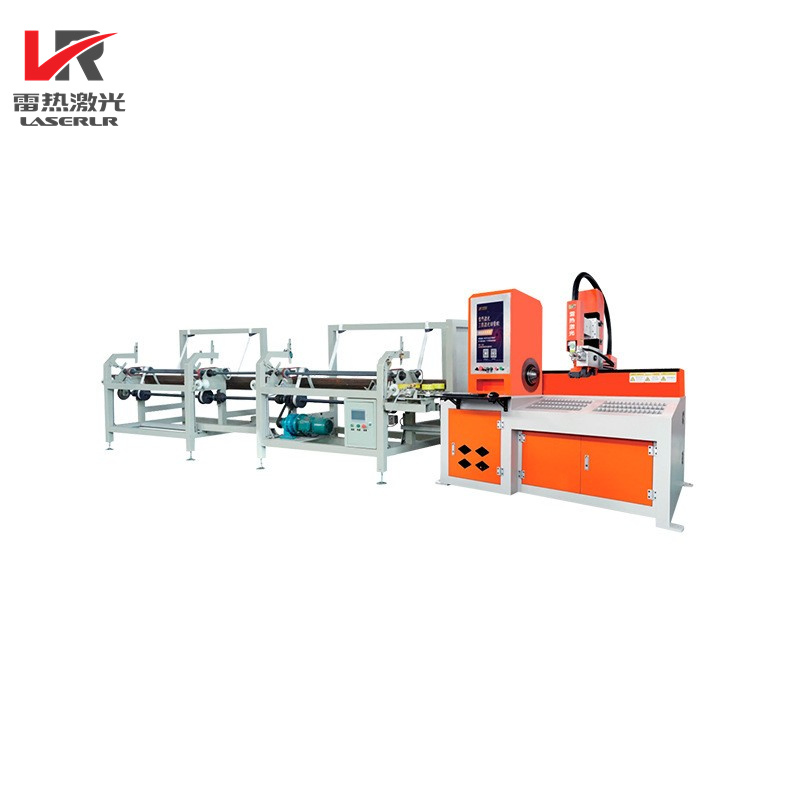

Full-Automatic Metal Pipe Cutter CNC Tube Fiber Laser Cutting Machine

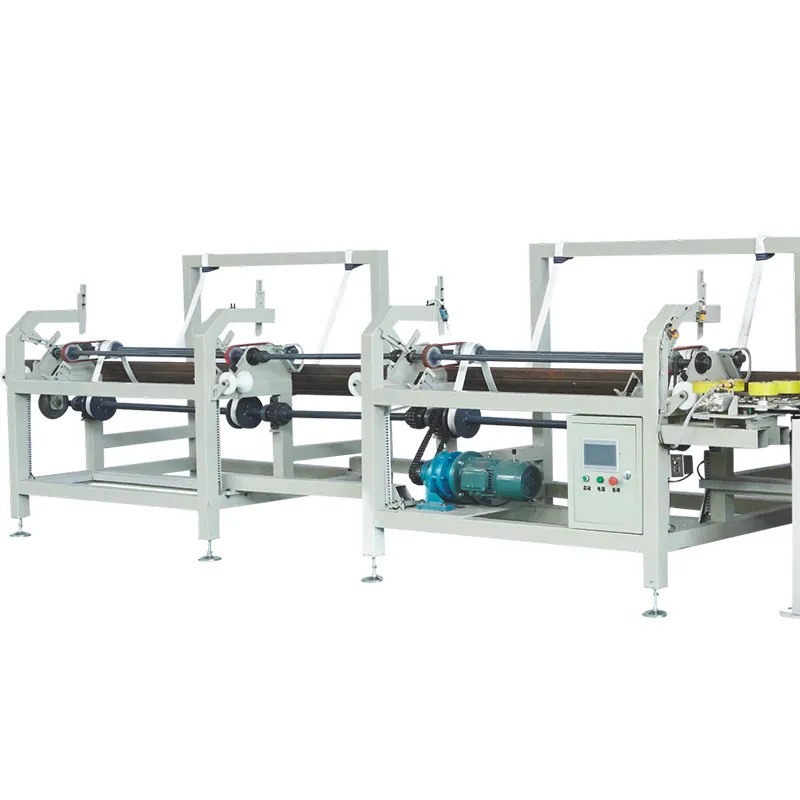

CNC Tube Fiber Laser Cutting Machine Detail 1

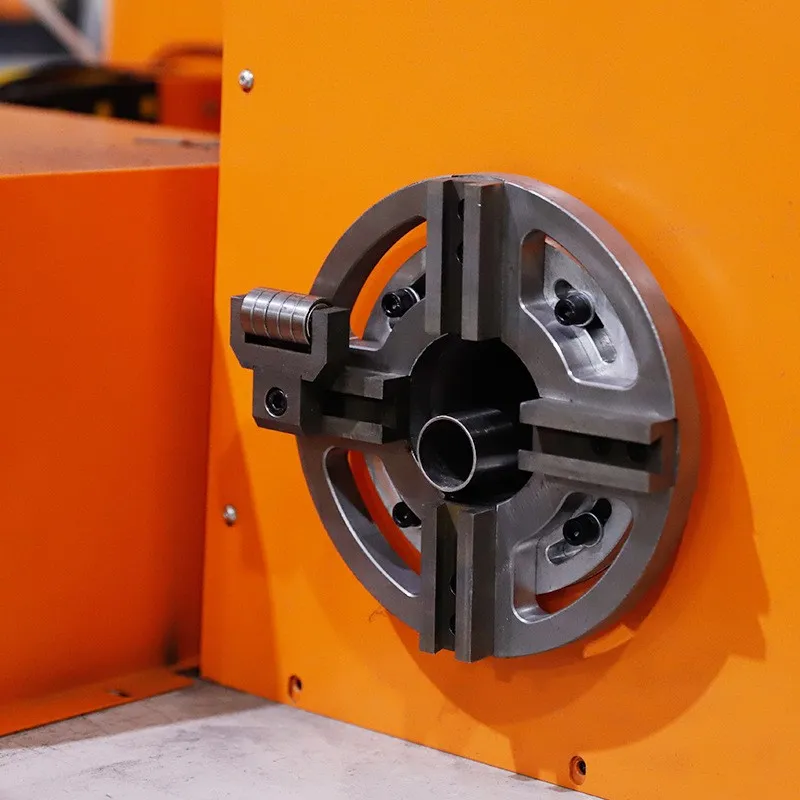

CNC Tube Fiber Laser Cutting Machine Detail 2

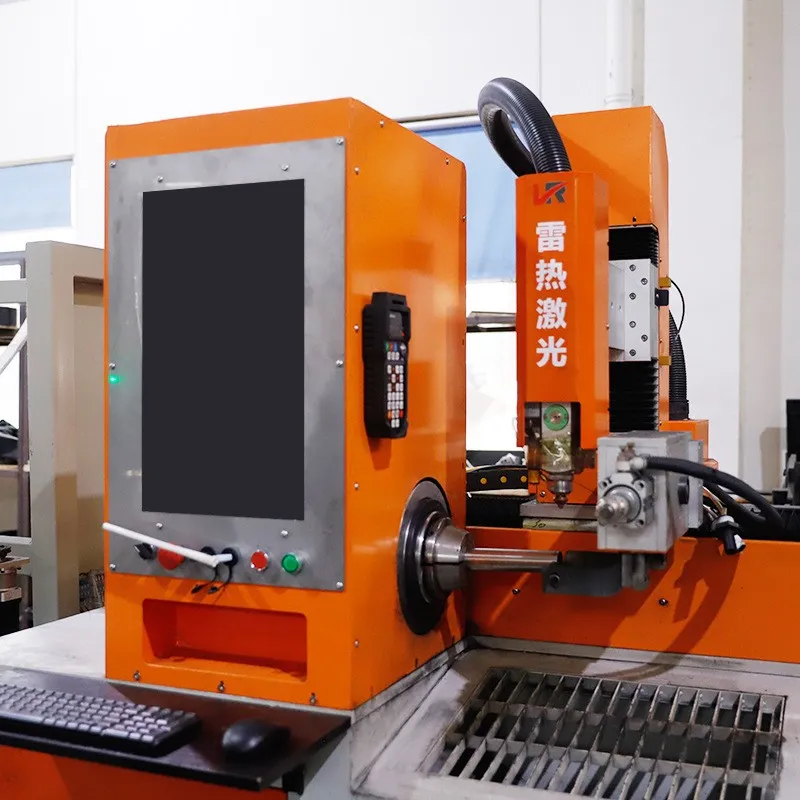

CNC Tube Fiber Laser Cutting Machine Detail 3
Technical Specifications
MAIN MACHINE PARAMETERS
Cut pipe length Infinite length
Cut pipe diameter φ15-φ80
Tail material ≤50MM
X-axis stroke ±50MM
Y-axis strokeZ 0-850MM
Z-axis stroke 0-100MM
Cutting accuracy ±0.05MM
Position accuracy ±0.2MM
Drawing accuracy ±0.1MM (Single time)
Slit width ±0.15MM (Left and right)
Repeated positioning accuracy ±0.03MM
Maximum acceleration 1.5G
Drawing method Pneumatic clamping, servo pulling material
Control system Jiaqiang/Weihong
Display Size 21 inch (1920*1080)
Rated voltage 380V
Rated power 4500W (Excluding laser, water cooler)
Type of pipe cutting Round tube, square tube, oval tube
Pipe cutting material Stainless steel, carbon steel, aluminum, copper, iron
AUTOMATIC RACK PARAMETERS
Feeding mode pull-and-lift
Stock weight 1.5T
Suitable tube type Round tube, square tube, rectangular tube
Suitable for pipe wide range φ15-φ80
Rated voltage 380V 50Hz
Control system PLC

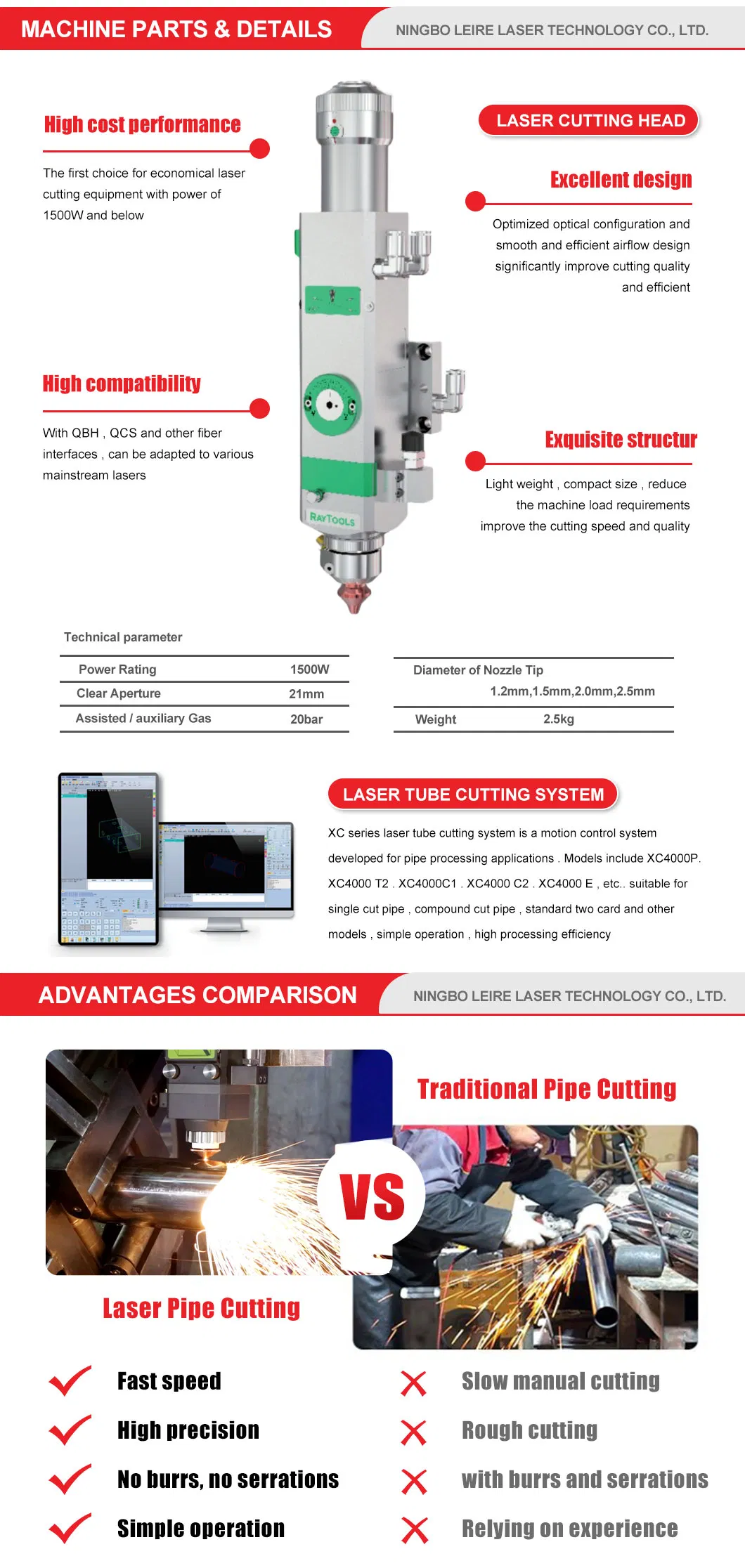

Automatic Rack Parameters Diagram
Cutting Samples & Features

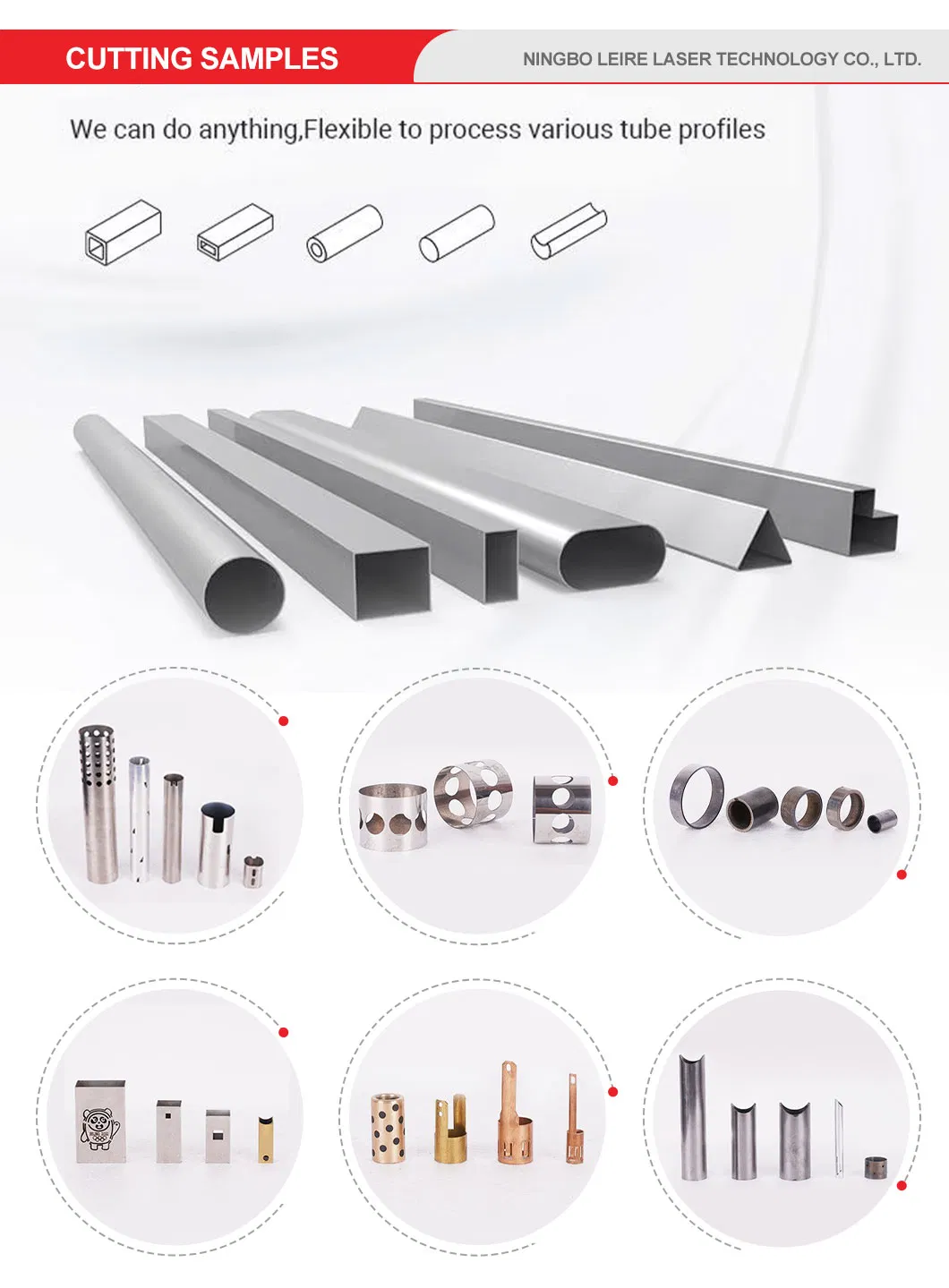

Laser Cutting Samples
  • Multifunction cutting for round, square, rectangle and oval pipes!
  • It can straight cut, angle cut, make holes, etc.
  • Smooth and burr-free cutting performance.
  • Minimal cutting loss of only 0.1mm per cut.
  • Excellent high-precision cutting accuracy of ±0.05mm.
Applications & Industries
Industrial Applications of Laser Tube Cutter
Plumbing & Sanitary Ware New Energy Industry Pipe Processing Bicycle Manufacturing Automobile Manufacturing Aerospace Industry Kitchenware Production Medical Equipment Furniture Manufacturing Agricultural Machinery

Welcome to consult and customize your exclusive requirements!

Related Products Showcase
Related Pipe Laser Cutting Machine Model 1
Related Pipe Laser Cutting Machine Model 2
Related Pipe Laser Cutting Machine Model 3
Related Pipe Laser Cutting Machine Model 4
Related Pipe Laser Cutting Machine Model 5
Related Pipe Laser Cutting Machine Model 6
Production & Quality Workshop
Manufacturing Factory Floor Showcase
Advanced Equipment Workshop Detail 1

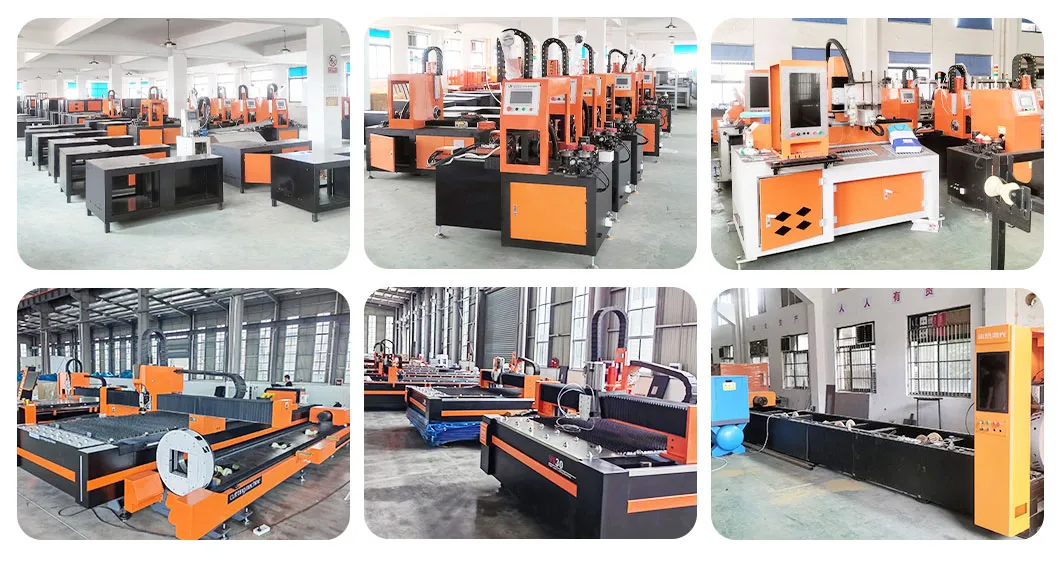

Advanced Equipment Workshop Detail 2
Frequently Asked Questions
Q How do I install the machine and what services can you provide?
We have prepared a user manual, installation preparation guide, and installation video. These documents will be sent to you in advance so you can prepare accordingly. Once the machine arrives, we will set up a dedicated online group where our engineers will be available to guide you step by step.
Q What is the delivery time for the machine?
We provide fast and reliable delivery. The estimated delivery time for most standard machine models is usually within 15-30 working days.
Q How do you provide after-sales service?
You can confirm any operational issues with our engineers in your online support group. Our engineering team will immediately check the problem and provide rapid resolution via remote technical guidance.
Q Are the displayed prices final offers?
No, the displayed cost indicates a general price range. The final tailored quotation depends specifically on the buyer's detailed specifications and functional requirements.
Q I don't know which configuration is suitable for me?
Please provide us with the following details so our technical experts can recommend the best-fit system:
  • Your exact pipe/metal materials
  • The maximum size and diameter of your materials
  • The maximum cutting thickness required
  • Your regular/most common cutting thickness
Q What materials and tube shapes can this machine cut?
This high-precision machine offers multifunctional cutting capability for round, square, rectangular, and oval pipes. It is fully capable of processing metal materials such as stainless steel, carbon steel, aluminum, copper, and iron.
