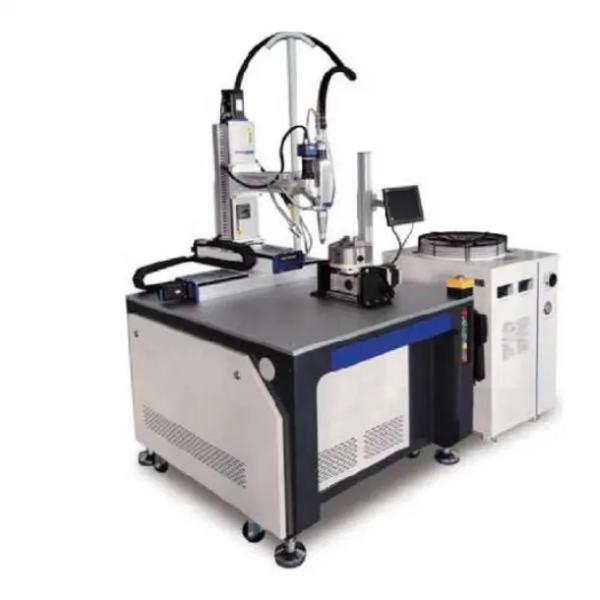

Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
1 / 5
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring
Advanced Laser Hardening Machine with Real-Time Temperature Monitoring

Advanced Laser Hardening Machine with Real-Time Temperature Monitoring

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
SL-A011
Application
Aerospace, Automotive Industry, Metallurgy
Automatic Grade
Automatic
Style
Stationary
Technical Class
Continuous Wave Laser
Laser Type
Fiber Laser
Function
Laser Hardening
HS Code
8479819000
Capacity
100 Sets Per Month
Origin
China
What is Laser Hardening?
Laser Hardening Overview

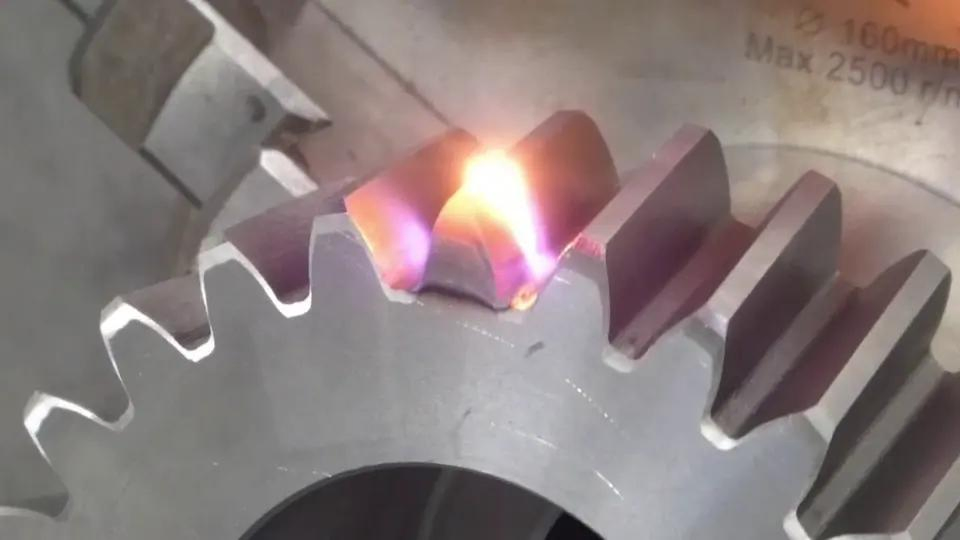

Laser hardening utilizes high-energy laser beams to heat the material surface above the phase transition point. As the material self-cools, austenite transforms into martensite, achieving surface hardening through quenching technology.

It is widely applied in treating cutting tools, molds, engine pistons, crankshafts, transmission gears, turbochargers, bearings, propellers, metal pipes, and valves to significantly enhance wear resistance, corrosion resistance, and operational lifespan.

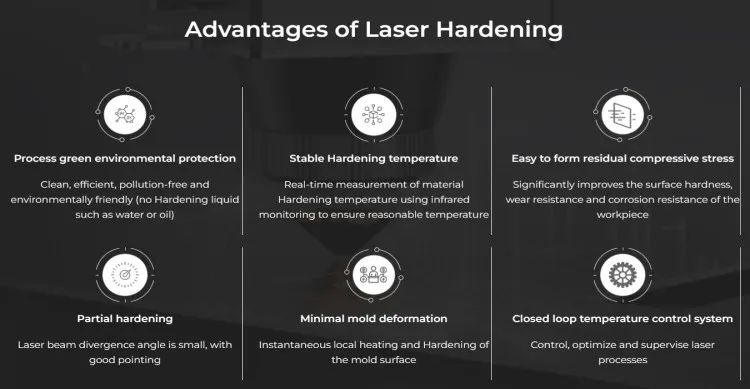

Temperature Monitoring System

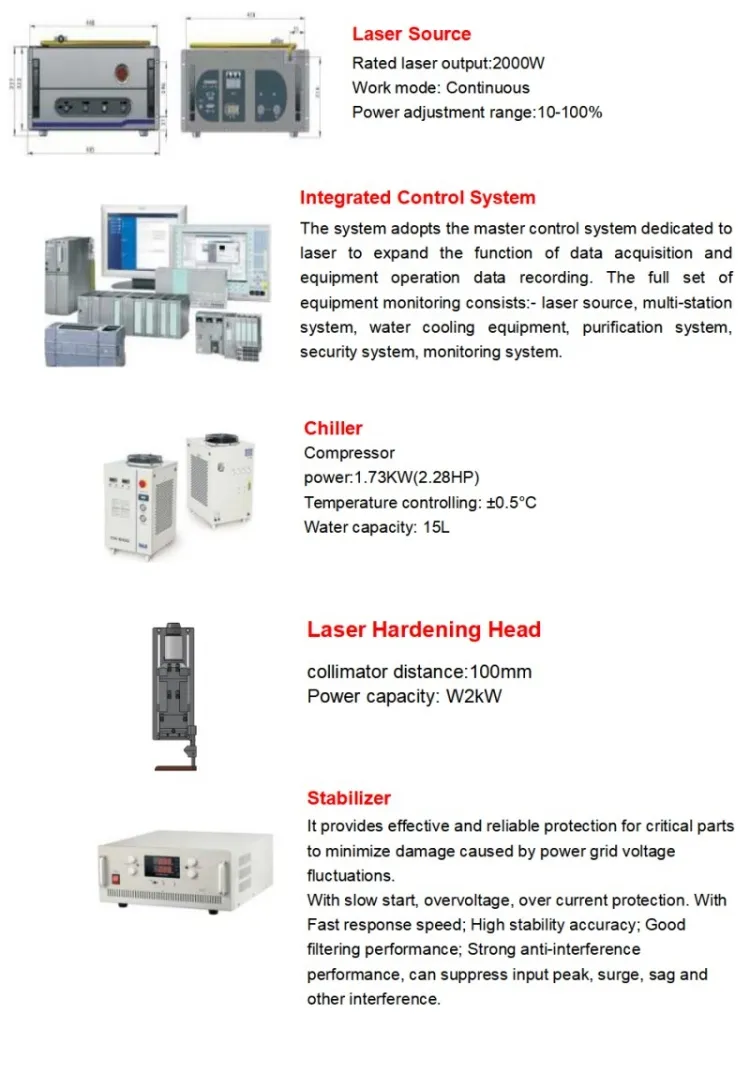

Main Components
Main Components Diagram
Product Parameters
Item Specification Description Quantity
Laser 2000W Laser power: 10~1500W continuously adjustable. 1 set
Fiber system 600μm Core diameter 600 m, length 15m 1 set
Collimating Head TS-Q100 Collimating focal length: 100mm, focusing focal length: 300mm 1 set
Focusing Module TS-301P300 Ensure speckle effect and heat treatment consistency 1 set
Chiller CWFL-2000 Double temperature control for laser and external optical path 1 set
CNC System 4-Axis Professional laser CNC system, XYZ moving, Accuracy: ≤±0.035mm 1 set
Purification Standard Smoke and dust removal in work area to prevent pollution 1 set
Application Display

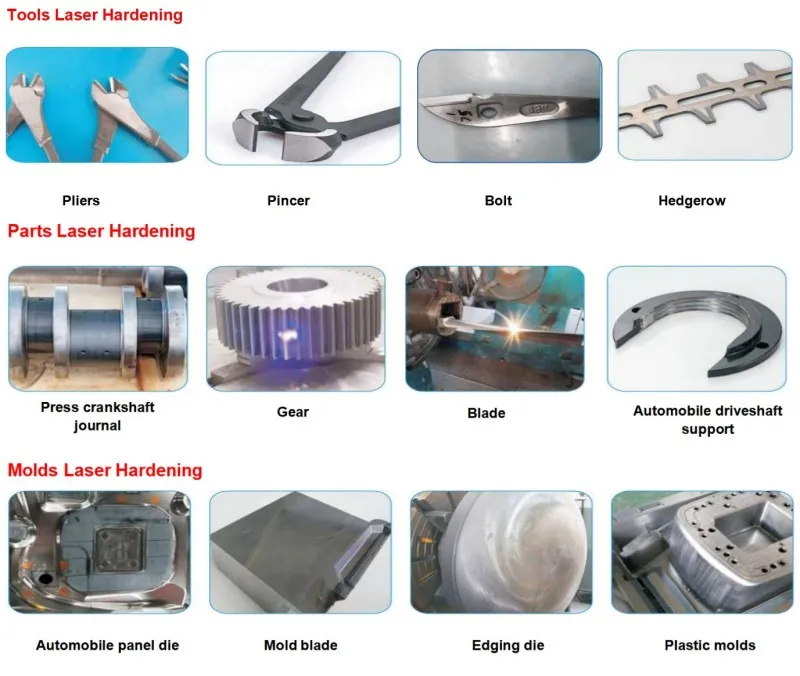

Application 1
Application 2
Application 3
Application 4
Frequently Asked Questions
What materials are suitable for laser hardening?
Laser hardening is ideal for various metals including carbon steel, alloy steel, and cast iron parts like gears, bearings, and molds that require high wear resistance.
How does the temperature monitoring system work?
The real-time temperature monitoring system ensures the heat treatment is consistent by adjusting laser power dynamically, preventing overheating and ensuring uniform hardness.
What is the positioning accuracy of the CNC system?
The system provides a positioning accuracy of ≤±0.035mm and a repeat positioning accuracy of ≤±0.01mm, ensuring high precision for complex workpieces.
Does this machine require external cooling?
Yes, the system comes with a CWFL-2000 double temperature control chiller to provide necessary cooling for both the laser source and the optical path.
Is the laser power adjustable?
Absolutely. The laser power is continuously adjustable from 10W up to 1500W (or 2000W depending on configuration) to suit different material thicknesses and requirements.
What industries benefit most from this technology?
Main industries include Aerospace, Automotive manufacturing, Petroleum Metallurgy, and Agricultural Machinery where component durability is critical.
