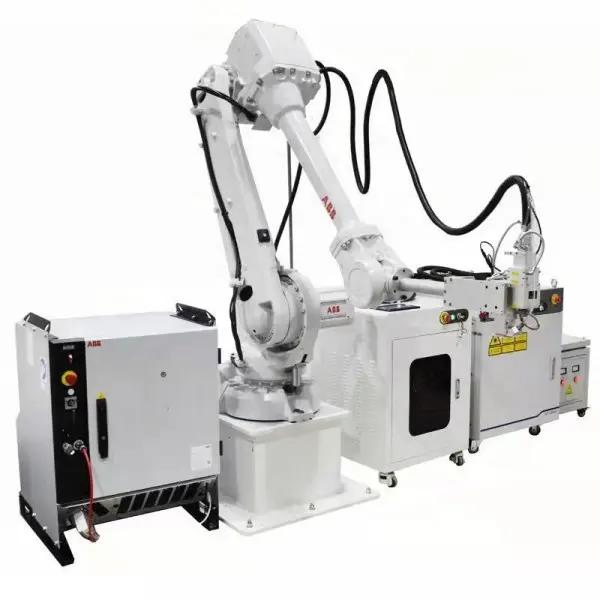

Hot Sale Laser Metal Surface Heat Treatment High Accuracy Mold Laser Hardening Machine
Laser hardening is the use of laser to heat the surface of the material above the phase transition point. As the material itself cools, austenite transforms into martensite, enabling the surface hardening of the material quenching technology.

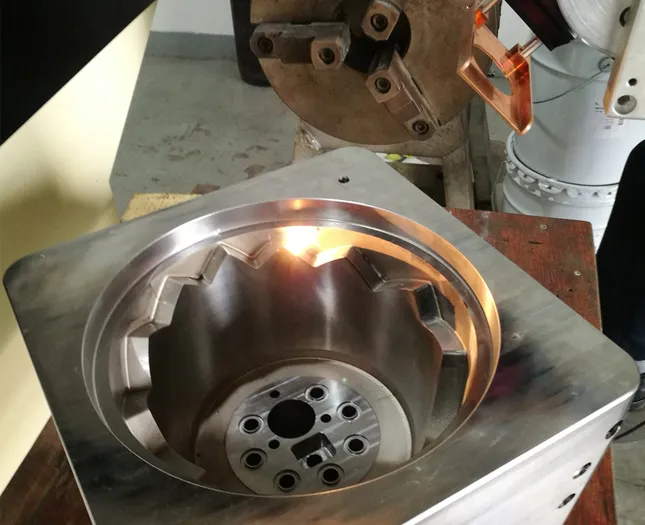

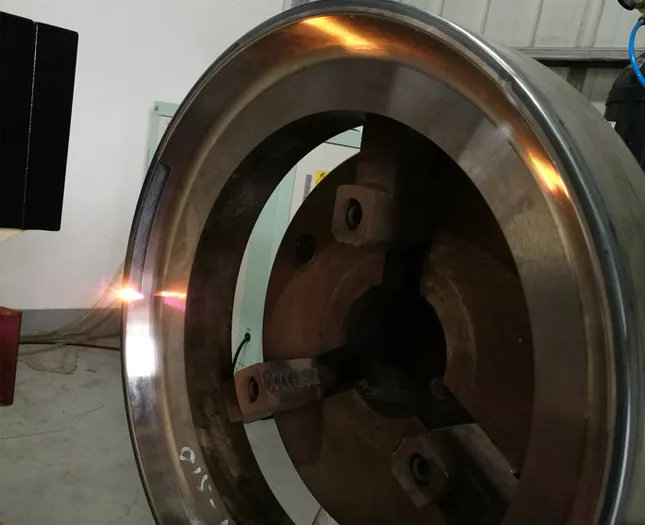

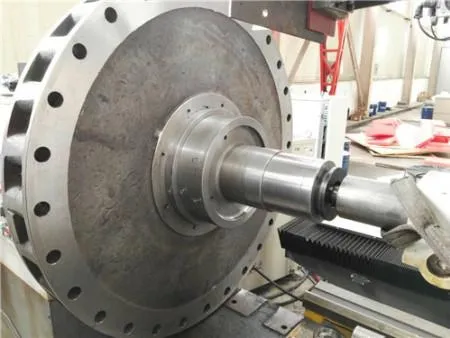

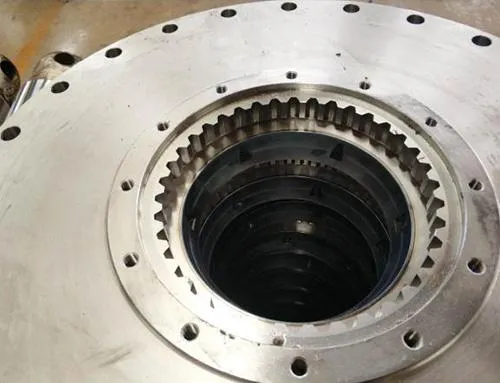

It is widely used in the surface treatment of cutting tools, molds, engine pistons, crankshafts, transmission gears, turbochargers, bearings, propellers, metal pipes, valves, etc., to improve their wear resistance, corrosion resistance, and service life.

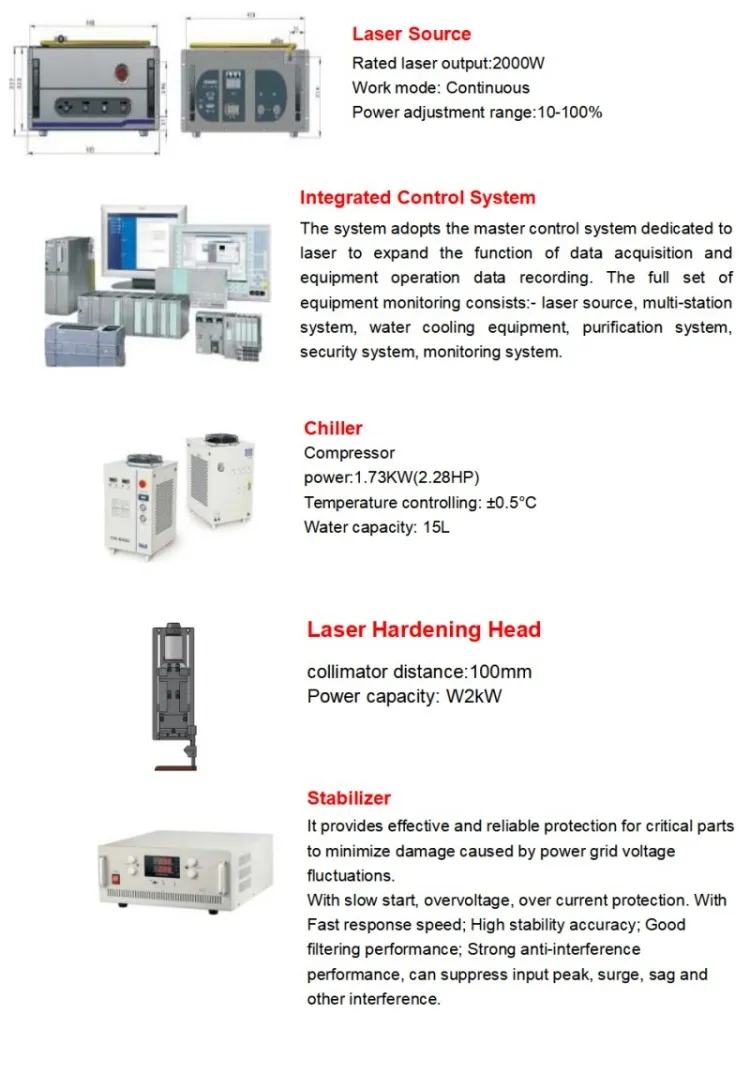

| Item | Spec. | Description | Qty. |
|---|---|---|---|
| Laser | 2000W | Laser power: 10~1500W continuously adjustable. | 1 set |
| Fiber system | 600μm | Core diameter 600 m, length 15m | 1 set |
| Laser collimating head | TS-Q100 | Collimating focal length: 100mm, focusing focal length: 300mm | 1 set |
| Laser focusing module | TS-301P300 | Ensure speckle effect and heat treatment consistency | 1 set |
| Multi-station four-axis system | TS-Q_SYS-4-900 | Professional laser CNC system, XYZ moving, stroke X: 500mm, Y: 400mm, Z:300mm; Positioning accuracy: ≤±0.035mm. | 1 set |
| Smoke purification system | Standard | Implement smoking and dust removal in work area | 1 set |
| Refrigerated dryer | 10HP, 1.5M3 | Filter and dry compressed air | 1 set |
