Product Description

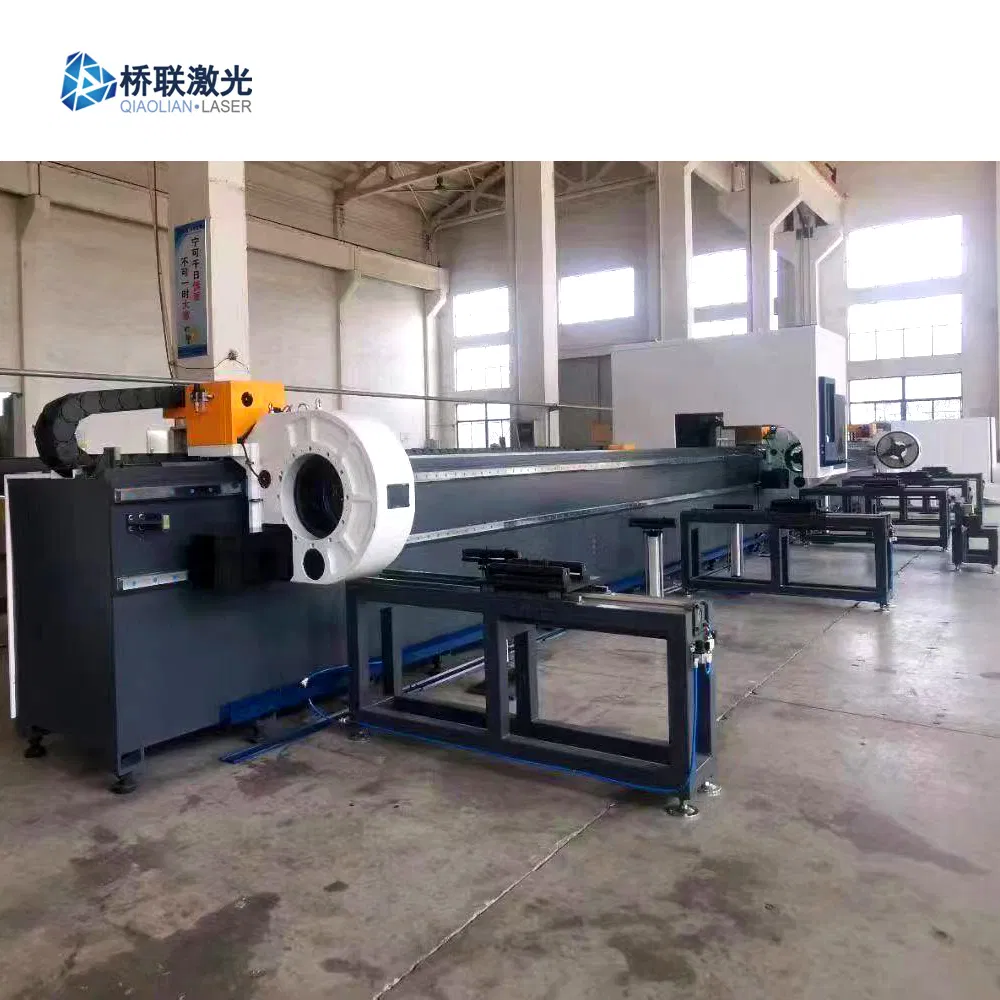

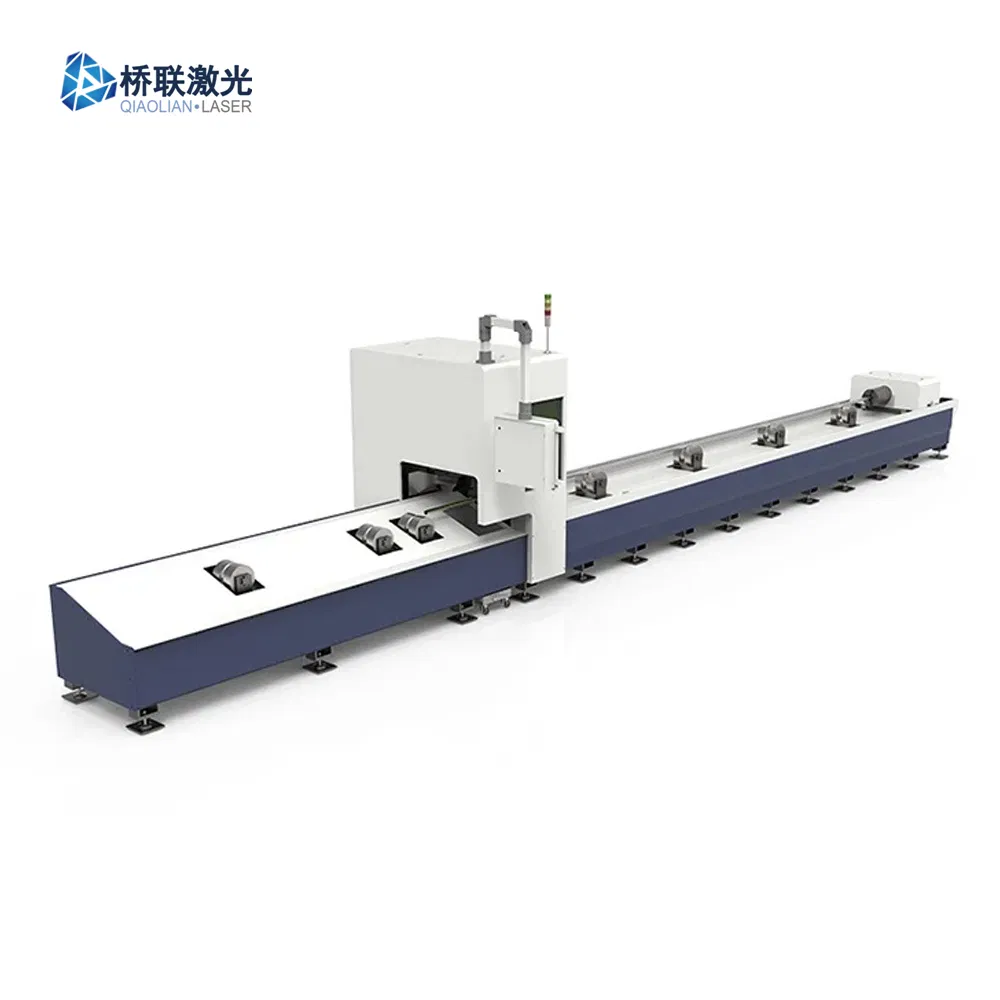

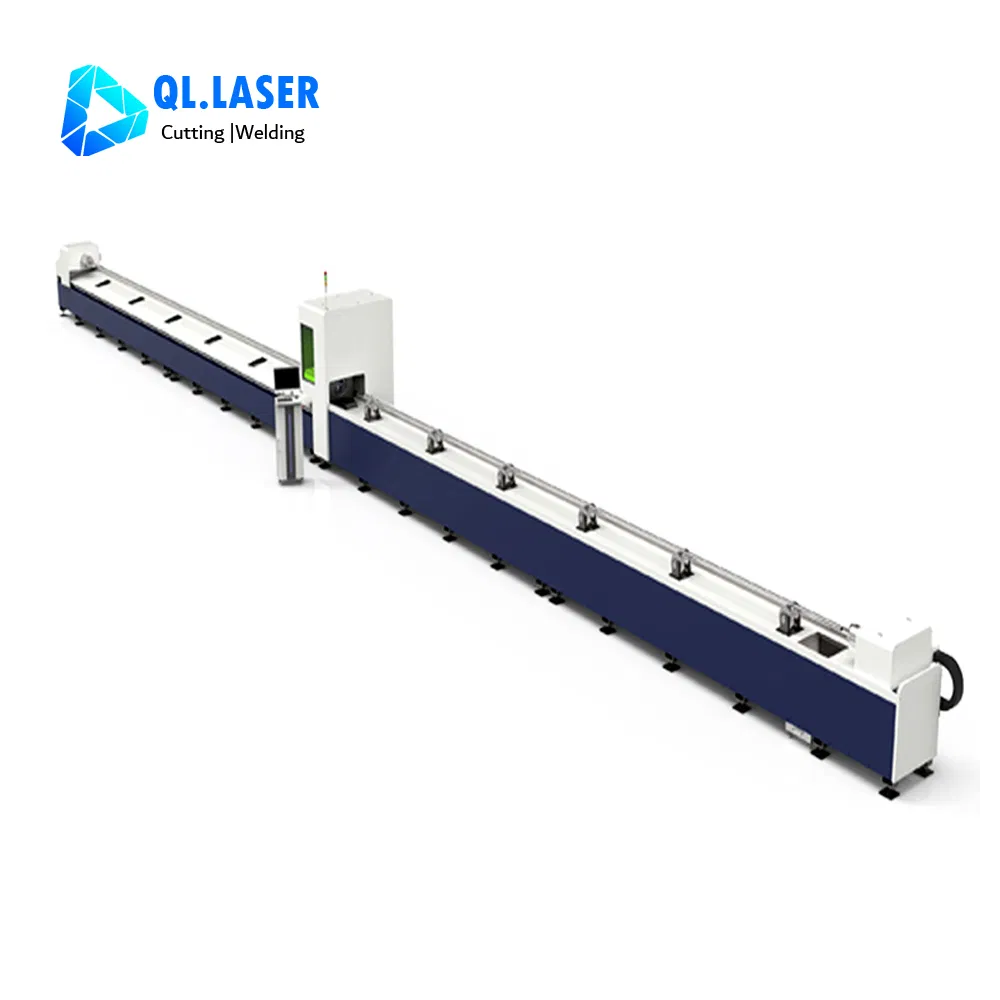

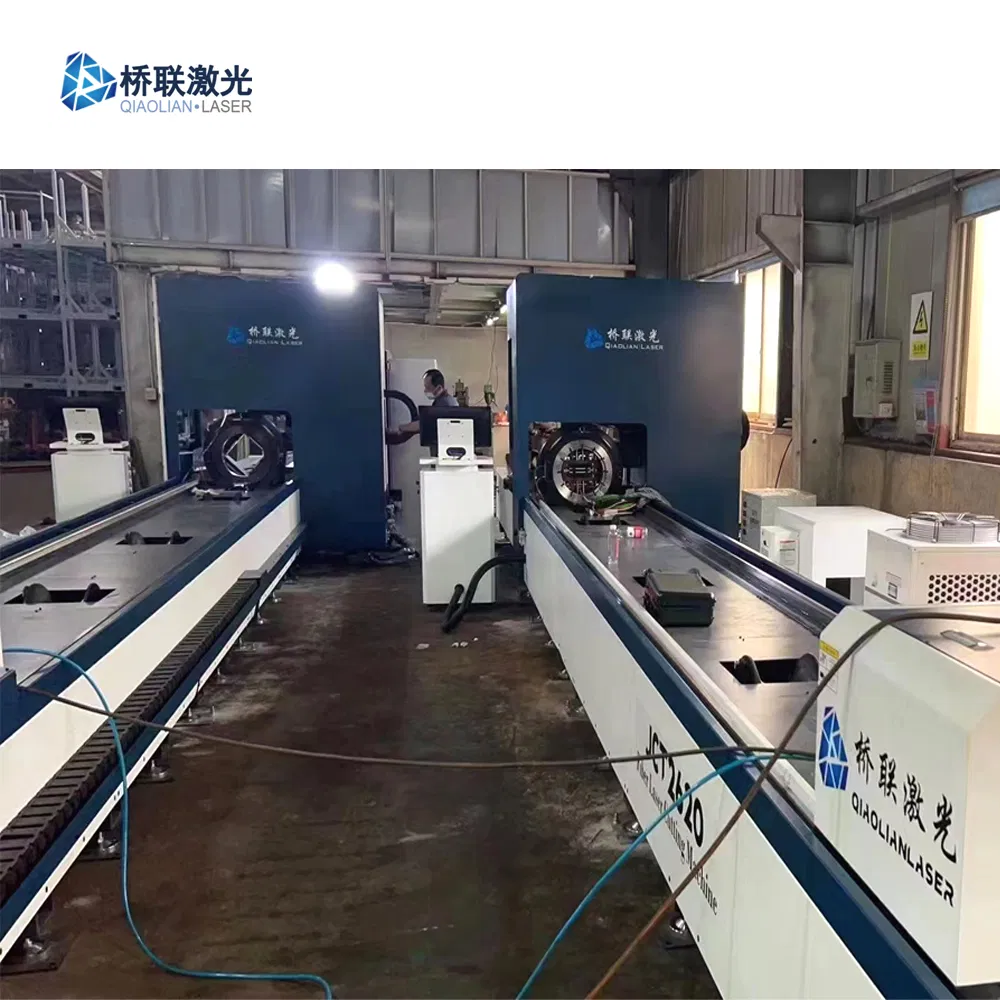

Industrial CNC Metal Fiber 3D Laser Cutting Machine for Tube with Loading and Unloading System
1. 3-chuck Clamping Technology
2. Real 0 tailing without tube length restriction
3. Cut 12000mm entire tube at most
4. Maximum pipe diameter 450
5. Maximize the weight of single tube
6. Cover can be optional
7. Automatic uploading can be optional
8. 3D cutting function can be optional
Our Advantages
1. Multi-point Supporting for Heavy Tubes
Tubes are usually clamped and supported by three chucks concurrently. Any tube deformation can be automatically corrected to keep cutting precision high and cutting products of uniform size.

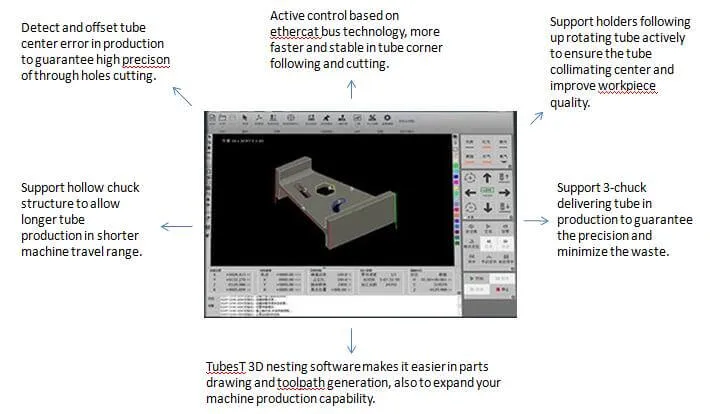

2. EtherCAT Bus System
FSCUT5000 series is an EtherCAT bus system specially designed for fiber laser pipe cutting machines. Working with TubesT 3D nesting software, it achieves maximum efficiency and minimum waste.
3. Auto Focus Laser Cutting Head
Equipped with slender TRA components and slender nozzles, which adapt to any complex tube cutting and cutting product conditions. Features a built-in motor drive unit driving the focusing mirror to automatically change its position within a certain range through a linear mechanism. Realizes continuous focusing, complete rapid perforation, and automatic cutting of pipes of different thicknesses and materials. The optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time.
4. Perform Well in Tube Cutting
- Cut max. 12000mm entire tube
- Max. cutting range of round tube Φ20-450mm
- Also cuts profiles like channel, angle, and I-shaped steel etc.
5. Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment (including laser interferometer, laser collimator, and three-coordinate projector) to ensure that each delivered equipment meets factory standards.
Parameters for 3D Laser Cutting Machine
Model
JCT3612
JCT3616
JCT3622
JCT3628
JCT3632
JCT3635
JCT3645
Power
1000W - 6000W
Min. Dia (mm)
20
Max. Dia (mm)
120
160
220
280
320
350
450
Tube Length (mm)
3000 / 6000 / 9000 / 12000
Max. Chuck Speed (RPM)
80 - 120
X/Y-axis Positioning Accuracy
±0.05mm
X/Y-axis Repositioning Accuracy
±0.03mm
Positioning Speed
90m/min
Max. Acceleration
1G
*The above data are for reference only, subject to the actual product!

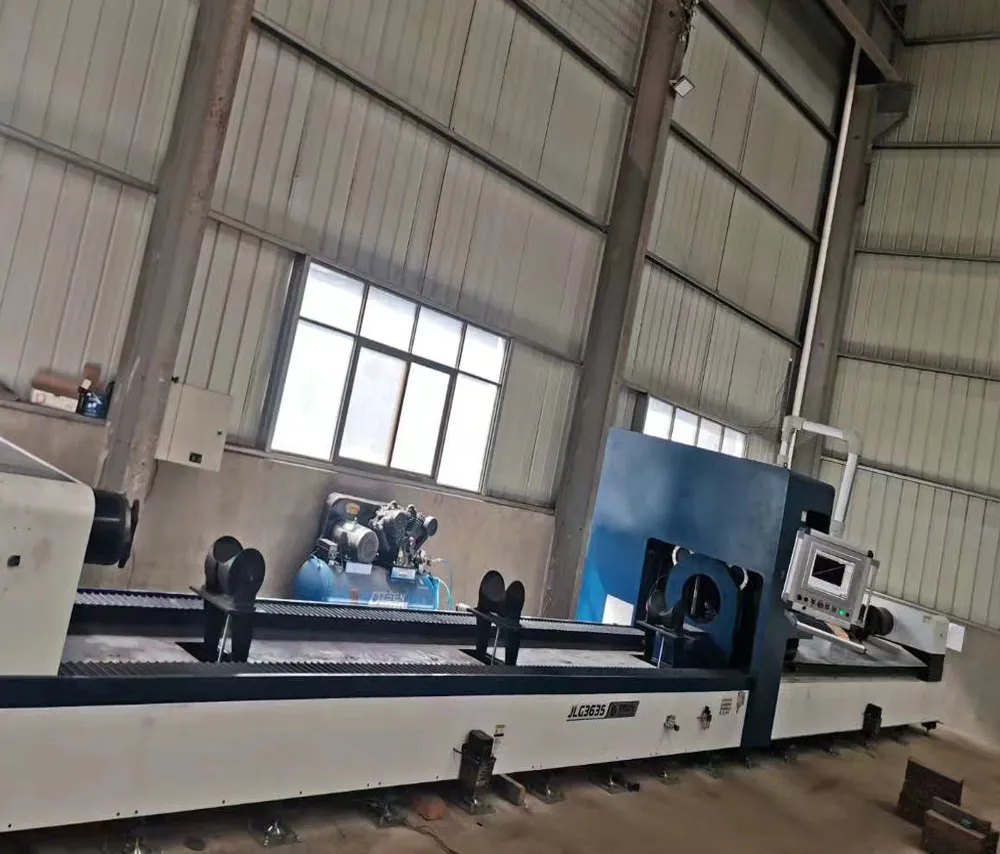

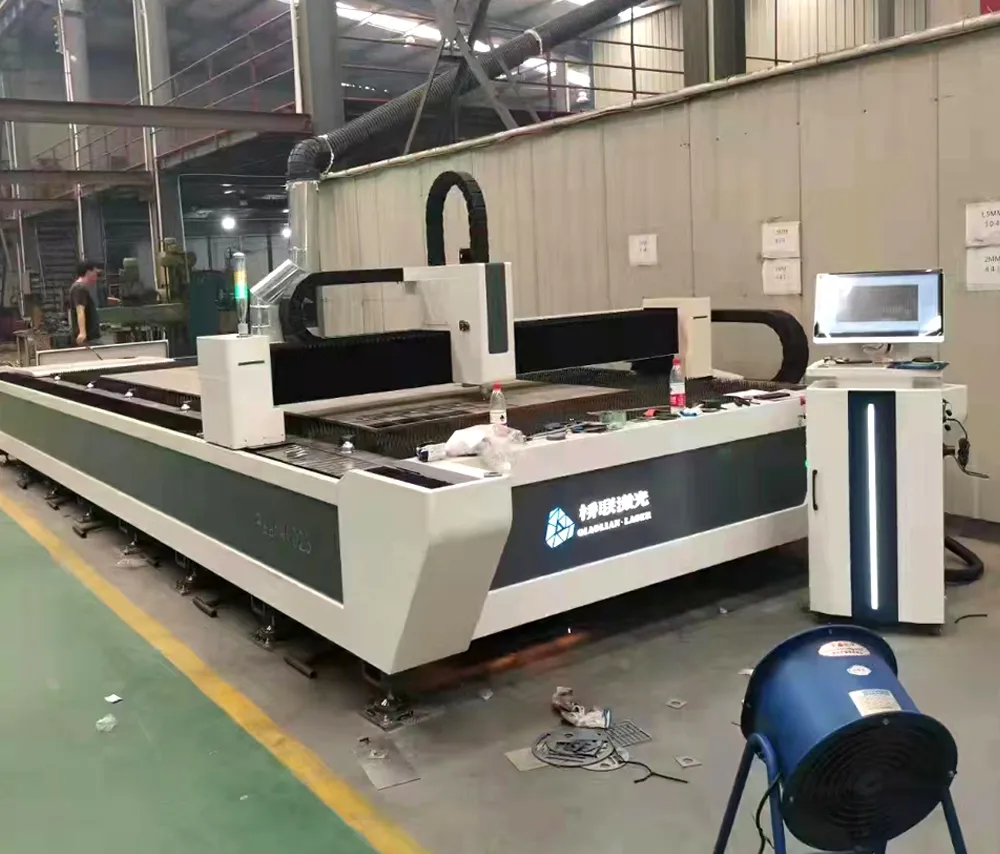

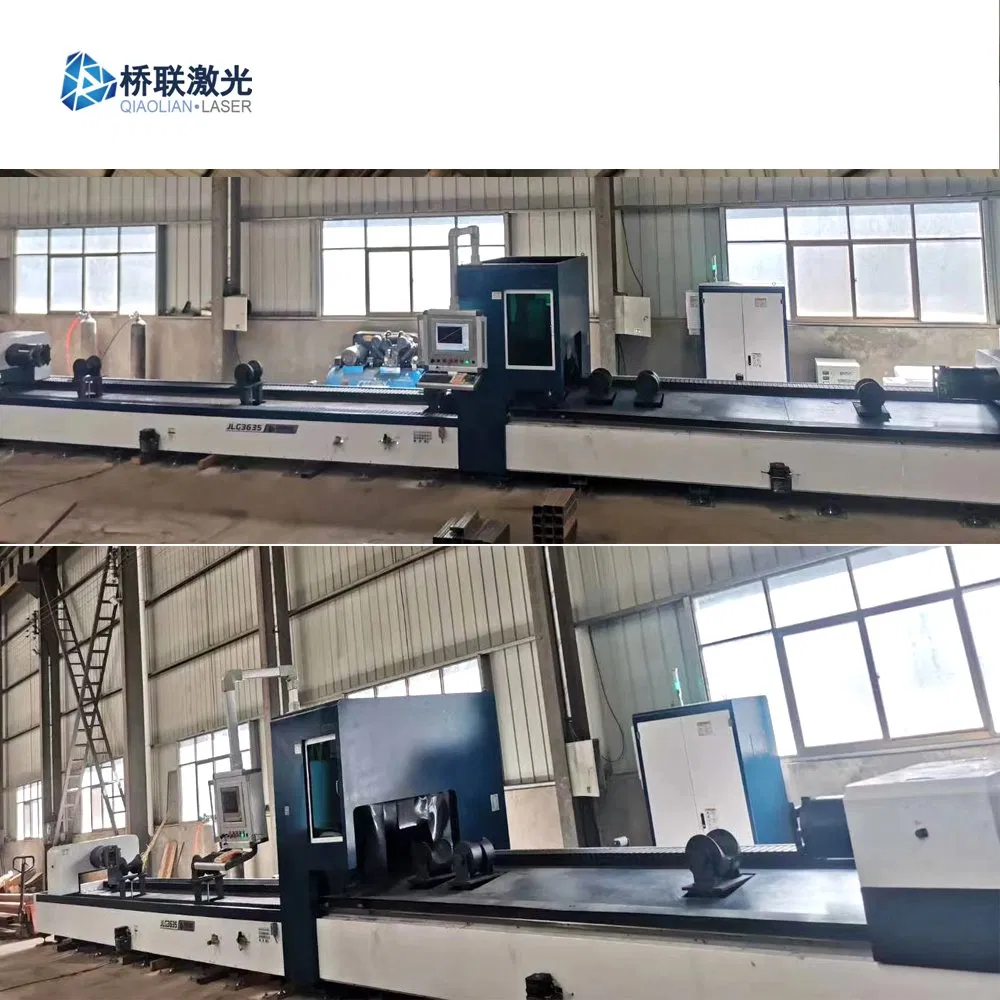

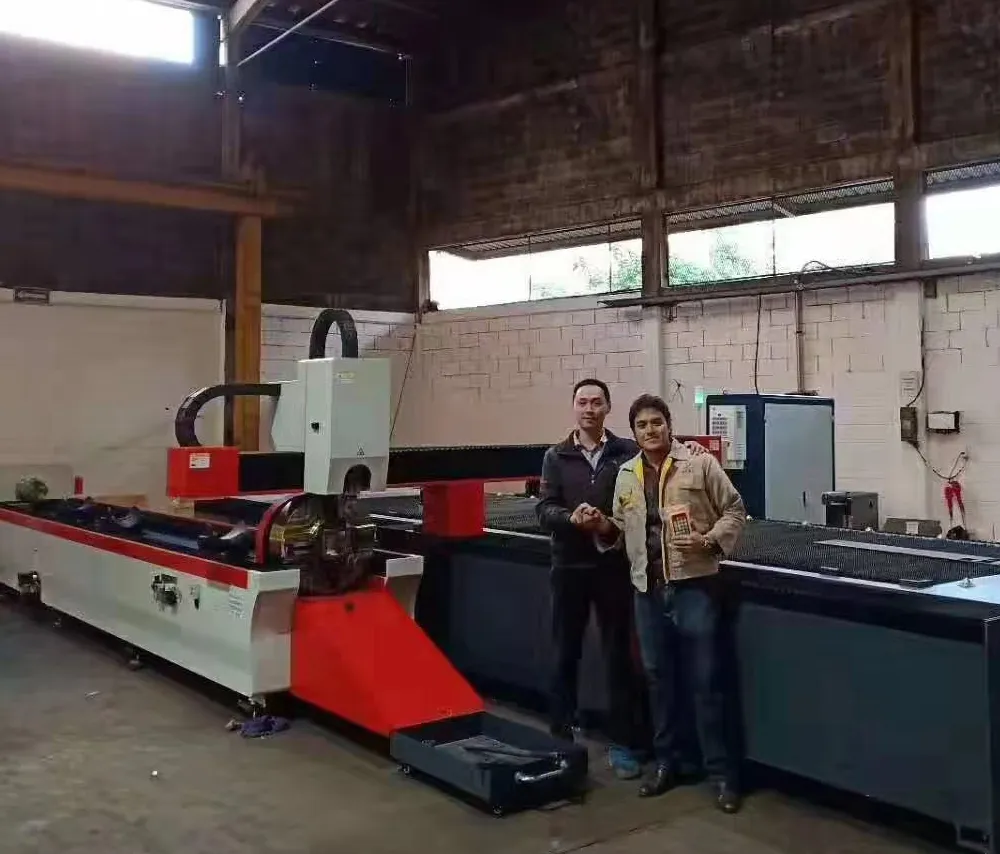

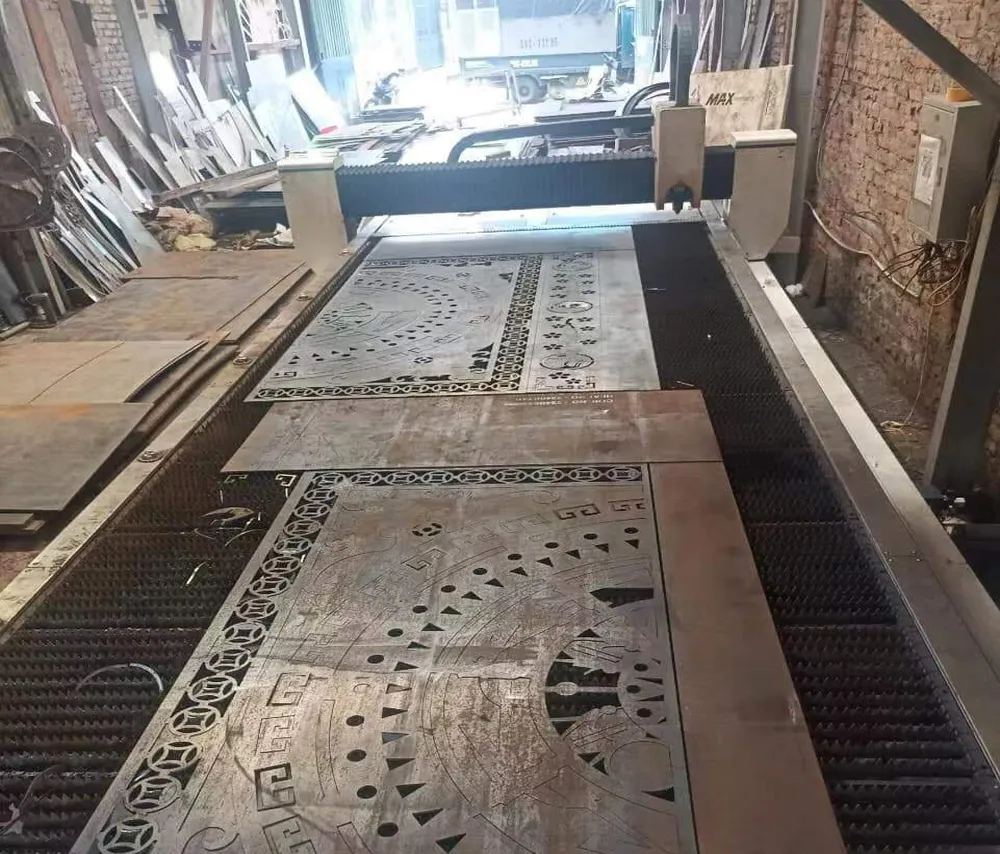

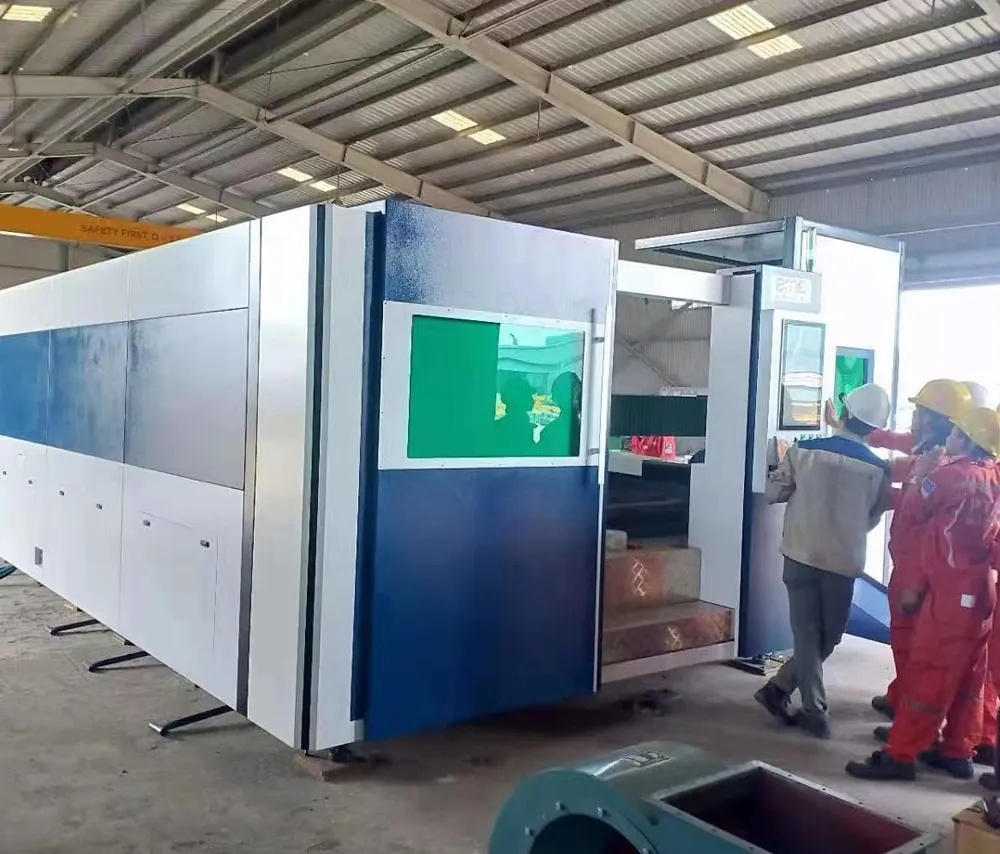

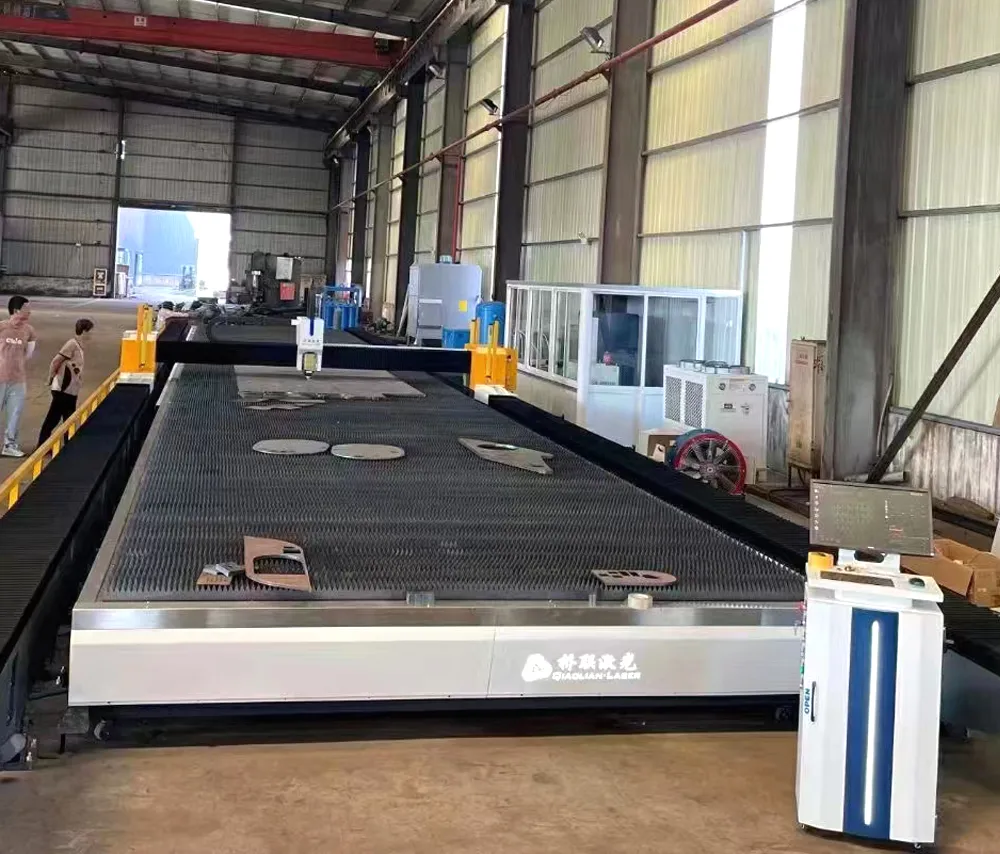

Customers Site
Cutting Samples
Certifications
Related Products

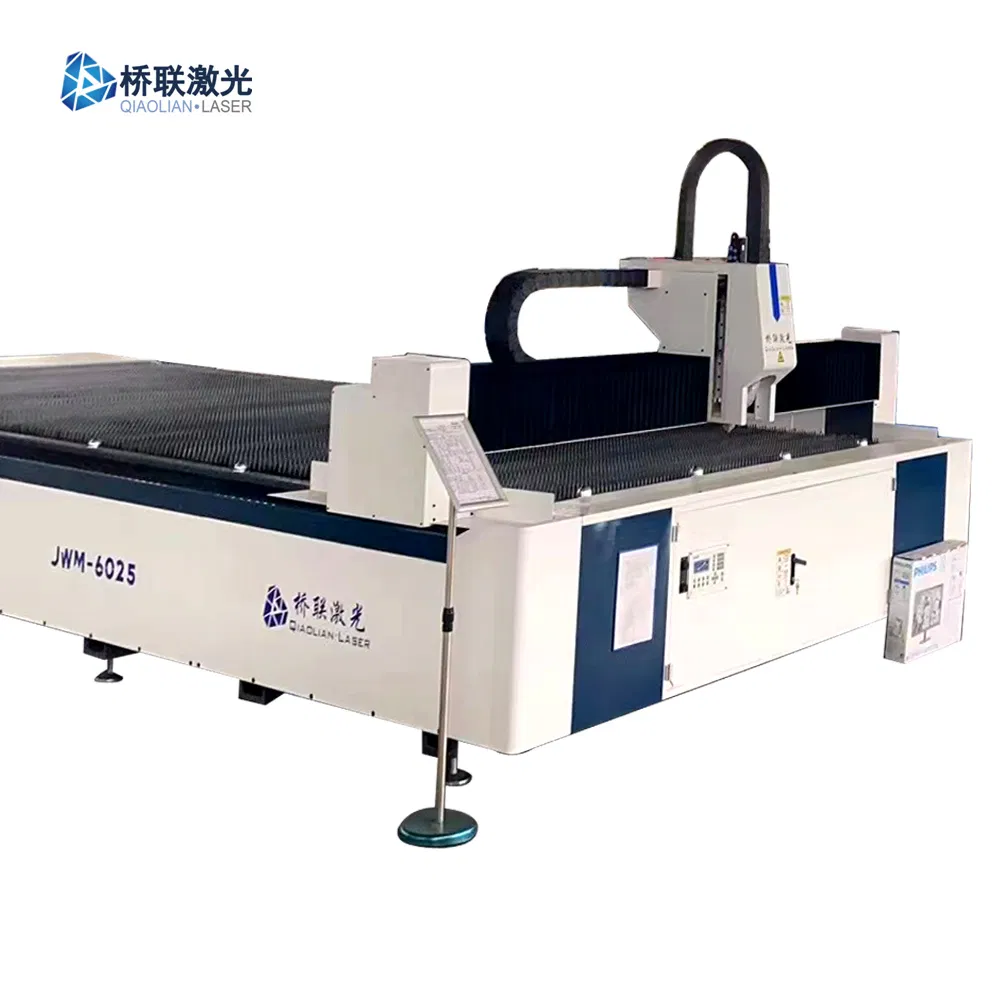

Single table laser cutting machine

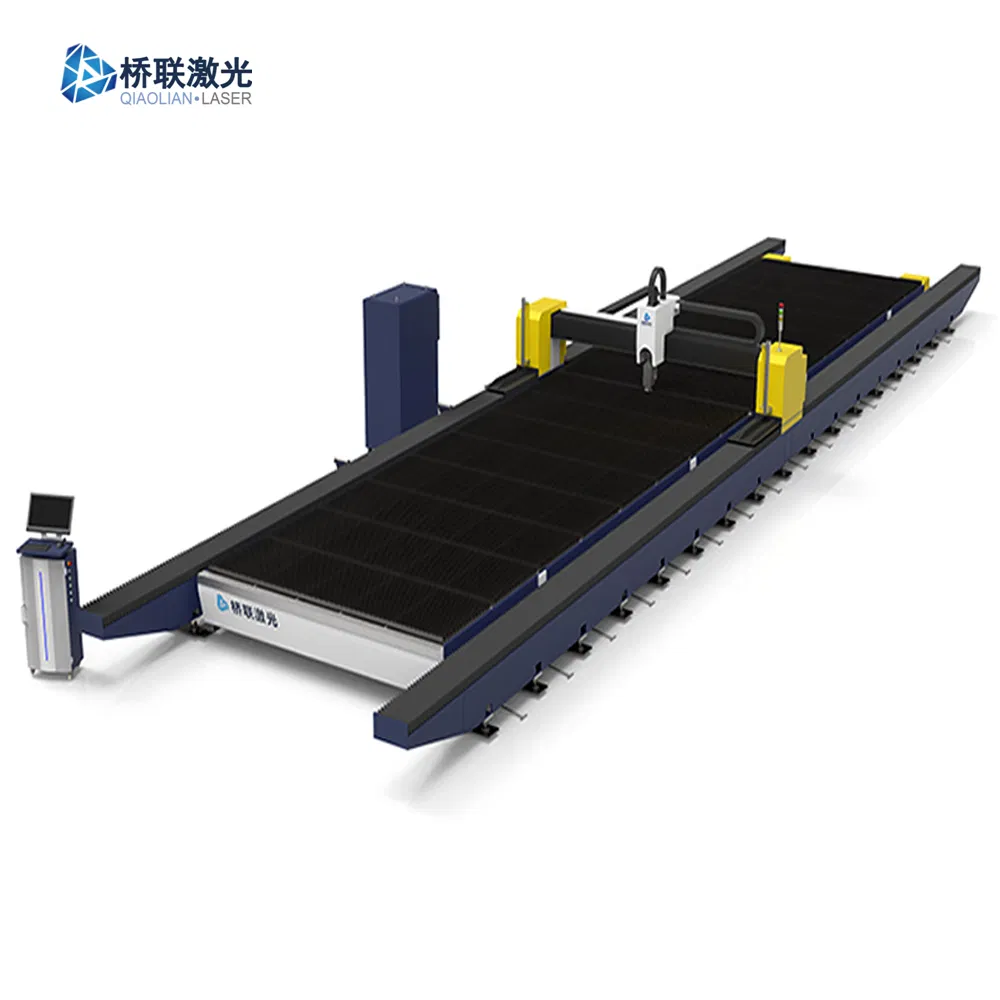

Gantry laser cutting machine

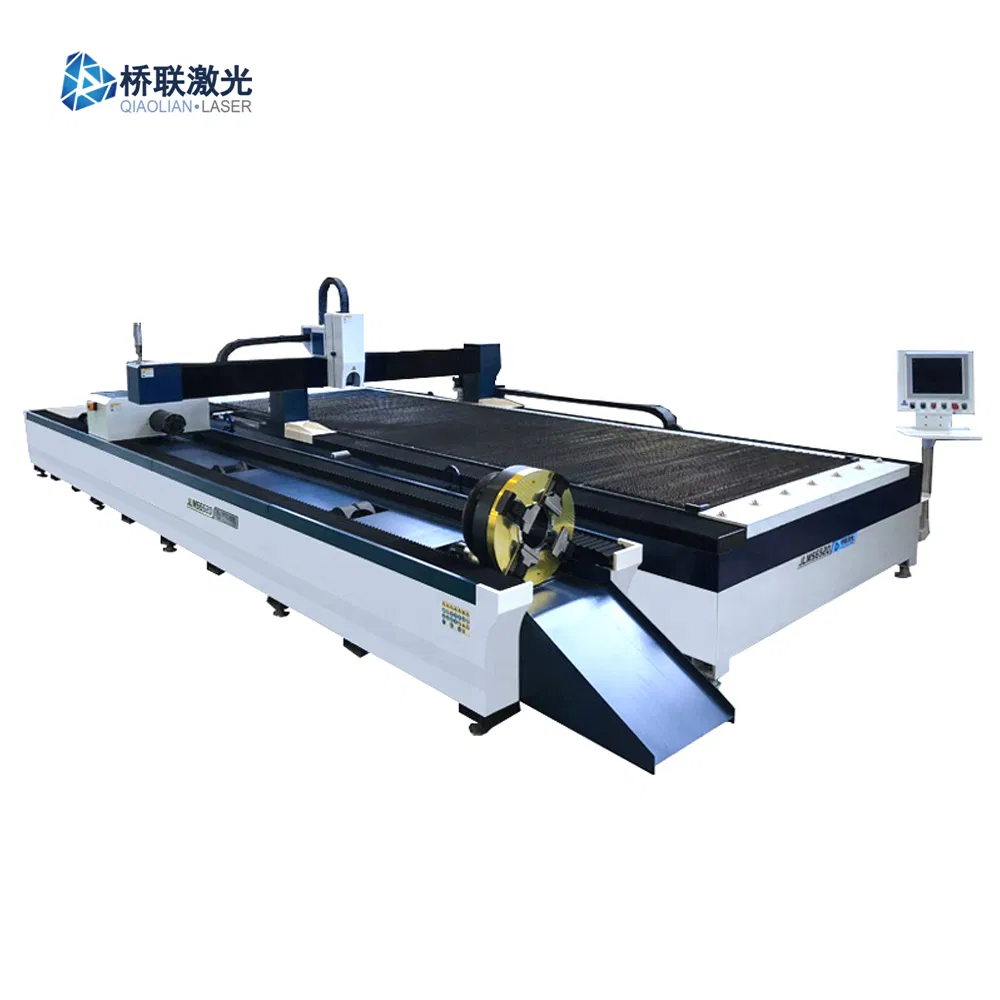

Sheet & Tube laser cutting machine
Tube laser cutting machine

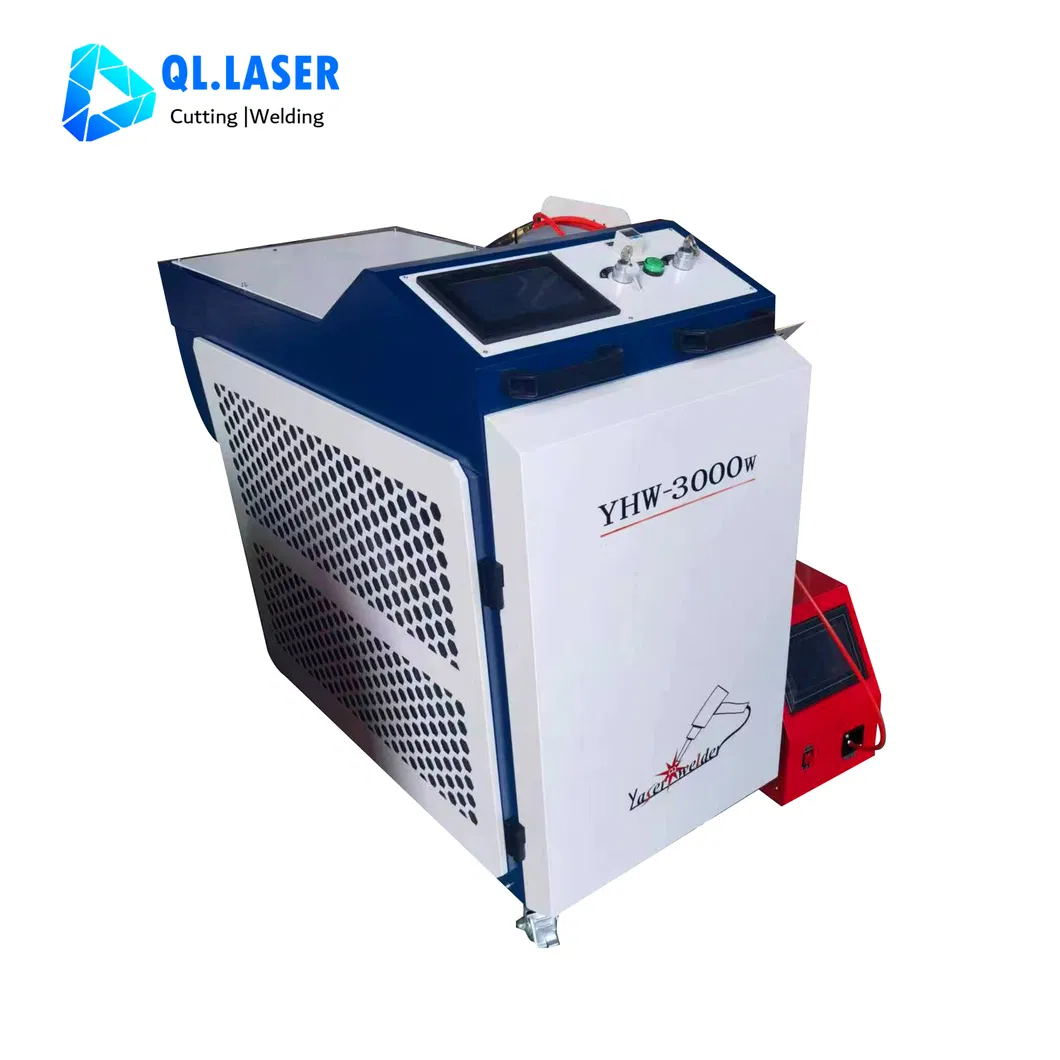

Fiber laser welding machine

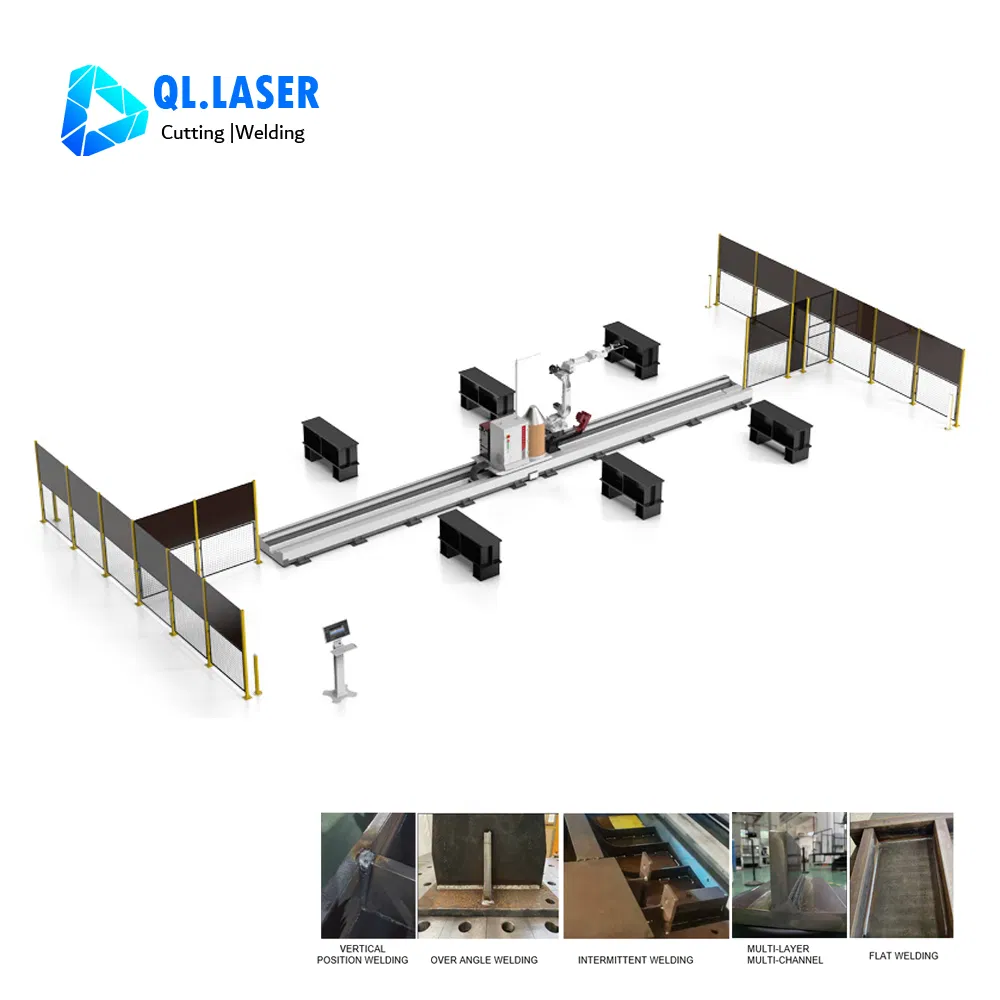

DG series Track Robot Welding Workstation

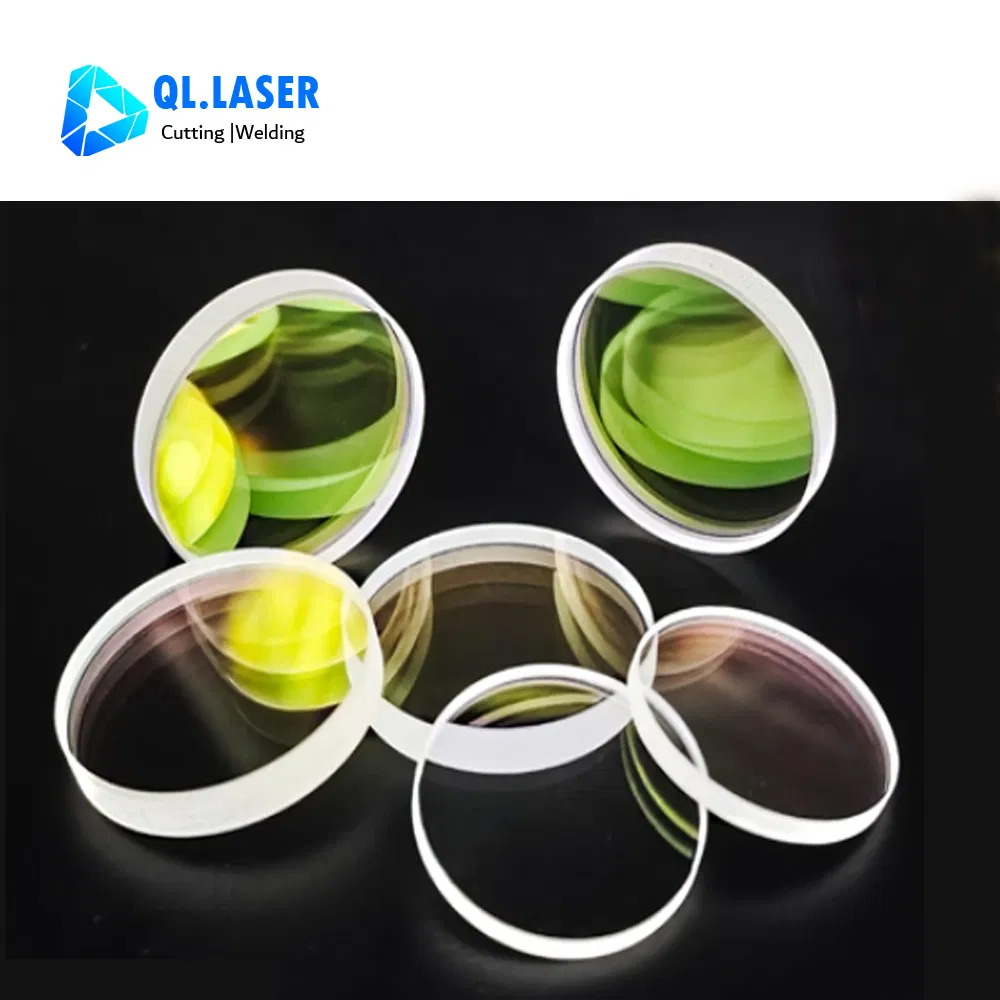

Laser Cutting Protective Lens

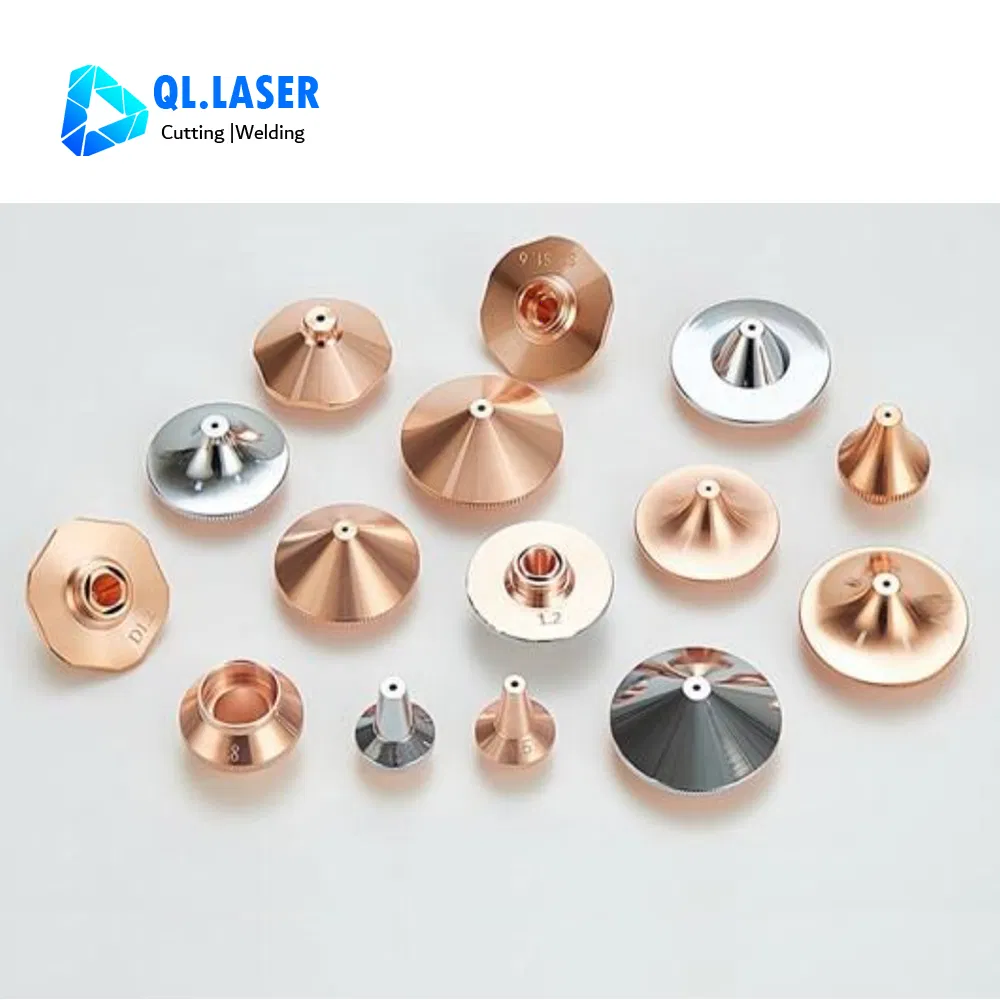

Laser Cutting Nozzle

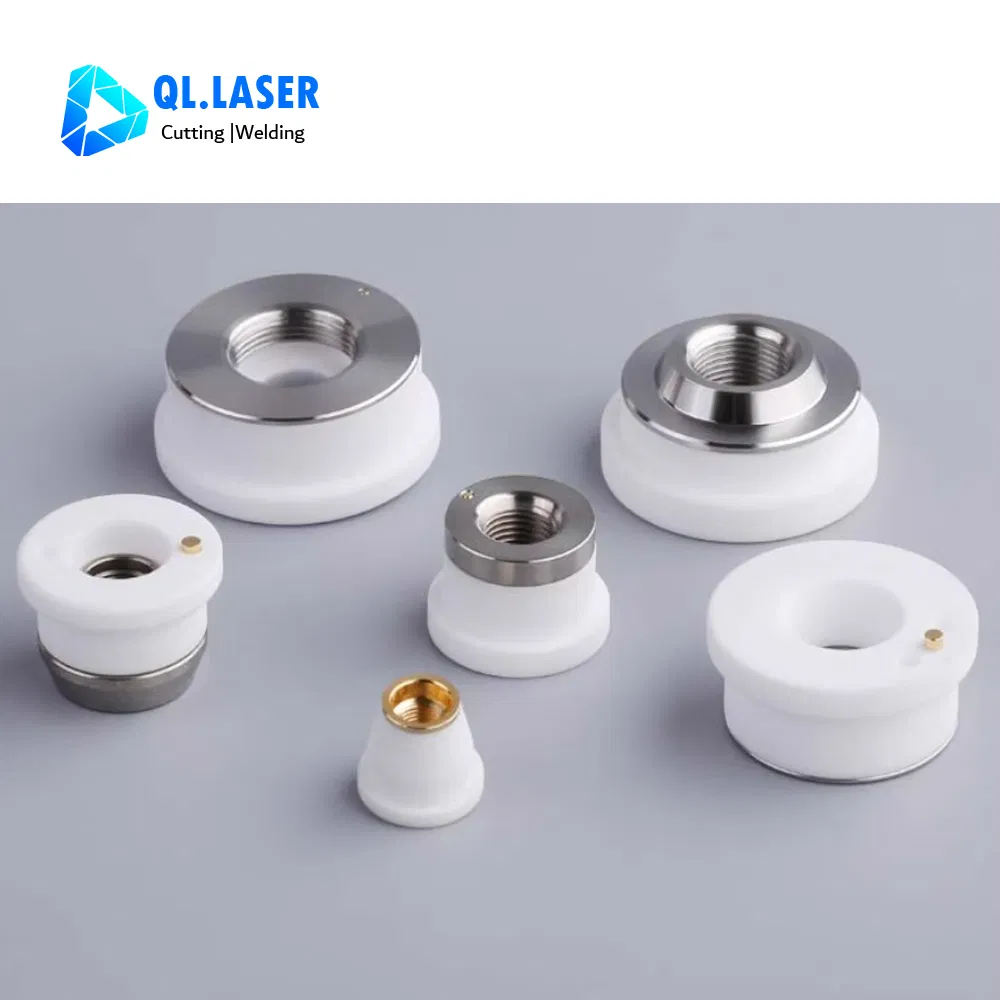

Laser Cutting Ceramic Ring
Frequently Asked Questions (FAQ)
What materials can this 3D laser cutting machine process?
This fiber laser tube cutting machine is optimized for round tubes, square tubes, angle steel, H-beams, C-type steel, and other structural profiles made of carbon steel, stainless steel, aluminum, and other alloy metals.
What are the core benefits of the 3-chuck clamping technology?
The 3-chuck system supports and clamps heavy tubes concurrently. Any physical deformation in the tube is corrected automatically, ensuring consistent cutting precision, excellent balance, and achieving real "zero tailing" waste.
How does the auto-focus laser cutting head work?
It features a built-in motor drive unit that adjusts the position of the focusing mirror automatically via a linear mechanism. This guarantees continuous auto-focusing for rapid perforation and swift transitions across pipes of varying thicknesses and materials.
What software control system is equipped?
The machine is powered by the professional FSCUT5000 EtherCAT bus control system. Integrated with TubesT 3D nesting software, it delivers highly optimized cutting paths, faster operation speeds, and reduced resource waste.
What size range of tubes can this machine process?
It cuts round tube diameters ranging from Φ20 to 450mm, with selectable configurations supporting raw tube lengths of 3000mm, 6000mm, 9000mm, or up to 12000mm.
How is the build quality and accuracy verified?
We maintain a rigorous quality inspection protocol using world-class equipment like laser interferometers, laser collimators, and three-coordinate projectors. Every system is constructed with premium parts such as Yaskawa motors, Shimpo reducers, Rexroth linear guides, and Schneider electronics.
