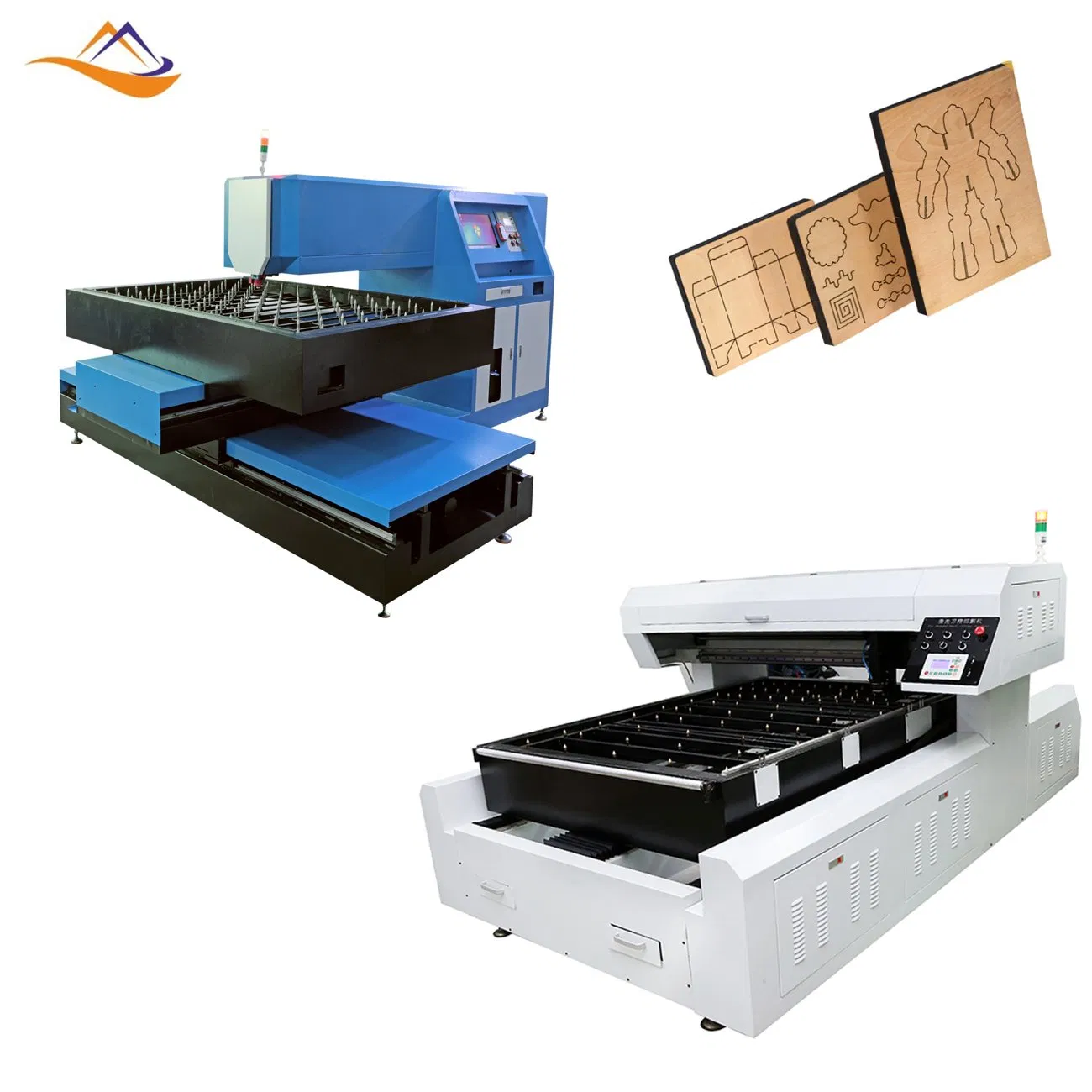

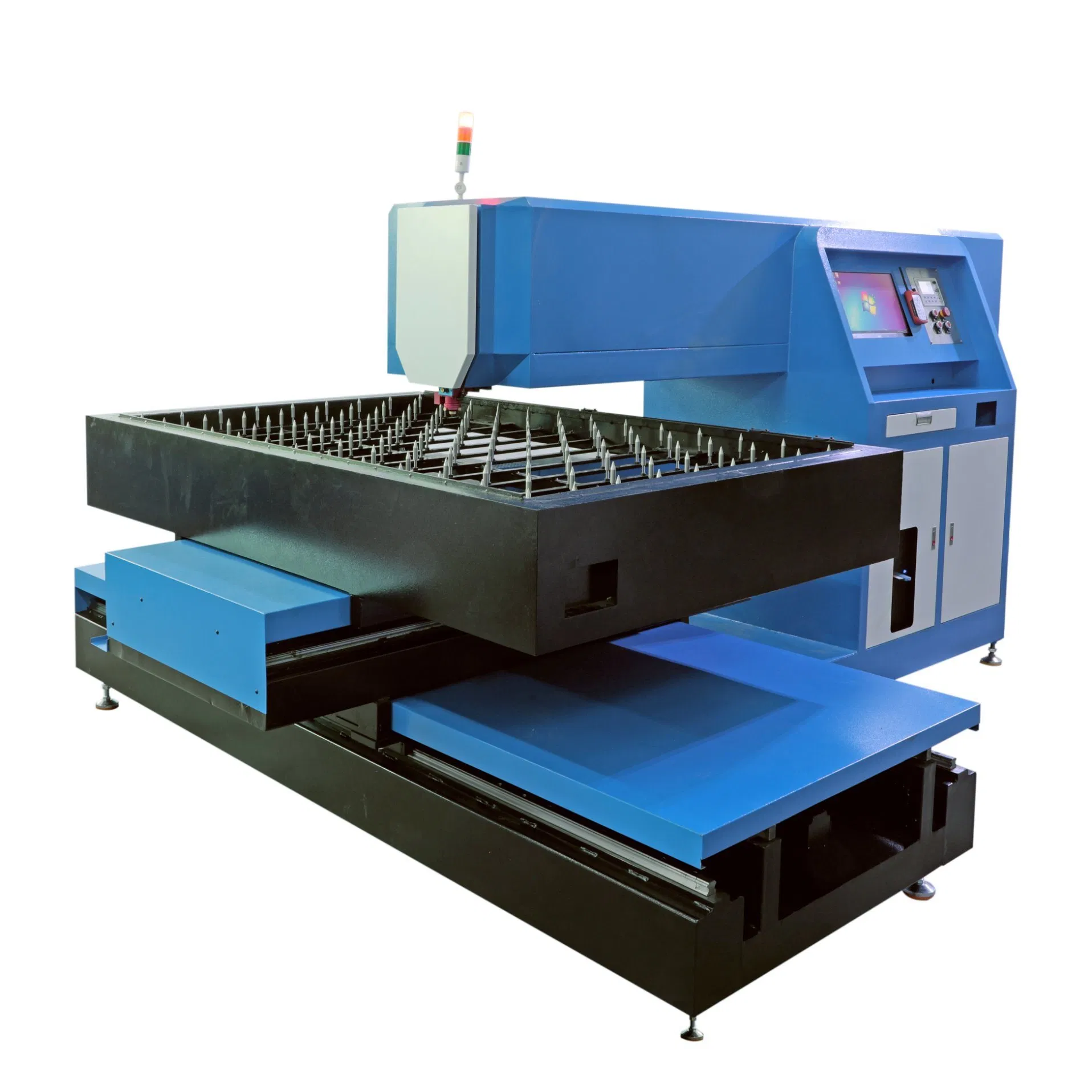

Tsd Cut CO2 Die Board Laser Cutting Machine with Anti-Collisionsystem

1 / 5

Tsd Cut CO2 Die Board Laser Cutting Machine with Anti-Collisionsystem

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

WT-LC600

Application

Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Acrylic, Crystal, Glass, Leather

Structure Type

Gantry Type

Laser Classification

CO2

Laser Technology

Laser Control Fault Cutting

Cutting Speed

0-36000(mm/Min)

CNC or Not

Yes

Graphic Format Supported

Ai, BMP, Dxf, Dxp, Plt, ...

Cutting Area

1200*900mm

Usage

Die Board Laser Cutting Machine

Name

Gy Laser Cutting Machine

After Sale

Engineers Available to Service Over Seas

Laser Type

CO2 Direct-Current Stimulated Glass Laser

Certification

CE TUV

Control Software

Wt Laser Cutting Machine Software

Transport Package

Export Standard Wooden Case

Specification

size 9m X 8m X 2.3m

HS Code

8456100090

Production Capacity

1000PCS/Year

Product Description

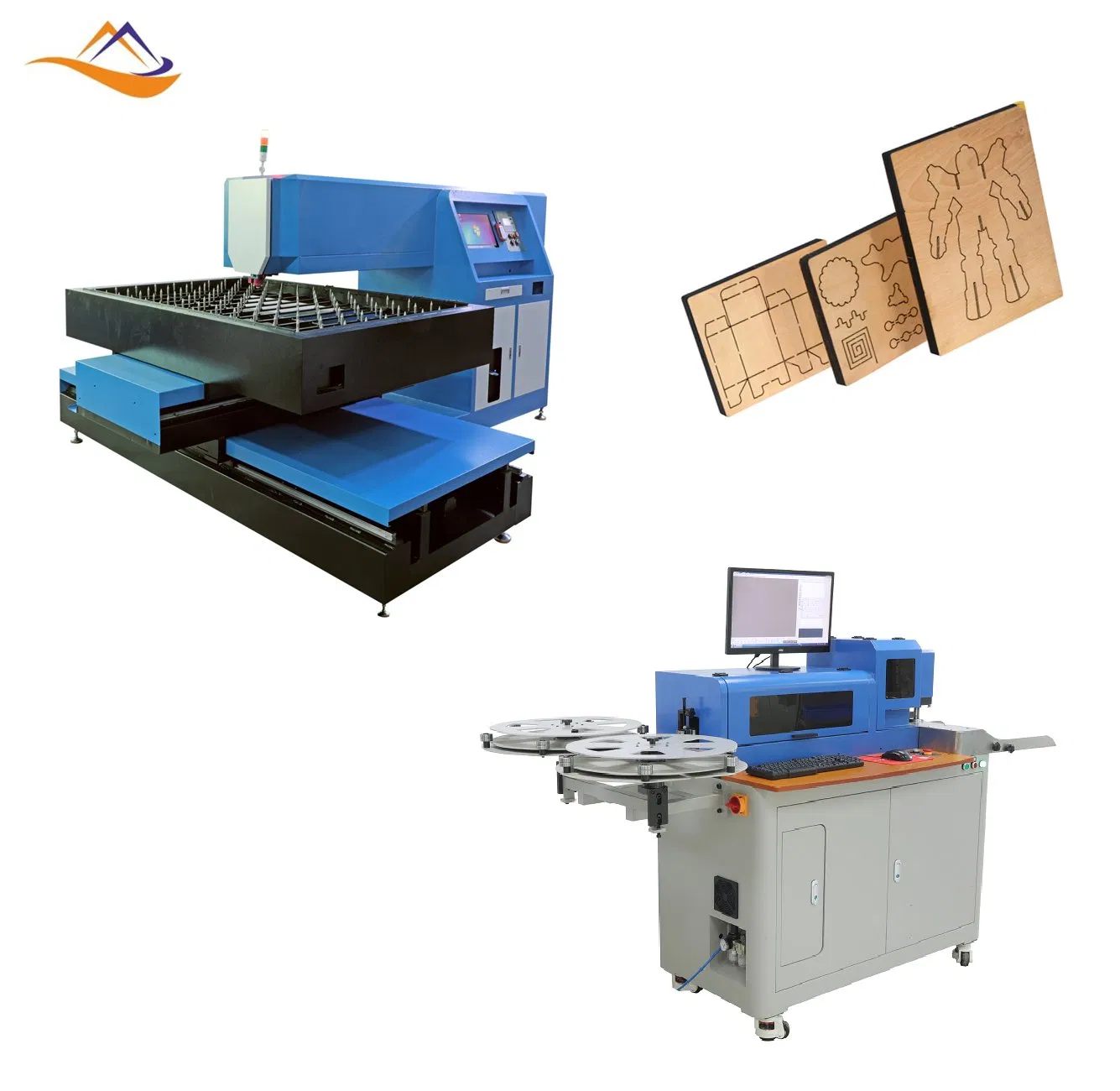

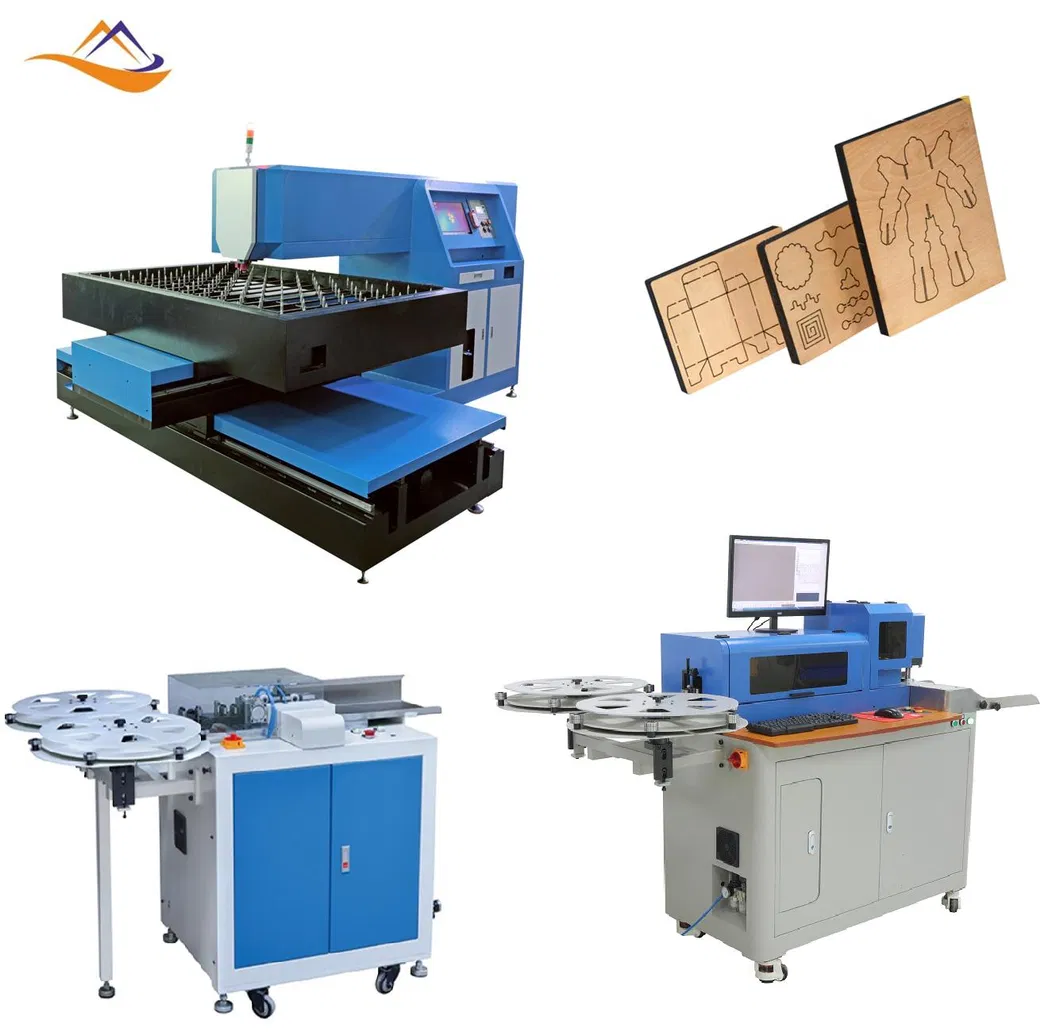

Die board laser cutting machine & Auto bender machine for steel rule dies

400W 600W can be a single head laser cutting die cutting machine cutting 18mm and 22mm board laser cutter template, 6-9mm PVC rubber sheet (add oxygen can cut iron plate, stainless steel, 13mm can do blister knife template, high efficiency, uniform kerf, consistent, the precision error is less than 0.1mm. Maintenance is simple. Do not need gas. Equipment structure is compact. Need small area to install it. The cabinets are made of high quality cold-rolled steel plate. An external power source 220V and low cost. Technology of simple knife adjustment, cutting software and AutoCAD, CorelDraw, Adobe Photoshop can compatible edit the path manual operation. Maintenance cost is low, greatly saves the production cost of laser cutting die.

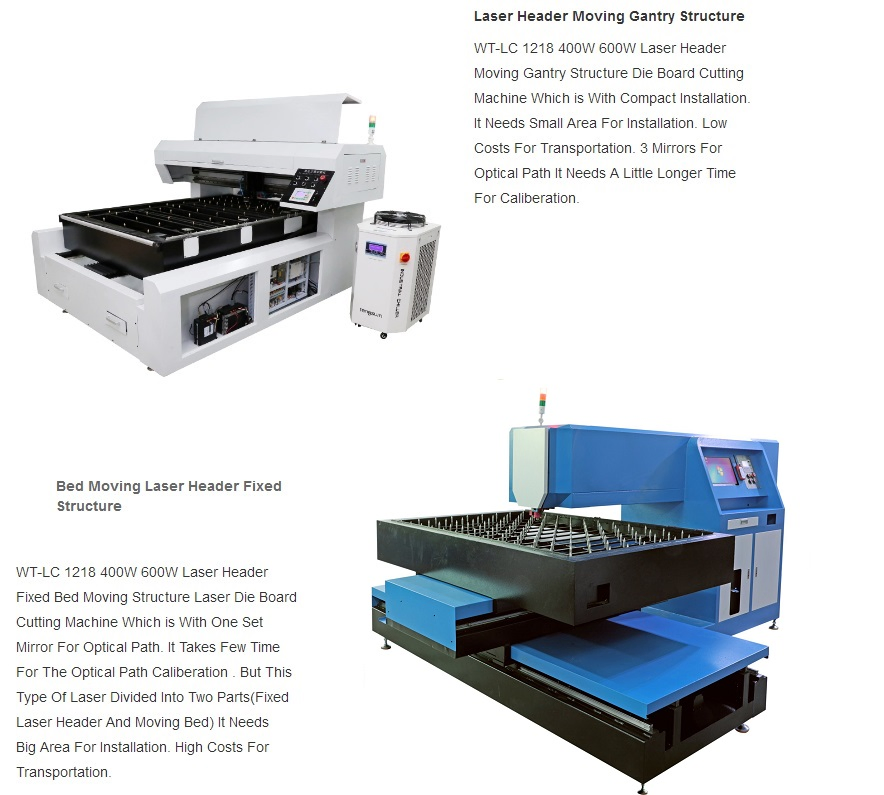

Adopt the most advanced 400W 600W C02 sealing type water-cooled laser tube combined with precision up to 0.05mm of numerical control mechanical systems. Not only Get The precision of laser die making, But also reduce the costs of laser die making. Suitable for wooden board laser die cutting and precision electronic laser die making. Adopt gantry structure, to avoid the optical path deviation size problem that high power laser machine has.

Do not need to add any auxiliary gas to cut, laser cutting die consumption is extremely low. An external power source 220V is ok. And no opening preparation delay. The cutting costs is only 5 RMB/Hour.

Can do one-time cutting 1mm-22mm wooden board, Plastic board, organic glass, Acrylic board at speed of 25-30m/h. And the machine can cut the gap at 0.45mm, 0.71mm, 1.07mm, 1.42mm and so on at uniform cutting kerf width also up and down seam.

Technical Parameters

Technical Specifications Overview
Transmission	High Precision HIWIN Screw guide
Laser Type	CO2 direct-current stimulated glass laser
Servo Motor	Inovance high precision servo motor
Re-positioning Precision	+-0.02mm
Cutting Precision	+-0.01mm
Cutting Board Thickness	1-25mm poly wood (Cut 1.5mm stainless steel board and 3mm Normal steel when Add oxygen gas)
Cutting Speed	1-35m/h (18mm wooden board) / 1-30m/h (18mm wooden board)
Pneumatic parts	Taiwan-- AirTag
Best Files format	DXF, DWG, AI, CDR, PLT (Auto CAD, Corel Draw)
Cutting Size	X-axis travel length: 1200mm \| Y-axis travel length: 1800mm
Power	4kw 220V/ 60HZ 50HZ
Laser Power	400W Single Header
Work Temperature	0-45 ºC
Light-dimmer	1 Pcs
Tool	1 Sets of tool box
Focus Lens	1 Pcs
Laser Tube	1 Pcs of QT 400W laser tube
High Efficiency Air Filter	1 Sets
Smoke Exhaust Fan	1 Pcs
Water Cooling	CW-6000
Warranty	12 month (except laser tube and lens)
Weight	2000kg	Overall Size	340023001500

Package & Shipping

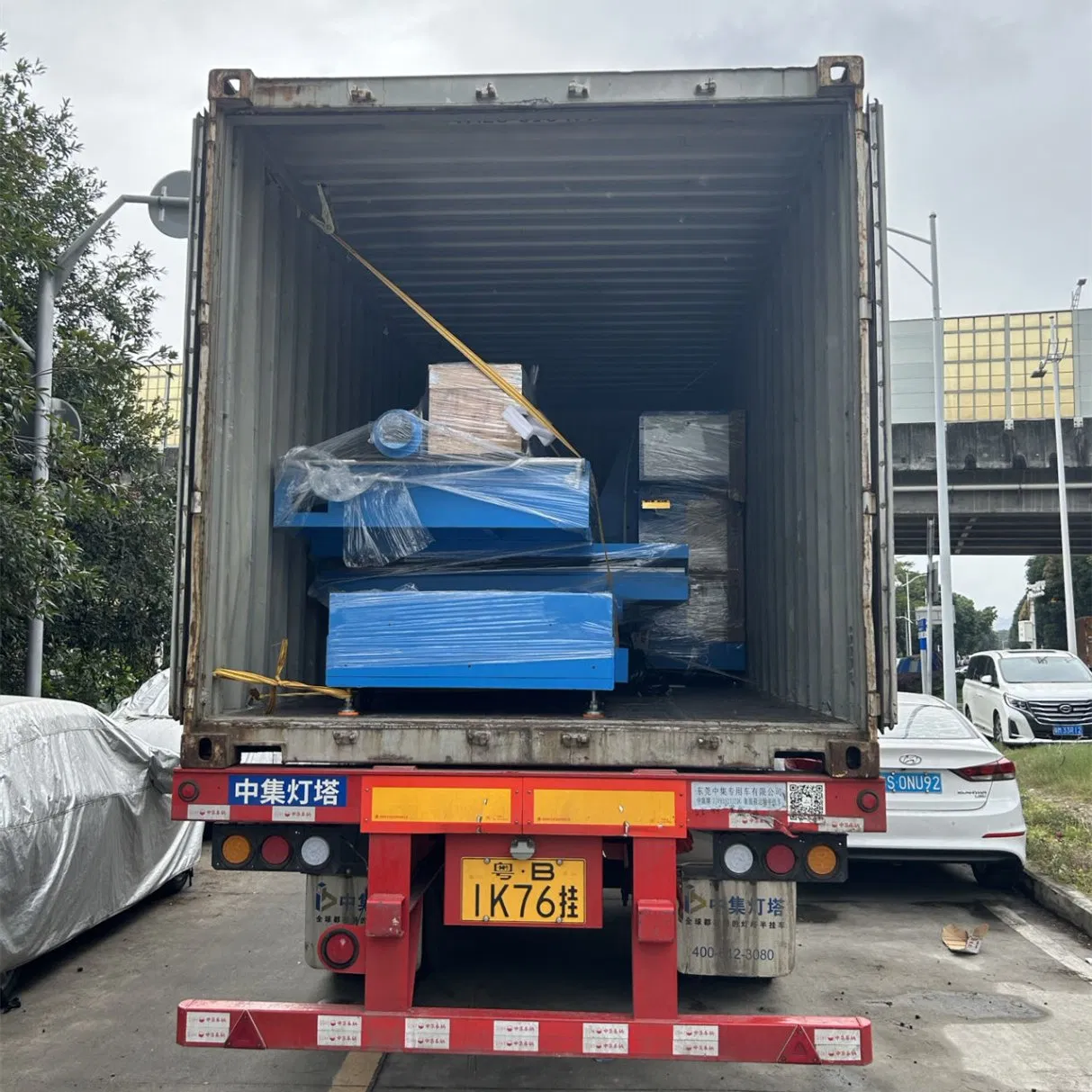

Each machine is well packed with export standard wooden box. We will make photos for the machine before the shipping and let you know the processing of the packing and loading.

Our Services

Our machine is guaranteed for one year, not including normal consuming parts.
24 hour technical support by email or calling.
User-friendly English manual and Video CD for machine using and maintaining.
Our self-developed English software can do all kinds of pattern recognition.
We supply 1 year warranty and life-Long engineering service.

Please Let Us Know

What machine do you need?
What materials will be processed? The size and thickness?
What is your business scope? Are you end user or distributor?

Customer Needs is my Pursuit !

Frequently Asked Questions

What kinds of materials can this laser cutting machine cut?

It can cut 1mm to 22mm wooden boards, organic glass, plastic boards, acrylic boards, and 6-9mm PVC rubber sheets. With the addition of oxygen gas, it is also capable of cutting 1.5mm stainless steel boards and 3mm normal steel plates.

Does this machine require any auxiliary gas for regular wood cutting?

No, it does not require any auxiliary gas to cut wooden boards. This keeps running costs extremely low, with consumption costs estimated at only around 5 RMB per hour.

What are the precision and technical specifications of this machine?

The machine features a re-positioning precision of +-0.02mm and cutting precision of +-0.01mm. It operates with a powerful 400W CO2 direct-current stimulated glass laser tube using a high precision HIWIN screw guide and Inovance servo motors.

What standard software and file formats are compatible?

The machine supports DXF, DWG, AI, CDR, and PLT file formats. The pathways can be easily designed and edited using standard design programs like AutoCAD, CorelDraw, and Adobe Photoshop.

What kind of after-sales service and warranty do you offer?

We provide a 12-month warranty (excluding regular consumable parts like the laser tube and focus lens) along with lifelong engineering services. Customer support includes 24-hour technical assistance via email or phone calls.
