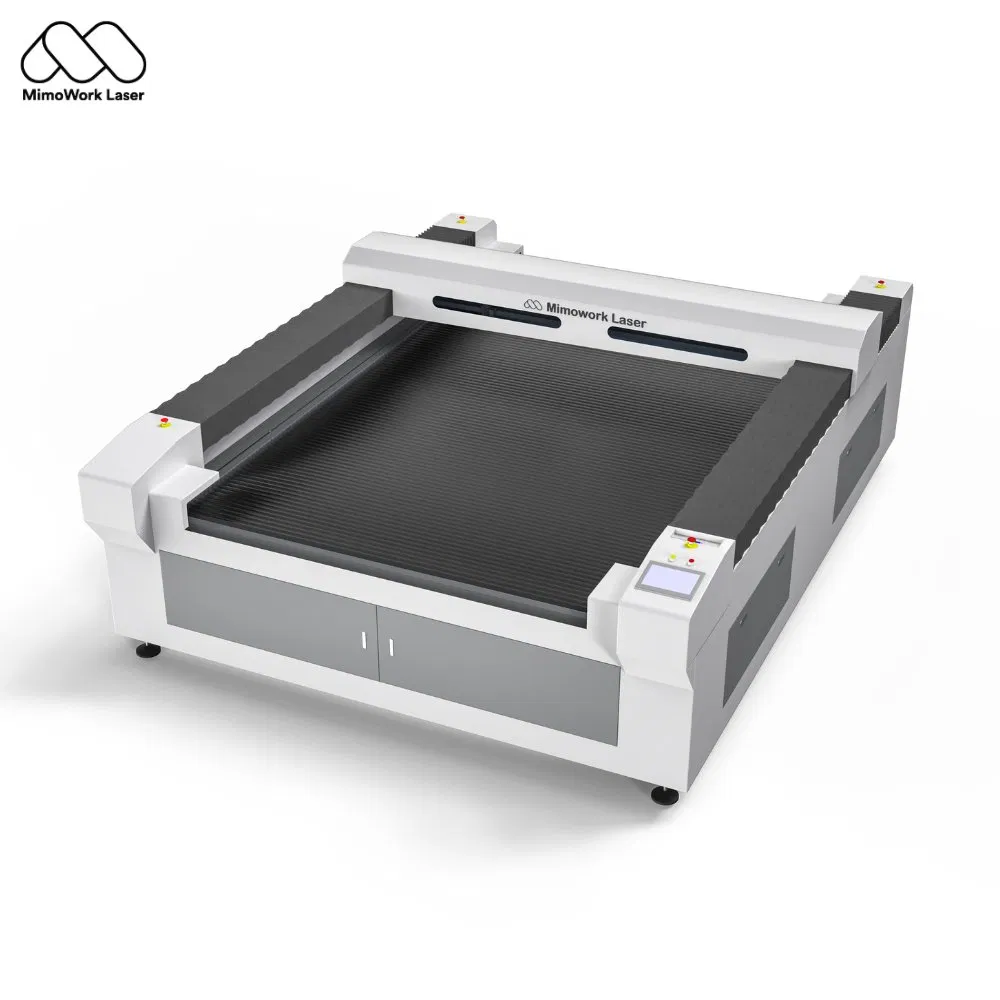

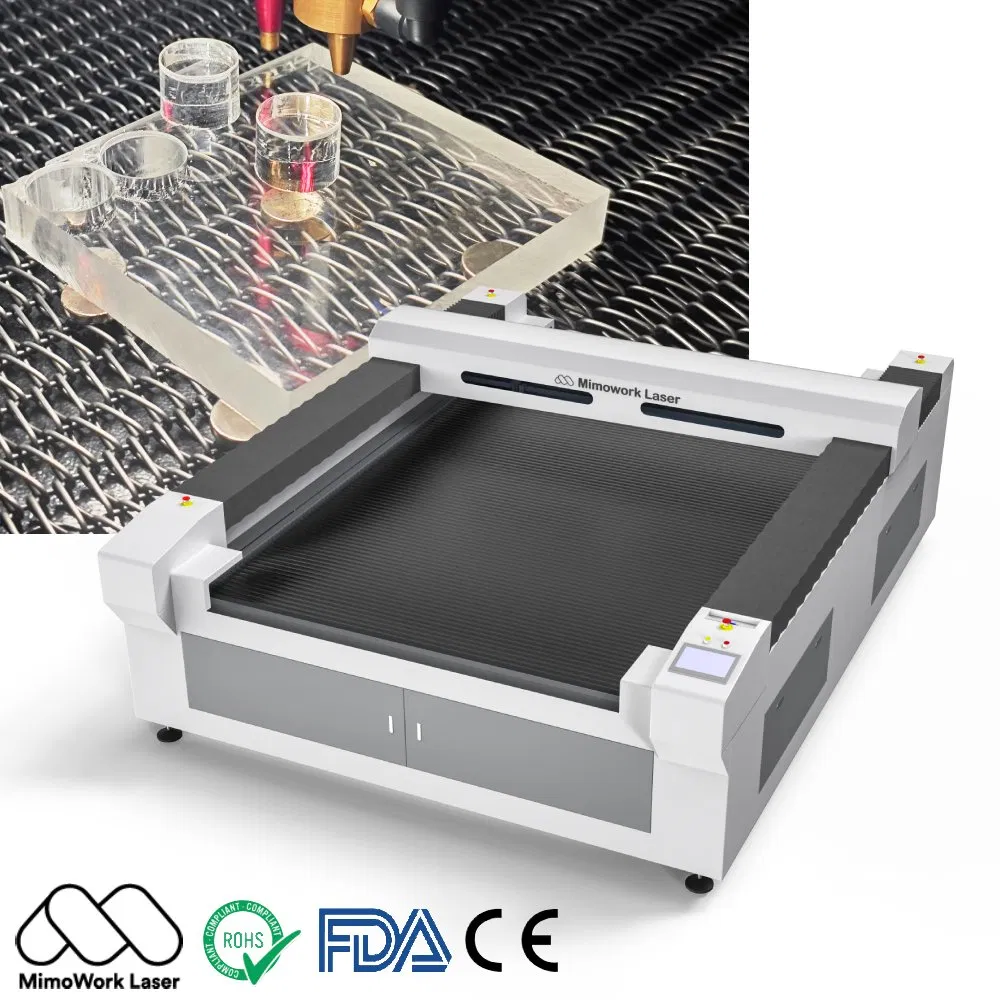

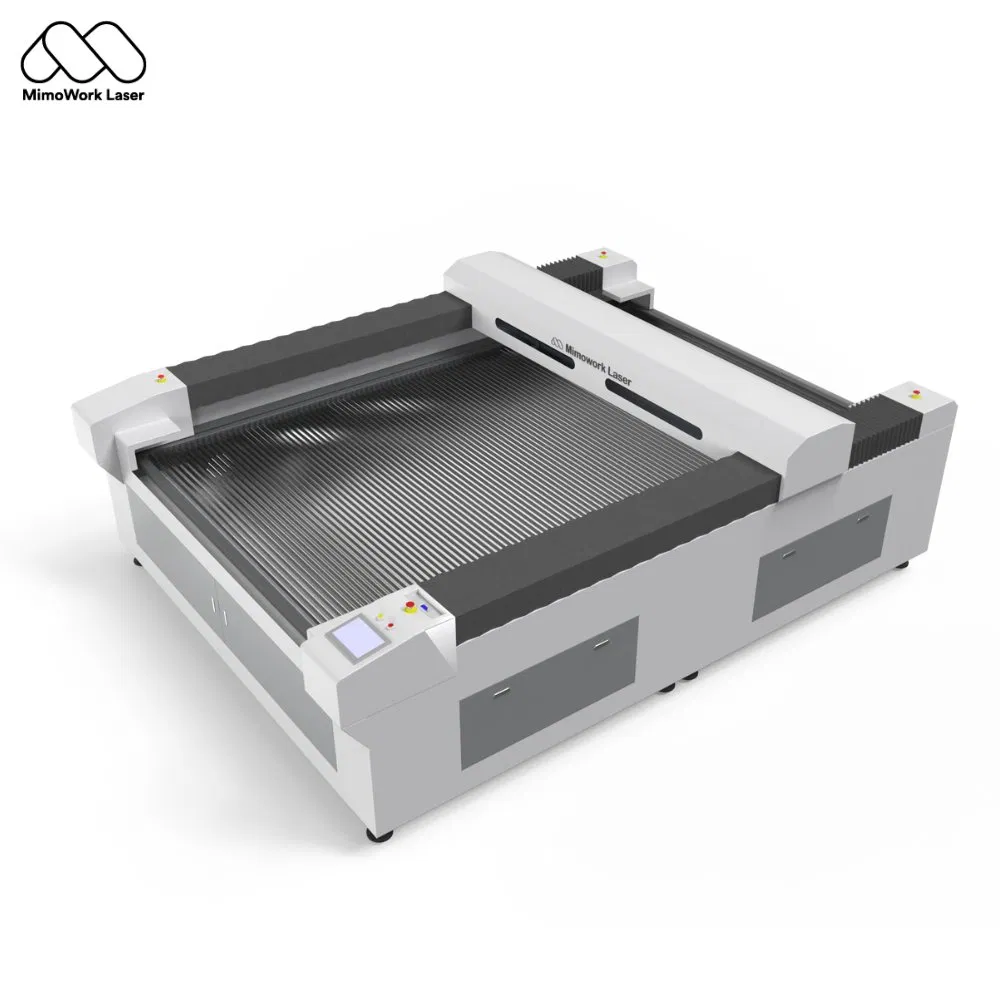

The laser cutter to cut acrylic is specifically designed for both cutting and engraving acrylic. Available in a range of working table sizes—from 600mm x 400mm to 1300mm x 900mm, and up to 1300mm x 2500mm—our acrylic laser cutters are versatile enough to handle a wide variety of acrylic applications, including signs, furniture, crafts, lightboxes, and even medical instruments. With high cutting precision and fast cutting speeds, these machines significantly boost acrylic processing productivity.
For home use, hobbies, or beginners, the F-1390 is an excellent choice. Its compact size combined with impressive cutting and engraving capabilities makes it ideal for smaller projects.
For industrial use and mass production, the F-1325 is more suited, offering higher cutting speeds and a larger working area to meet the demands of large-scale operations.

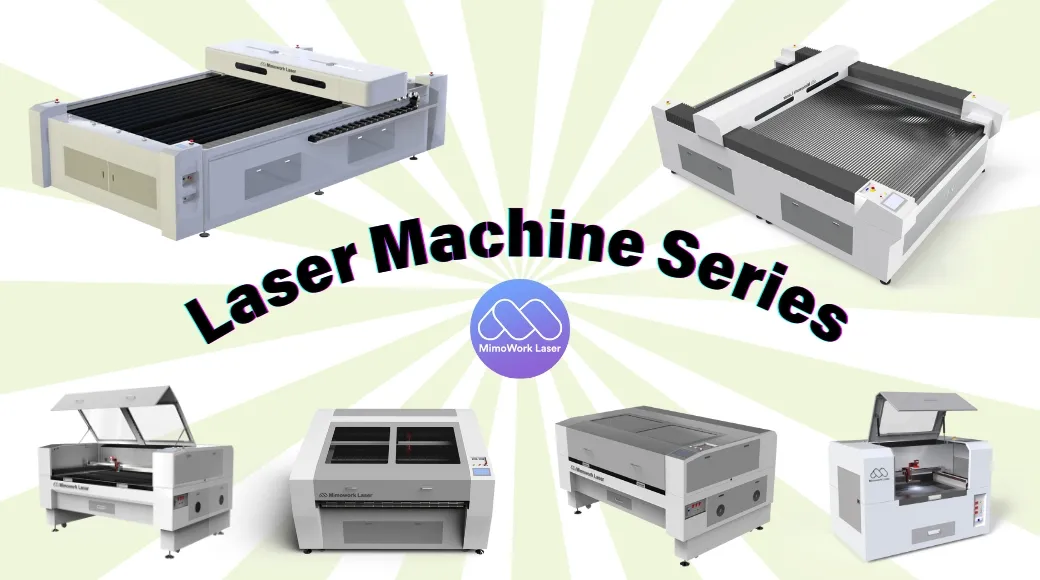

| Model | Working Table Size (W * L) | Laser Power | Machine Size (W * L * H) |
|---|---|---|---|
| F-6040 | 600mm * 400mm | 60W | 1400mm * 915mm * 1200mm |
| F-1060 | 1000mm * 600mm | 60W/80W/100W | 1700mm * 1150mm * 1200mm |
| F-1390 | 1300mm * 900mm | 80W/100W/130W/150W/300W | 1900mm * 1450mm * 1200mm |
| F-1325 | 1300mm * 2500mm | 150W/300W/450W/600W | 2050mm * 3555mm * 1130mm |
| F-1530 | 1500mm * 3000mm | 150W/300W/450W/600W | 2250mm * 4055mm * 1130mm |
| F-1610 | 1600mm * 1000mm | 100W/130W/150W/300W | 2210mm * 2120mm * 1200mm |
| F-1810 | 1800mm * 1000mm | 100W/130W/150W/300W | 2410mm * 2120mm * 1200mm |
| F-1630 | 1600mm * 3000mm | 150W/300W | 2110mm * 4352mm * 1223mm |
| F-1830 | 1800mm * 3000mm | 150W/300W | 2280mm * 4352mm * 1223mm |
| C-1612 | 1600mm * 1200mm | 100W/130W/150W | 2300mm * 2180mm * 2500mm |
| C-1814 | 1800mm * 1400mm | 100W/130W/150W | 2500mm * 2380mm * 2500mm |
| Laser Type | CO2 Glass Laser Tube / CO2 RF Laser Tube |
| Max Cutting Speed | 36,000mm/min |
| Max Engraving Speed | 64,000mm/min |
| Motion System | Servo Motor / Hybrid Servo Motor / Step Motor |
| Transmission System | Belt transmission / Gear & Rack Transmission / Ball Screw Transmission |
| Work Table Type | Mild Steel Conveyor Working Table / Honeycomb Laser Cutting Table / Knife Strip Laser Cutting Table / Shuttle Table |
| Number of Laser Head | Conditional 1/2/3/4/6/8 |
| Focal Length | 38.1/50.8/63.5/101.6mm |
| Location Precision | ±0.015mm |
| Min Line Width | 0.15 - 0.3mm |
| Cooling Mode | Water Cooling and Protection System |
| Operation System | Windows |
| Controlling System | DSP High Speed Controller |
| Graphic Format Support | AI, PLT, BMP, DXF, DST, TGA, etc. |
| Power Source | 110V/220V(±10%), 50HZ/60HZ |
| Gross Power | <1250W |
| Working Temperature | 0-35ºC / 32-95ºF (22ºC / 72ºF recommended) |
| Working Humidity | 20%~80% (non-condensing) relative humidity with 50% recommended for optimal performance |
| Machine Standard | CE, FDA, ROHS, ISO-9001 |

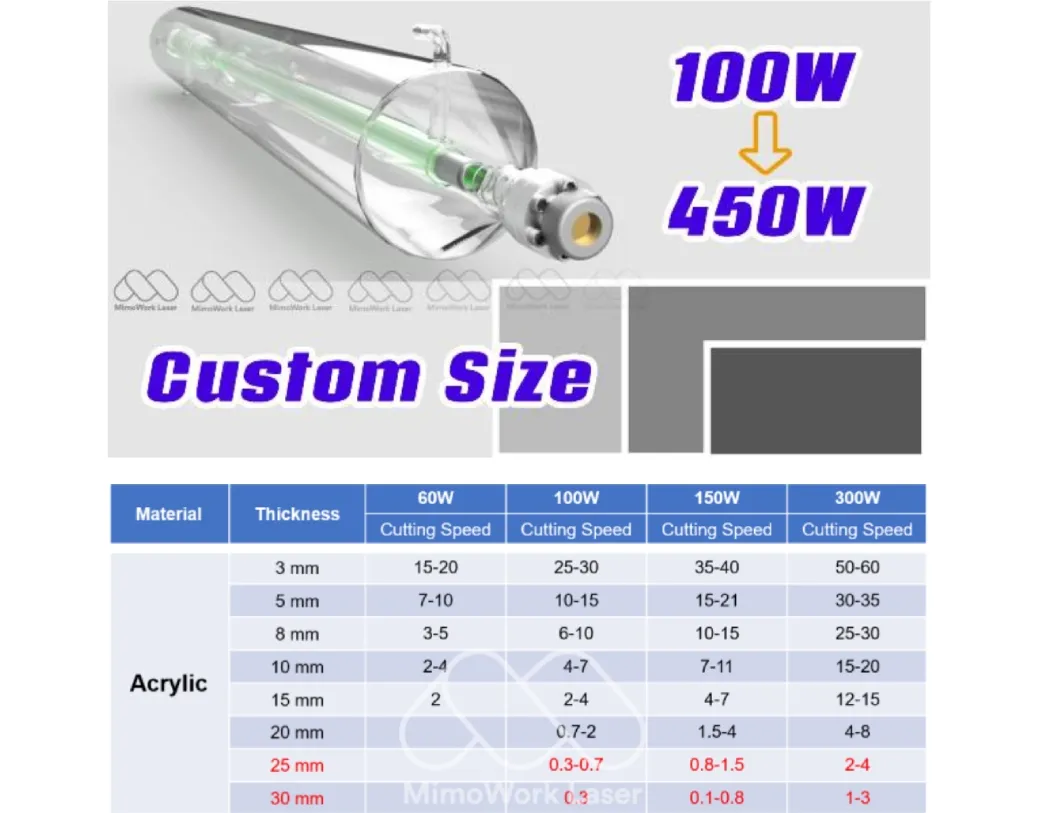

The laser power determines the thickness of the acrylic you plan to cut.
Higher laser power is generally better for thicker materials.
CO2 lasers typically range from 60W to 600W or more. But if you have plans to expand your business in acrylic or other materials production, choosing a general power like 100W-300W is commonly used.

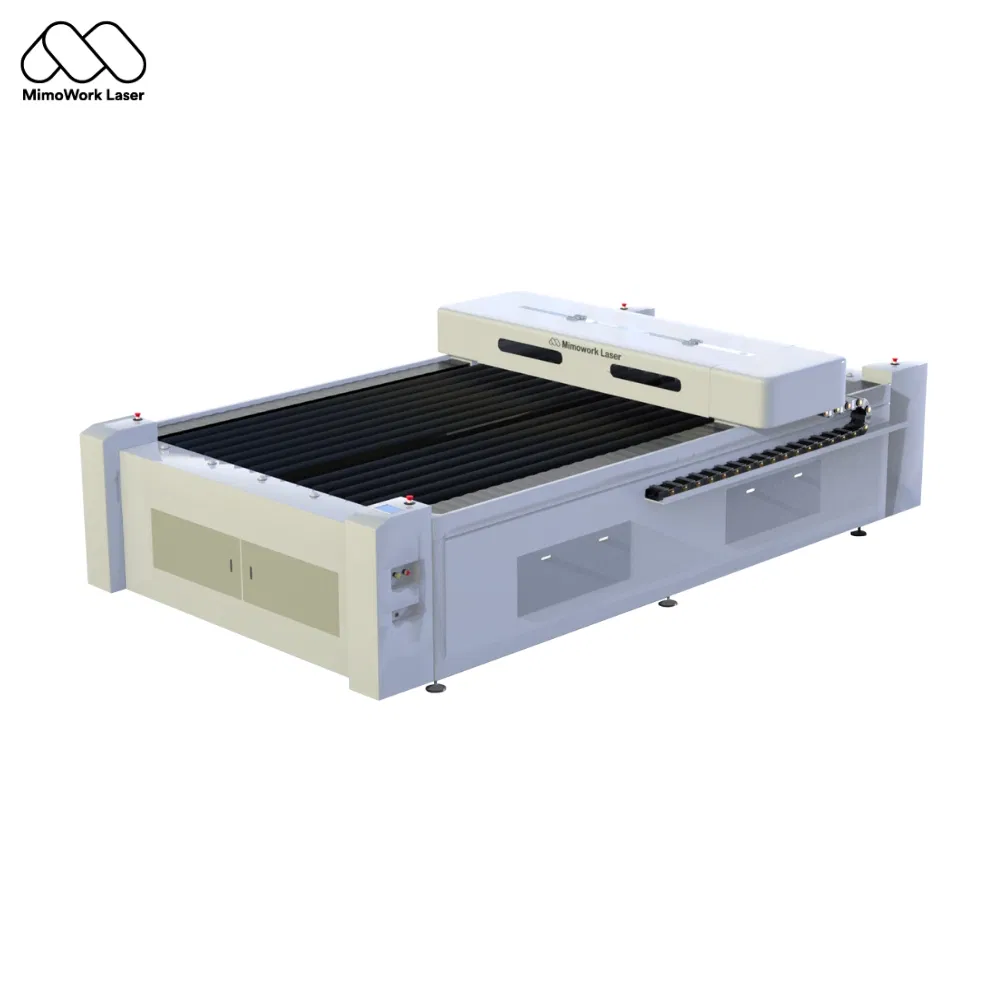

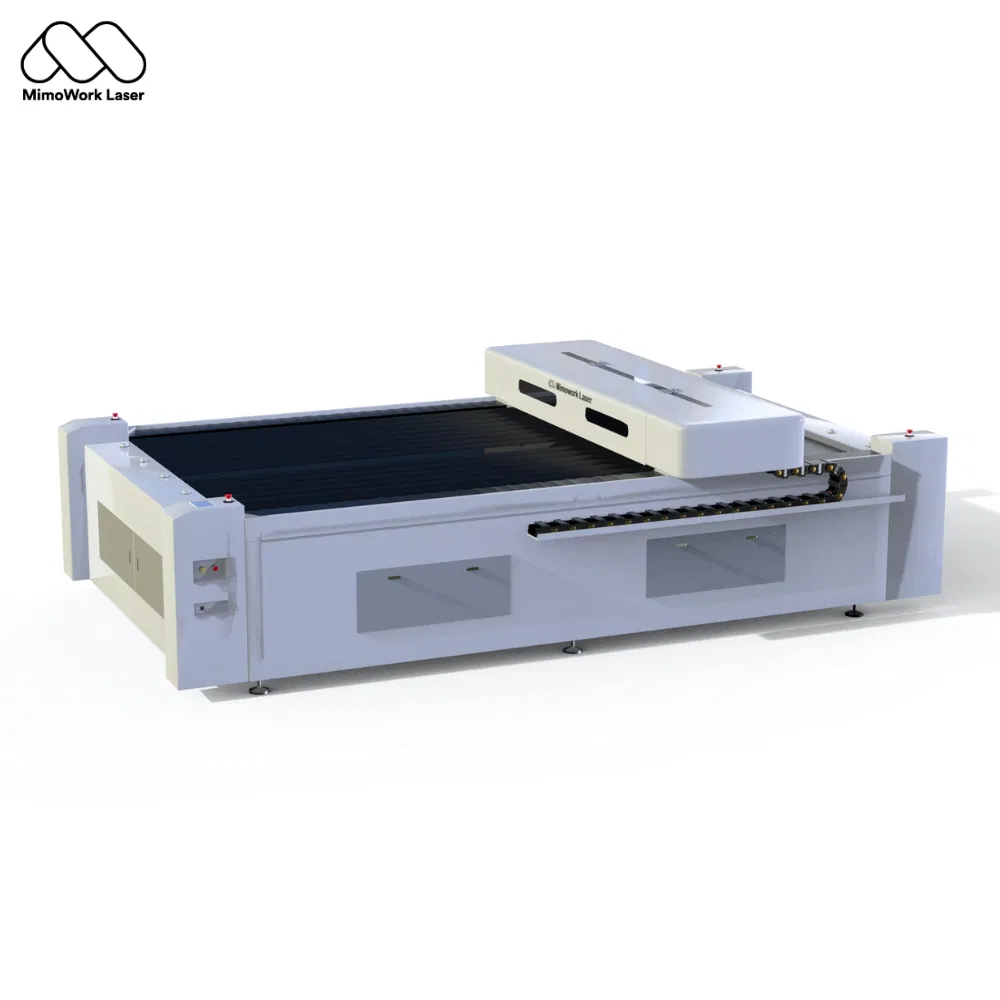

For 1325 - Large Format Laser Cutting Machine

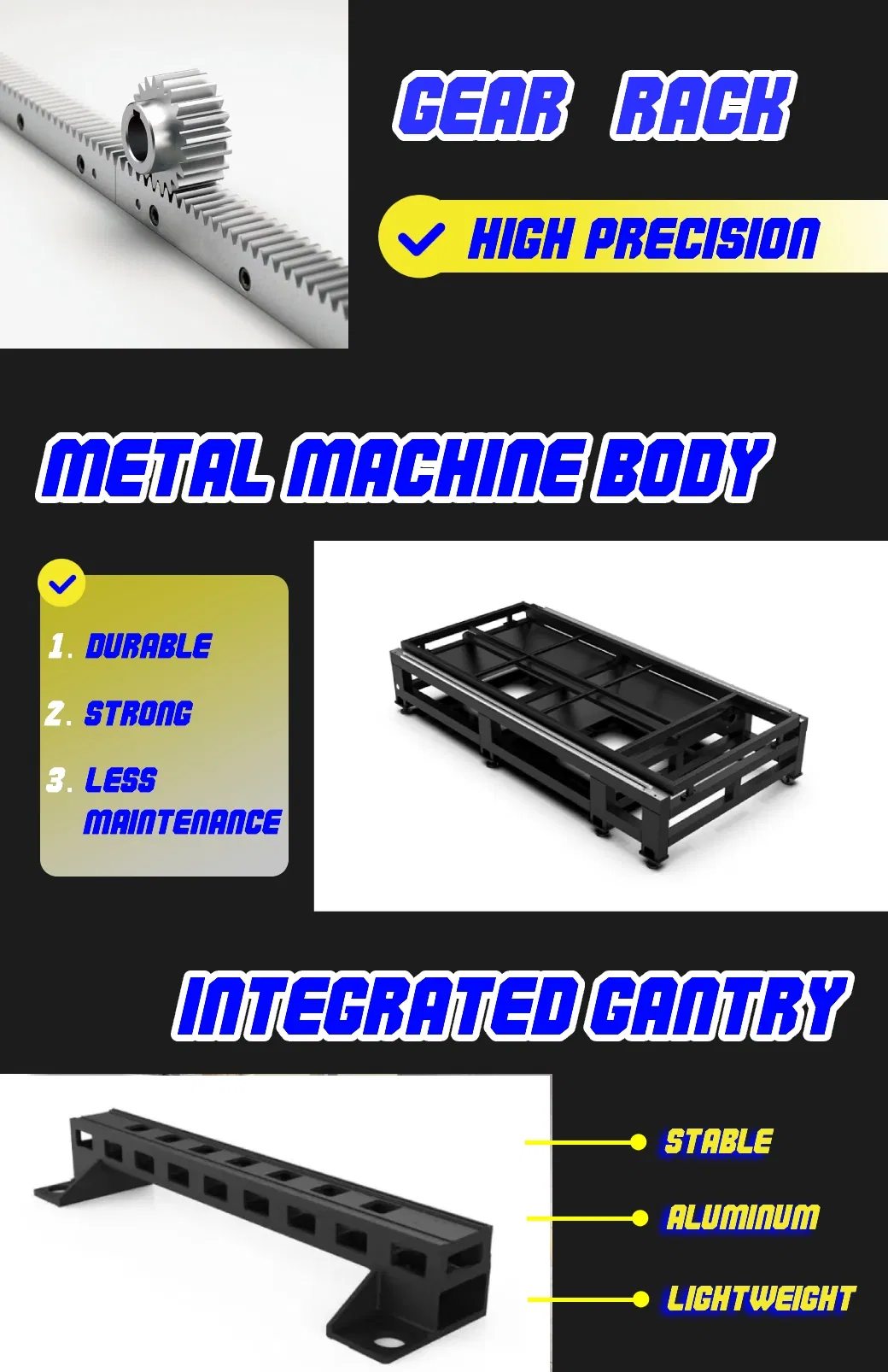

A gear and rack drive is a mechanical system commonly used in CO2 laser cutting machines, especially those designed for cutting and engraving acrylic. This system converts rotary motion from a motor into precise linear motion, making it highly effective for high-accuracy and high-speed cutting applications.
The bed frame is welded using thick square tubes and reinforced internally to enhance structural strength and tensile resistance. It undergoes high-temperature annealing and natural aging treatment to eliminate welding stress, prevent deformation, reduce vibrations, and ensure excellent cutting precision.
An integrated aluminum gantry is a key structural component in many CO2 laser cutting machines, particularly those designed for cutting and engraving acrylic. This gantry serves as the framework that supports and guides the laser head across the work area. Its lightweight yet robust construction provides exceptional stability and precision, making it ideal for acrylic processing.
Servo motors ensure higher speed and higher precision of laser cutting and engraving. A servomotor is a closed-loop servomechanism that uses position feedback to control its motion and final position.
The laser tube is a critical component in large-format CO2 laser cutting machines, responsible for generating the laser beam used to cut or engrave materials like thick acrylic and wood. Glass and RF metal laser tubes are available (150W to 600W).
An industrial-grade water chiller is a robust and high-performance cooling solution designed specifically for high-power CO2 laser cutting machines, maintaining optimal performance for 150W to 600W laser tubes.
Exhaust fans are crucial components in fabric laser cutting machines, designed to maintain a safe and efficient working environment by removing smoke, fumes, and particulate matter.
An industrial fume extractor captures and filters harmful fumes, smoke, and fine particles generated during laser cutting of volatile materials like acrylic and wood, ensuring a clean workplace.

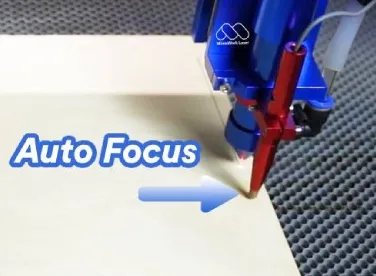

Designed to improve cutting precision and efficiency, this system automatically adjusts its focus height, ensuring the optimal focal point is maintained for different material thicknesses.
Provides real-time visual positioning and pattern recognition, making it highly effective for cutting printed, pre-designed, or irregularly shaped non-metal materials with extreme precision.
The 1300*2500mm laser cutter achieves 1-60,000mm/min engraving speed and 1-36,000mm/min cutting speed. Positioning accuracy is guaranteed within 0.05mm, handling details as small as 1x1mm.

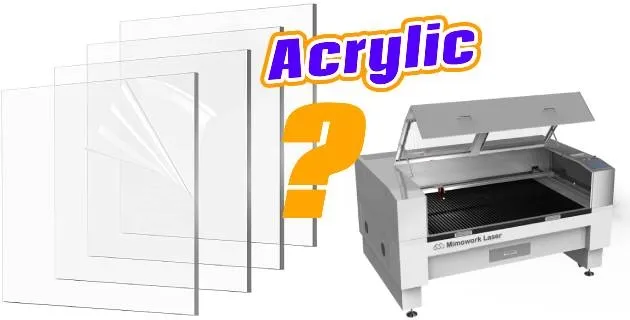

| Classified by Transparency | Classified by Performance | Classified by Manufacturing Methods |
|---|---|---|
| Acrylic laser cutting boards can be classified based on their transparency levels. They fall into three categories: transparent, semi-transparent (including dyed transparent boards), and colored (encompassing black, white, and colored boards). | In terms of performance, acrylic laser cutting boards are categorized into impact-resistant, UV-resistant, regular, and special boards. This includes variations such as high impact-resistant, flame retardant, frosted, metal-effect, high wear-resistant, and light guide boards. | Cast acrylic sheets exhibit superior engraving effects compared to extruded sheets, making them more suitable for laser engraving applications. On the other hand, extruded sheets are more cost-effective and are better suited for laser cutting purposes. |
