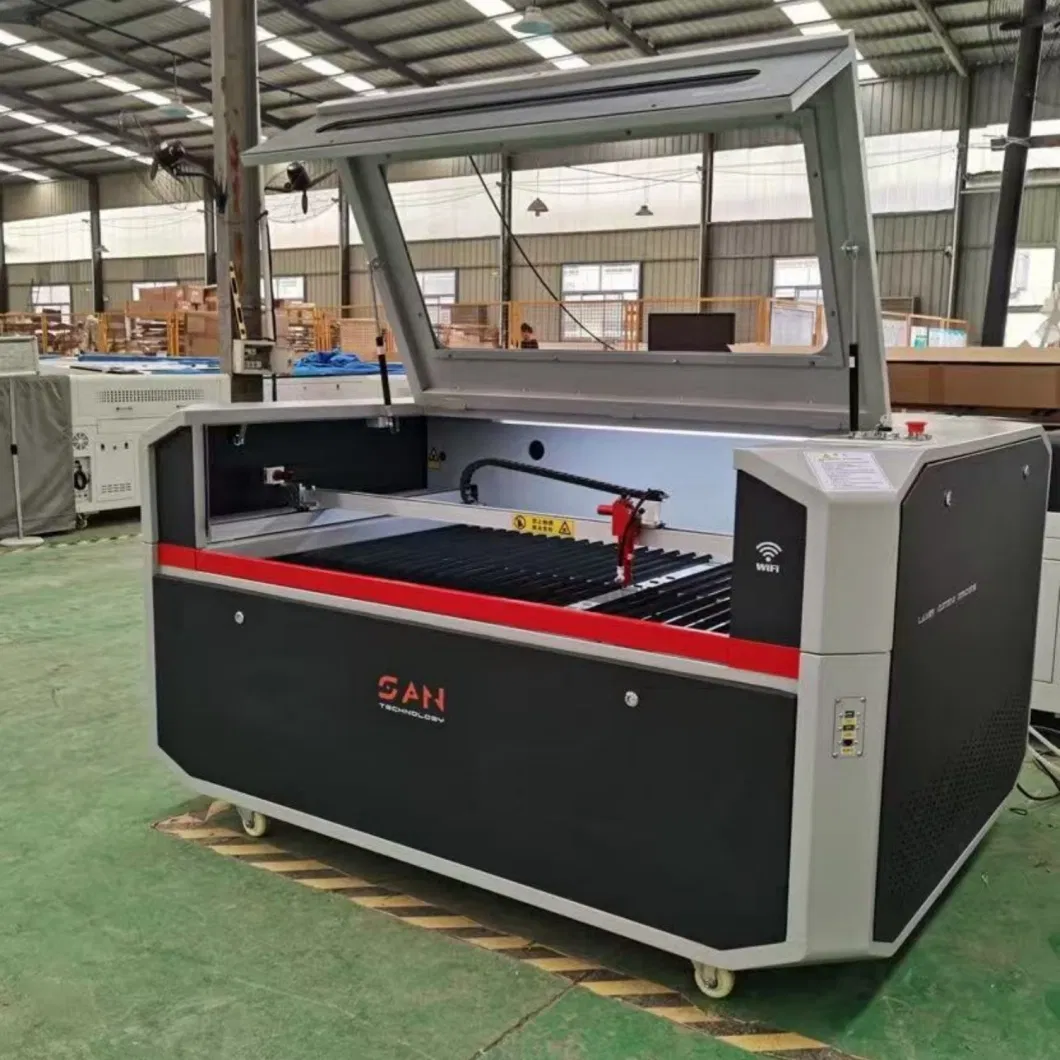

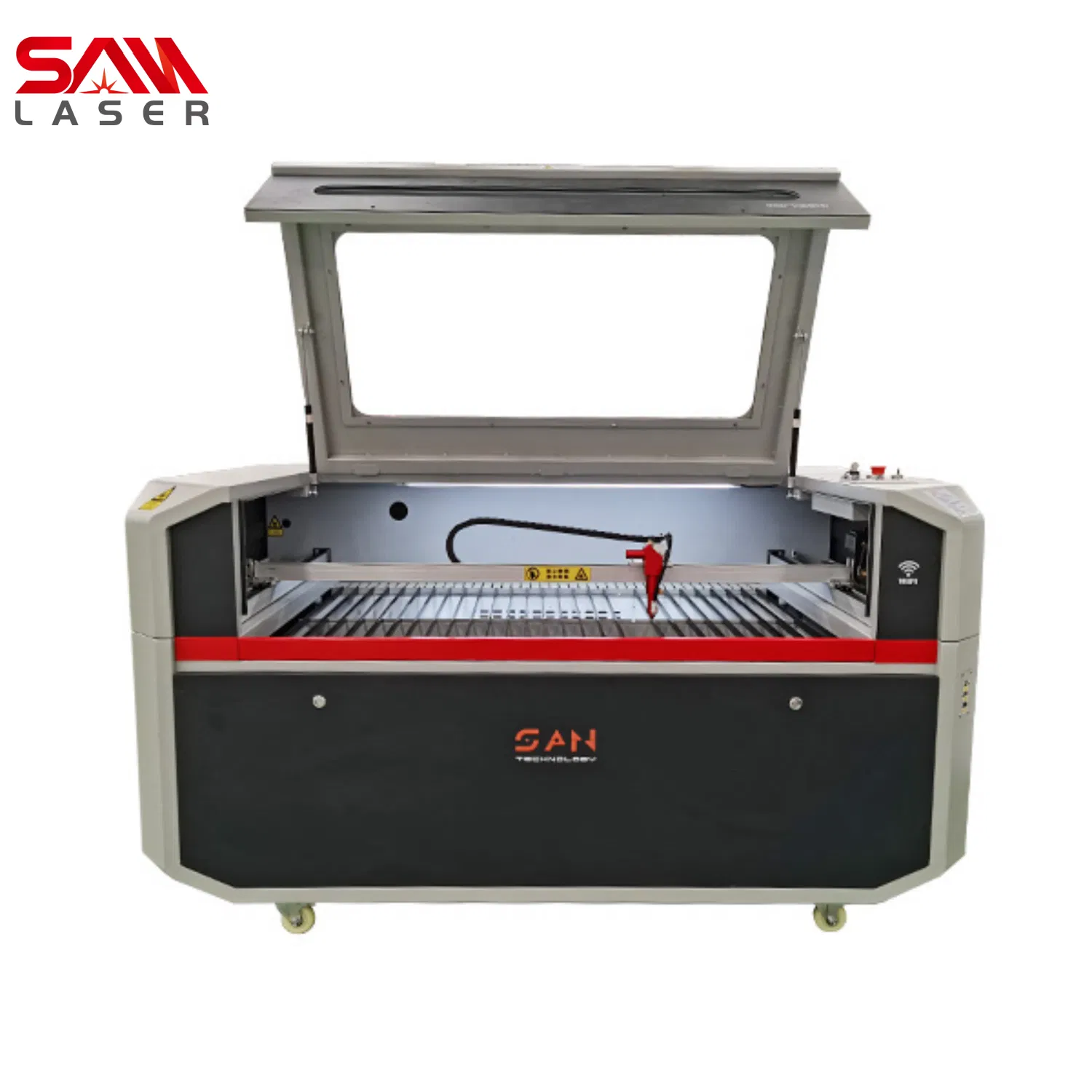

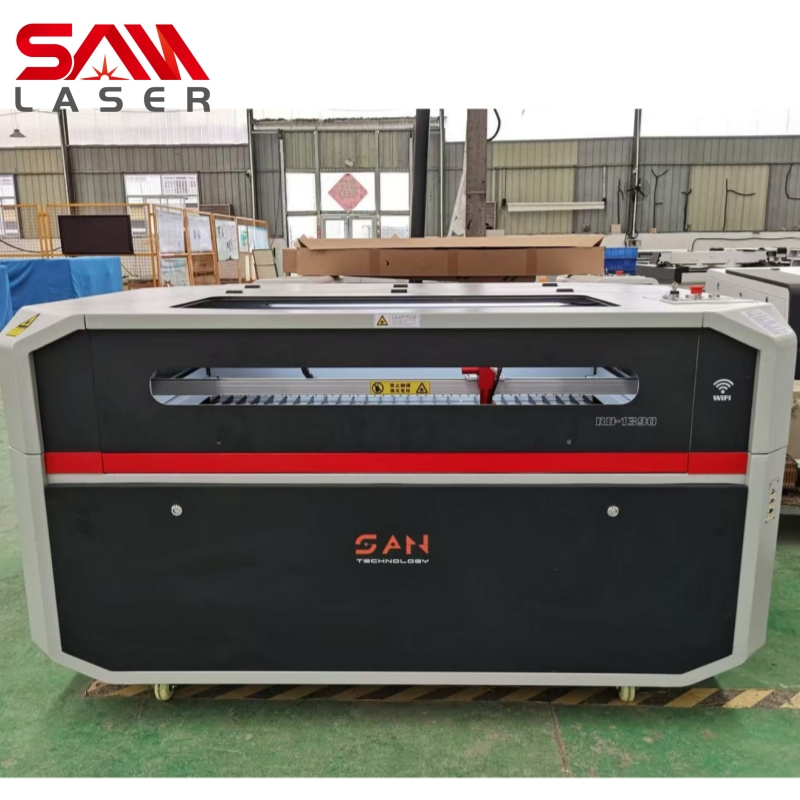

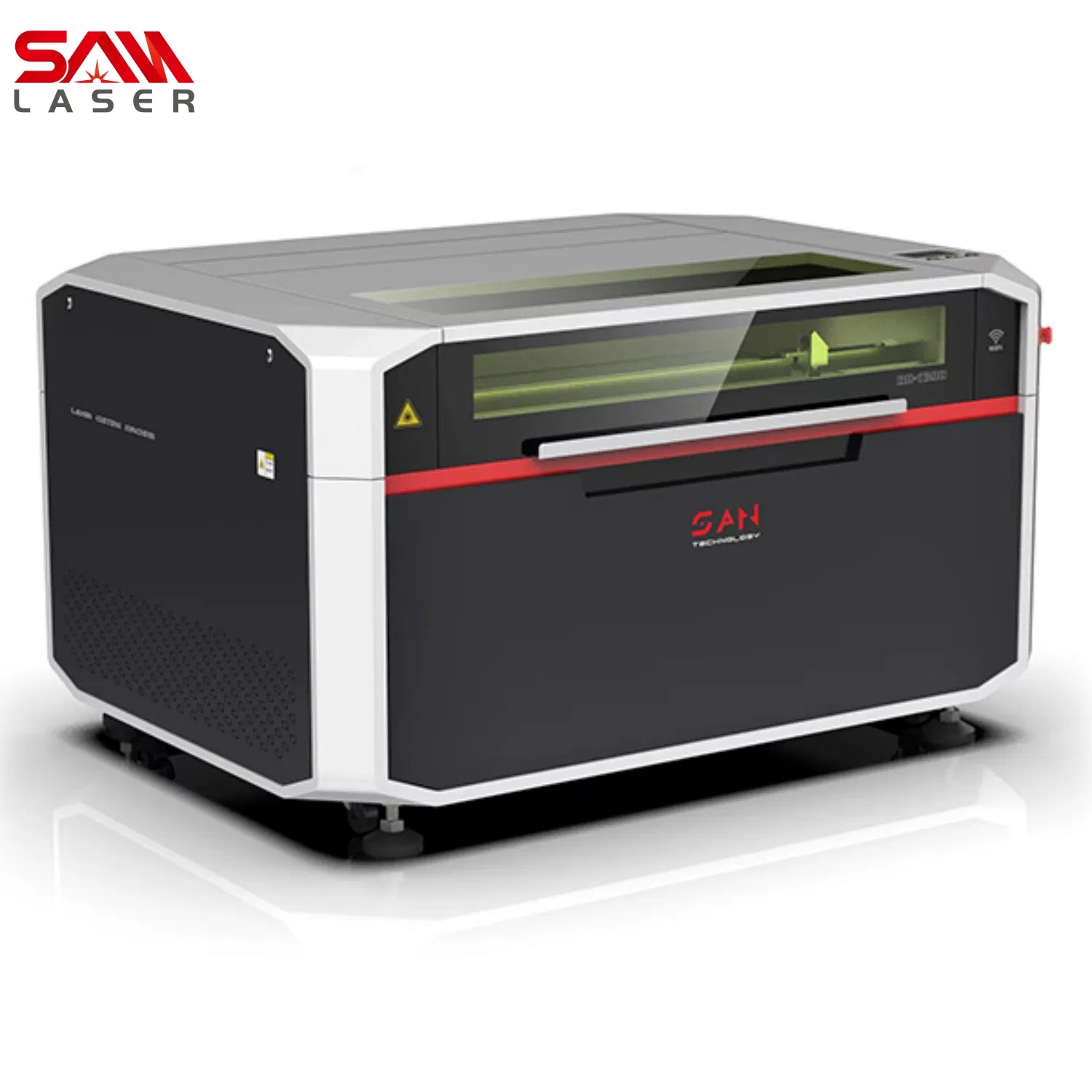

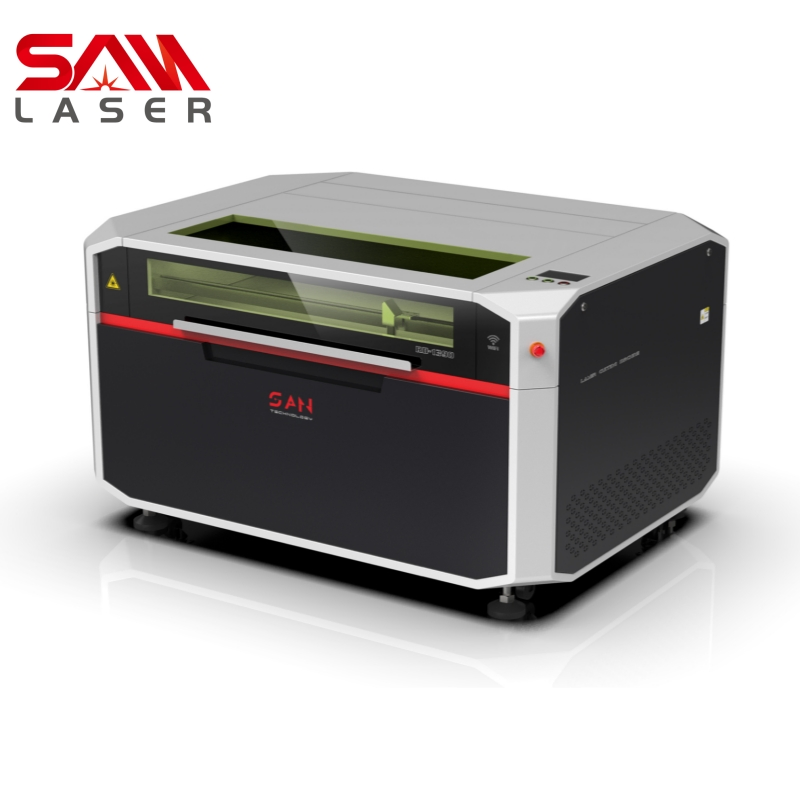

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

Customization: Available
After-sales Service: 24 Online After Sale Service
Warranty: 1 Year for Machine,2 Year for Laser Source

Product Description

Basic Info

  • Model NO. 6040 9060 1390 1410 1390 1610
  • Application Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry, Laser Equipment
  • Cooling System Water Cooling
  • Technical Class Continuous Wave Laser
  • Applicable Material Nonmetal
  • Structure Type Enclosed Type
  • Laser Classification Gaseous Laser
  • Laser Technology CO2 Laser Tube
  • Working Table Aluminum Blade or Honeycomb
  • Laser Power 60W/80W/100W/130W/150W/200W/300W
  • Supported Software Coreldraw,PS,Illostrator,Autocad.
  • Min Cut Character Chinese S 2.0X2.0mm, English 1.0X1.0mm
  • Power Supply AC220V/AC110V10%,50~60Hz
  • Operating Temperature 0-45°C
  • Applicable Materials Acrylic, Wood, Cloth, Leather, Plywood, Ceramic
  • Cutting Speed 0~600mm/S
  • Engraving Speed 0~1000mm/S
  • Resetting Positioning Accuracy 0.01mm
  • Upgraded Accessories CCD Camera
  • Optional Rotating Fixture
  • Autofocus Cutting Head Include
  • Lifting Platform Include
  • Color Customizable
  • Transport Package Seaworthy Wooden Crates, Solid Plywood
  • Specification 600*400mm /900*600mm/1300*900mm/1600*1000mm
  • Origin China
  • HS Code 8456110090
  • Production Capacity 10000 Sets/Year

Packaging & Delivery

  • Package Size 200.00cm * 152.00cm * 124.00cm
  • Package Gross Weight 450.000kg
  • Lead Time 7 days (1 - 1 Sets)
    To be negotiated ( > 1 Sets)

Product Description

Introducing our state-of-the-art CO2 laser cutting machines: the 6040, 6090, 1390, and 1610 models. These cutting-edge machines are perfect for transforming non-metal crafts with precision. Designed specifically for materials like acrylic, wooden MDF, and more, they empower artisans and manufacturers to elevate their craft to new heights with unparalleled efficiency.

Laser cutting and engraving is a non-contact process that produces high-quality results while enabling the free creation of intricate designs. It efficiently processes non-metallic materials (such as acrylic, wood, fabric, leather, plywood) and certain metals. With its flexibility and stability, CO2 laser cutting machines have become pivotal tools in modern manufacturing for enhancing efficiency and reducing costs.

Features and Applications
The equipment achieves high-precision cutting, engraving, and perforation by focusing a laser beam to instantly vaporize or melt materials. It is widely used in advertising signage production, garment processing, automotive component manufacturing, electronic component processing, and medical device fabrication.

As one of the most specialized laser machine manufacturers, we can provide the most viable solutions tailored to your industry in terms of machine pricing and quality.

Detailed Photos

Comprehensive Product Insights

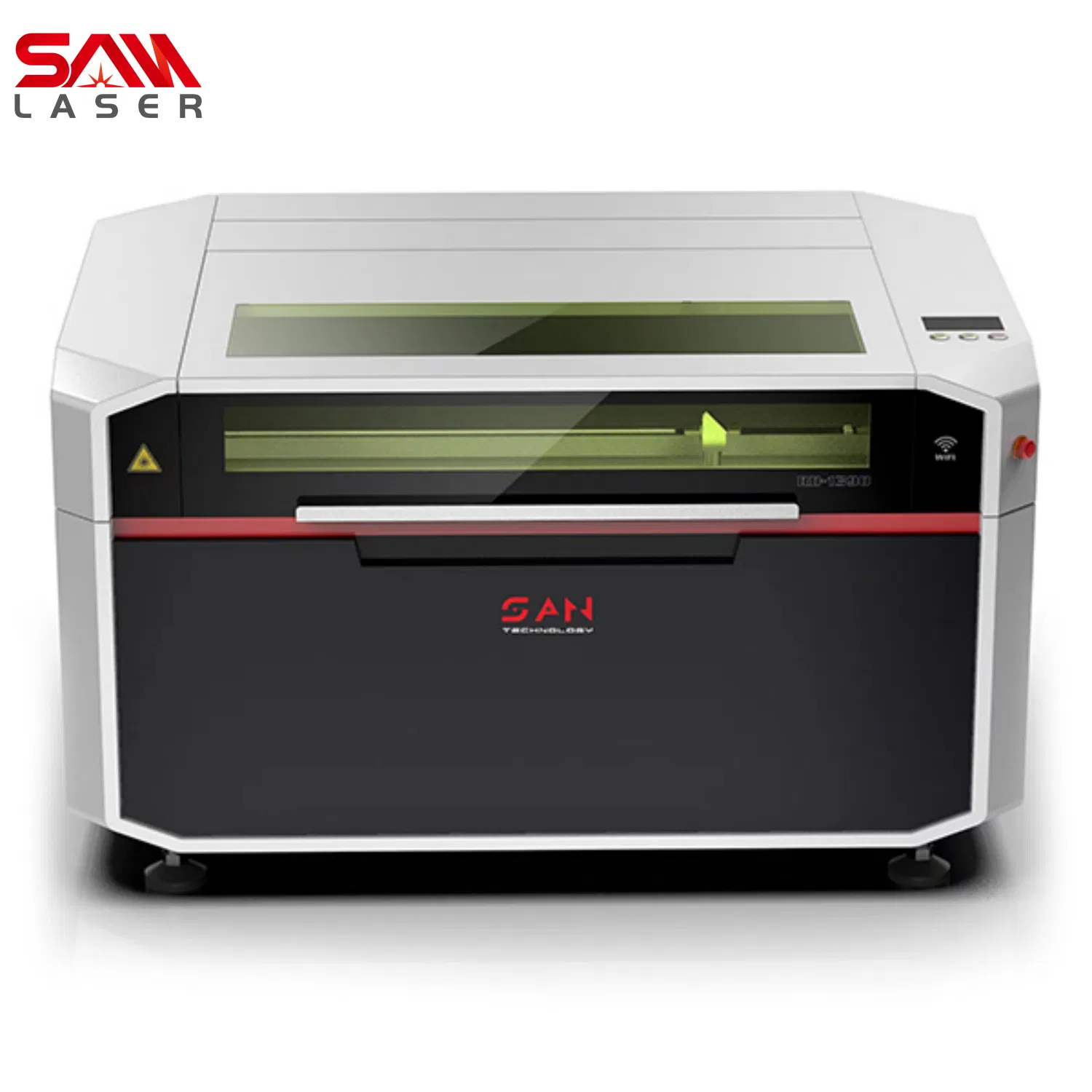

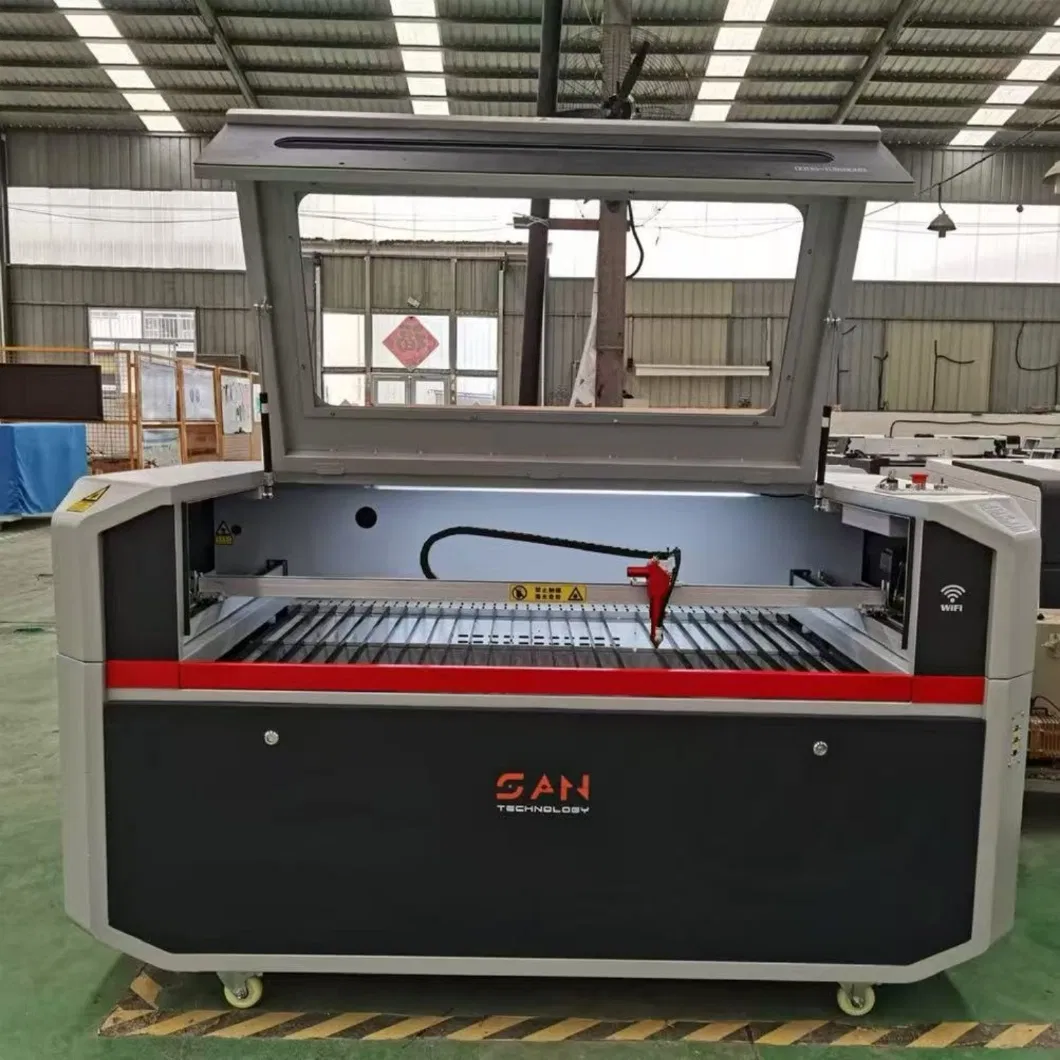

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

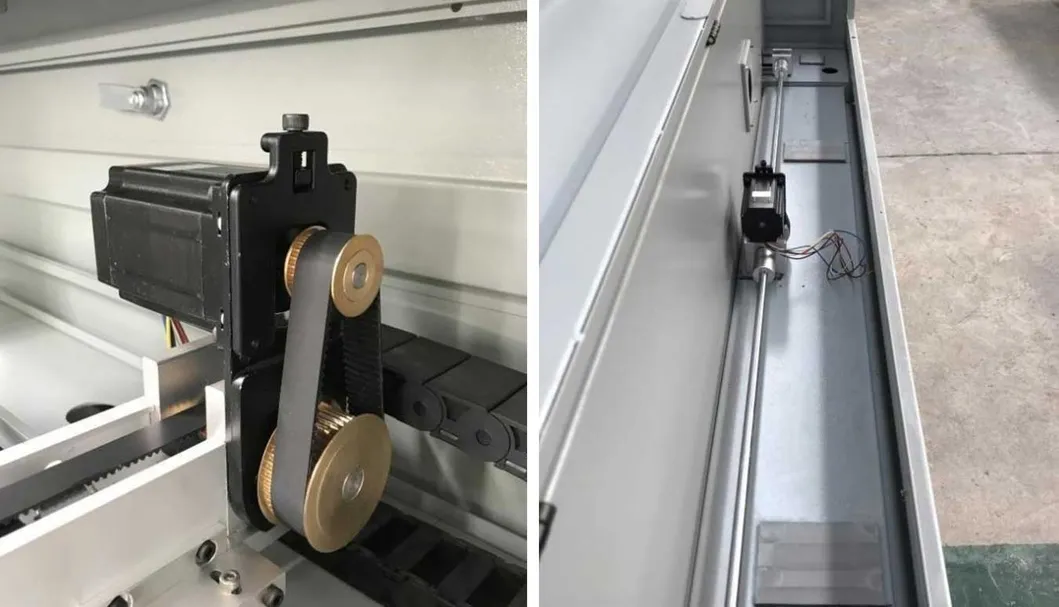

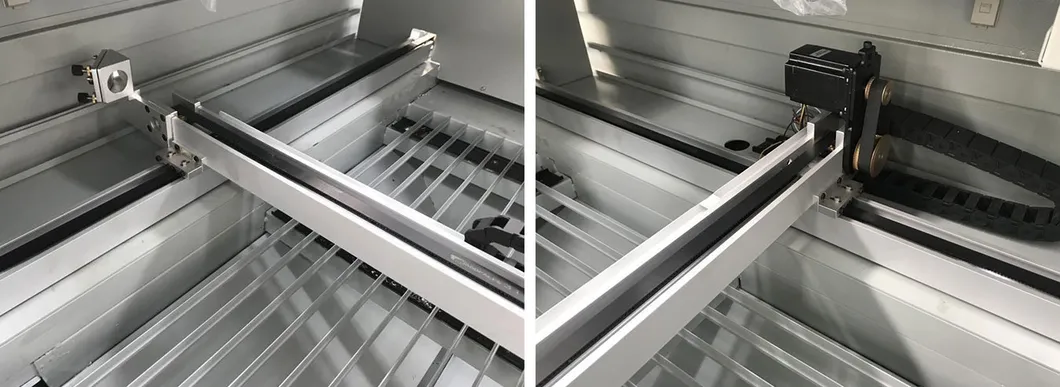

Ingeniously designed with an inner transmission rail and concealed guide rail structure, this machine offers superior performance with an enhanced effect and remarkable speed. It adeptly prevents smoke-induced aging of the guide rail, ensuring longevity and reliability.

Crafted from pure copper, the synchronous gear is engineered for exceptional wear and corrosion resistance, providing enduring durability and performance in every operation.

The vertical installation of all motors aligns them at a singular resonance point, effectively minimizing vibration. This results in a seamless cutting experience, delivering precision and superior cutting outcomes.

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver
1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

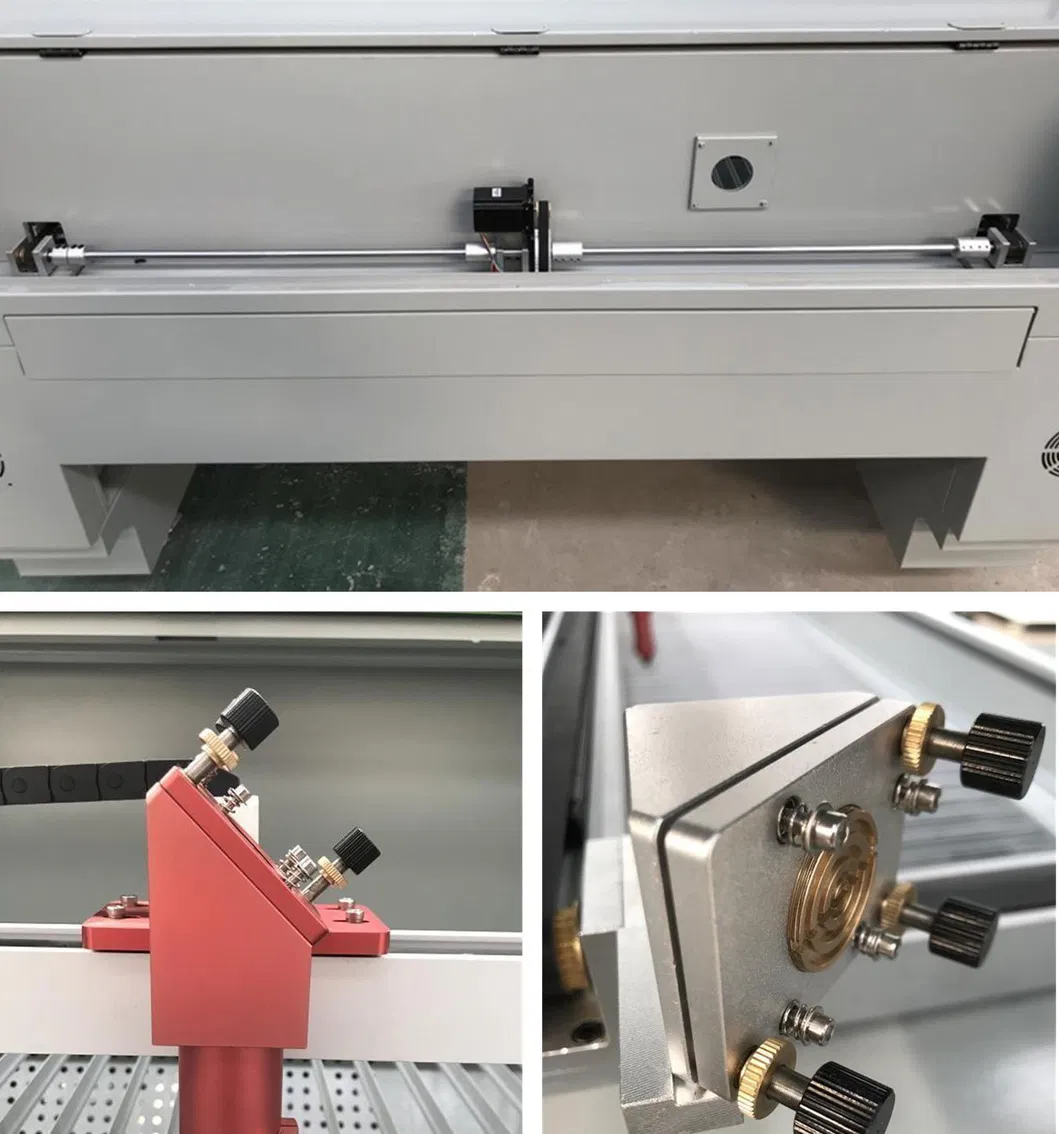

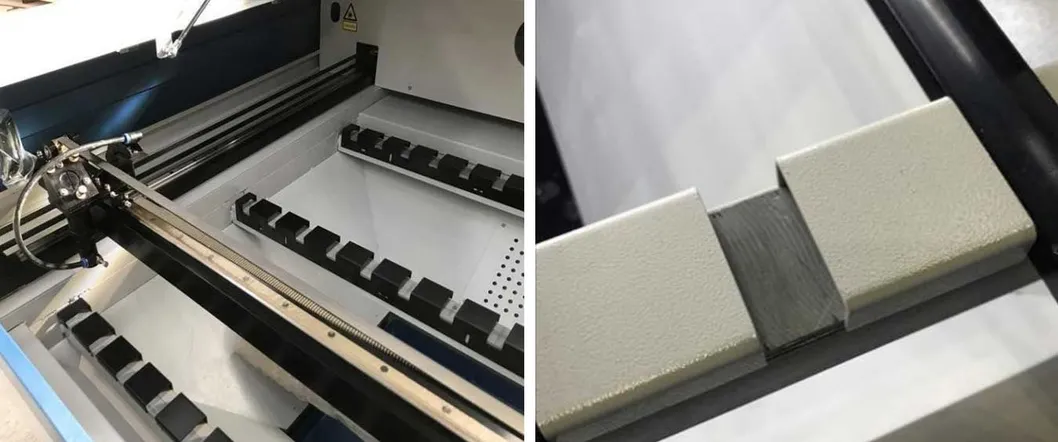

A meticulously high-precision milled table, the fine milling platform is designed to guarantee accuracy. The platform is reinforced with an encrypted small blade to enhance performance and precision.

The 0.25 filament optical frame is expertly crafted to ensure the filament thread remains stable and consistent, preventing dimming. The optical path is stabilized, while the fixed lens, made of pure copper, ensures rapid heat dissipation and efficient lens cooling.

The Y-axis motor is strategically positioned in the center, ensuring balanced force distribution for optimal performance and efficiency.

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

Product Parameters

Parameter Item Specifications & Models
Product Model SAN6040/9060/1390/1410/1610
Double head SAN1280/1390/1410/1610
Working table Honeycomb platform or blade platform
Laser power 60W/80W/100W/130W/150W/200W/300W
Cutting speed 0-600mm/s
Engraving speed 0-1000mm/s
Resetting positioning accuracy 0.01mm
Supported software CorelDraw,Ps,illostrator,AutoCAD.
Min cut character Chinese S 2.0x2.0mm, English 1.0x1.0mm
Power supply AC220V/AC110V10%,50~60HZ
Operating temperature 0-45°C
Operating Humidity 5-95%( free of condensed water)

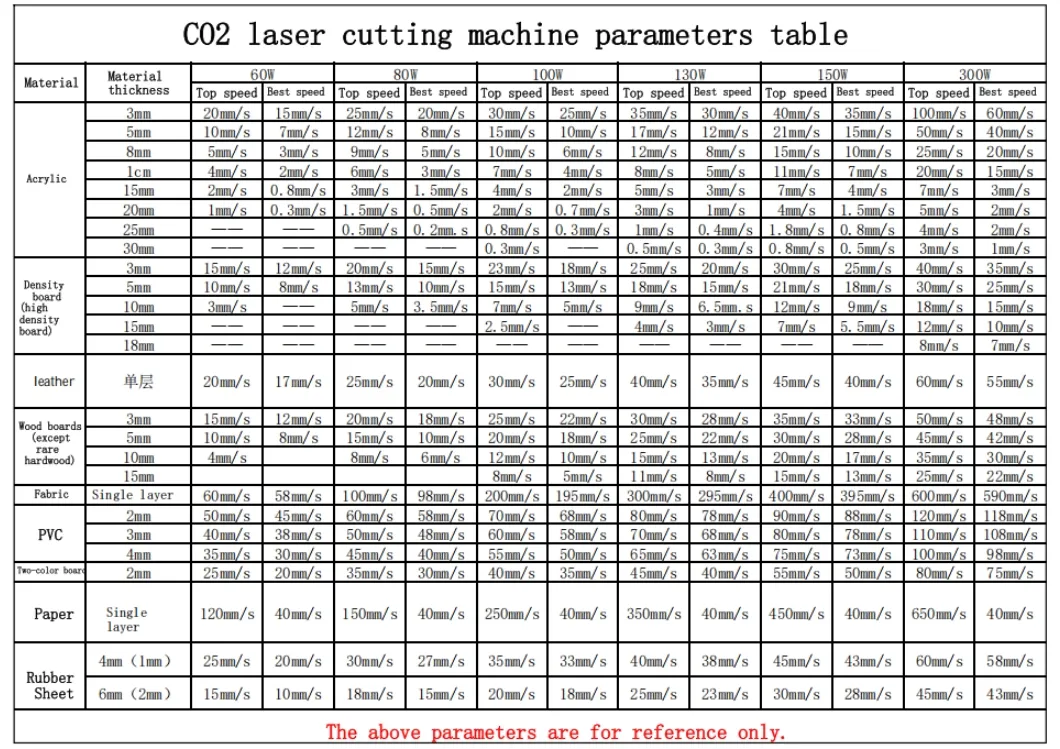

Cutting & Engraving Speed

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

Our Advantages

1

This advanced model integrates cutting-edge 64-bit DSP digital control technology, unleashing the power of continuous and lightning-fast curve cutting. With an intelligent optimization feature for the shortest processing path, it dramatically elevates work efficiency and enhances operational stability.

2

Our state-of-the-art software ensures a seamless integration with a wide range of graphics processing software, including renowned tools like AutoCAD and CorelDraw. Effortlessly output original images and define engraving sequences with precision, allowing for flexible, one-time or comprehensive outputs.

3

Understanding the unique needs of various industries, we offer customized accessories tailored for specific processing requirements. From the specialized honeycomb core platform enhancing the textile and garment industries to the aluminum bar platform prevalent in advertising, and the innovative rotary fixture for engraving pen holders and cylindrical items, we provide a comprehensive solution for your needs.

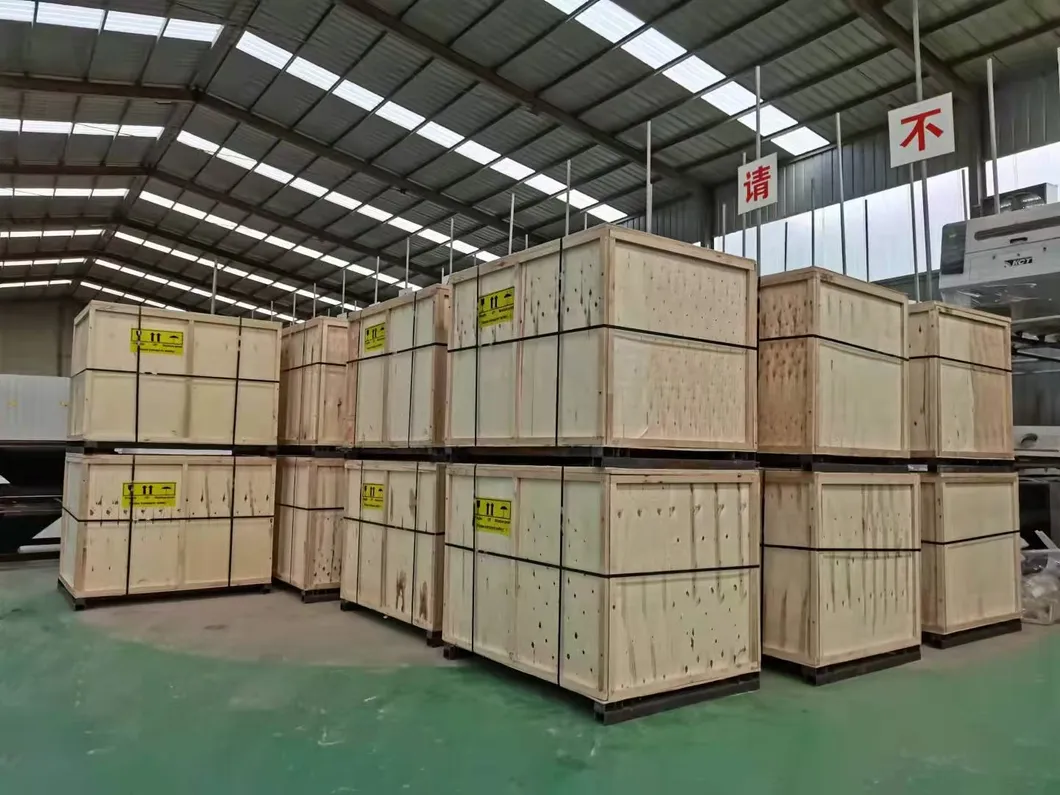

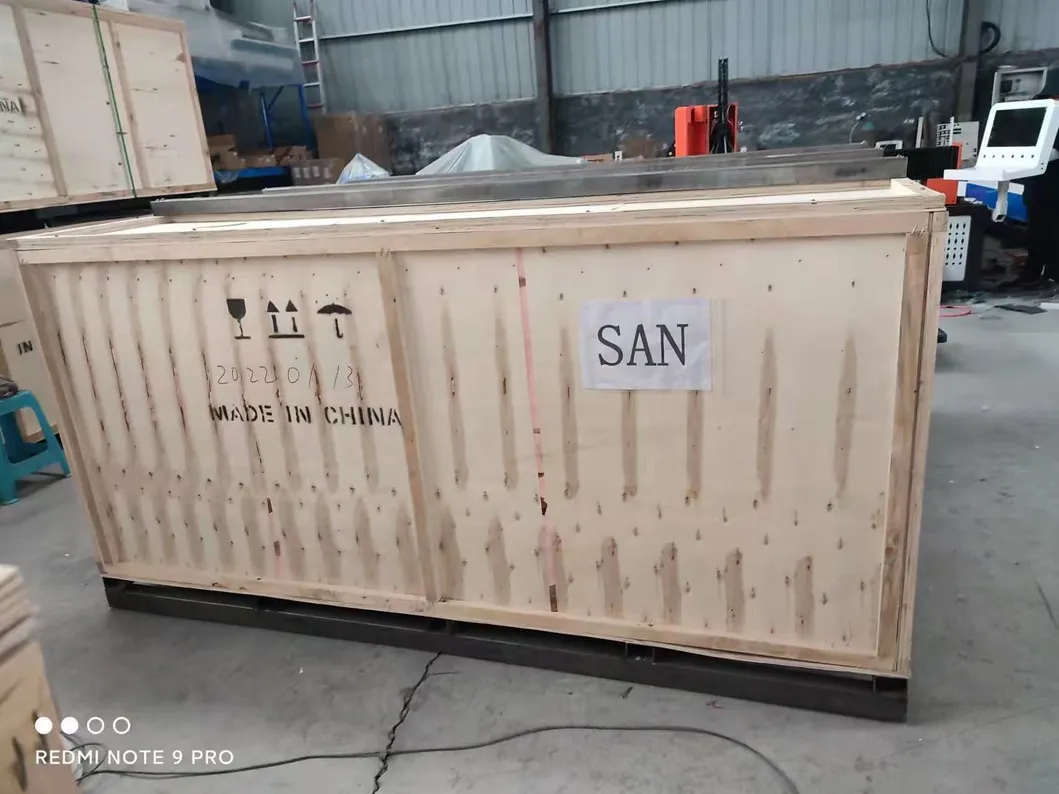

Packaging & Shipping

1. Sea freight stands out as a cost-effective shipping solution. During the loading of machines into containers, the size and weight of the equipment must be meticulously considered to select the appropriate container type. Typically, equipment is placed on wooden pallets and secured with robust steel or pliable plastic straps to ensure steadfast stability. Inside the container, buffer materials like foam pads and air cushions are essential to fill the gaps between the equipment and the container walls, significantly mitigating the risk of collision caused by the ship's movement during maritime transit. Furthermore, due to the elevated humidity levels in marine environments, it is crucial to implement moisture-proof measures, such as inserting desiccants within the equipment packaging to safeguard the equipment.

2. Outer packaging box: Typically, high-strength and stable wooden or metal frame structure packaging boxes are employed. Wooden packaging boxes offer cost efficiency and customization according to the equipment's size. Meanwhile, metal packaging boxes provide superior sturdiness and durability, making them ideal for long-distance transportation or transport in challenging environments. The exterior of the packaging box bears highly visible labels, such as "Fragile Items", "Precision Equipment", "Upward", and "Moisture proof", serving as essential reminders for the transportation personnel to exercise care and caution.

3. Internal cushioning materials: To safeguard the delicate precision components of the equipment, a variety of cushioning materials are strategically incorporated within the packaging box. Foam plastic, renowned for its versatility, can be custom cut and molded to the equipment's shape, offering exceptional shock absorption. Additionally, materials like air cushion film and sponge are also utilized. For instance, the laser generator is enveloped in thick foam plastic, followed by multiple layers of air cushion film, ensuring it remains impervious to impact and vibration during transit.

4. Fixed device: Within the packaging box, a variety of fixed devices are employed to steadfastly prevent any displacement of the equipment. For larger fiber laser cutting machines, robust steel fixed brackets are employed to anchor the main body of the equipment securely to the packaging box's bottom. For smaller components, such as cutting heads and control cabinets, plastic buckles or nylon zip ties are utilized to secure them in designated positions. Furthermore, cushioning materials such as rubber pads are strategically placed between the equipment and the fixed devices to avert any wear and tear resulting from direct contact.

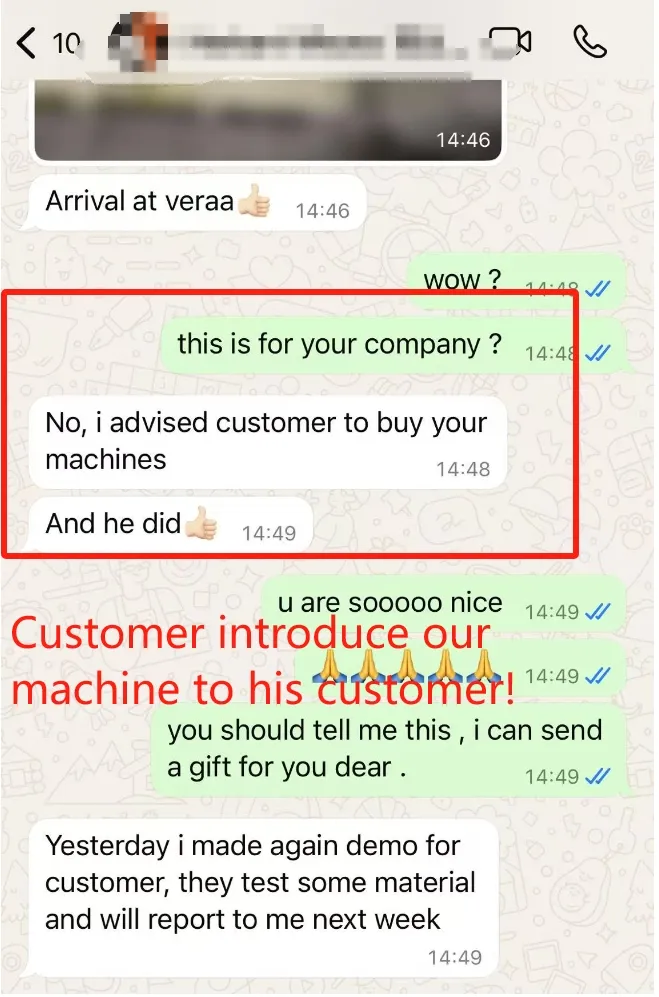

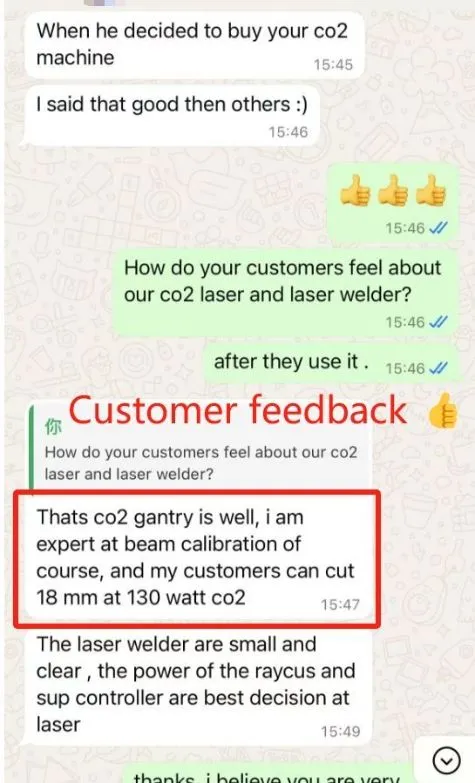

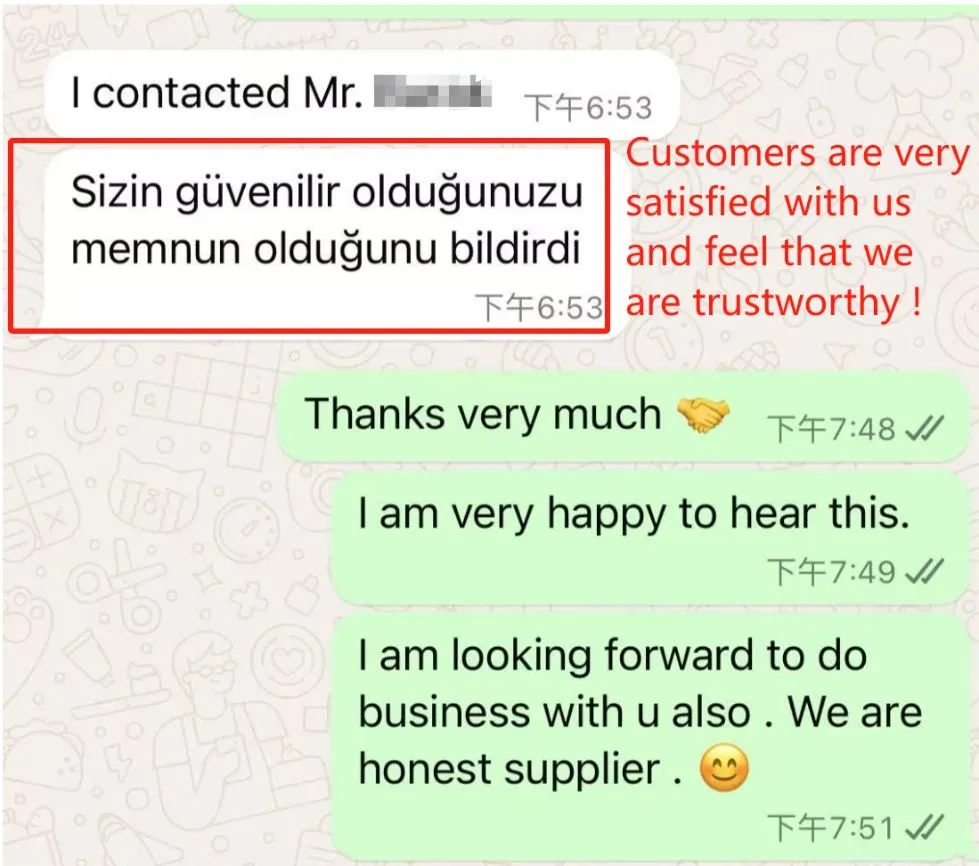

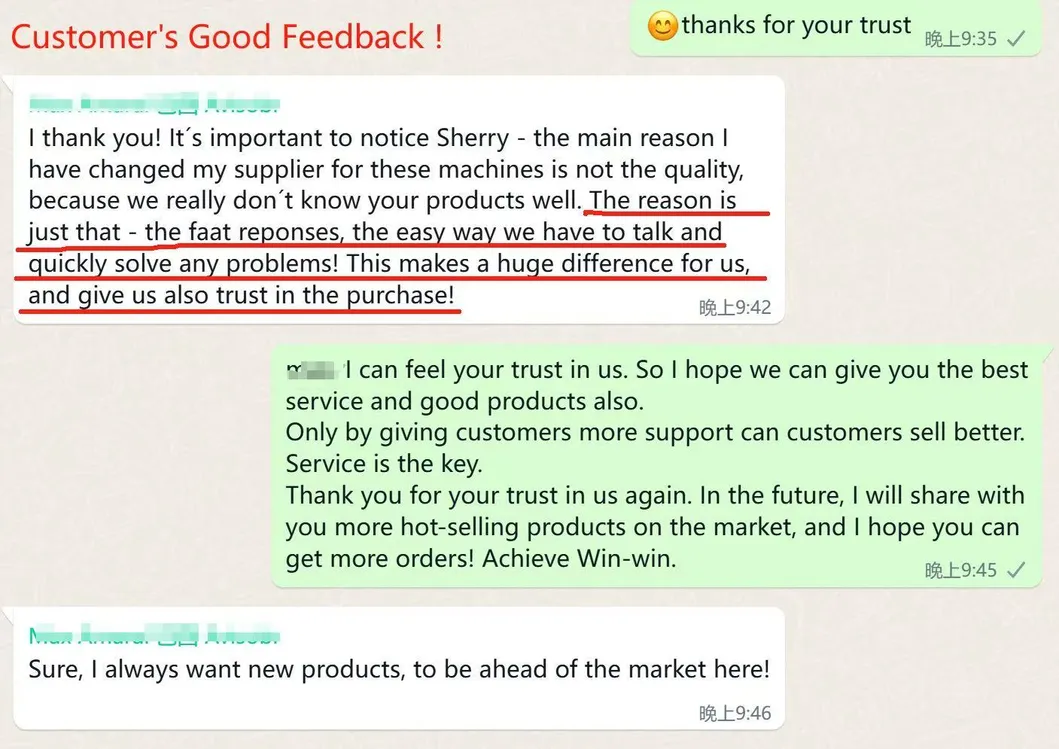

Customer Feedback

Customer visits

1. Upon arrival, both domestic and international guests are warmly welcomed to the captivating equipment display hall. This dynamic showcase features an impressive array of laser cutting machines, from sleek, compact desktop models to robust, industrial-grade gantry systems. Our skilled technicians bring these machines to life, demonstrating their extraordinary capability to cut through materials like stainless steel, carbon steel, and aluminum alloy with unparalleled precision. Witness the laser beam as it elegantly dances across surfaces, creating intricate patterns with flawless, burr-free edges. The remarkable dimensional precision down to millimeters or even micrometers leaves visitors in awe, providing an intuitive understanding of our products' superior performance and precision.

2. As they proceed to the production workshop, visitors are greeted with a meticulously organized scene where efficiency meets innovation. The production line operates under the advanced 5S management philosophy, with materials tidily arranged and skilled workers expertly handling sophisticated tools. Each step of the production process is meticulously controlled, ensuring top-notch quality and consistency. Our Kanban system provides a transparent view of real-time production progress and quality checks, reinforcing confidence in our rigorous manufacturing and quality control processes.

3. Our R&D laboratory is a hub of cutting-edge discovery, where passionate researchers unveil the latest breakthroughs. Marvel at advancements like new laser resonant cavity technology, enhancing beam quality, or the integration of AI-driven algorithms for optimized cutting paths and reduced material waste. Overseas visitors can engage directly with our state-of-the-art prototypes, not yet released to the market, offering insights and suggestions in technical discussions. This collaborative exchange deepens their involvement in our innovative journey.

Sample display

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

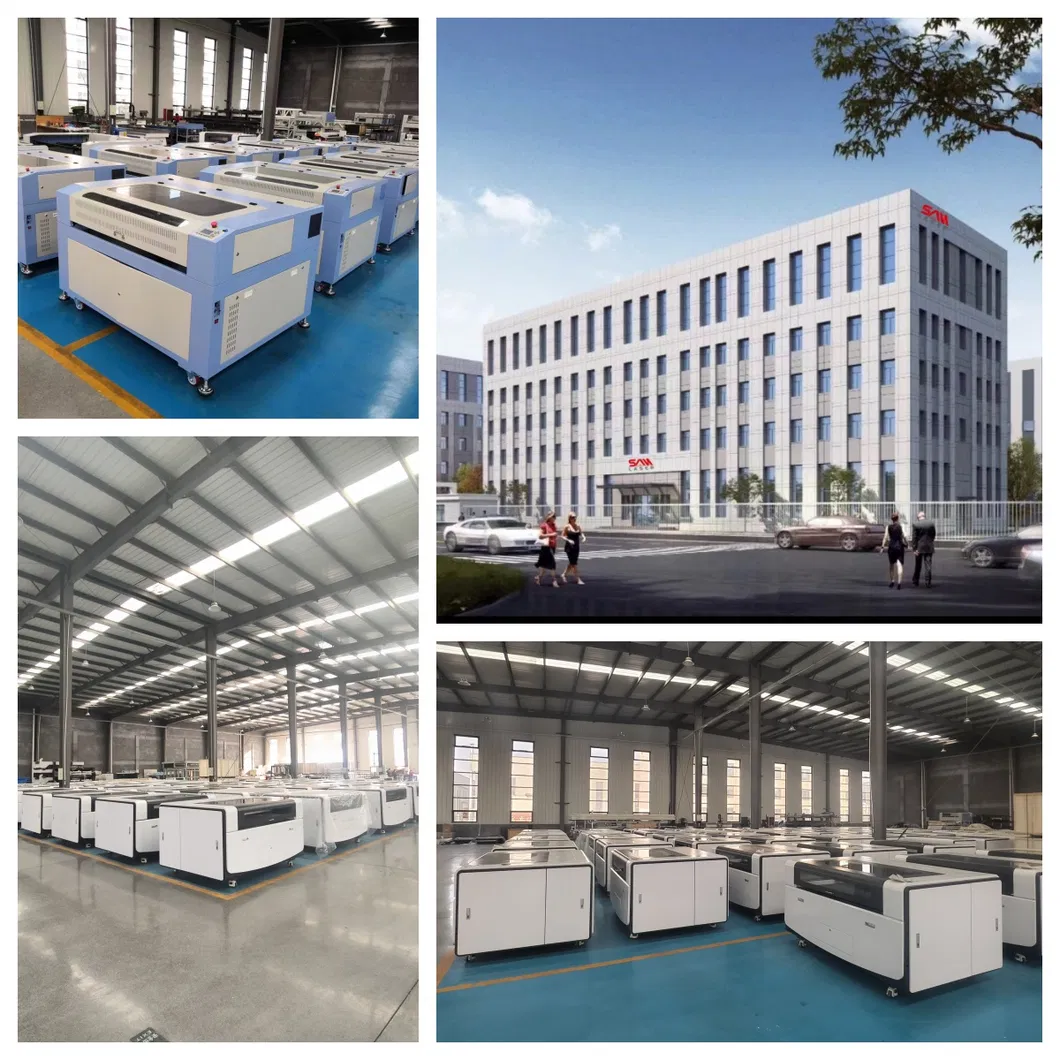

Company Profile

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

We have specialized in the R&D and manufacturing of industrial laser equipment for 20 years. Equipped with a modern 47,000-square-meter production base that integrates research, development, production, and testing, we deliver cutting-edge technological solutions to global clients. Our core products - including laser cleaning machines, Co2/Fiber cutting machines, Laser welding machines, and Fiber/UV/Co2/Mopa marking machines - are renowned for their high precision, efficiency, and energy-saving performance.

These solutions are widely applied across premium sectors such as advertising, sheet metal manufacturing, automotive production, aerospace, electronics & telecommunications, and new energy. With export services spanning over 70 countries worldwide, we empower clients to achieve intelligent manufacturing upgrades efficiently, establishing ourselves as an industry benchmark.

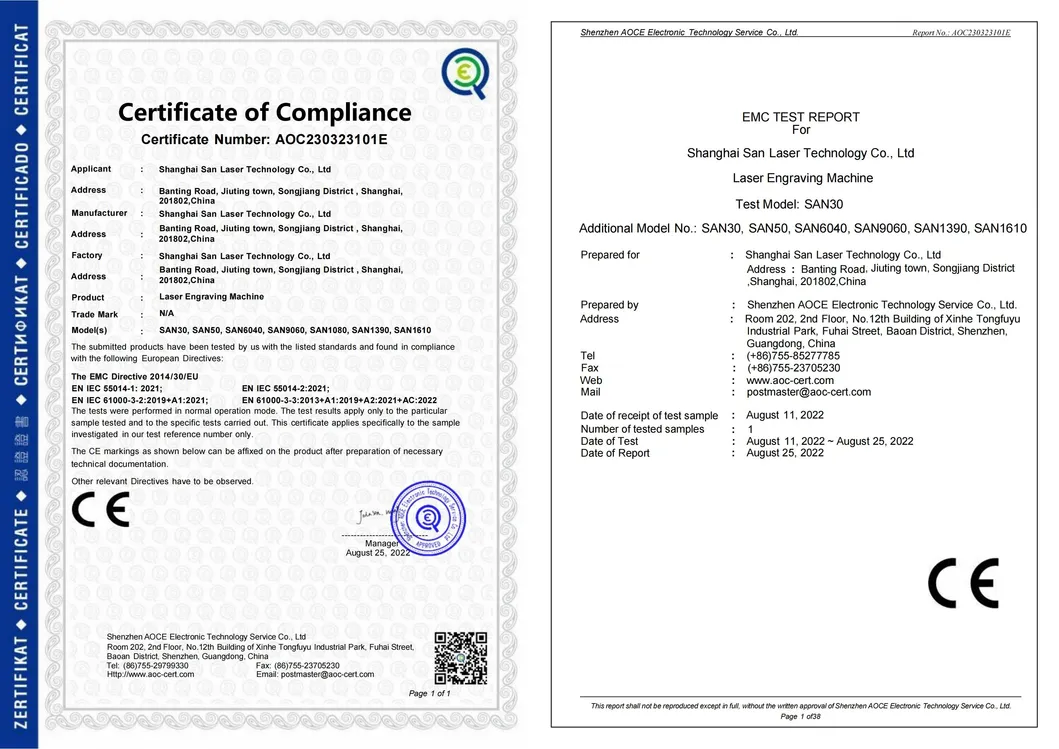

Certifications

1390 150W CO2 Laser Cutting Machine for Fabric Wooden Rubber Stamp CNC Laser Engraver

Frequently Asked Questions

Q1. Are you a factory or trading company?
We are a factory, which manufactures laser cutting/marking/welding/cleaning machine and CNC plasma cutting machine, with 15 years experience in CNC machine industry.
Q2. Do you have CE document and other documents for customs clearance?
Yes, we have CE, provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q3. How about warranty?
2 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge (some parts will be maintained) when if any problem during the warranty period.
Q4. What is the delivery time for the machine?
Fast delivery. The delivery time for most machine models is usually within 3-5 working days.
Q5. How do I install the machine after I receive it?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q6. How can I get the suitable machine?
Please tell us the materials you need to process, and the materials size like the length, width and thickness, we will suggest suitable machine according to your requirement.
