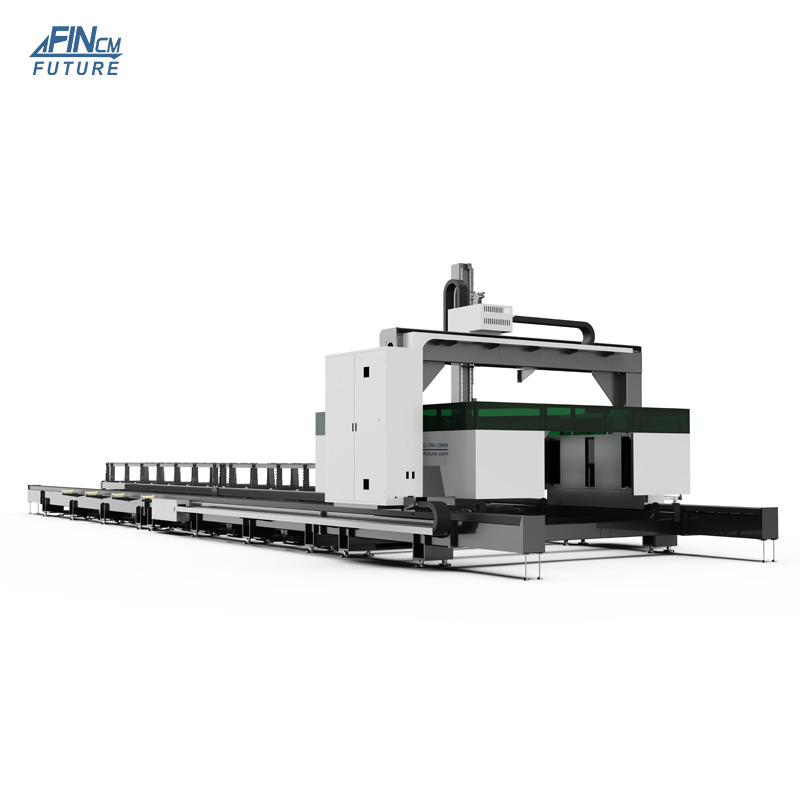

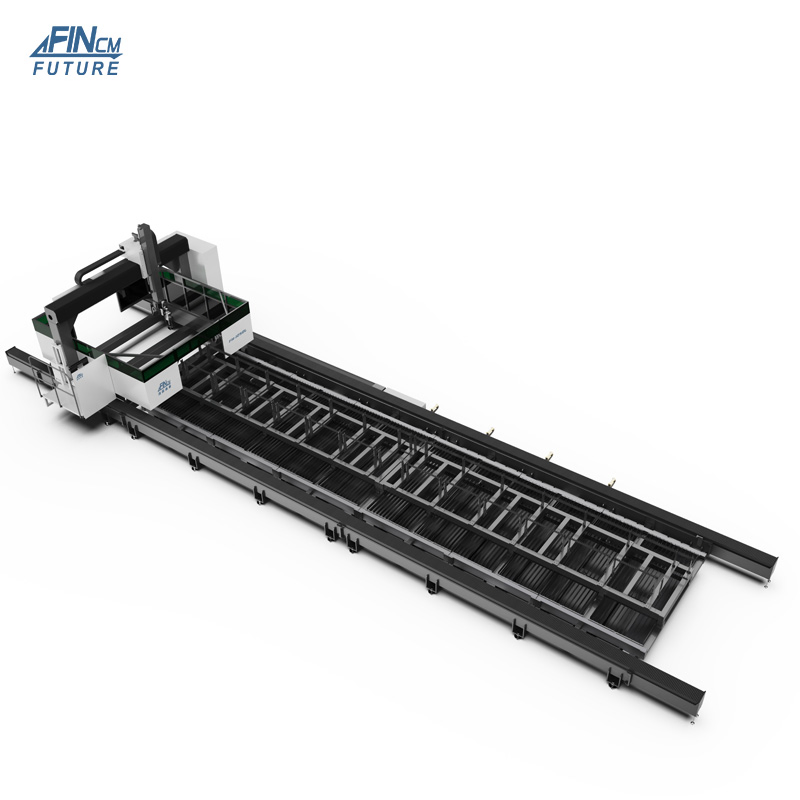

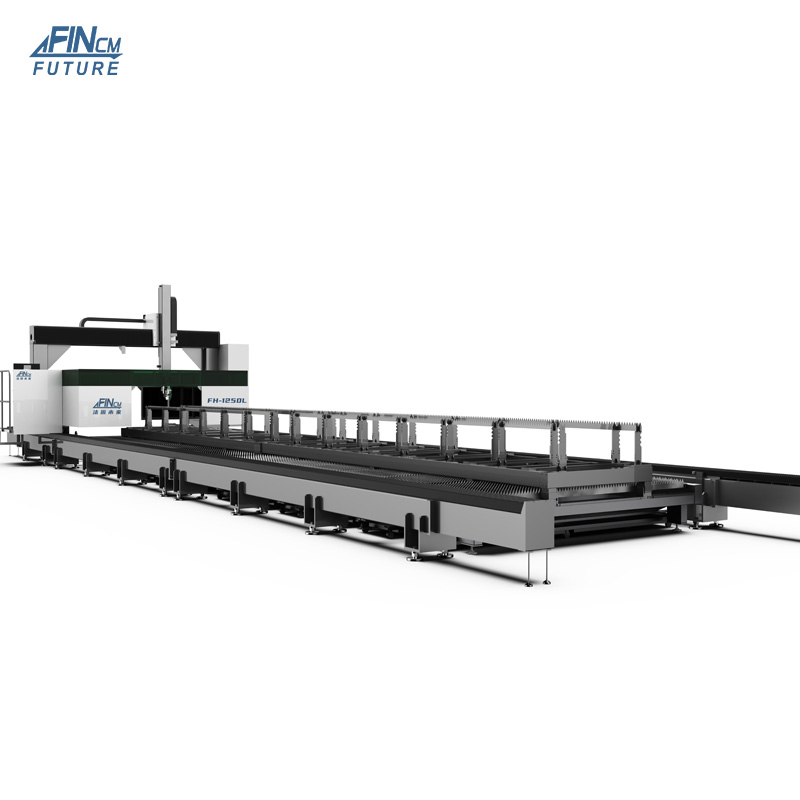

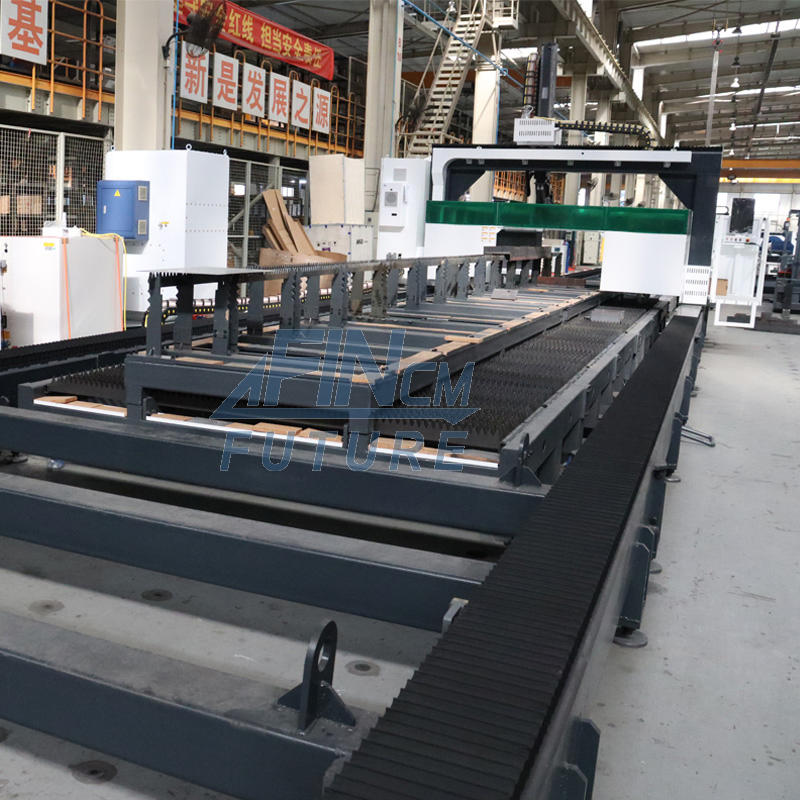

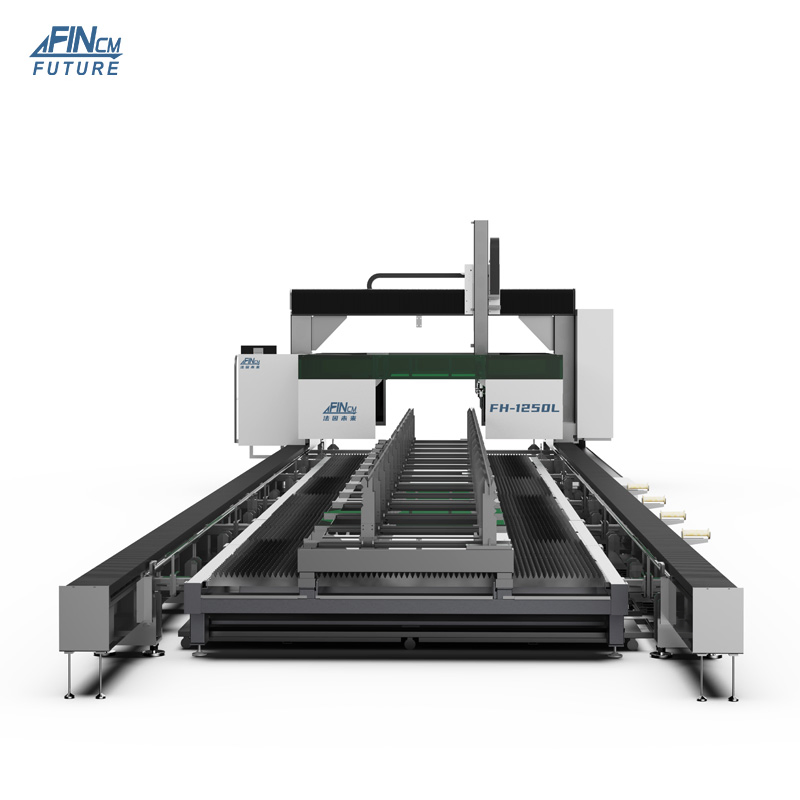

Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
1 / 5
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine
Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine

Fincm Fast Bevel 5 Axis 3D CNC Laser Steel Profile Robotic Cutter Channel/Angle Steel H Beam Laser Cutting Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Samples
Application
Company Profile
Exhibitions
After Sales Service
FAQ
Basic Info.
Application Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System Water Cooling
Technical Class Continuous Wave Laser
Applicable Material Metal
Structure Type Gantry Type
H Beam Steel Processing Dimension 1250mm*600*12200mm
Web Width 100-600mm
Flange Width 150-1250mm
Laser Head Brand Boci/Ospri/Precite/Customized
Laser Source Max/Raycus/Ipg/Customized
Positioning Accuracy 0.05mm
Laser Power 12000W/20000W/30000W
Water Chiller Hanli/S&A
OEM/ODM Supported
Function 3 in 1-Profile Cut/Metal Plate Cut/ Bevel Cut
Customized Yes
Table Size 12200*2500mm
Control System Wiscut
Processing Content Profile Cutting/ Plate Cutting / Bevel Cutting
Transport Package Wooden Box
Product Description

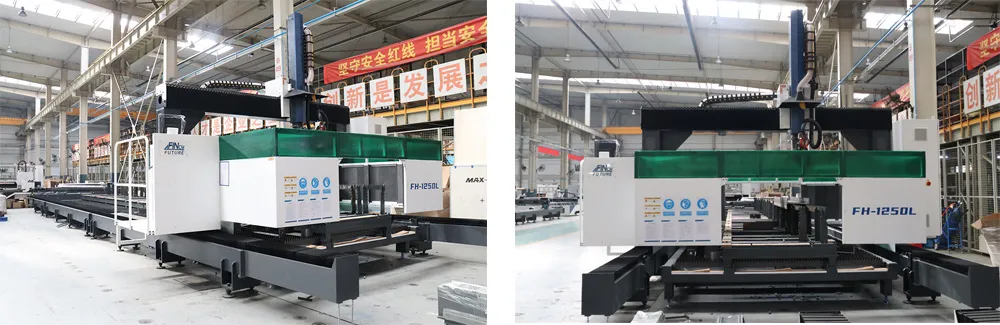

Gantry Type FH-1250L H-beam Laser Cutting Machine
Gantry Type FH-1250L H-beam Laser Cutting Machine

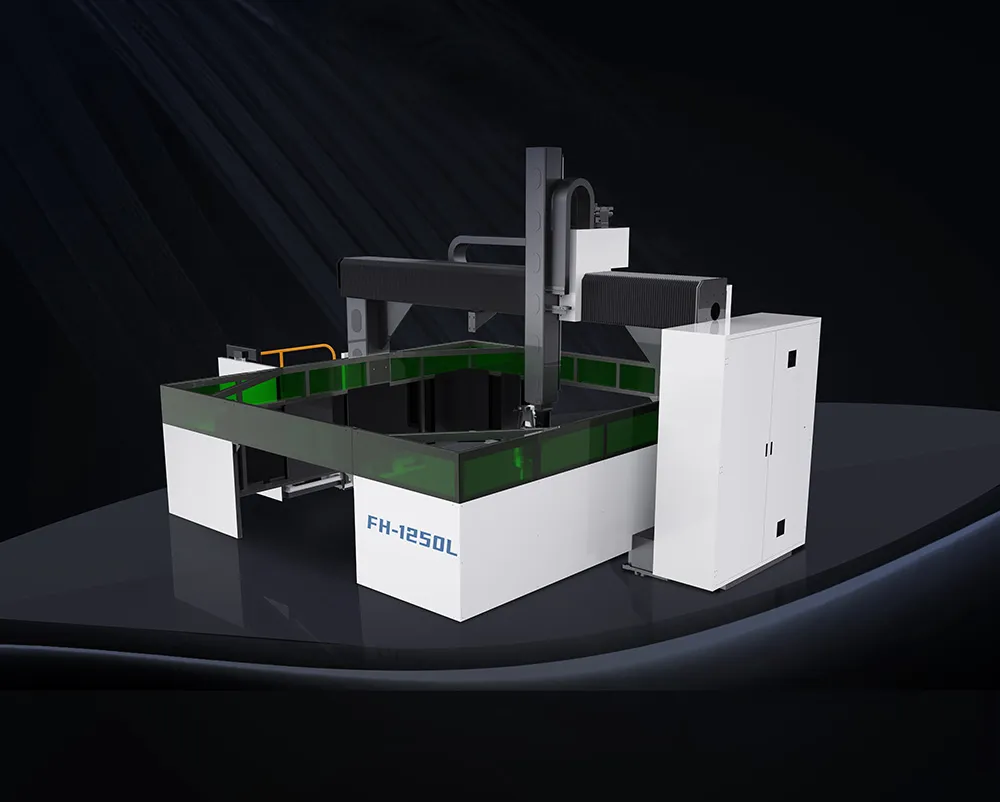

Gantry Type Beam
Gantry Type Beam
  • Stable Structure: Double-side drive gantry frame, ensuring smooth operation and high cutting precision.
  • Large Processing Range: Supports full-automatic cutting of oversized and ultra-long H beams.
  • Powerful Cutting Functions: Capable of bevel cutting, hole cutting, and complex shape cutting.
  • High Load Capacity: Suitable for continuous, heavy-duty cutting tasks.
  • Customizable Automation: Optional automatic loading and unloading systems to improve efficiency.

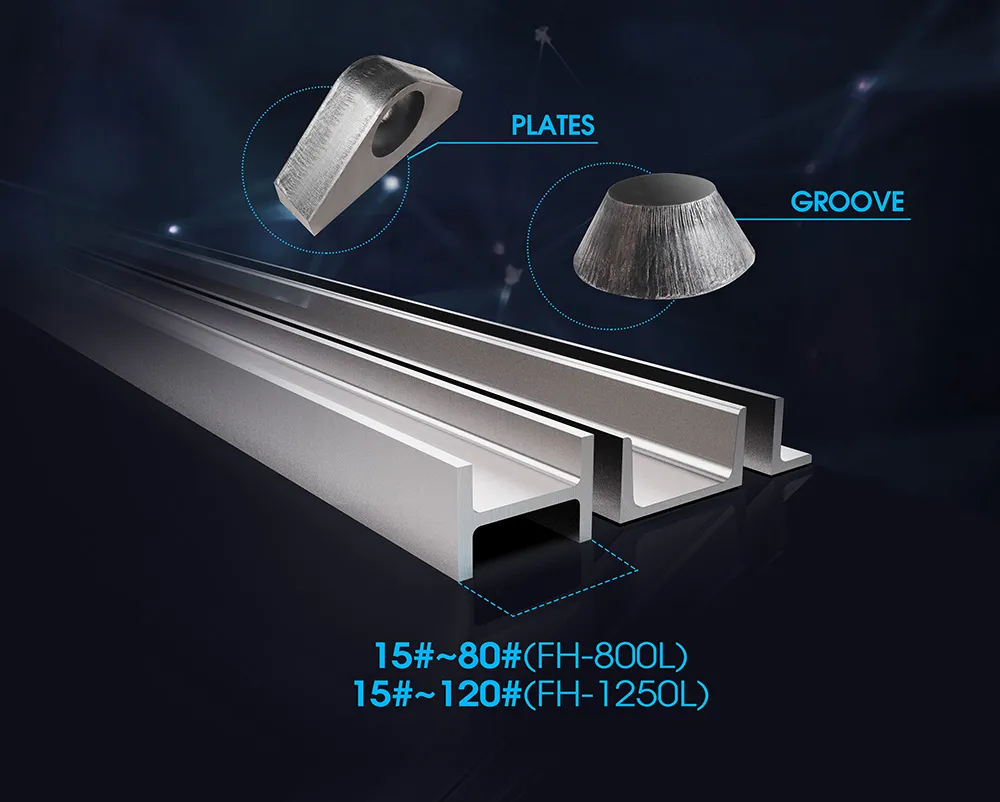

3 in 1 Functions
The cutting functions are diverse: it has the functions of profile cutting (metal section steel, pipe), sheet metal cutting, and beveling cutting.
3 in 1 Functions

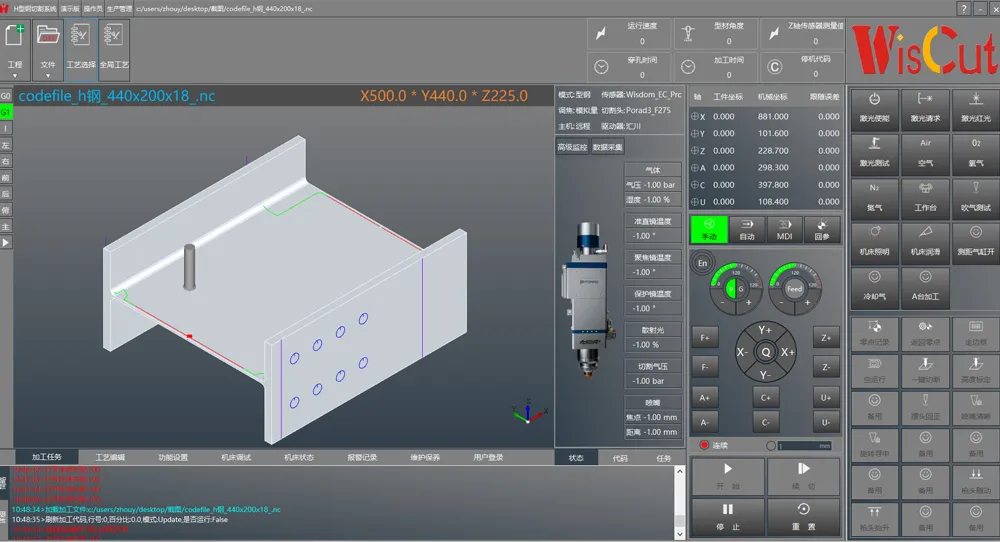

Professional H Beam Cutting System
Professional H Beam Cutting System
  • Integrated bus cutting head and real-time monitoring of cutting head status to realize closed-loop control and intelligent cutting.
  • Special process database for profile steel: Cutting processes of R angle, groove, wing plate, web plate, overhead cutting, overwelding hole, locking notch, etc.
  • Classified by components and functions, centralized display operation and setting operation are simple, debugging is quick and handy.

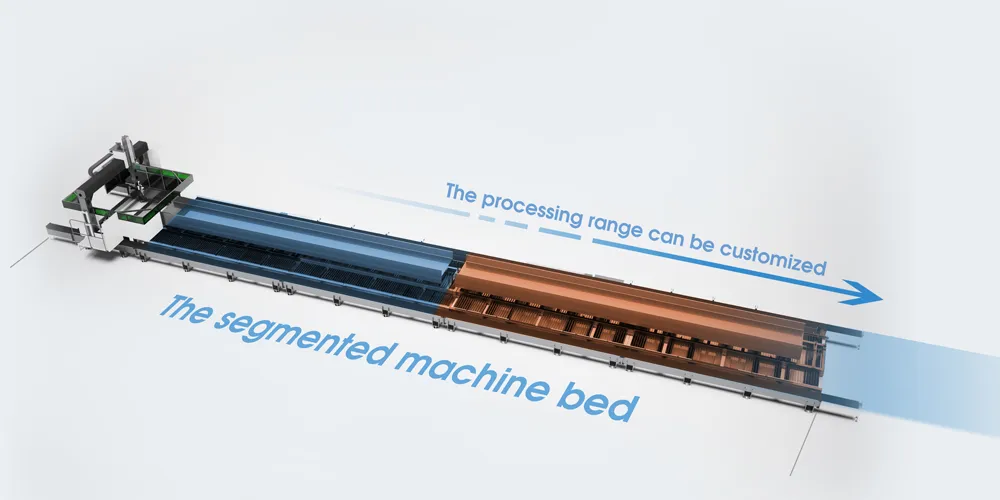

Segmented Machine Bed Structure

Equipped with a segmented bed structure, the FH-800L supports large-format material cutting with high precision.
The detachable bed design allows for easier disassembly and transportation, reducing logistical challenges and installation time.

Segmented Machine Bed Structure

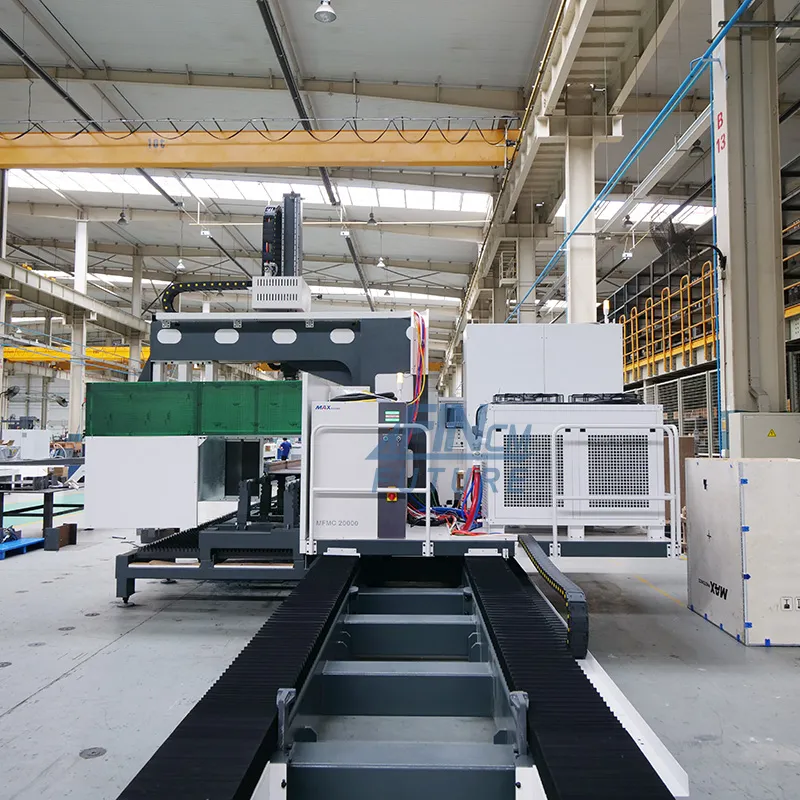

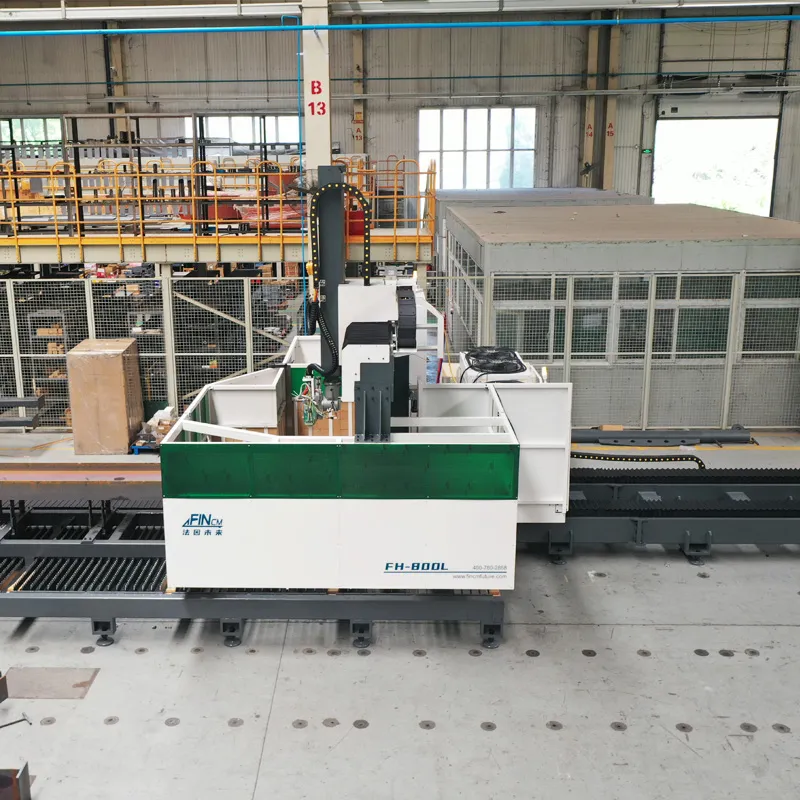

Cutting Detail 1 Cutting Detail 2
Product Parameters
Model FH-800L FH-1250L
H Beam Steel Processing Dimension 800mm*600mm 1250mm*600mm
Table Size 12000mm*1500mm 12000mm*2500mm
Flange Width 150-600mm 150-600mm
Web Width 150-800mm 150-1250mm
Laser Power 12000W / 20000W / 30000W
Control System WisCut-H
Samples

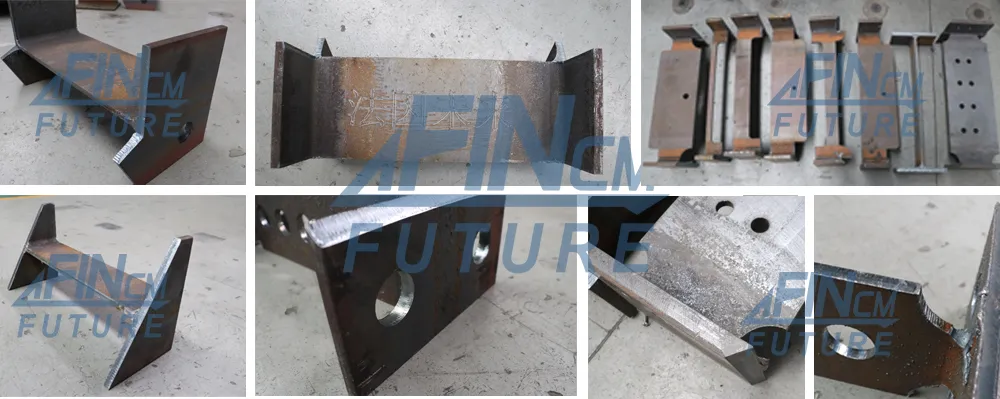

Product Samples
Application
H-beam laser cutting machines are mainly used in construction, shipbuilding, oil and gas, railway, heavy machinery, and energy industries. They are essential for producing precise and efficient steel structures like building frames, ship hulls, drilling platforms, and power plant components, greatly improving cutting accuracy and productivity.
Application Fields
Company Profile

Focusing on high-power laser cutting machines, metal pipe laser cutters, H-beam cutting machines, welding machines, and laser cleaning systems, we serve a wide range of metal processing needs globally.

Our factory is equipped with advanced production facilities and precision manufacturing equipment, supported by a comprehensive professional team covering design & R&D, manufacturing, and after-sales service - ensuring efficient production and responsive customer support. With a strict quality management system in place, we guarantee that every machine meets international standards and satisfies the diverse processing requirements of customers worldwide.

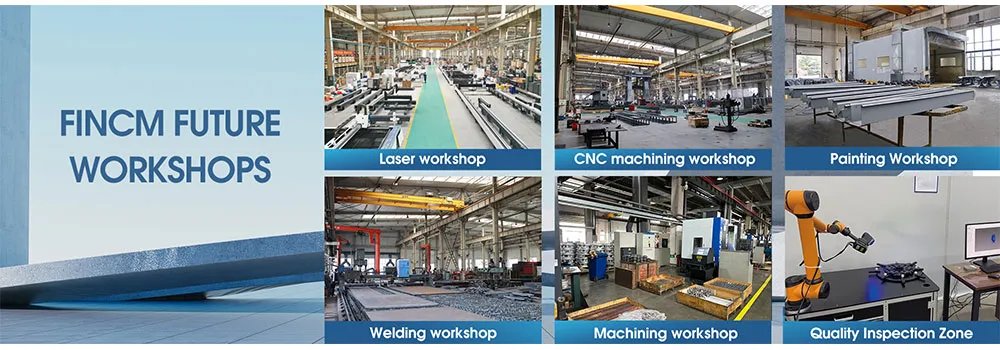

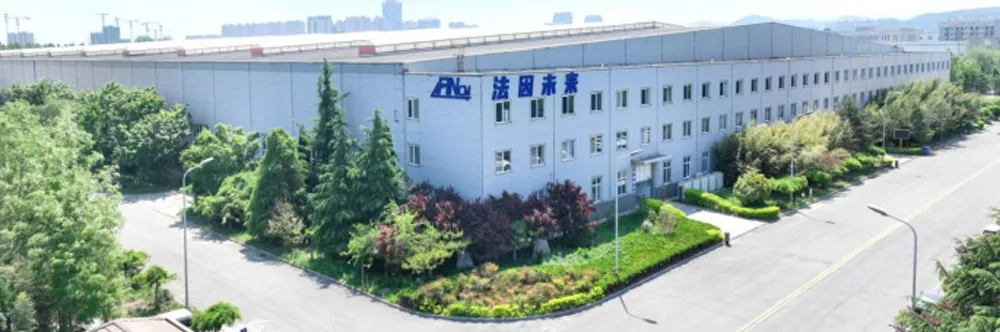

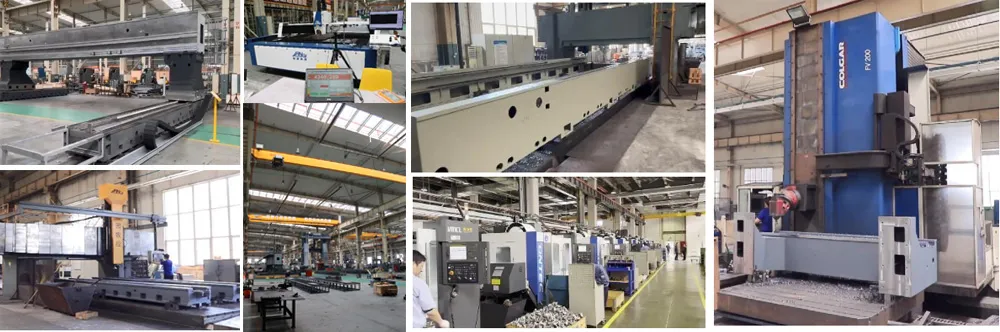

Factory Overview Production Facility
Precision Equipment Quality Inspection
Exhibitions
Exhibition Presence 1 Exhibition Presence 2
After Sales Service
1
Delivery & Installation
The equipment will be delivered to the designated installation site. Specialized engineers will carry out the installation on-site.
2
Commissioning
Comprehensive commissioning and debugging will be conducted to ensure proper operation and optimal functional requirements.
3
On-Site Training
Experienced engineers provide on-site training covering maintenance, safety precautions, operation and basic troubleshooting.
4
Final Acceptance
Final on-site acceptance is formally conducted by the customer. Assigned engineers stay until full acceptance is confirmed.
Service and Support
Frequently Asked Questions
? 1. What materials can the H-beam laser cutting machine process?
Our machine is specially designed for carbon steel, stainless steel, and alloy steel H-beams, as well as channels, angles, and other profiles - ensuring versatile cutting solutions for your projects.
? 2. Can the machine perform bevel cutting?
Yes, our H-beam laser cutting machines support straight cuts, bevel cuts, and customized angles, helping you achieve perfect weld preparations and complex designs easily.
? 3. What materials can a fiber laser cutting machine process?
Fiber lasers are ideal for cutting carbon steel, stainless steel, aluminum, brass, copper, and other non-ferrous metals with high efficiency and precision.
? 4. What thicknesses can a fiber laser cutter handle?
Depending on the laser power, fiber laser machines can cut thin sheets as well as thick plates - for example, a 6kW machine can typically cut up to 25mm carbon steel and 20mm stainless steel.
? 5. How do I choose the right laser power for my application?
It depends on the material type, thickness, and production needs. Higher power allows for thicker material cutting and faster processing, while lower power is cost-effective for thin materials.
? 6. What are the basic maintenance requirements?
Routine maintenance includes lens cleaning, checking the cutting head and fiber, regular lubrication of mechanical parts, and ensuring proper cooling system function to maintain stable performance.
