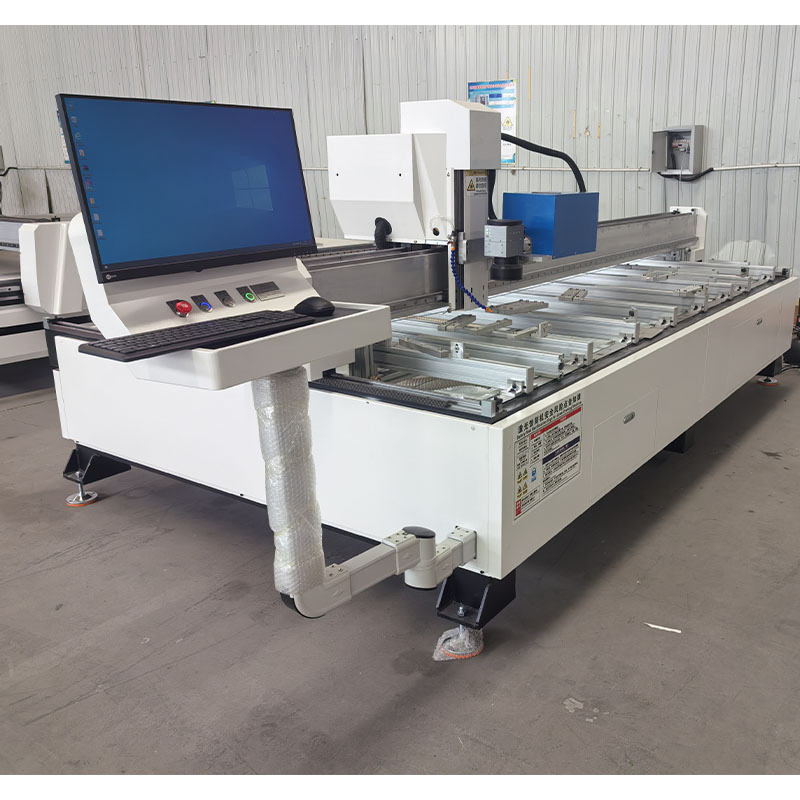

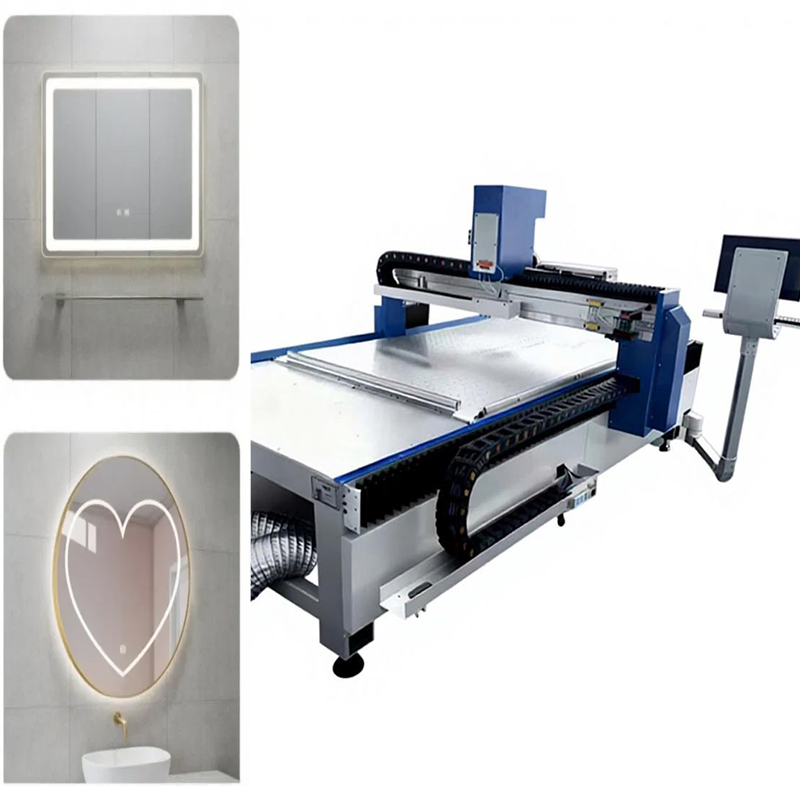

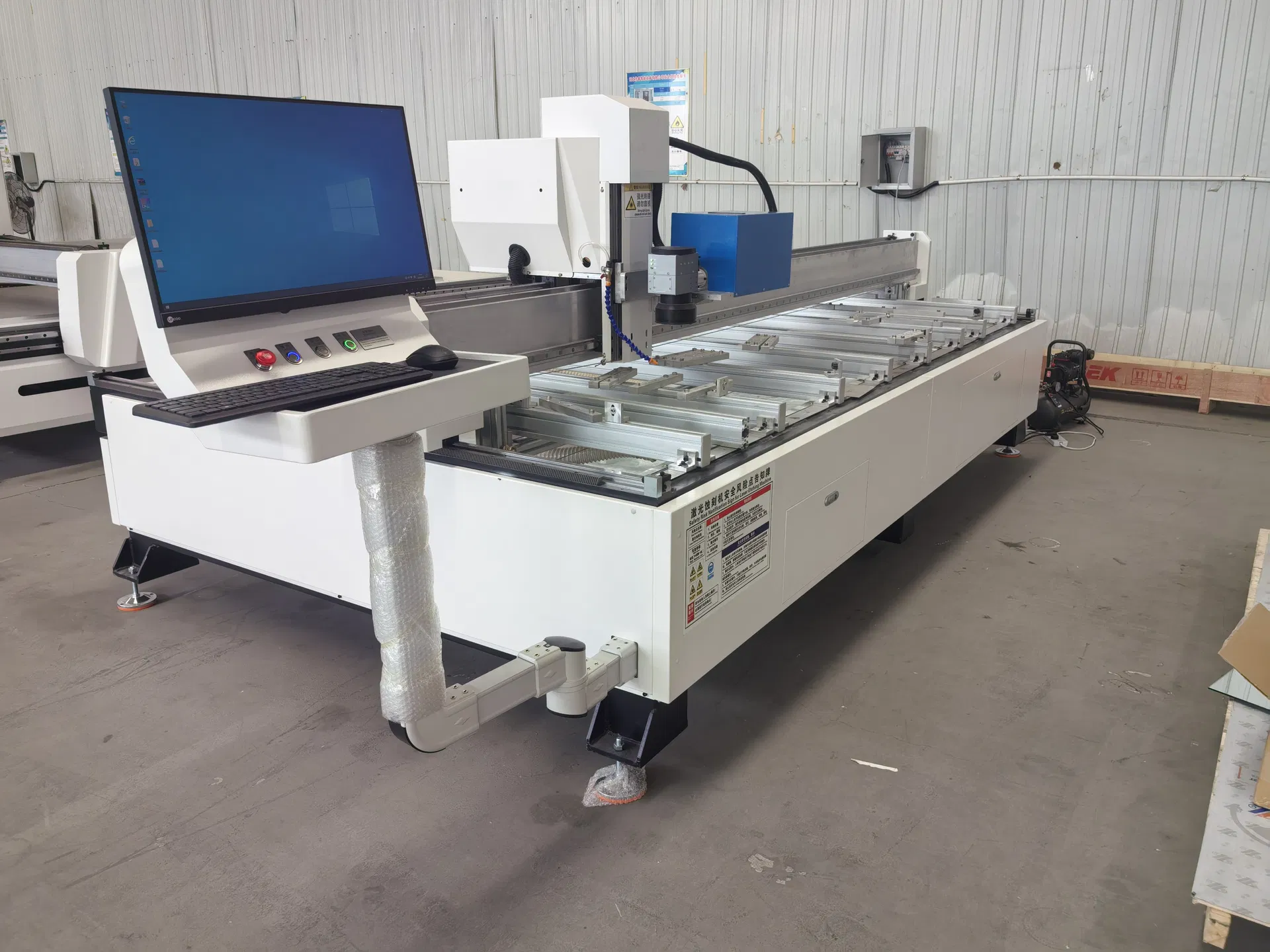

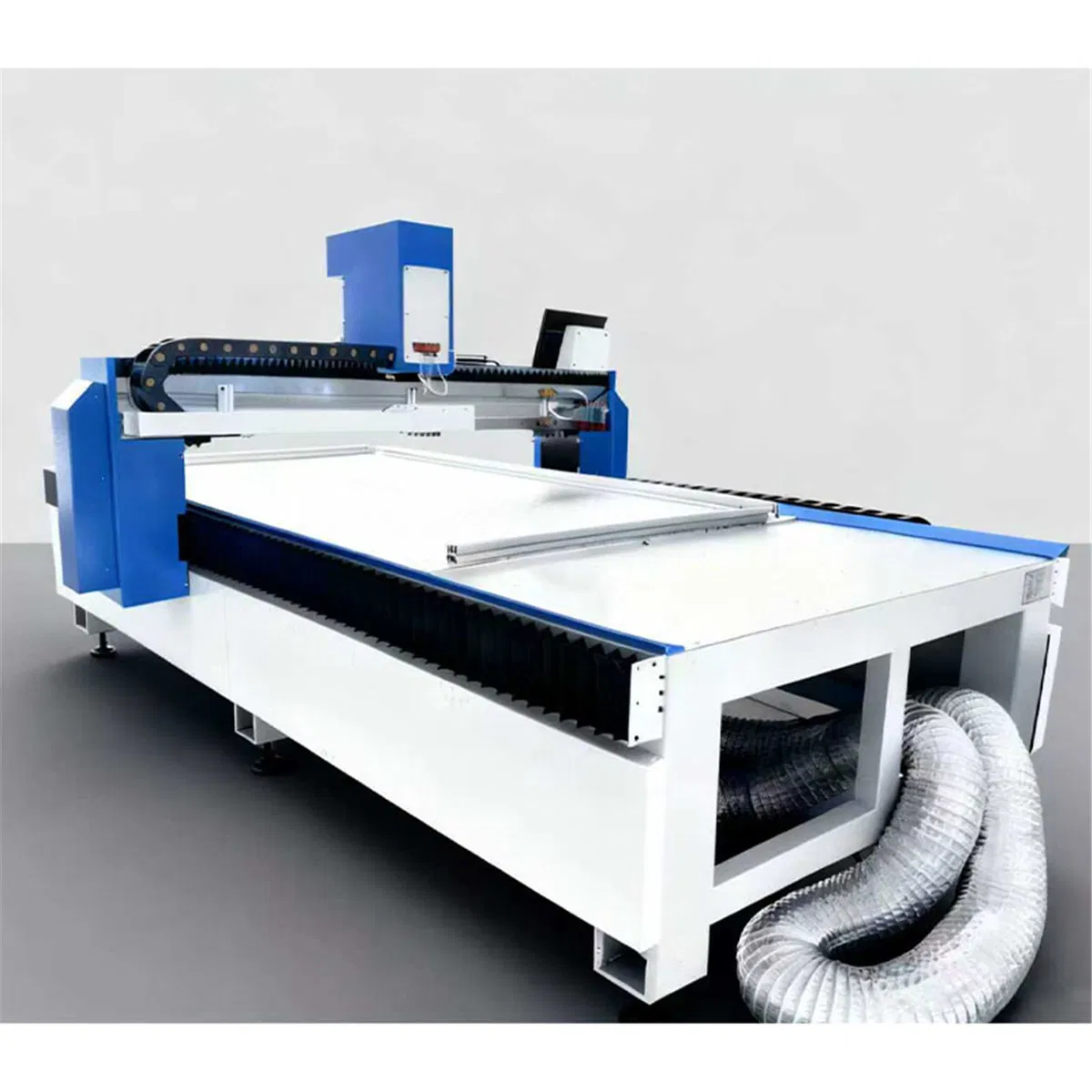

This machine is a new-generation intelligent laser processing machine independently developed, specifically designed for precision machining of coated glass, lenses, and specialty glass. This system integrates laser sandblasting, coating removal, and glass drilling into one unit, replacing traditional frosting and sandblasting processes. It enables a one-pass, green, and consumable-free processing mode, offering high efficiency and environmental benefits.

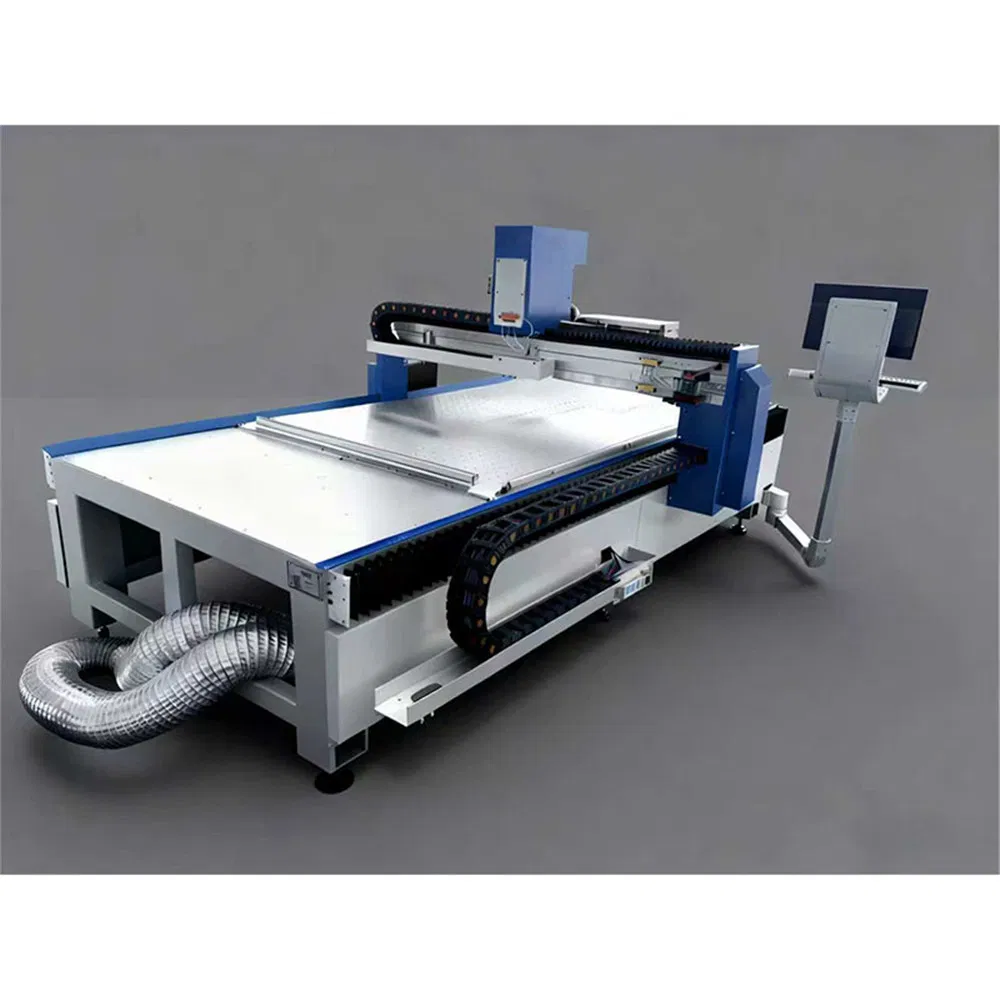

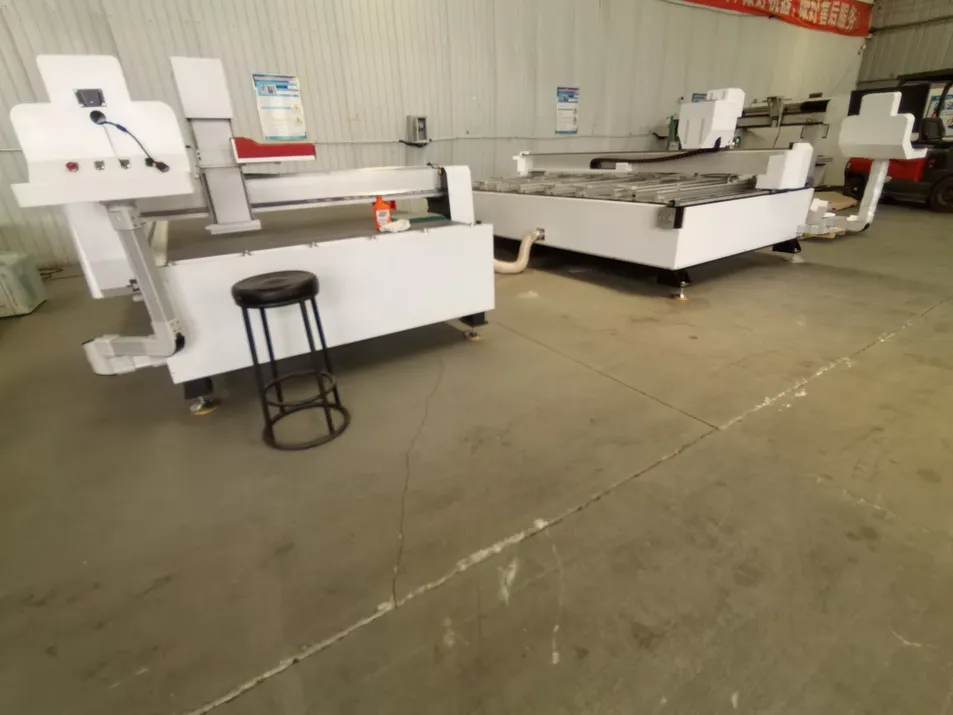

The large-format horizontal design dramatically increases space utilization. It is tailored for the seamless loading, processing, and unloading of large glass sheets and mirrors, minimizing the machine's footprint. This streamlined workflow reduces material handling time, accelerates production turnover, and significantly boosts overall line efficiency.
Equipped with a dedicated industrial dust collector that intelligently tracks the laser head. The entire extraction system moves in sync, capturing fumes and debris directly at the source in real time. This maintains a pristine workshop environment, protects critical optics and mechanics, and ensures unwavering processing precision and system stability.
Equipped with a high-brightness laser source engineered for reliable operation in extended temperatures from -10℃ to 40℃+. It resists shutdown in cold conditions and maintains performance in heat, enabling continuous, year-round operation with strong environmental adaptability for challenging workshop conditions.

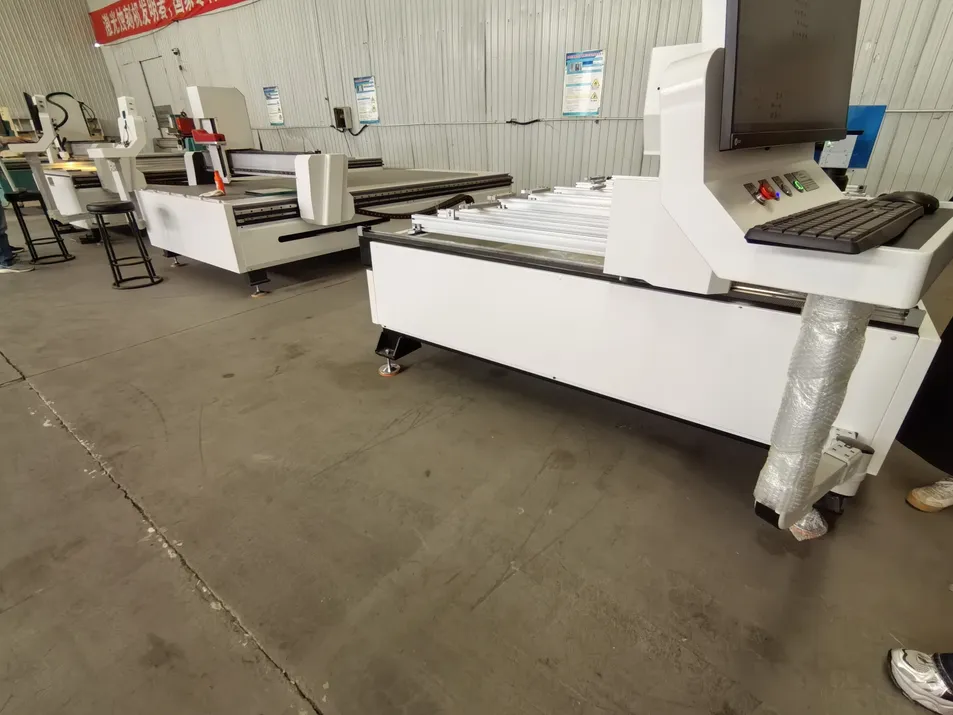

Equipped with premium imported components throughout, including Italian linear guides, Japanese gear reducers, and French electrical systems. This extends the lifespan of core parts by 3-5 years, significantly reducing long-term maintenance costs and unplanned downtime for greater durability and peace of mind.
| Model | OY1325 | OY1530 | OYS2040 |
|---|---|---|---|
| Table Size (mm) | 2500*1300 | 3000*1500 | 4000*2000 |
| Machine Dimensions (mm) | 3200*2600*1600 | 3700*2800*1600 | 4700*3300*1600 |
| Laser Power | 200W | 250W | |
| Machine Power | 3KW | ||
| Power Supply | 220V/50HZ | ||
| Work Model | Fiber Moving Laser | ||
| Work Environment | ±5℃ - 35℃ | ||
| Working Size | 5*5*2mm - 2400*1200*50mm | ||
| Data Format | DXF | ||
| Operating System | Windows 10 | ||
| Control System | Custom height tracking system (imported) | ||
| Feature | Function | Function Introduction |
|---|---|---|
| Processing Capability | Sandblasting | Performs coating peeling and sandblasting on mirrors and glass in one continuous step to optimize efficiency. |
| Drilling | Enables high-precision machining of special-shaped, micro, round, waist-shaped, and square holes. | |
| Painting Removing | Handles high efficiency mirror paint removing processes. | |
| Control System & Software | Professional sandblasting and drilling control software enables high-precision and high-efficiency operations in one single pass without secondary processing. | |
| Operating Desk | Workbench built with durable PVC to assure exact flatness, eliminating the need for frequent layout adjustments. | |
| Dust Collection System | Integrated dust removal system synchronizes with the work environment to trap fumes and keep operations clean. | |
