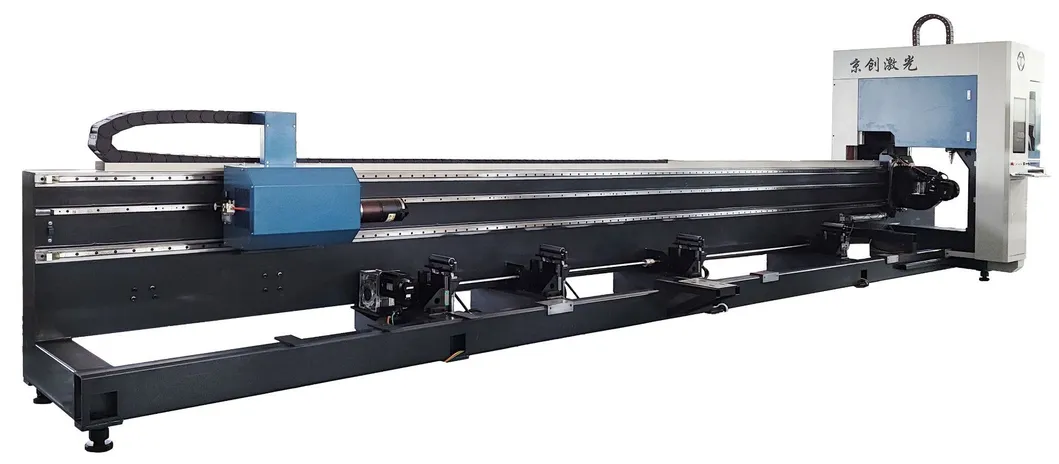

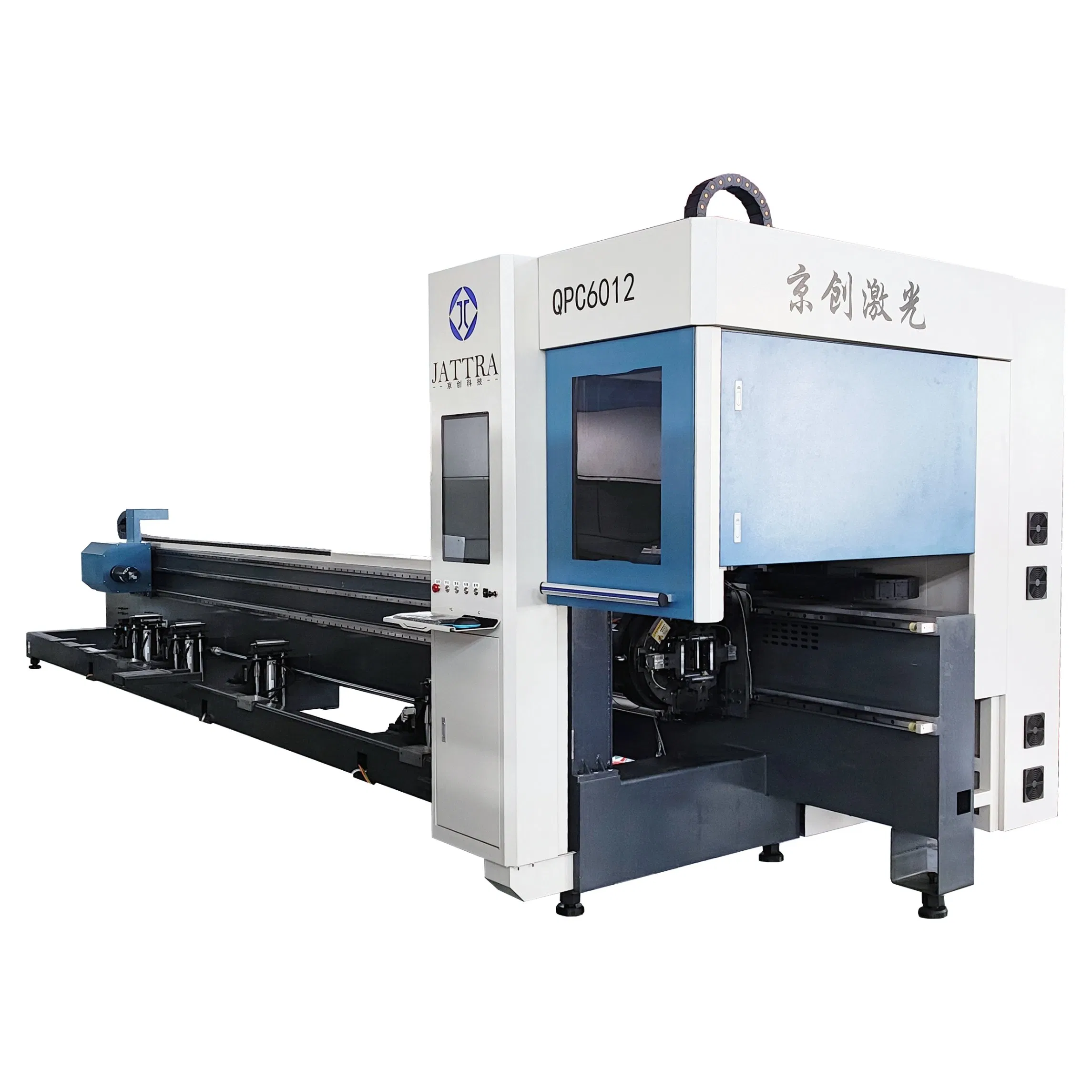

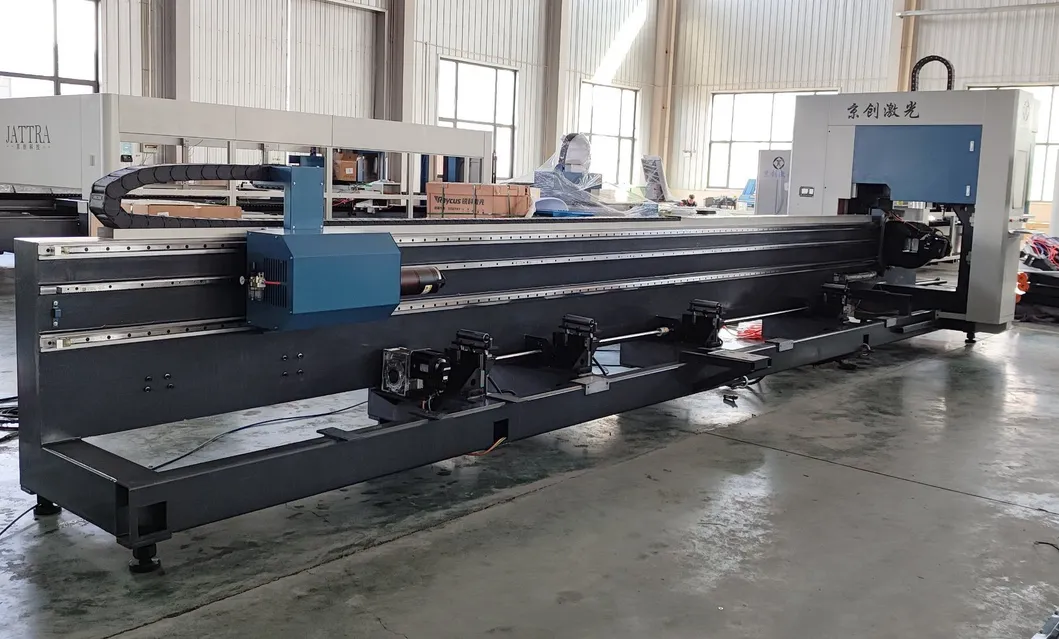

| Model No. | Clamping Range | Laser Power | Working Length |
|---|---|---|---|
| HT2-170 | 10mm-170mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| HT2-240 | 10mm-240mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| HT2-350 | 10mm-350mm | 3000W / 6000W / 8000W / 12kW / 20kW / 30kW | 6000mm and more |
| SH2-90 | 10mm-90mm | 1500W / 3000W / 6000W / 8000W | 6000mm and more |
| SH2-120 | 10mm-120mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| SH3-240 | 10mm-240mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| SH3-350 | 10mm-350mm | 3000W / 6000W / 8000W / 12kW / 20kW / 30kW | 6000mm and more |
| SH3-550 | 10mm-550mm | 3000W / 6000W / 8000W / 12kW / 20kW / 30kW | 6000mm and more |
| SH4-550 | 10mm-550mm | 3000W / 6000W / 8000W / 12kW / 20kW / 30kW | 6000mm and more |
| OEM / ODM | Customized | 1500W / 3000W / 6000W / 8000W / 12kW / 20kW / 30kW and more | 6000mm and more |
| Function | Cutting / Slotting / Bevelling cutting / Laser engraving | ||

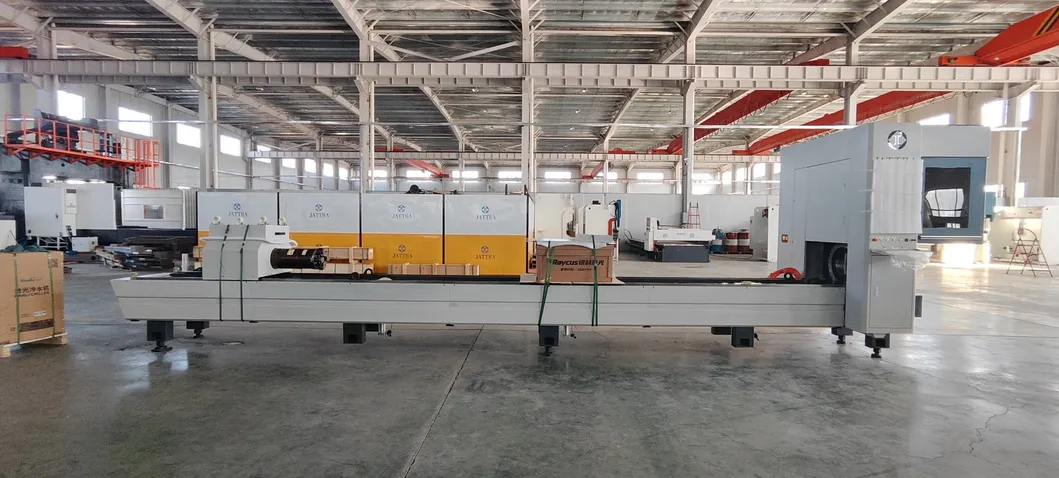

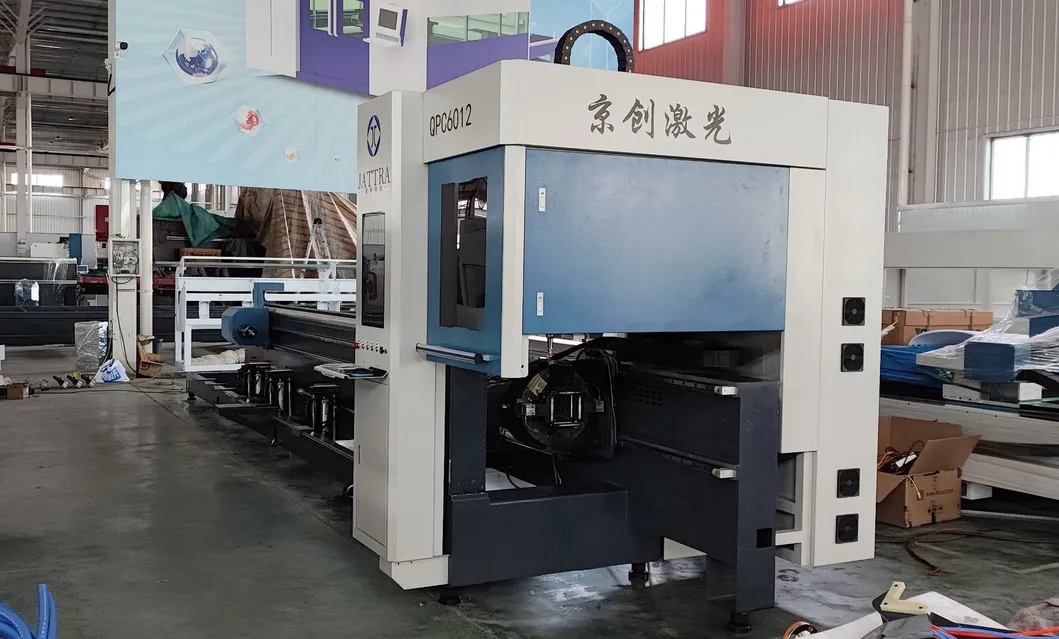

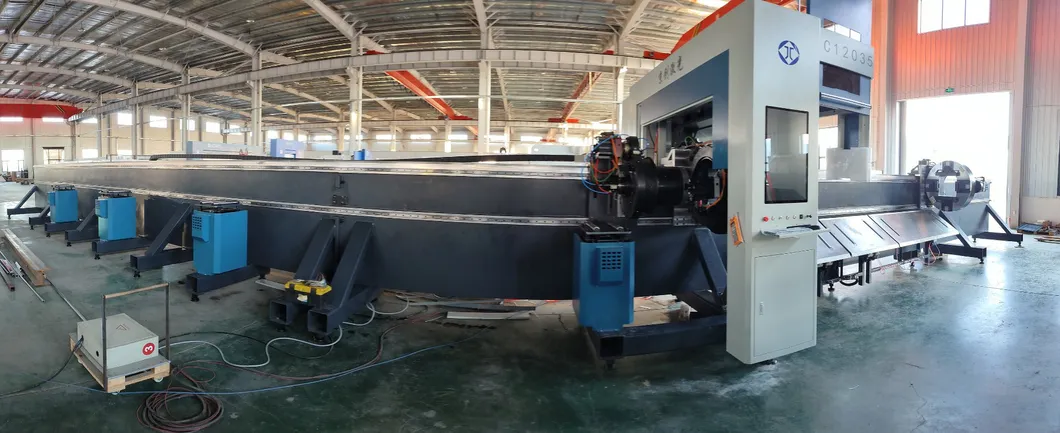

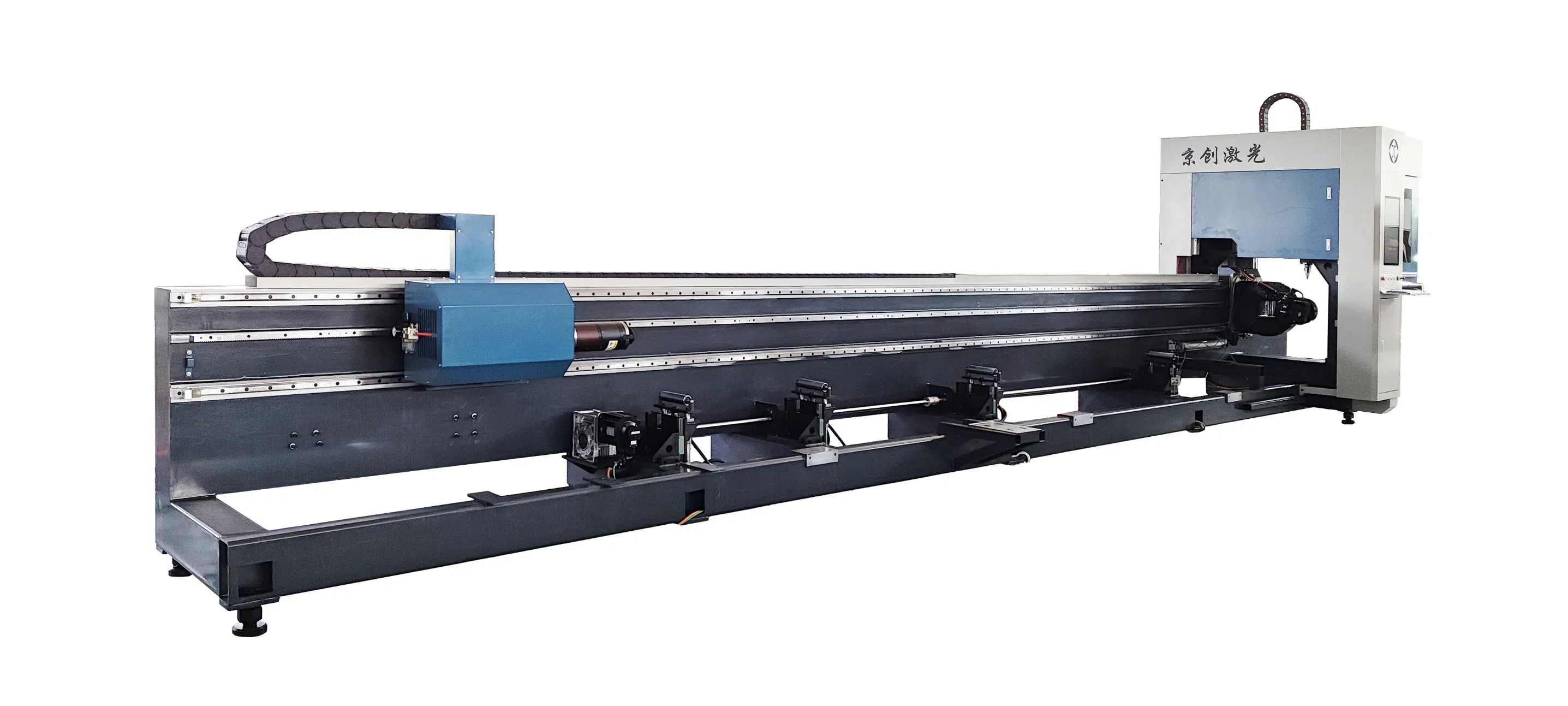

| Cutting Type |

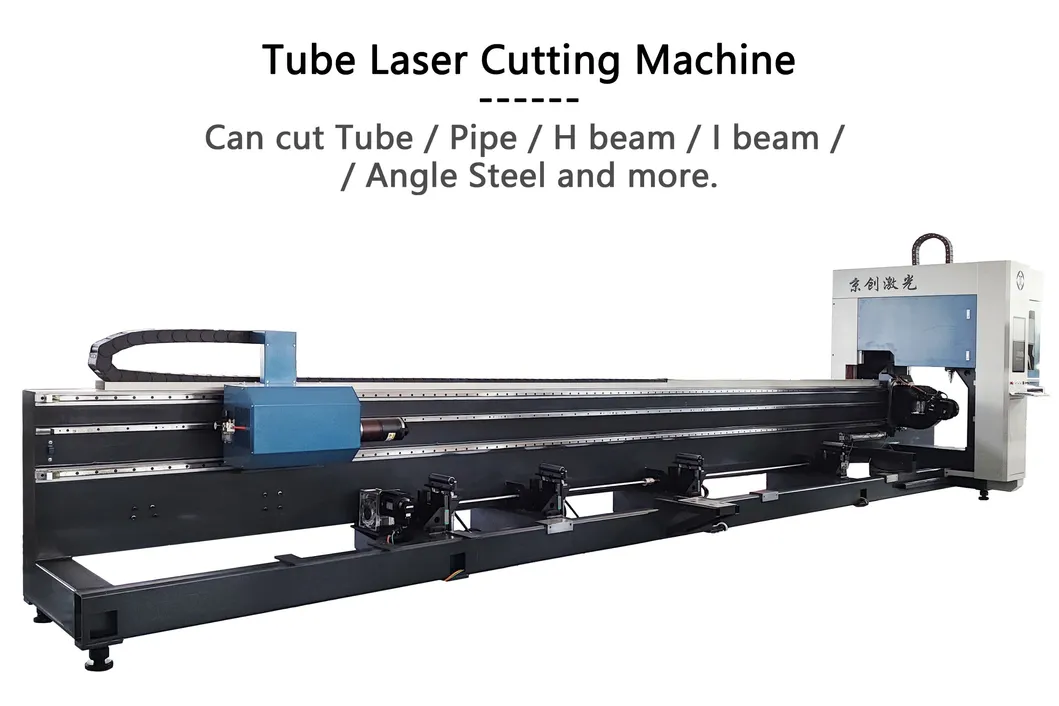

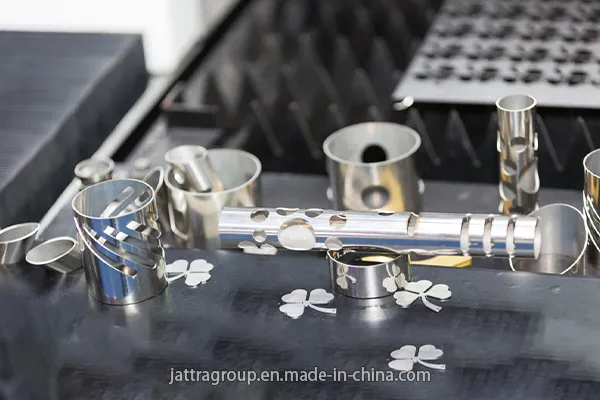

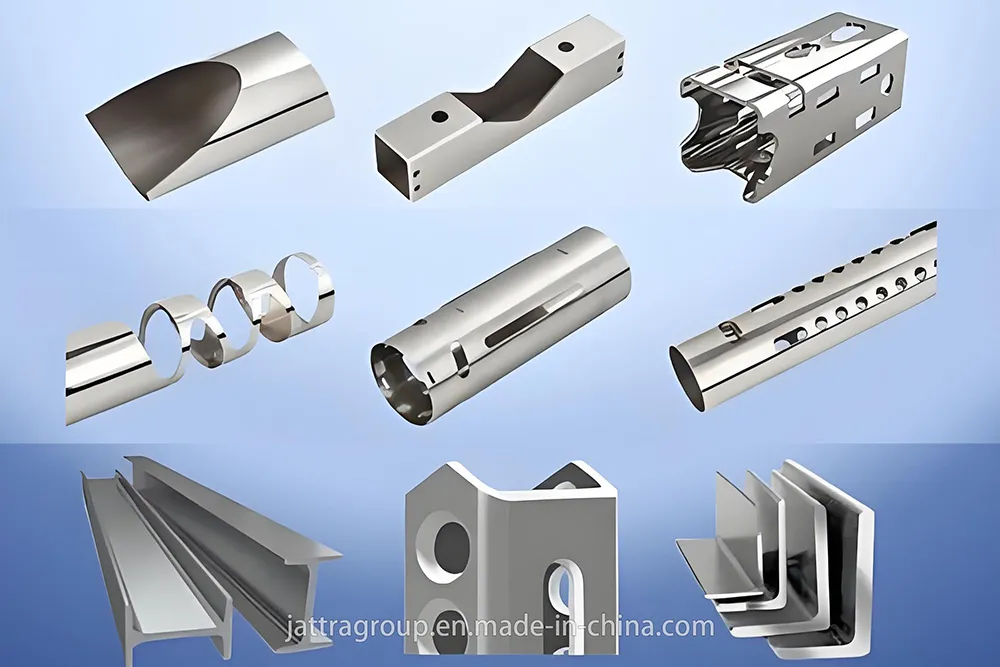

1. Tube / Pipe: Square tubes / Rectangular tubes / Round tubes / Elliptical tubes and more. 2. Strip Steel: I-beam / H-beam / Angle Steel / Channel steel and more. |
||
| Cutting Material | Iron / Steel / Carbon steel / Manganese steel / Stainless steel / Aluminium alloy / Galvanized / Copper alloy and other metal | ||
| Cutting Precision | <0.02mm | ||
| Control System |

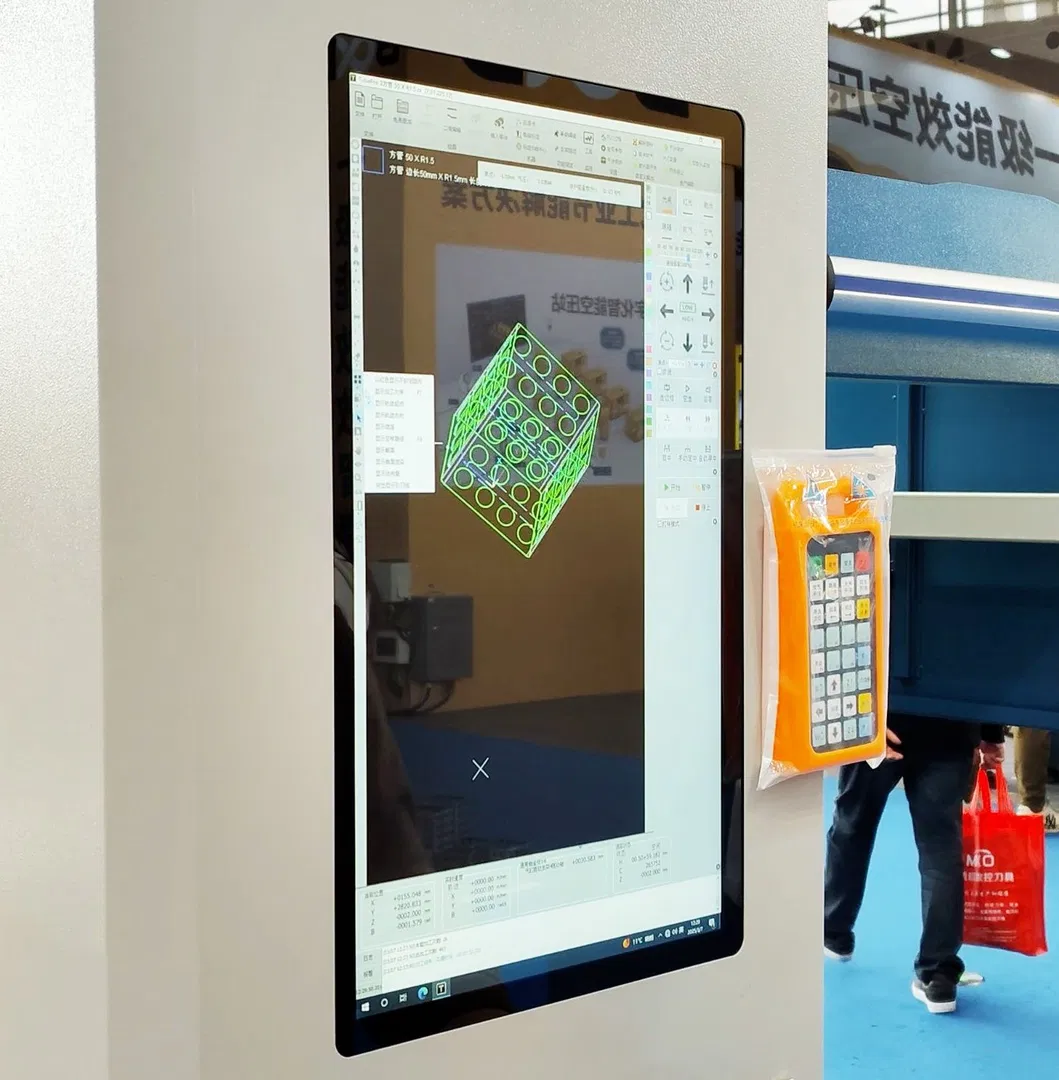

Intelligent Laser cutting software from BOCHU (BOCI) / WEIHONG / RAYTOOLS 22 inch LCD monitor 1. Industrial control system with 18 Languages. 2. Enter the values and Import the drawing. Formats: /.AI /.DXF /.DWG /.PLT /.GERBER /.LXD and other format files 3. Remote control unit |
||

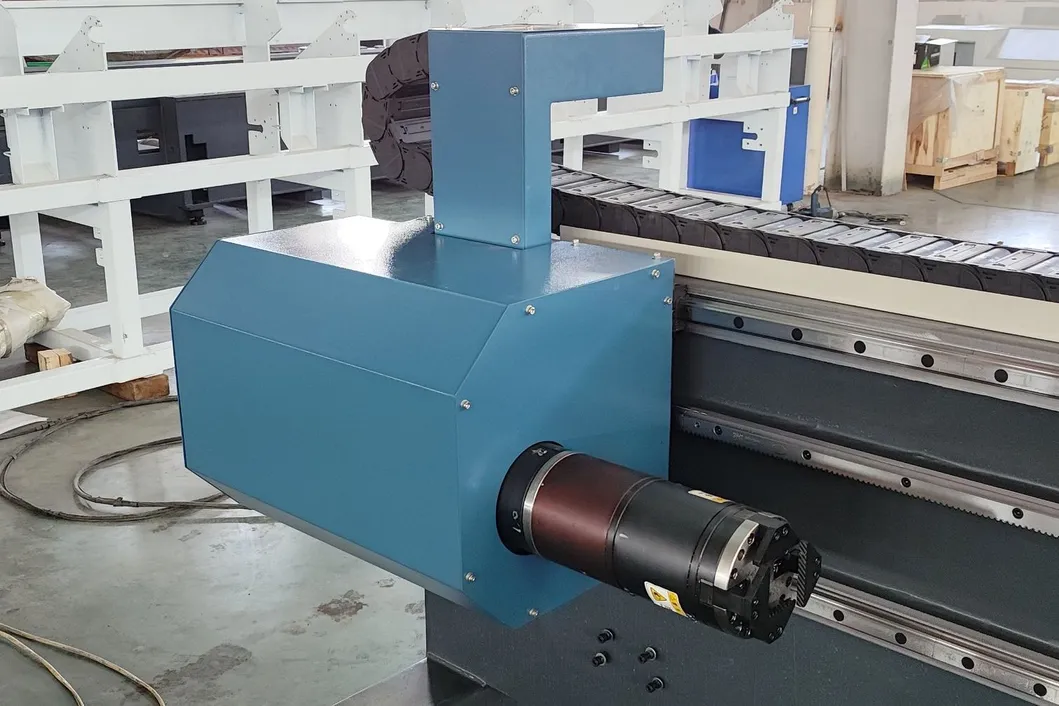

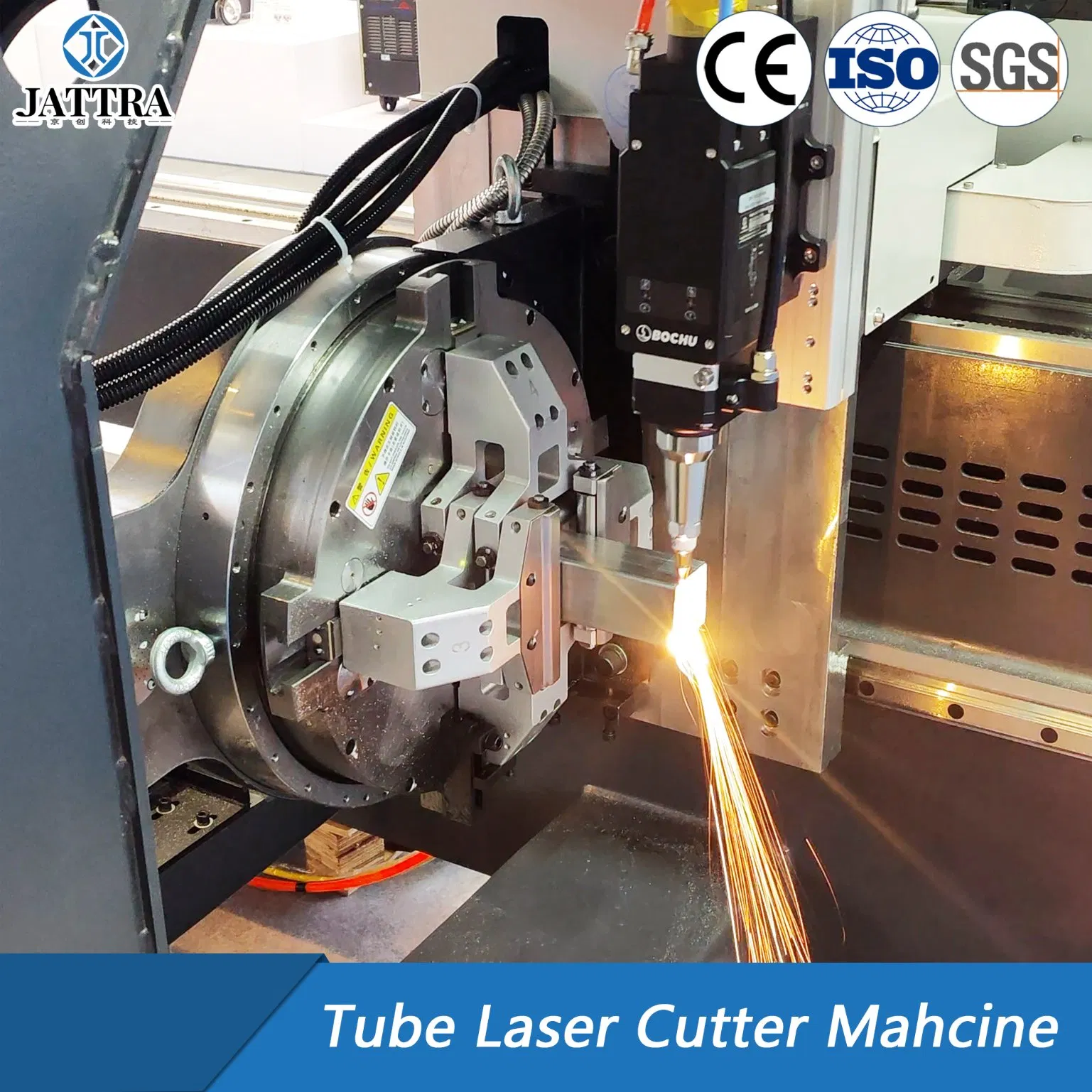

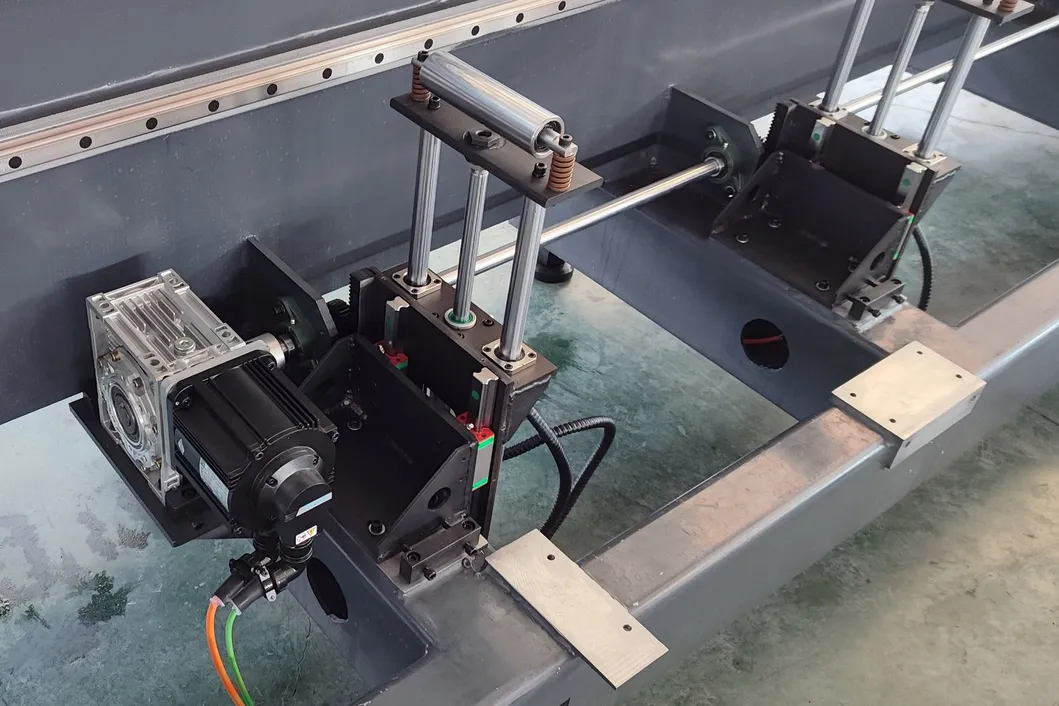

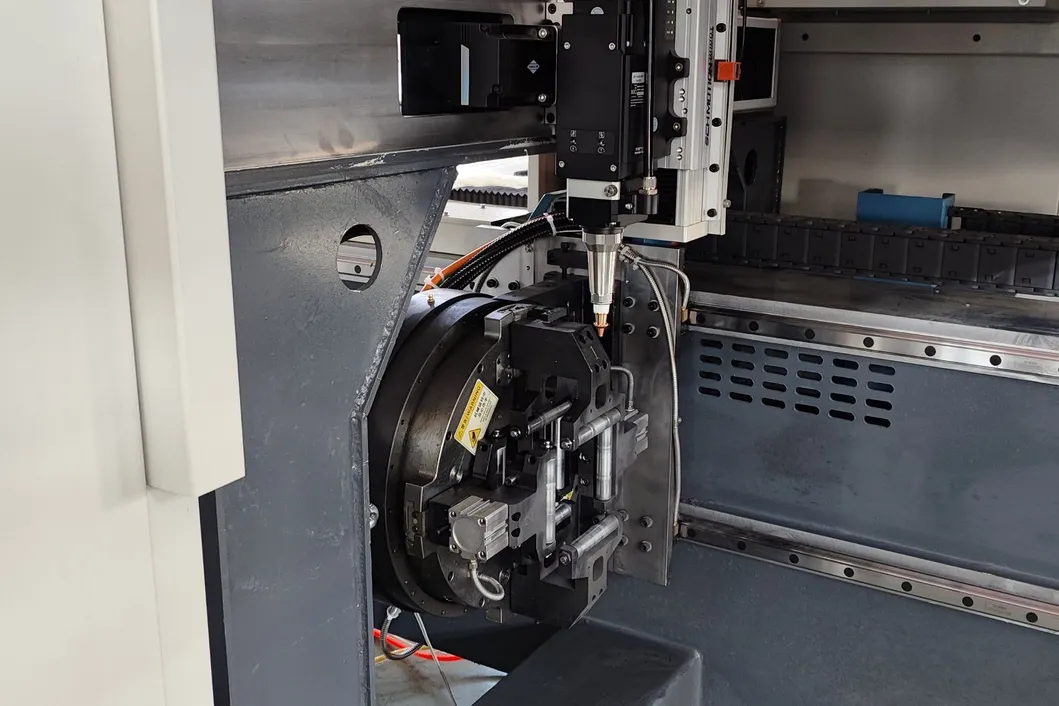

| Support Device | Servo chuck device, servo Prop up device, automatic offloading tube device. Side hanging type: Support automatic uploading device. |
||
| Customized | OEM / ODM / Colors / Sticker / SPEC | ||
| Component | Details | Component | Details |
|---|---|---|---|
| Base Frame | Carbon steel | Sheet Metal Shell | Fully surrounded sheet metal with reinforcing ribs |
| Platform | Two platform support strips steel | Water-cooling | from HANLI (Power adapt laser source) |

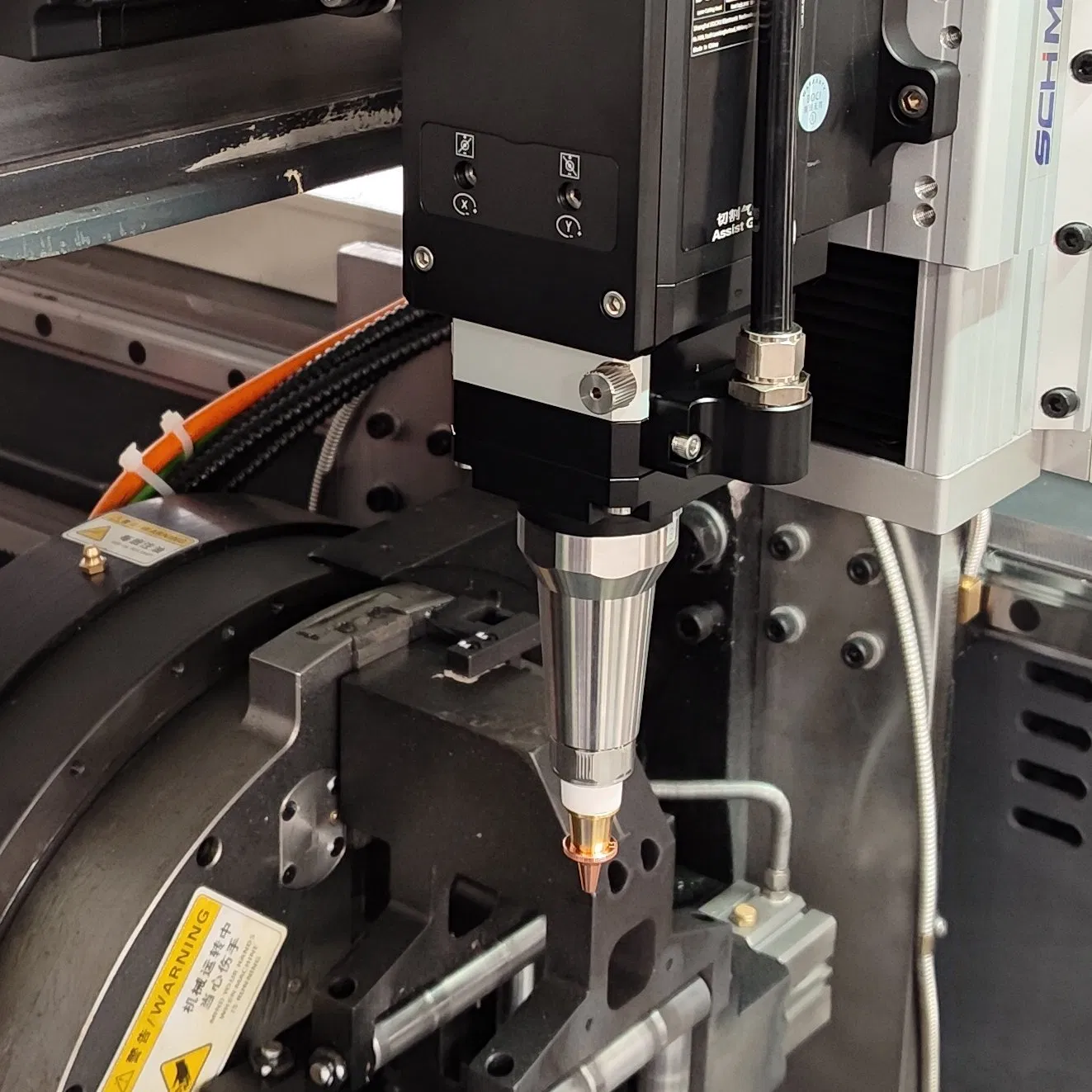

| Laser Source | From Raycus (Laser Power is optional) | Laser Cutting Head | from Raytools / BOCI (BOCHU) (Power adapt laser source) |
| Computer | High-performance industrial mainframe | Monitor | 22 inch LCD monitor |
| Remote-control unit | Yes | Straight rail | J&T |
| Gear Reducer | from FASTON | Guide rail | from RUSON (Taiwan province of China) |
| Voltage Stabilizer | Optional | Air Compressor | Optional |

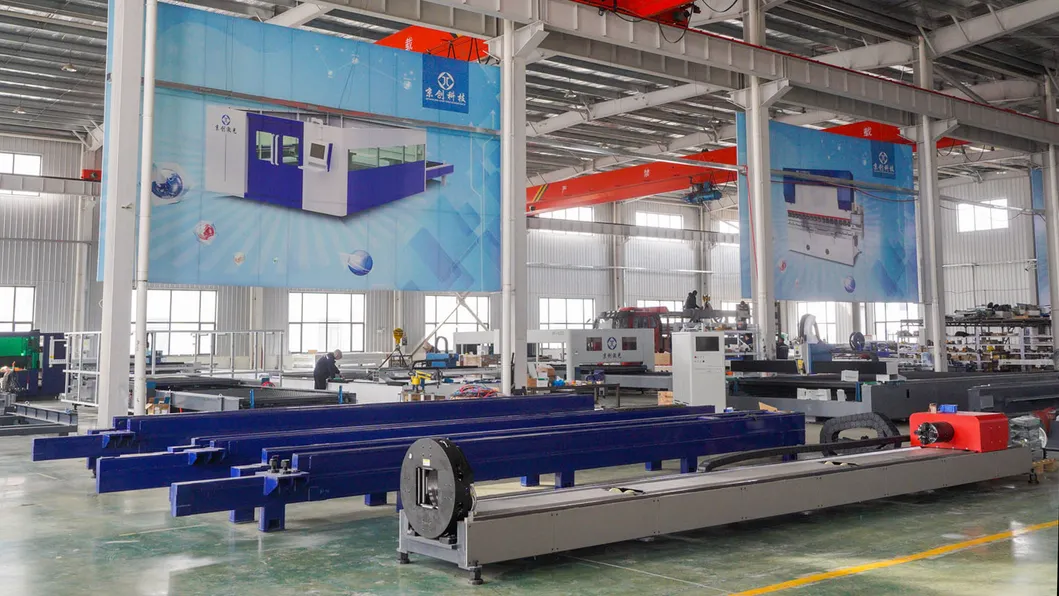

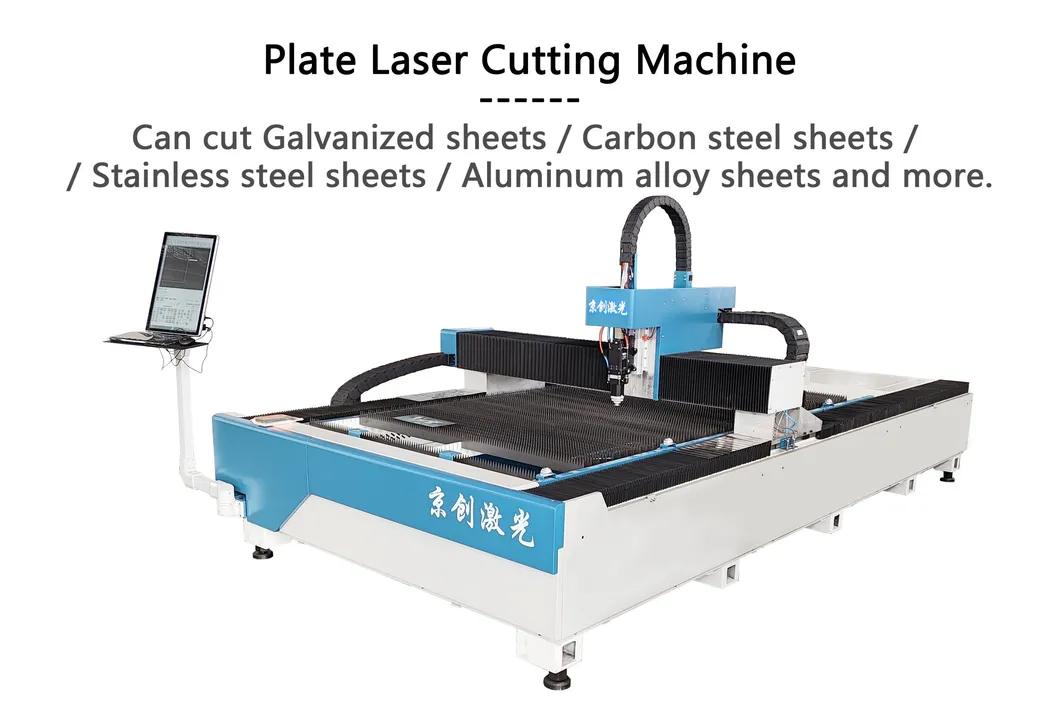

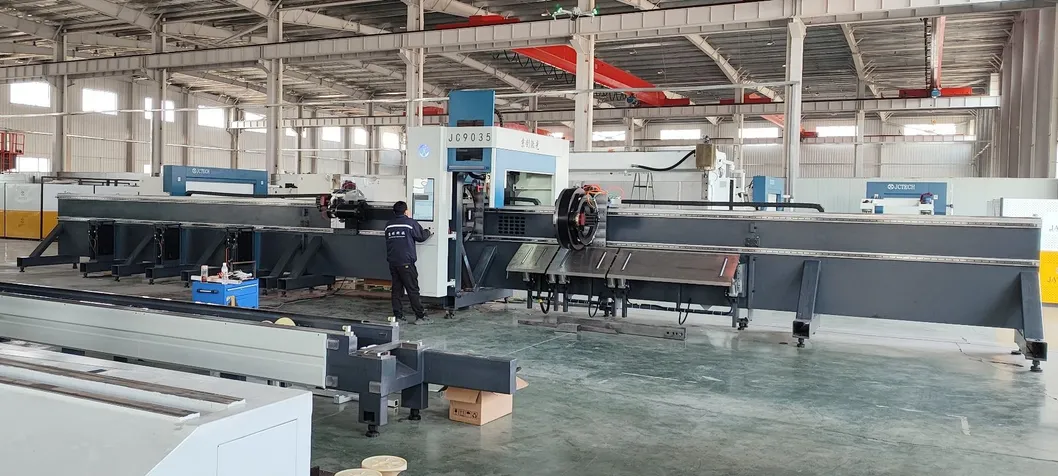

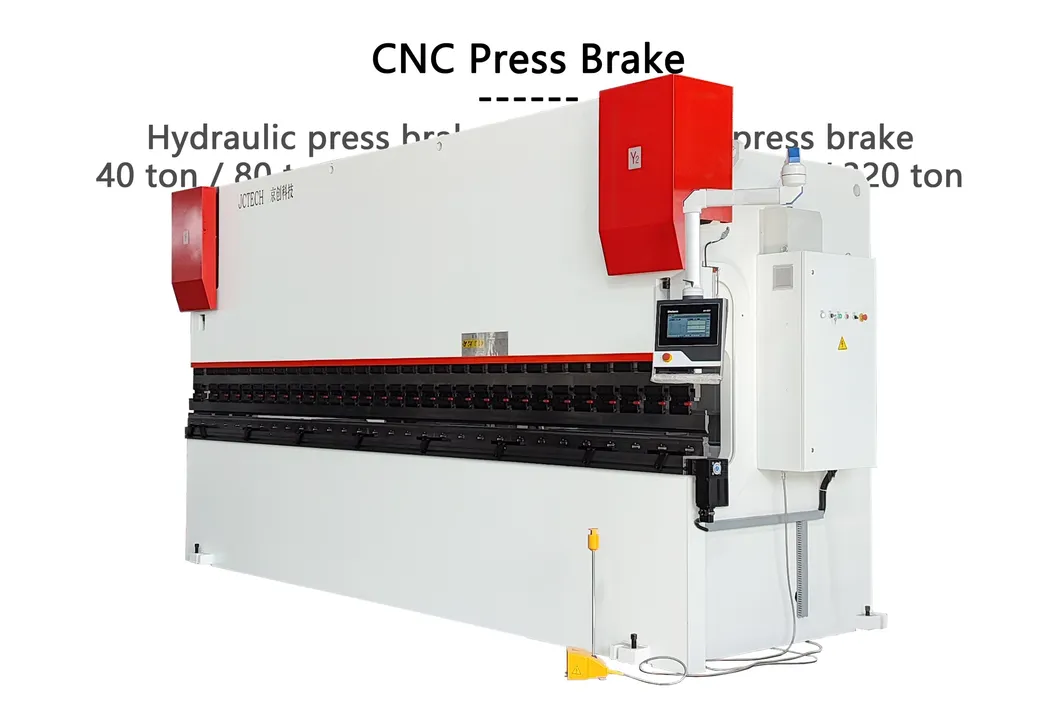

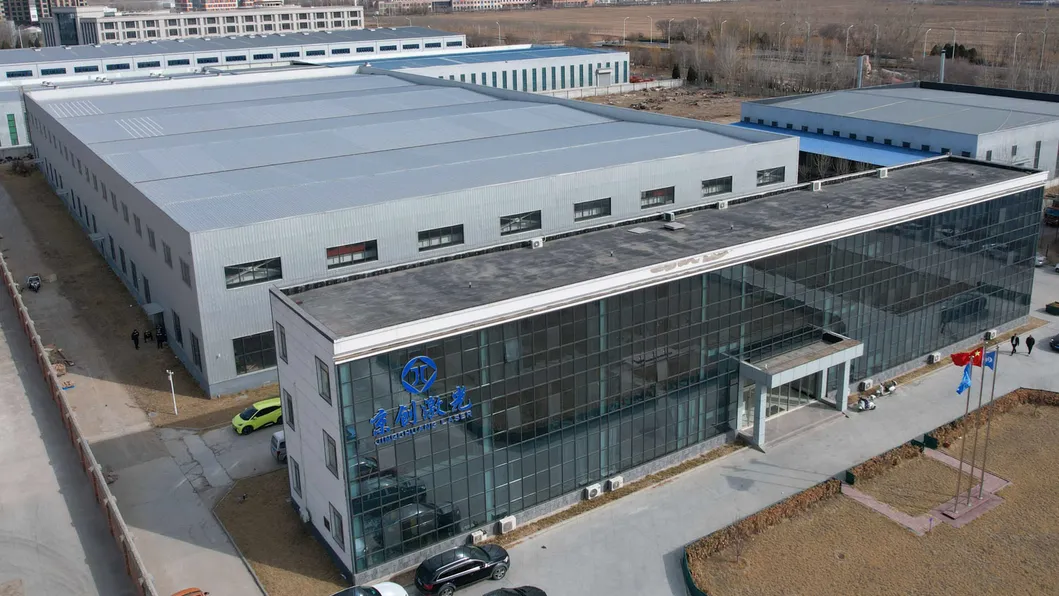

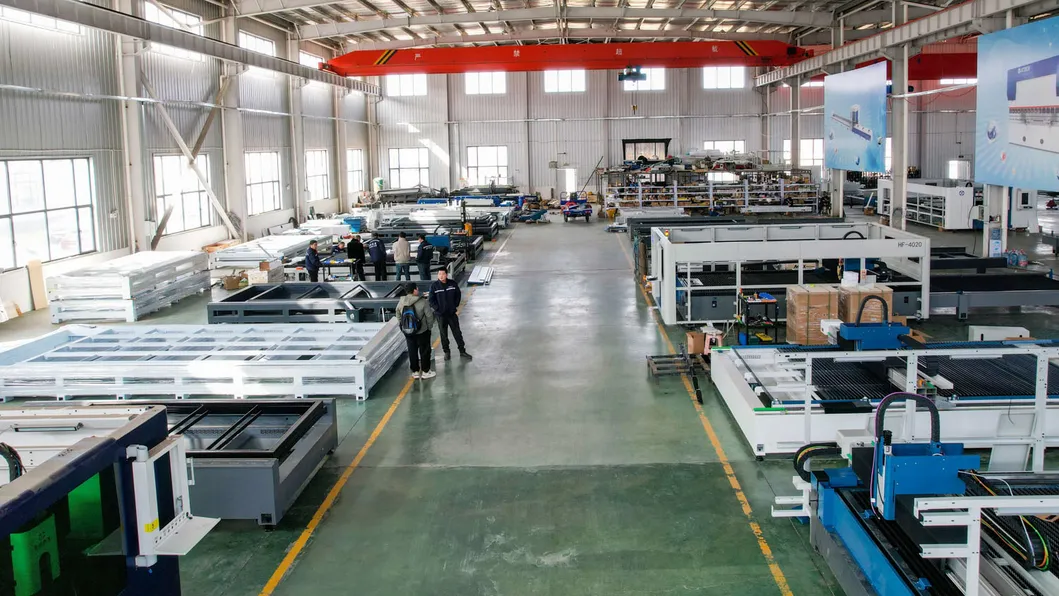

We were founded in 2015, covering an area of more than 60,000 square meters, with two factories and four production workshops. We mainly manufacture fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other matching machinery and equipment.
We support OEM/ODM, and provide custom production machinery according to your industry, budget, and needs to offer you the most cost-effective laser equipment. We also provide continuous technical support, training, and after-sales service, so that you can use our products perfectly.
As a manufacturing plant with a number of technical patents on laser cutting machines and CNC bending machines, our equipment has successfully passed the European 2006/42/EC standard, meets the rigorous quality standards of EN60204 and ISO12100, and operates as a model demonstration enterprise. Therefore, we highly deserve your trust and partnership.
We have actively participated in a variety of laser mechanical equipment related exhibitions to let more international friends experience our equipment in person. You can get in touch with us to receive our latest exhibition schedule and check our high-quality laser machines in the field.
