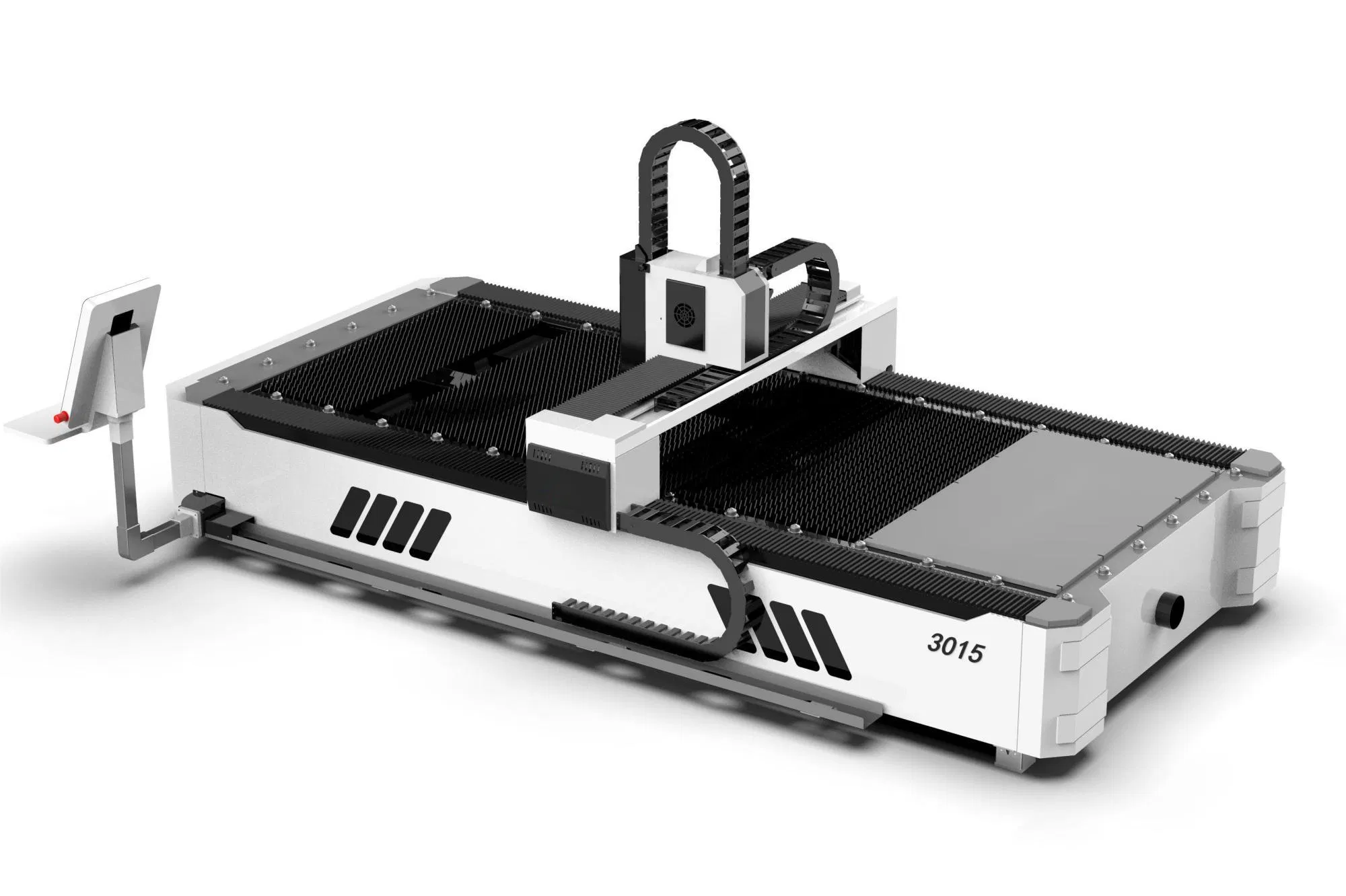

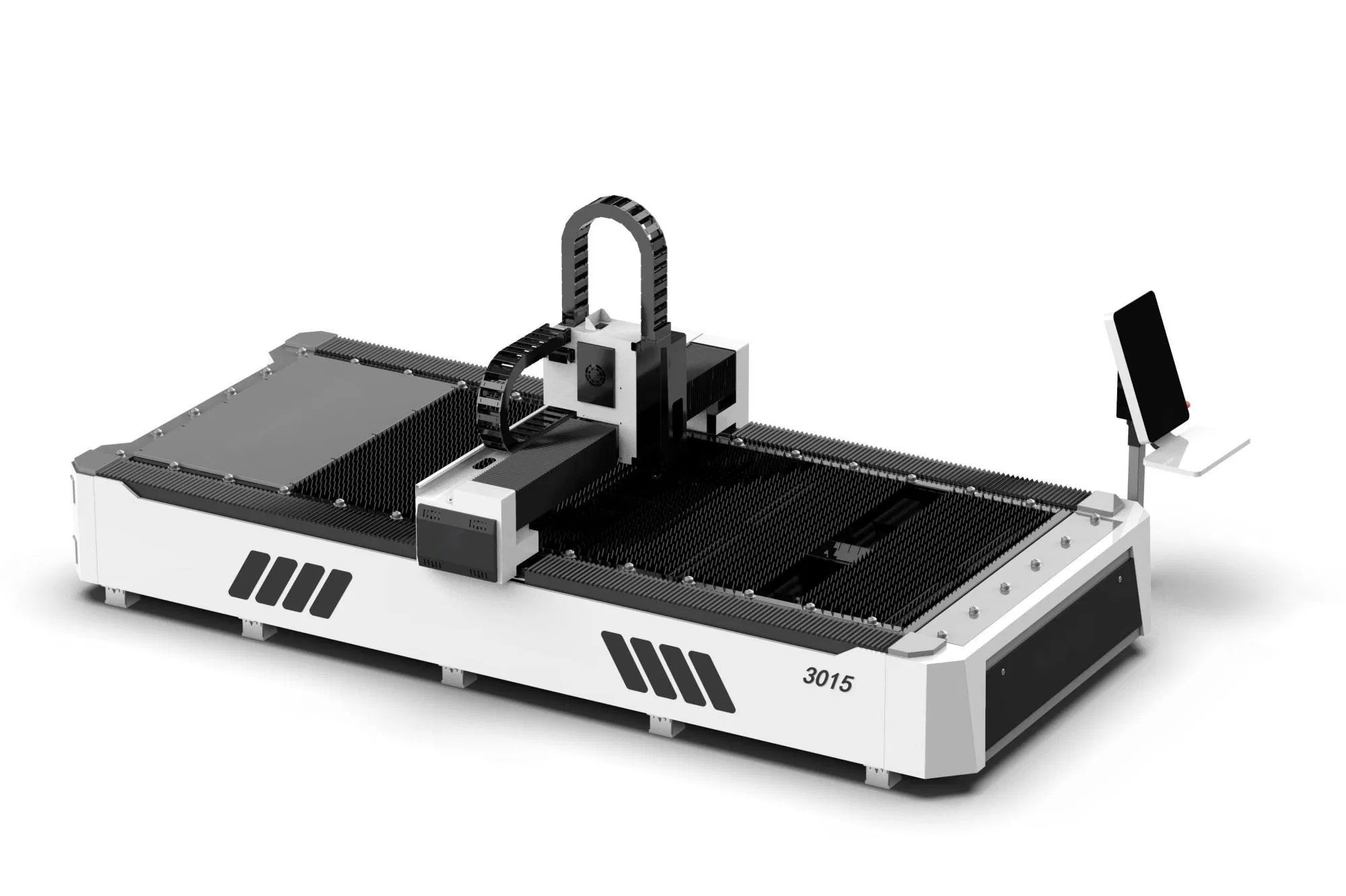

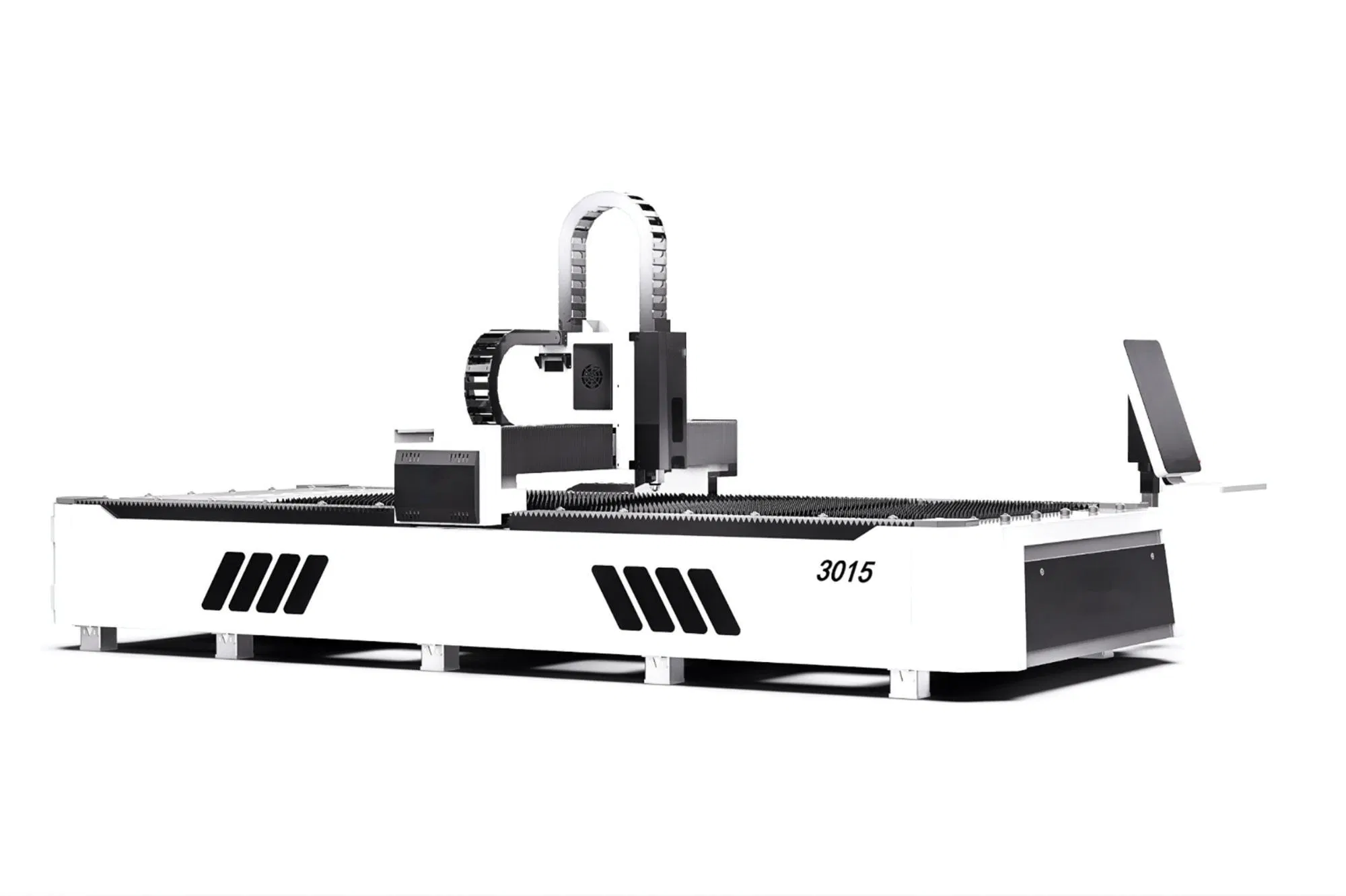

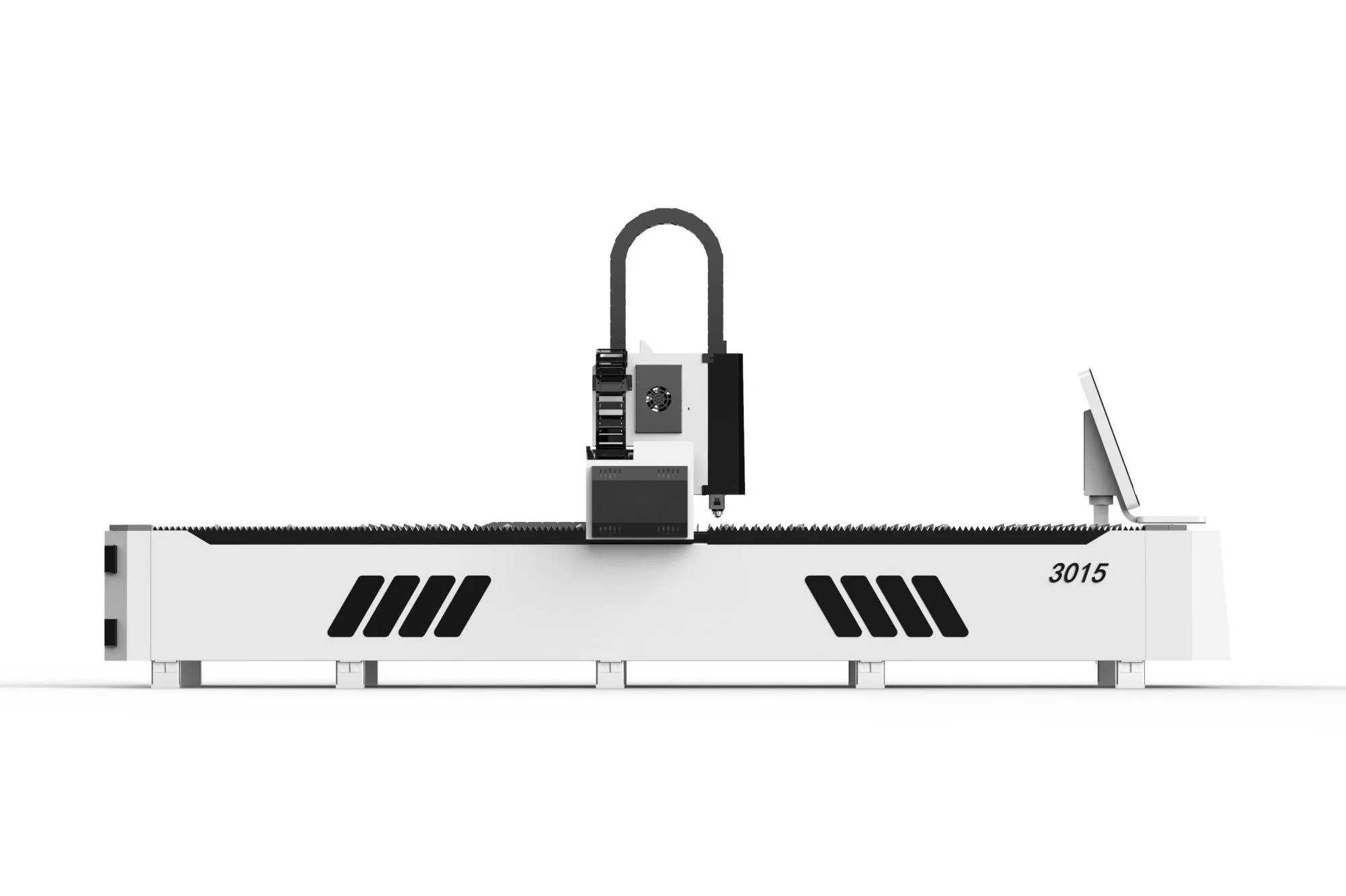

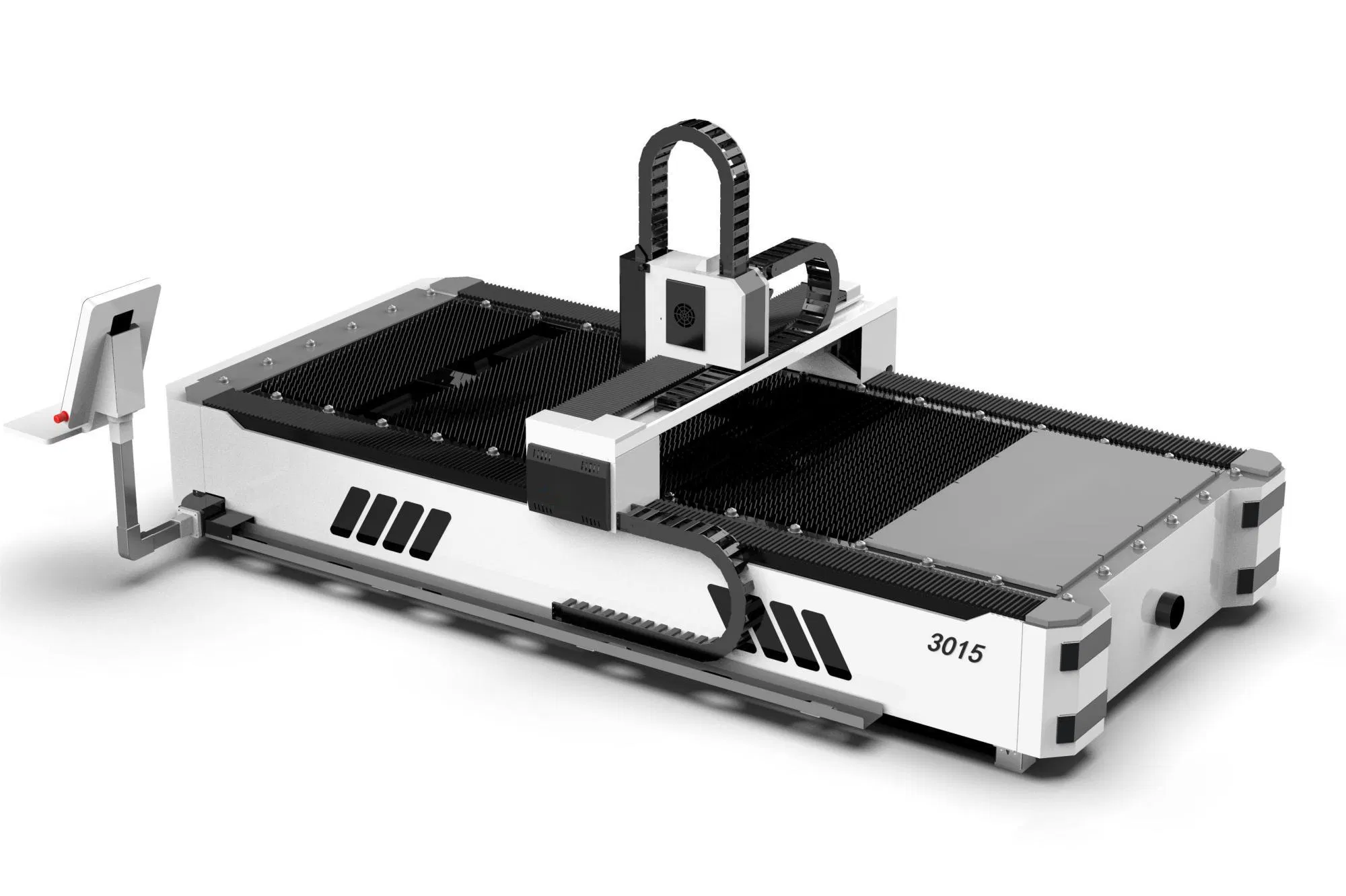

Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
1 / 5
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine
Laser Fiber Cutting and Drilling Machine

Laser Fiber Cutting and Drilling Machine

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.DLM-3015
ApplicationAgriculture, Aerospace, Automotive, Advertising
Cooling SystemWater Cooling
Technical ClassContinuous Wave Laser
Applicable MaterialMetal
Structure TypeGantry Type
Laser TechnologyLaser Flame Cutting
Working Area1300mm*2500mm
Laser Power130W / 150W
Production Capacity30 Sets / Month
Product Overview
Fiber Metal Cutting and Engraving Machinery
Fiber Metal Cutting Machine
ModelFiber laser metal cutting machine DLM-3015FL
Working area1500mm*3000mm
Machine dimension1600mm*3100mm*1065mm
Laser power1500W / 2000W / 3000W / 6000W
Work tableBlade
Speed≤400mm/s
Position accuracy±0.05mm
Compatible formatAI/PLT/DST/BMP
Cooling modeWater-cooling and protection system
Power voltageAC220±10% 50~60HZ
DriverStepper or servo
Controlling systemRaytool
Key Machine Features
1
Anti-dust System: Effectively avoids dust accumulation, improving the lifespan of rails and belts for steady operation.
2
Streamlined Design: Modern aesthetic with streamlined adornment, enhancing visual appeal and market popularity.
3
Ergonomic Loading: Blade surface and shell side are aligned at the same height for convenient up-down loading.
4
Real-time Monitoring: Laser cover designed with the laser head outside, allowing operators to monitor processes safely.
5
Optimized Electrical Layout: Improved panel design with neat and reasonable distribution to eliminate interference and optimize heat dissipation.
6
High Precision: Utilizes imported Italy synchronous belts to ensure processing stability and high precision.
Machine Detail 1
Machine Detail 2

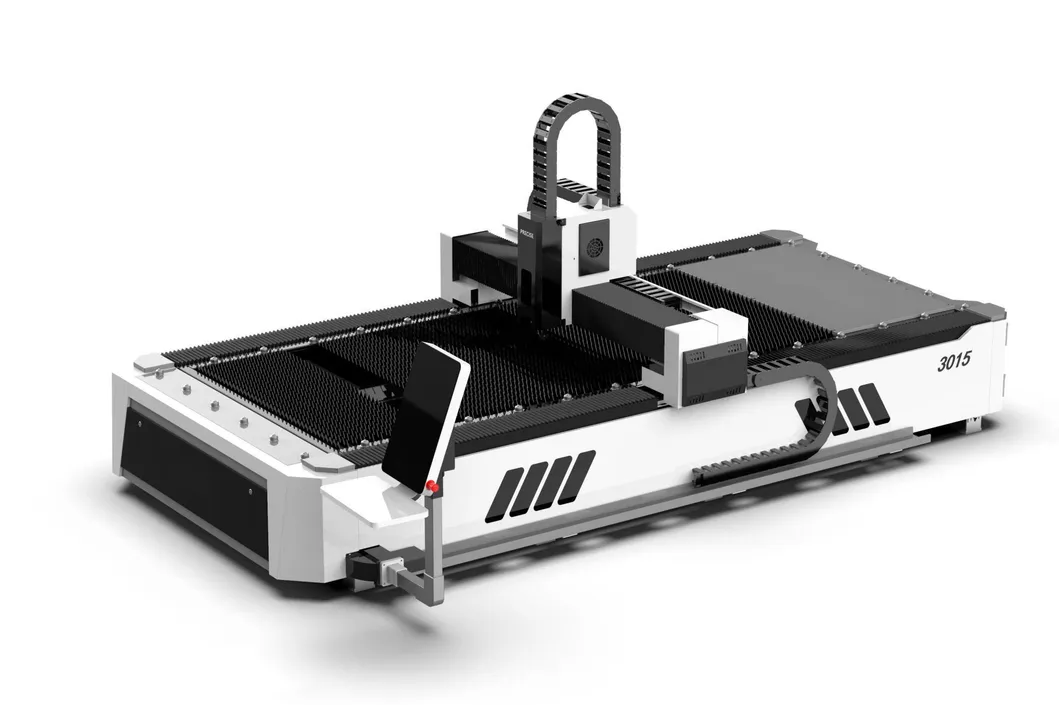

Machine Detail 3
Frequently Asked Questions
What materials are suitable for this machine?
This machinery is specifically designed for cutting and engraving various types of metal materials used in industries like automotive, aerospace, and advertising.
What is the positioning accuracy of the DLM-3015FL?
The machine offers a high positioning accuracy of ±0.05mm, ensuring precise results for intricate designs.
How is the laser source cooled?
It utilizes an advanced water-cooling and protection system (such as the CW5200 chiller) to maintain optimal operating temperatures and extend laser life.
Which file formats does the control system support?
The system is highly compatible and supports standard industrial formats including AI, PLT, DST, and BMP.
Does the machine include features to handle industrial dust?
Yes, it is equipped with an anti-dust system and a purging system (beam smoke or funnel smoke) to keep the internal components clean and functional.
What type of drive system is used?
The machine can be configured with either Stepper or Servo drivers, depending on your specific speed and precision requirements.
