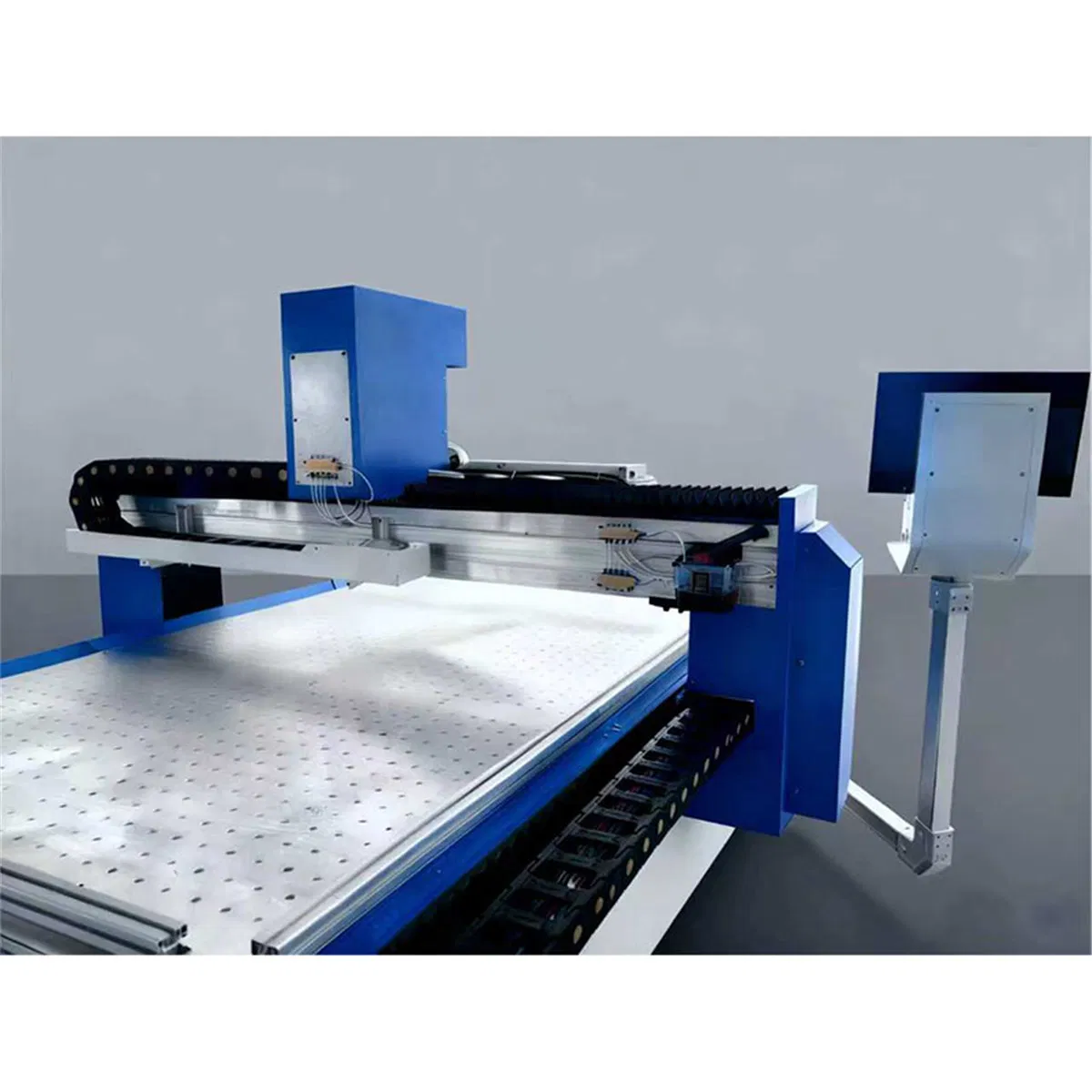

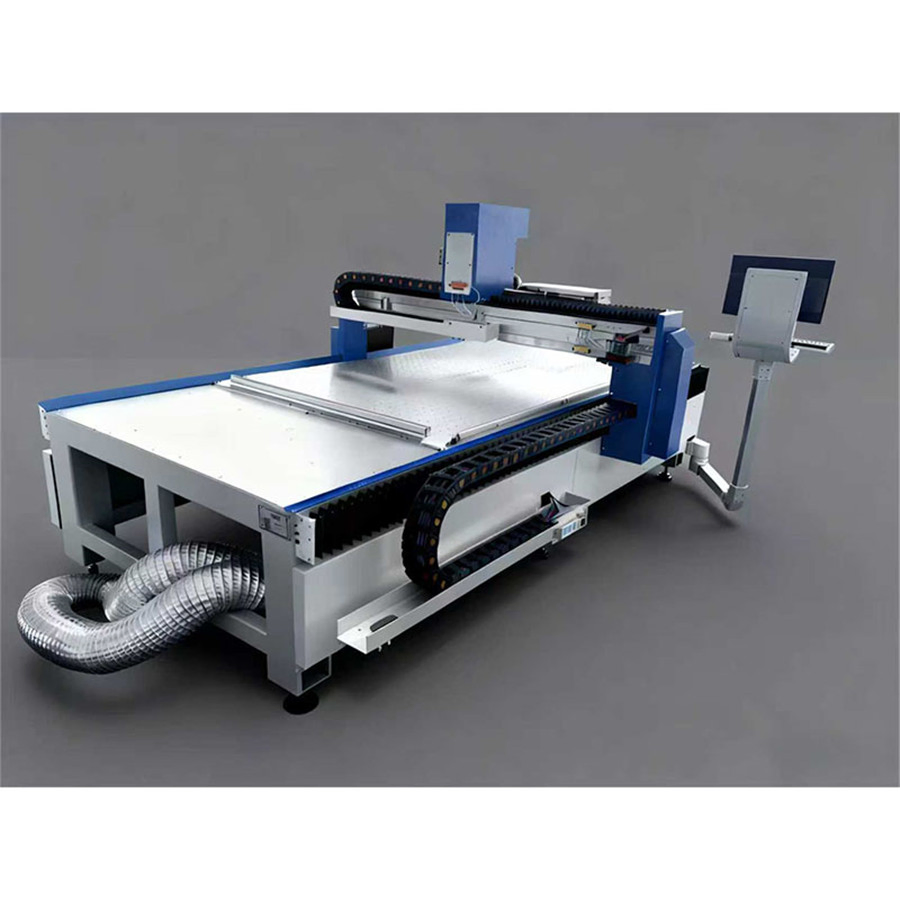

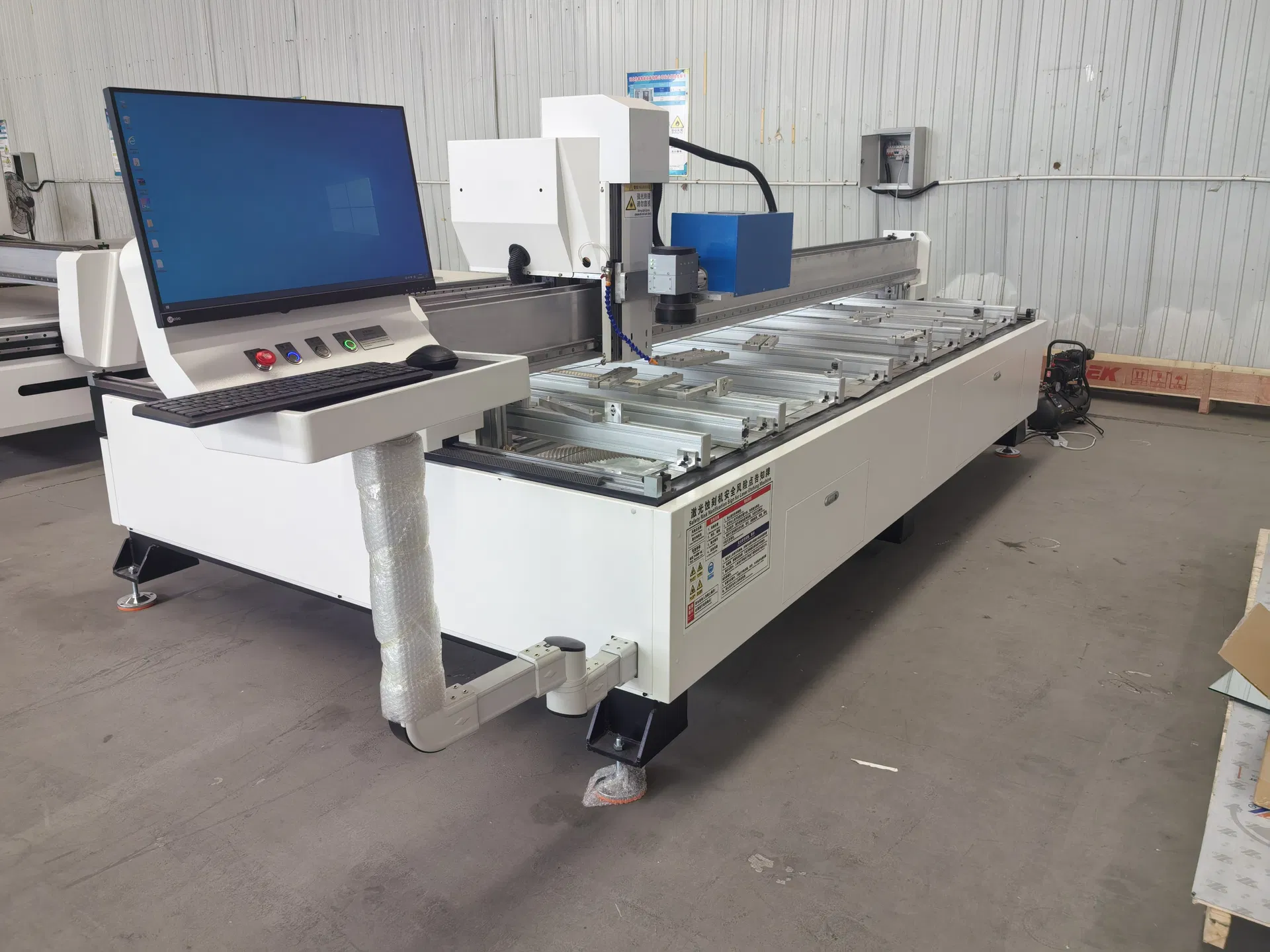

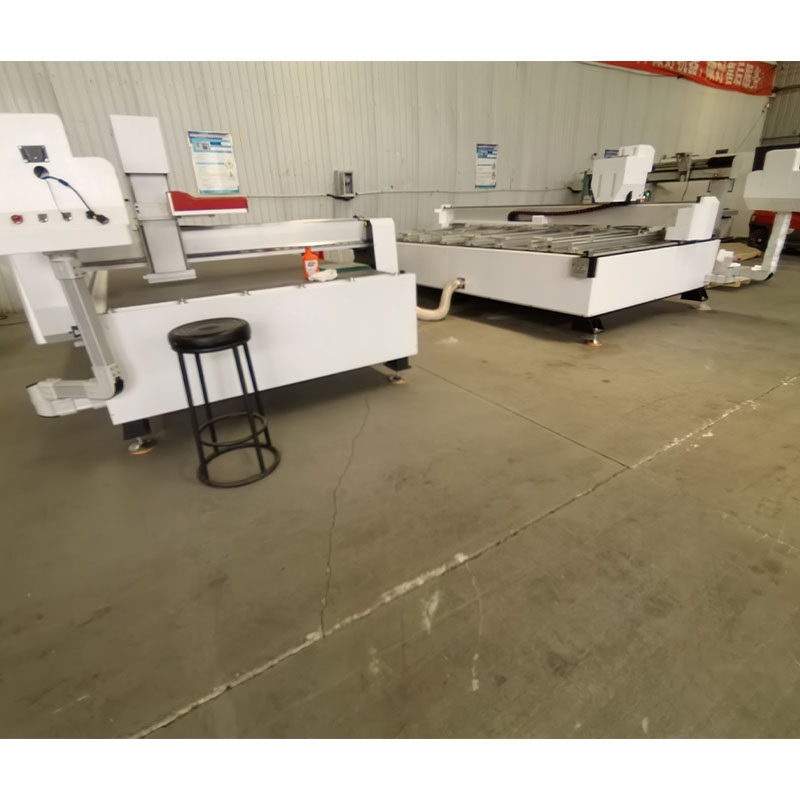

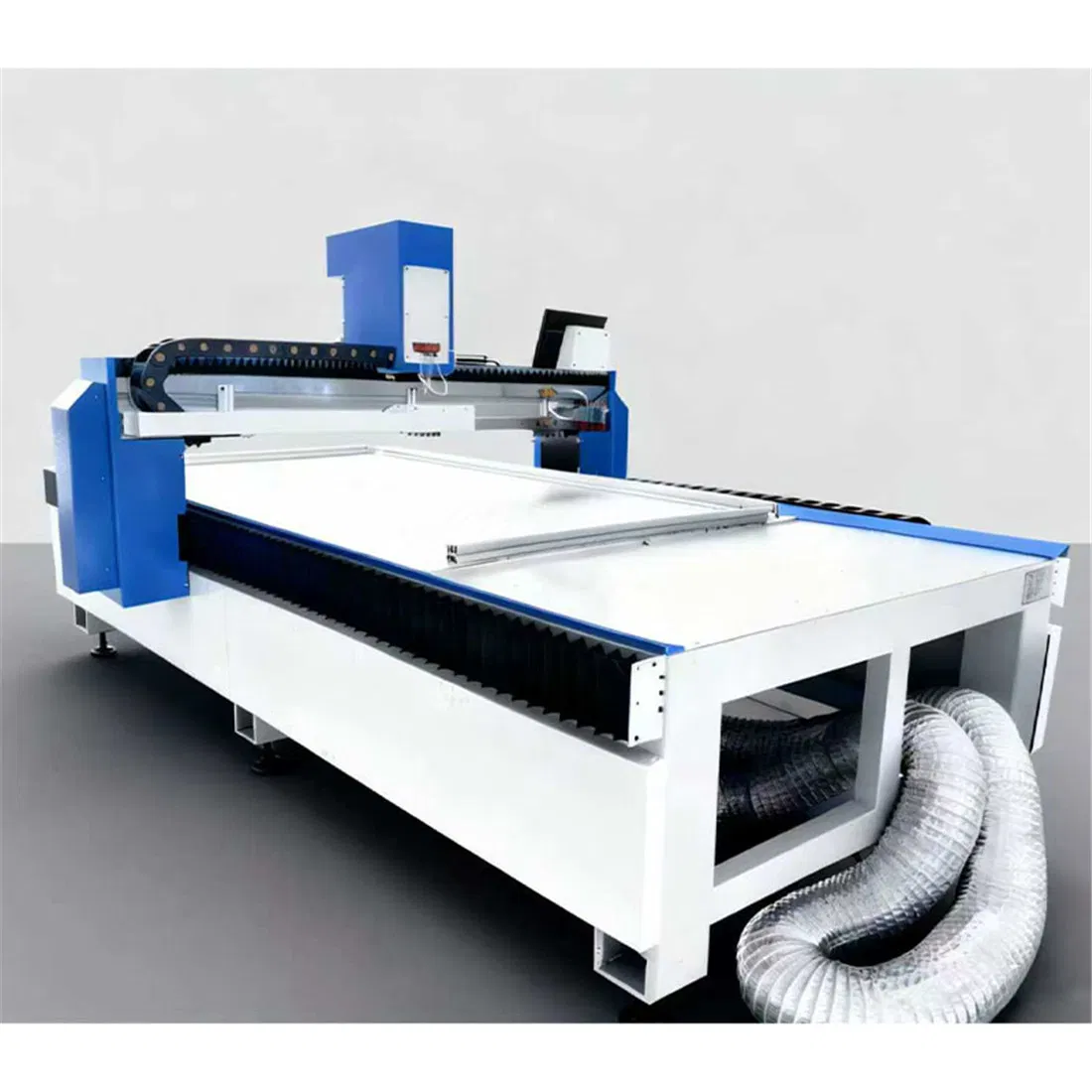

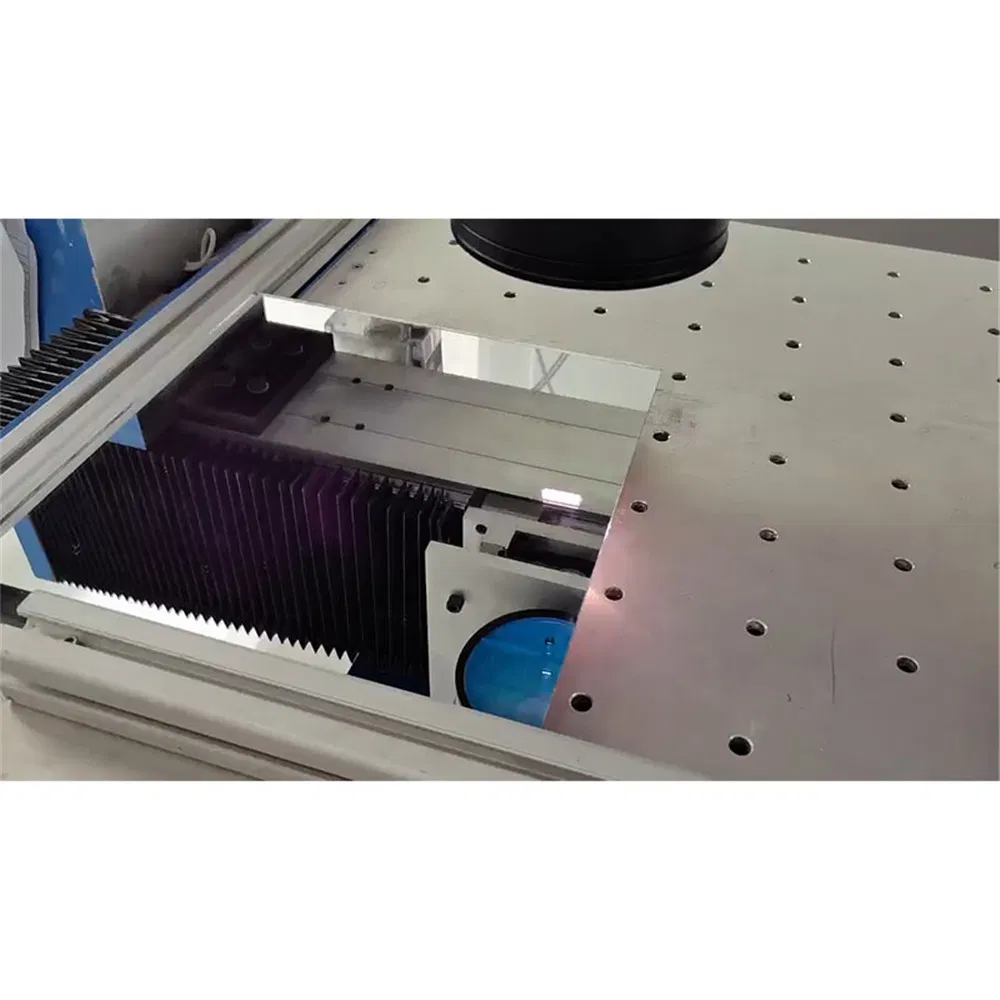

This machine is a new-generation intelligent laser processing machine independently developed, specifically designed for precision machining of coated glass, lenses, and specialty glass. This system integrates laser sandblasting, coating removal, and glass drilling into one unit, replacing traditional frosting and sandblasting processes. It enables a one-pass, green, and consumable-free processing mode, offering high efficiency and environmental benefits.

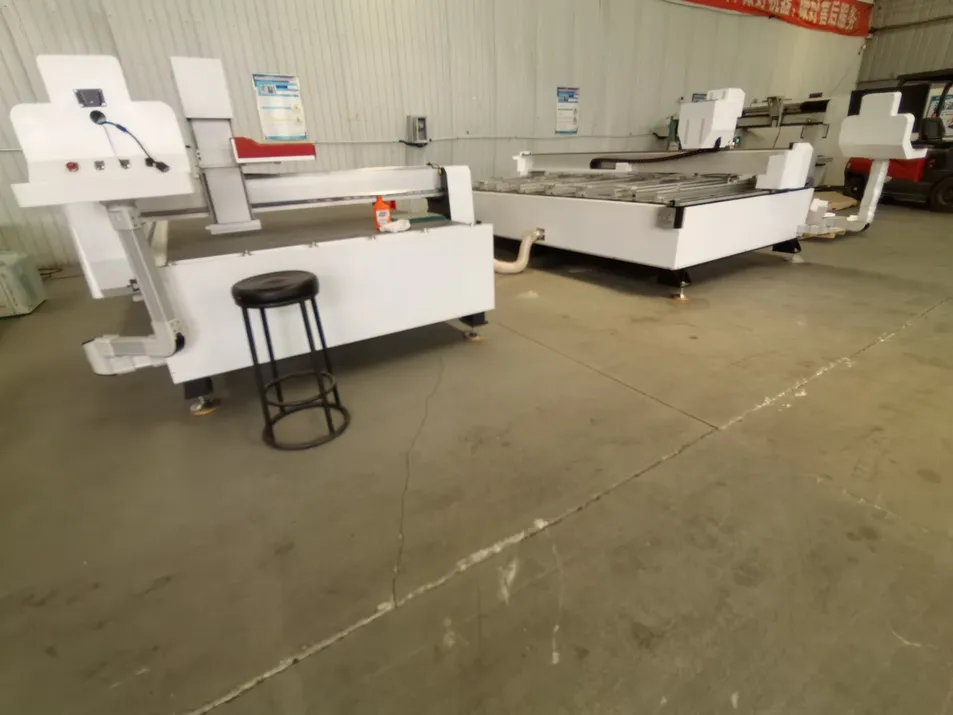

The large-format horizontal design dramatically increases space utilization. It is tailored for the seamless loading, processing, and unloading of large glass sheets and mirrors, minimizing the machine's footprint. This streamlined workflow reduces material handling time, accelerates production turnover, and significantly boosts overall line efficiency.
Equipped with a dedicated industrial dust collector that intelligently tracks the laser head. The entire extraction system moves in sync, capturing fumes and debris directly at the source in real time. This maintains a pristine workshop environment, protects critical optics and mechanics, and ensures unwavering processing precision and system stability.

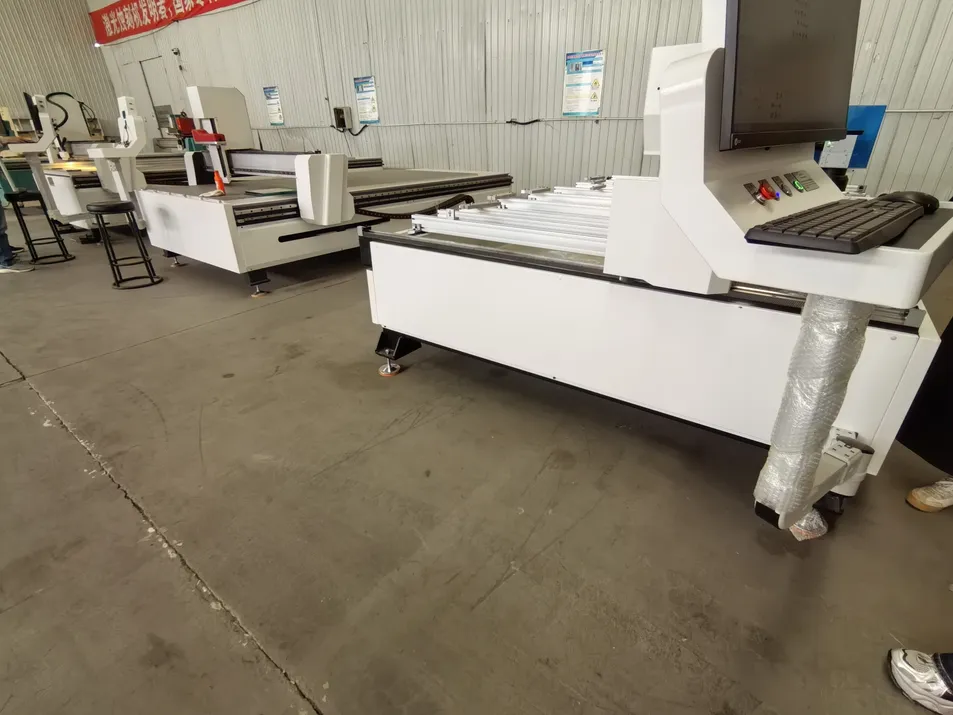

Equipped with a high-brightness laser source engineered for reliable operation in extended temperatures from -10℃ to 40℃+. It resists shutdown in cold conditions and maintains performance in heat, enabling continuous, year-round operation with strong environmental adaptability for challenging workshop conditions.
Equipped with premium imported components throughout, including Italian linear guides, Japanese gear reducers, and French electrical systems. This extends the lifespan of core parts by 3-5 years, significantly reducing long-term maintenance costs and unplanned downtime for greater durability and peace of mind.
| Specification Parameter | Model: OY1325 | Model: OY1530 | Model: OYS2040 |
|---|---|---|---|
| Table Size (mm) | 2500 * 1300 | 3000 * 1500 | 4000 * 2000 |
| Machine Dimensions (mm) | 3200 * 2600 * 1600 | 3700 * 2800 * 1600 | 4700 * 3300 * 1600 |
| Laser Power | 200W | 200W | 250W |
| Machine Power | 3KW | ||
| Power Supply | 220V / 50HZ | ||
| Work Model | Fiber Moving Laser | ||
| Work Environment | ±5℃ to 35℃ | ||
| Working Size Range | 5 * 5 * 2 mm -- 2400 * 1200 * 50 mm | ||
| Data Format | DXF | ||
| Operating System | Windows 10 | ||
| Control System | Custom-Engineered Height Tracking System with Lens Follow-up (Imported) | ||
| Feature Category | Function Type | Detailed Introduction |
|---|---|---|
| Processing Functions | Sandblasting | Enables precise sandblasting on mirrors and glass. It strips coatings and performs sandblasting in a single seamless step to significantly improve overall efficiency. |
| Drilling | Efficiently processes special-shaped holes, micro holes, round holes, waist-shaped holes, and square holes to satisfy diverse industrial requirements. | |
| Paint Removing | Specialized mirror paint removing processing capability. | |
| Control System | Professional Software | Professional-grade sandblasting and drilling software ensures ultra-high precision, high-efficiency paint removal, and single-pass completed work cycles without secondary processing. |
| Operating Desk | Flat Worktable | The workbench surface is constructed from high-grade PVC to ensure absolute flatness, completely eliminating the need for frequent manual alignments. |
| Environmental Protection | Dust Collection | The synchronous dust removal system keeps both the workspace and surrounding environment clean throughout processing by dynamically tracking the source and absorbing dust particles. |

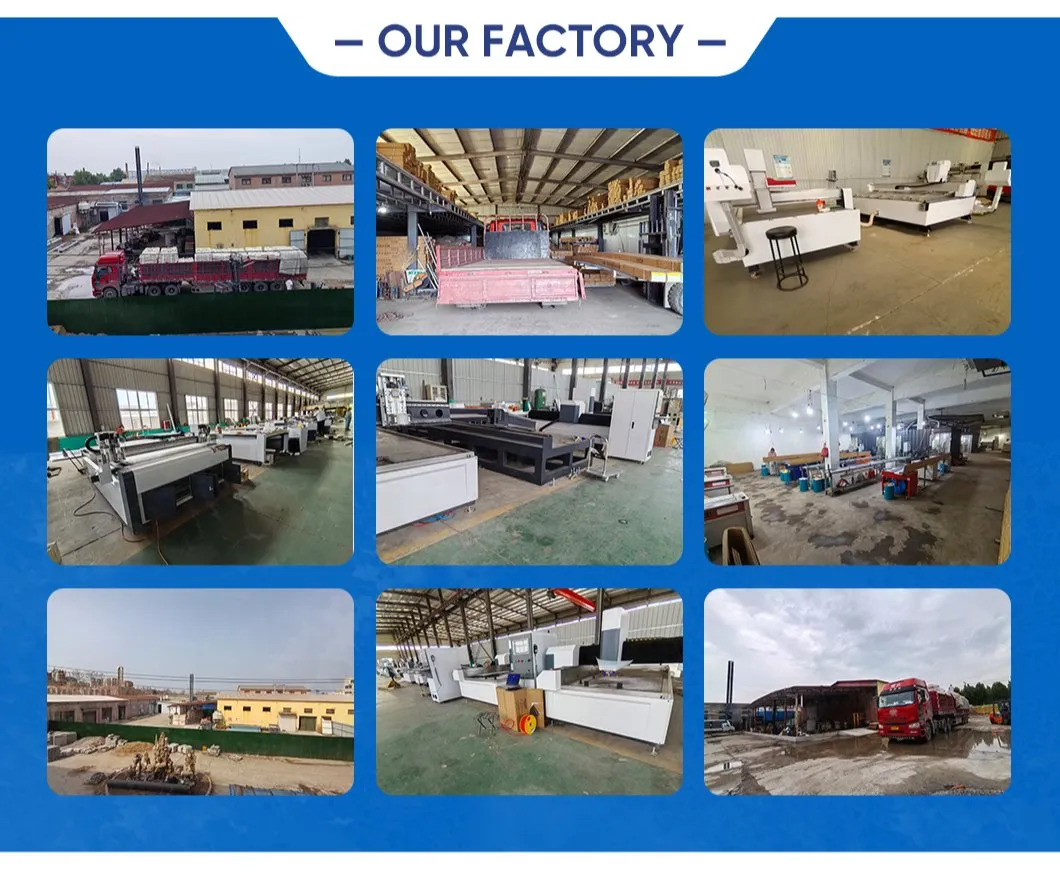

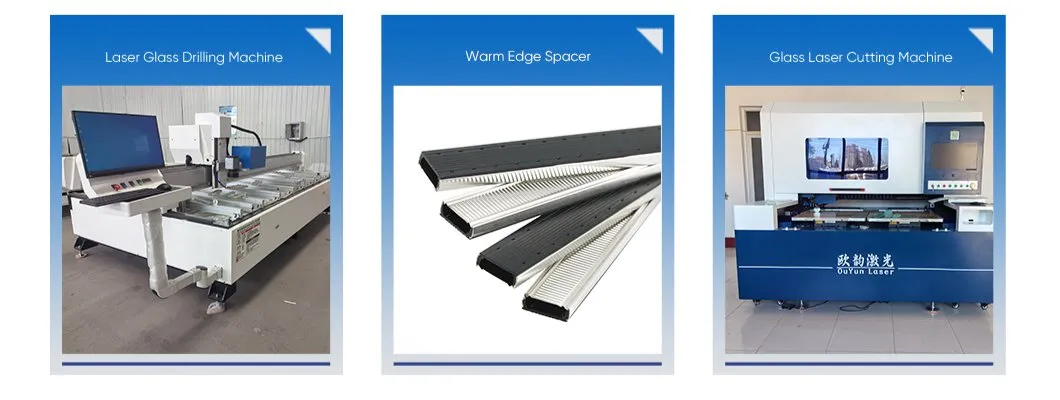

We are a professional, production-oriented enterprise integrating design, research and development, production, and sales. We are mainly engaged in glass laser cutting machines, glass laser splitting machines, glass fiber drilling machines, insulating glass warm edge production lines, composite stainless steel spacer bars, glass fiber warm edge spacer bars and co-extruded warm edge related production equipment, aluminum spacer bars, and related spare parts for insulating glass, etc. All of our products have passed national quality certification.
Adhering to the business philosophy of "Quality to win the market", we focus on advanced scientific research, new product development, and maintaining state-of-the-art technology to promote the progression of the industry. Keeping up with the times, we fully comply with international concepts of energy conservation and environmental protection, delivering continuous innovation. We warmly welcome domestic and foreign friends from all walks of life for patronage, guidance, business negotiations, and technical consultation. We serve our customers with first-class technology, preferential prices, thoughtful service, and a reliable reputation.
