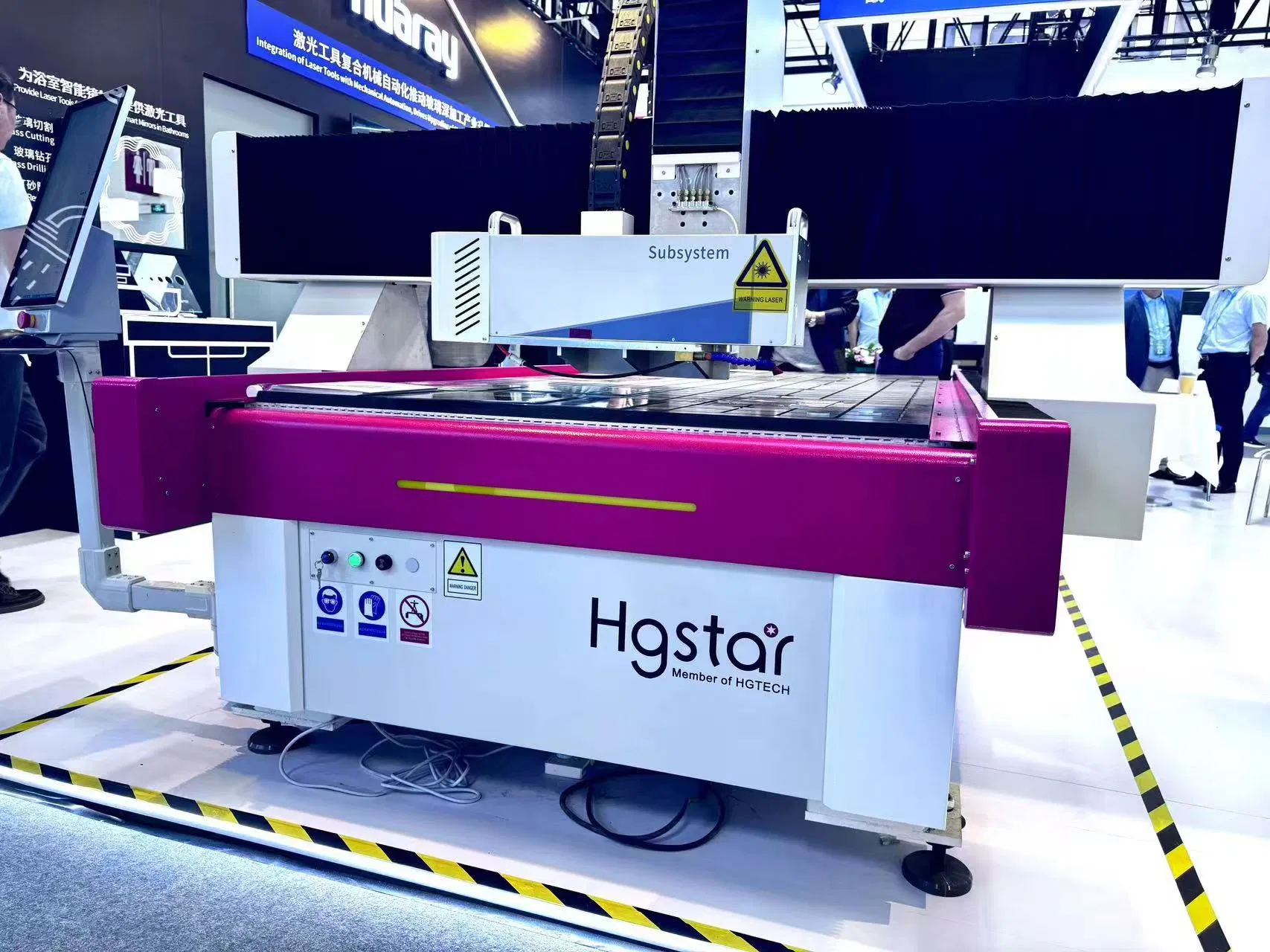

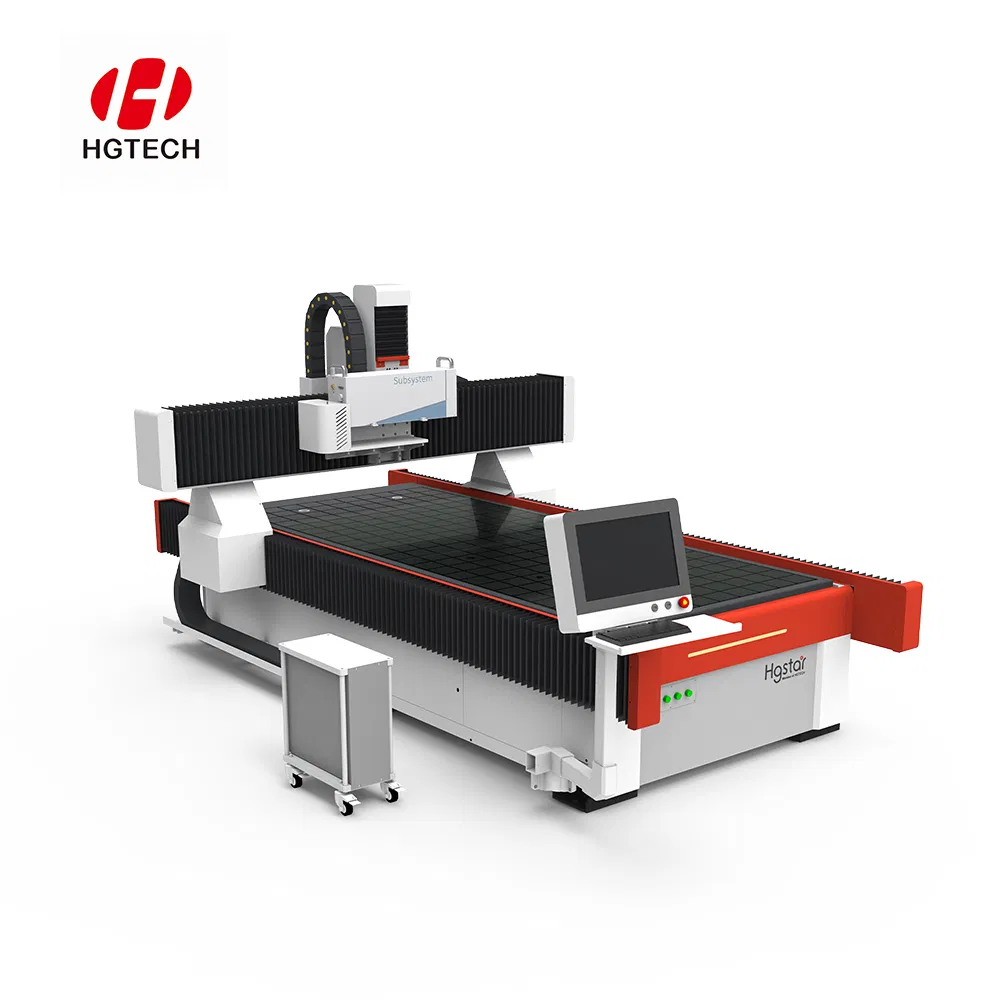

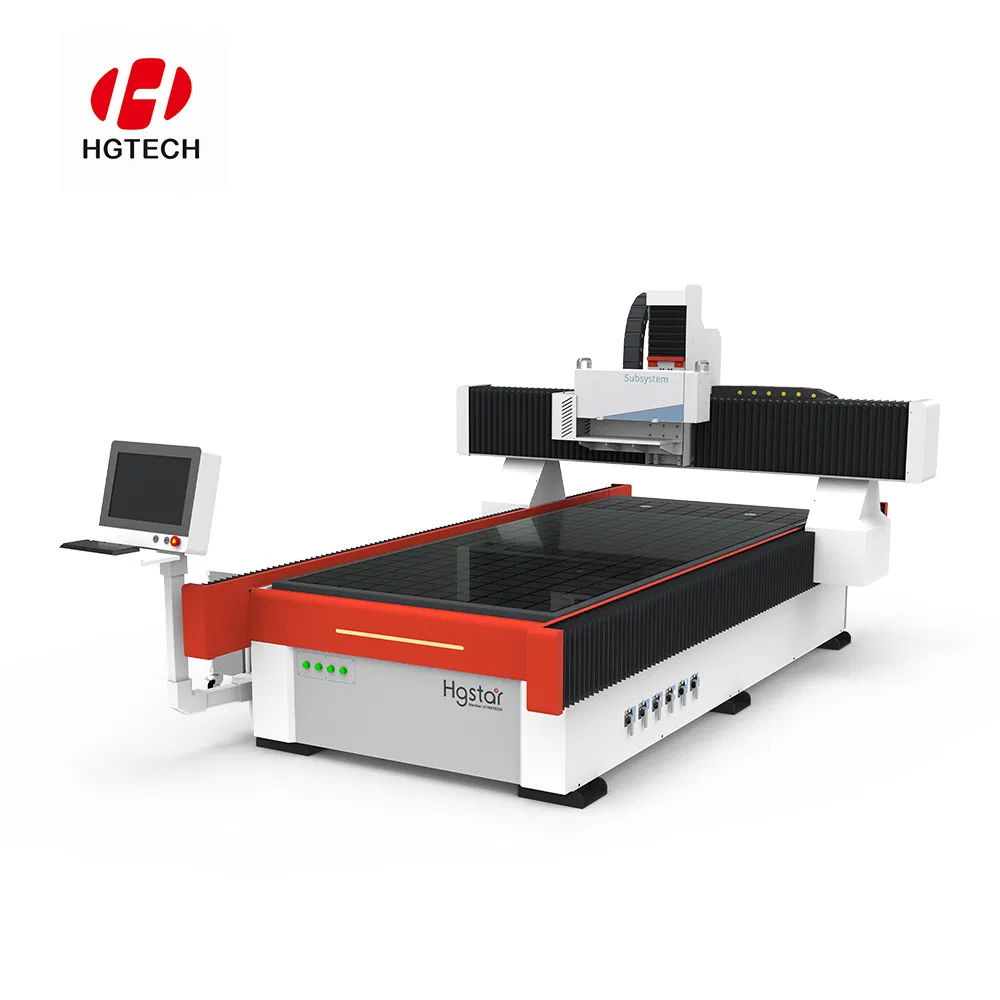

Smart HGM is a new-generation intelligent laser processing machine specifically designed for precision machining of coated glass, lenses, and specialty glass. This system integrates laser sandblasting, coating removal, and glass drilling into one unit, replacing traditional frosting and sandblasting processes. It enables a one-pass, green, and consumable-free processing mode, offering high efficiency and environmental benefits.
Laser Wavelength
1060nm
Laser Source & Average Power
MOPA >105w @200KHz
Power Stability
<3%
Cooling Medium
Distilled/Purified Water (Set to 28°C)
Net Weight
1200kg
Spot Diameter (Focused)
0.04mm
Max Processing Area
1300*2500mm
Total Power Consumption
3KW
Control System
Zeus Motion Control System
Operating System
i5 Processor, 6GB RAM, Windows 10, 64-bit
Power Supply
220V~240V 1PH 50~60Hz
Applications
●Laser paint removal on smartphone glass covers or protective shells for logo patterns and indicator window openings.
●Micro-hole drilling on glass components for smart wearable devices (microphone holes, sensor openings).
●Laser sandblasting for AG (anti-glare), matte finishes, or localized anti-slip surface textures.
●Laser film removal on the surface of photovoltaic glass (edge coating removal).
●Drilling of vent holes and positioning holes in battery glass housings.
●Laser sandblasting for patterned treatment on microcrystalline and induction cooker glass.
Frequently Asked Questions
1. What types of glass can your machine process?
Our machines can handle float glass, Low-E glass, coated glass, mirror glass, and specialty glass in thicknesses ranging from 2 mm to 25 mm.
2. What is the maximum sheet size it can handle?
Our standard models handle up to 4200mm x 2800mm. Custom sizes are also available upon request to meet specific production needs.
3. How accurate is the laser drilling and cutting?
The processing precision is ±0.15 mm, ensuring clean edges and high-quality holes suitable for tempering, laminating, or IGU production.
4. Is the machine difficult to operate?
No. The machine features an intuitive touchscreen interface, supports CAD/CAM files, and offers automatic nesting for simplified operation.
5. How long does installation and training take?
Standard installation typically takes 2-3 days, with comprehensive operator training completed in an additional 1-2 days.
6. Does it require consumables for sandblasting?
No, the laser sandblasting process is a green, consumable-free mode, significantly reducing long-term operational costs compared to traditional methods.
