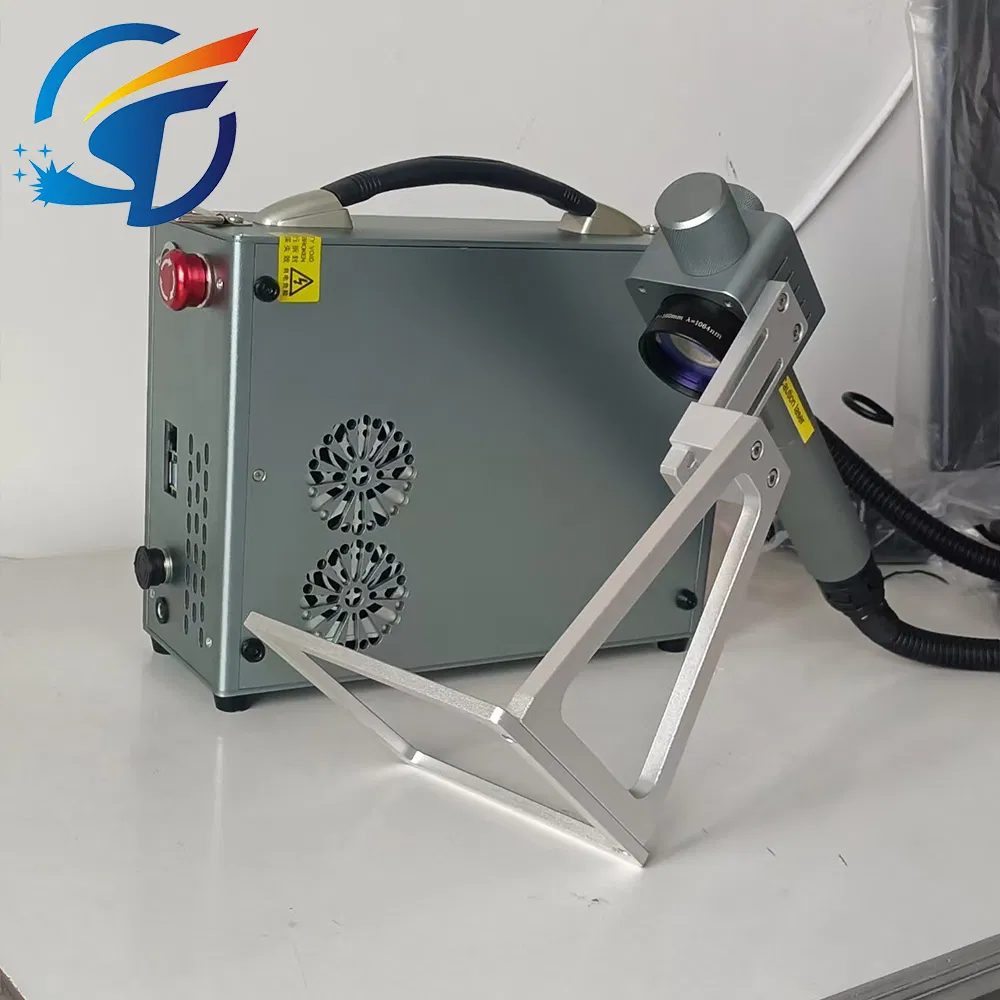

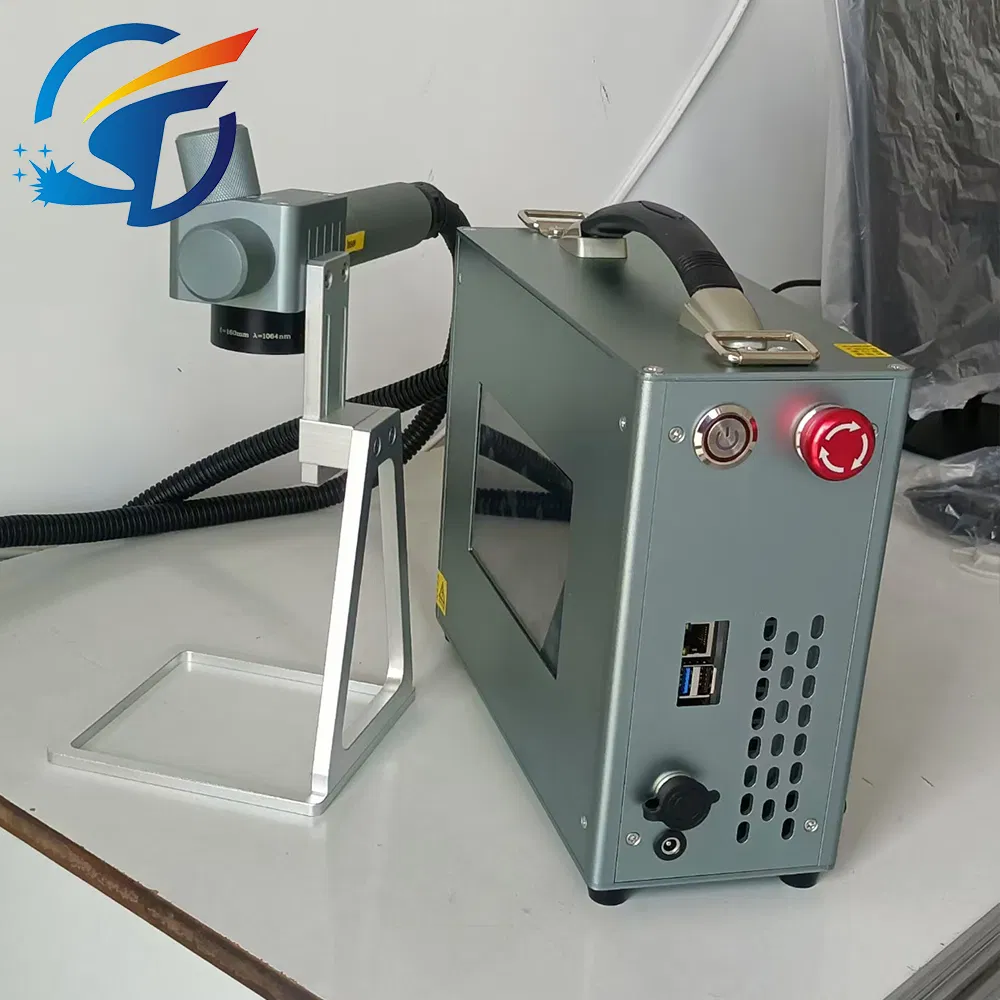

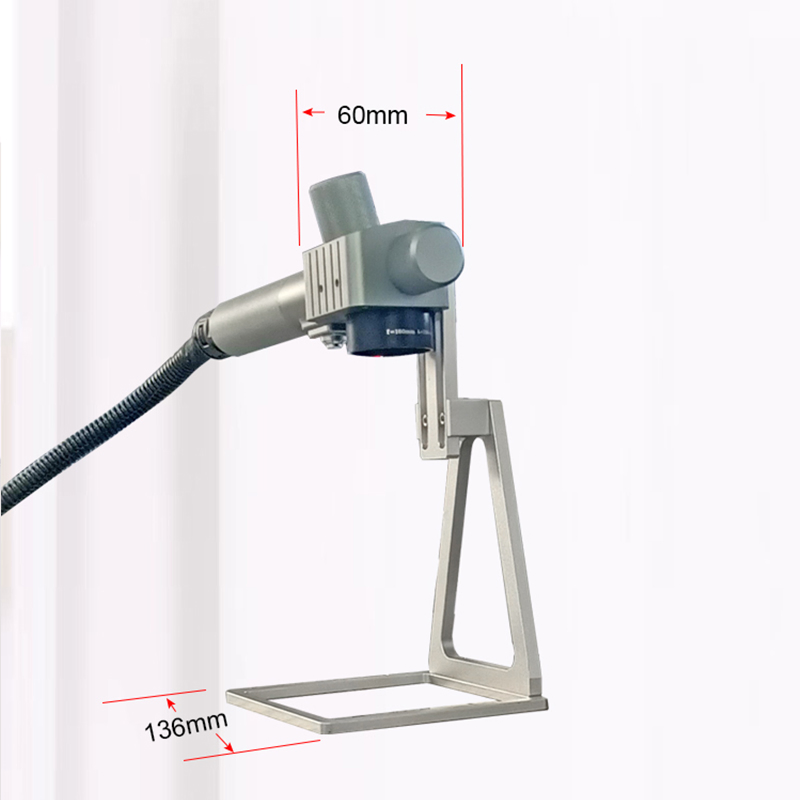

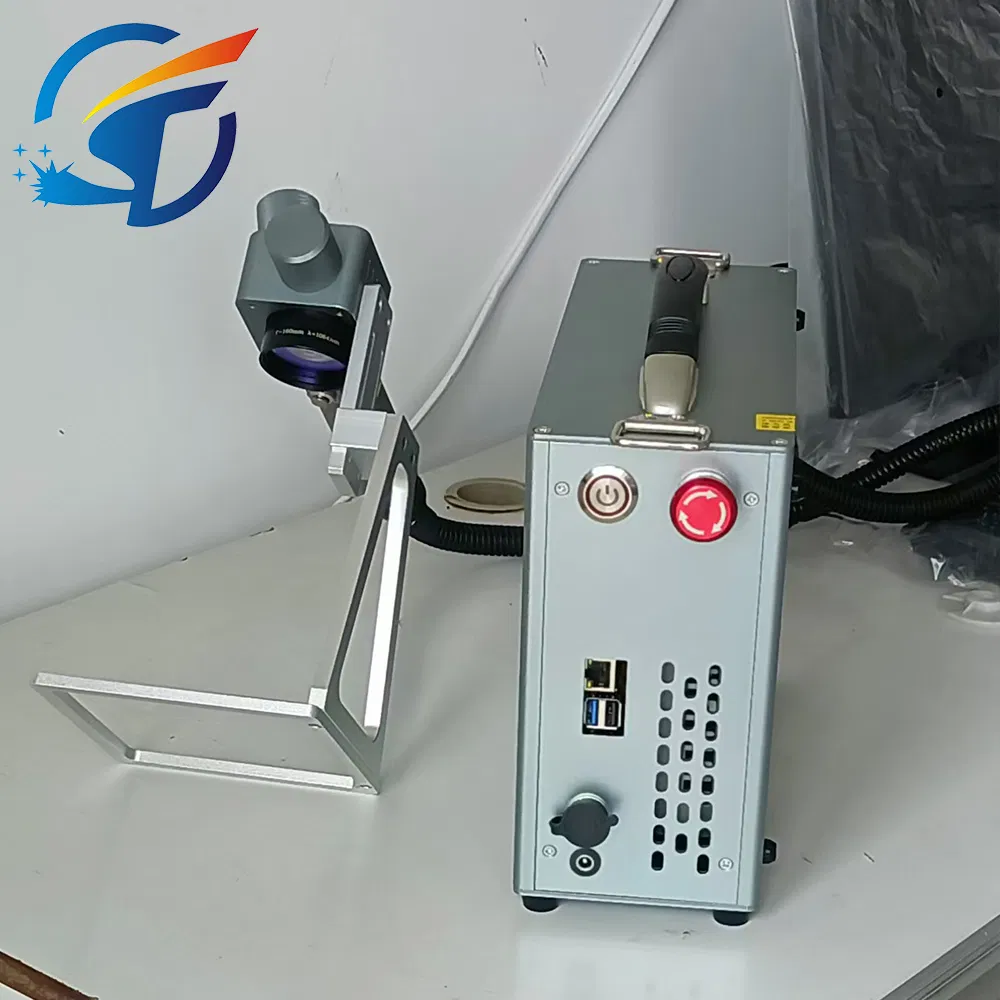

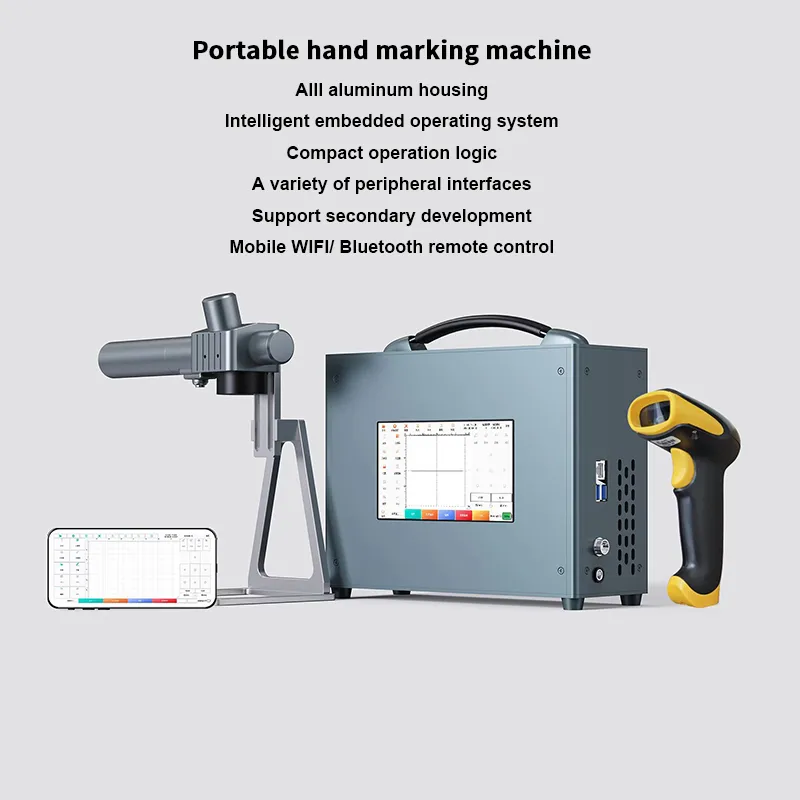

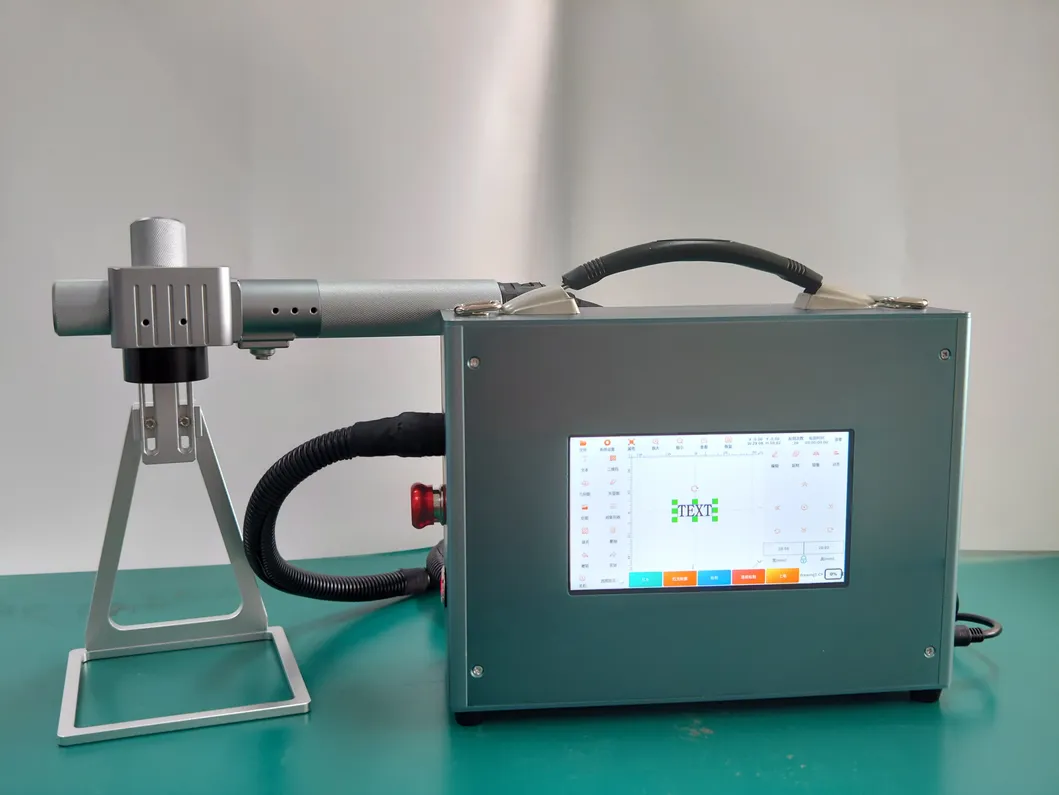

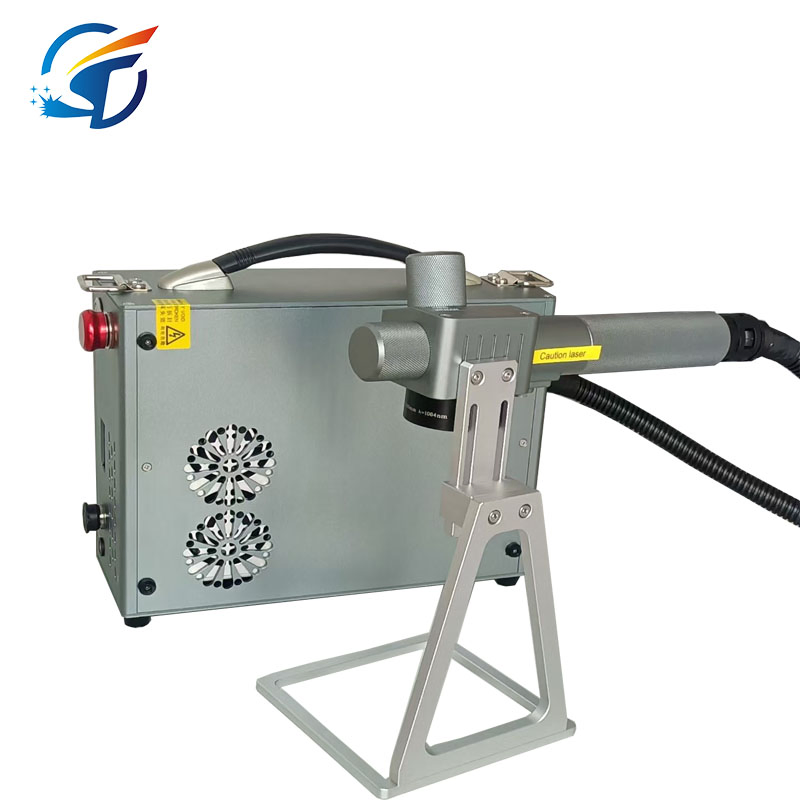

Support custom gaze screen and Logo, multiple languages. The handheld laser marking machine is small and flexible. The marking head is the size of a hair dryer, making it convenient for marking operations without space limitations. It features high speed, high quality, and high cost performance.
| Parameter | Specifications |
|---|---|
| Power | 20/30W (50W under R&D) |
| Laser Type | Fiber laser |
| Laser Wavelength | 1064nm |
| Speed | ≤7000mm/s |

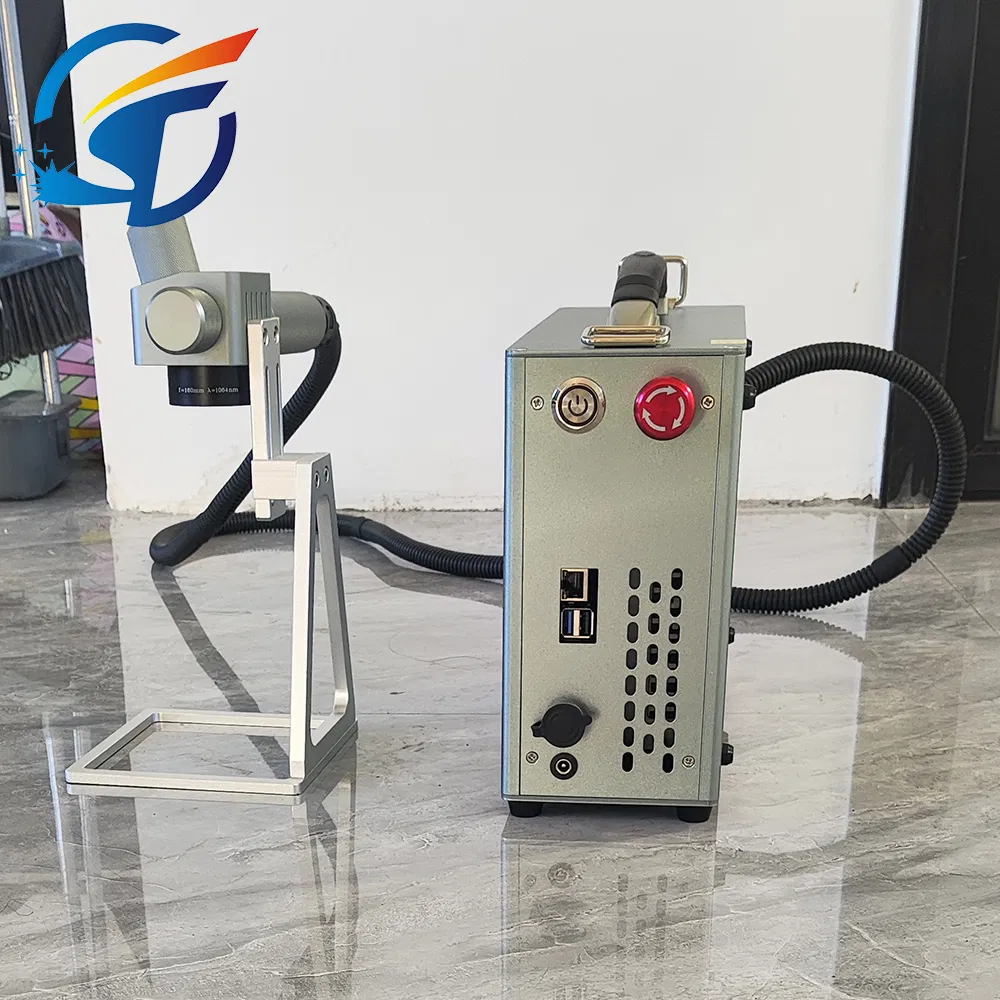

| Master Control | 7-inch touch screen |
| Cooling System | Air cooling |
| Minimum Line Width | 0.001mm |
| Repetitive Positioning Accuracy | 0.005mm |
| Marking Area | 70x70mm / 110x110mm / 150x150mm / Optional |

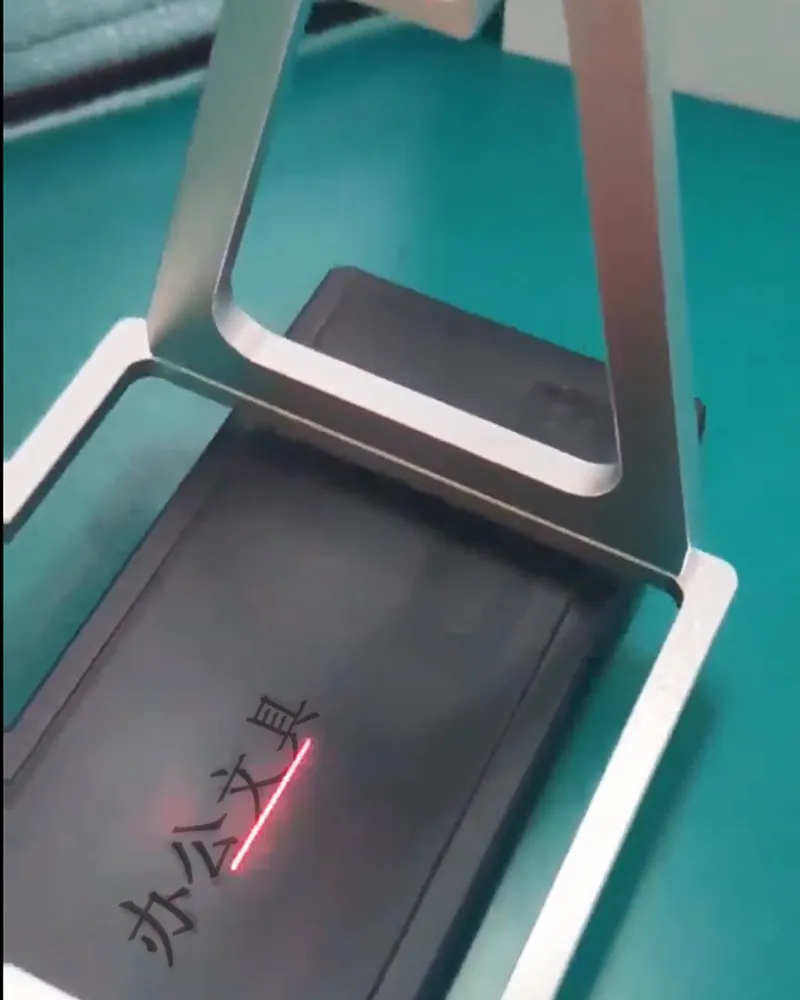

| Positioning Method | Red light indication |
| Operating System | Linux (Supports multiple languages) |
| Data Protection | Power-off data protection function |
Fiber lasers boast a service life of more than 100,000 hours. The equipment operates reliably in harsh environments involving shock, vibration, high temperature, and dust.
Utilizes an ultra-high-speed galvanometer system and optimized hardware/software control to achieve marking speeds up to 7000mm/s.

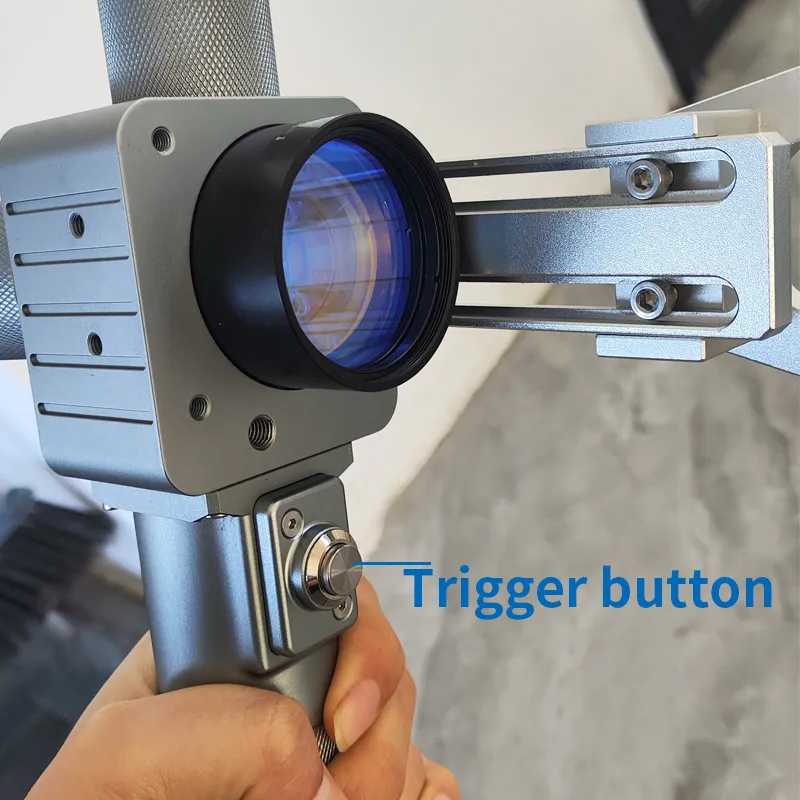

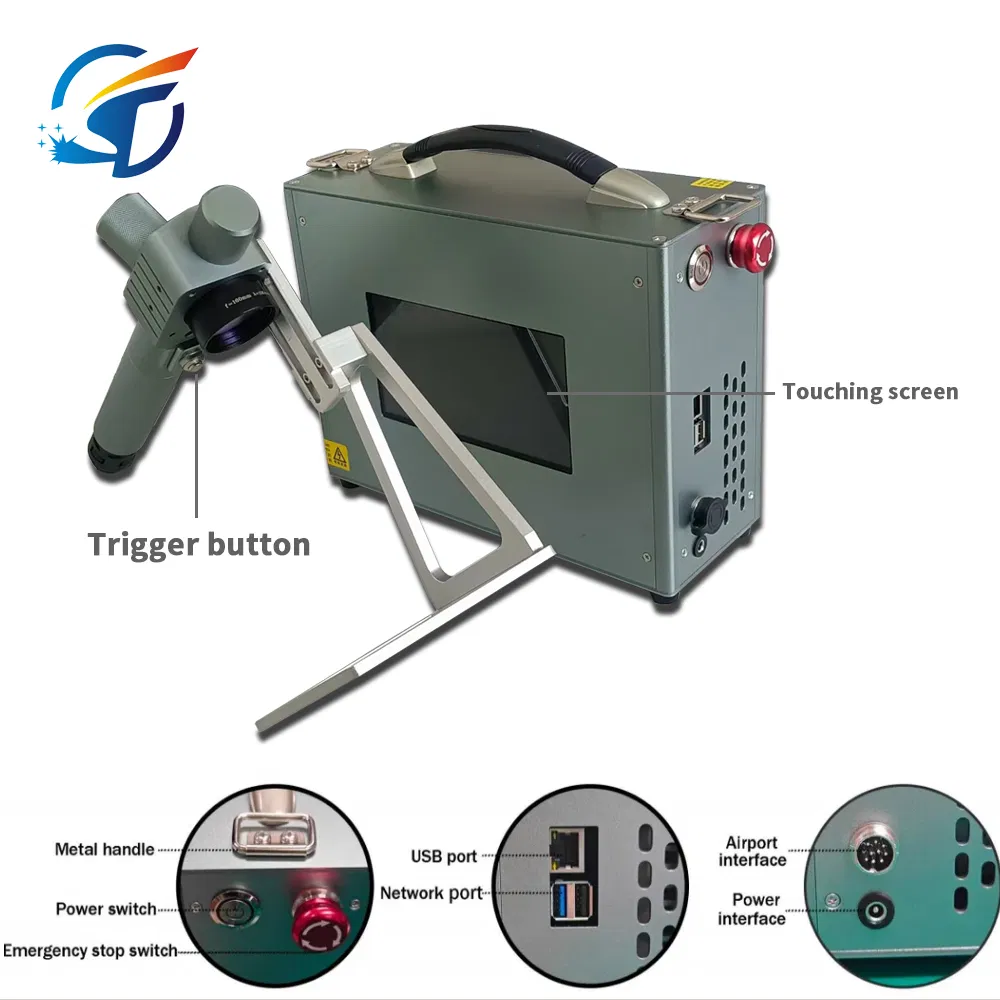

Ergonomic trigger button allows instant marking. Includes a safety lock to prevent accidental activation.
Advanced laser optics ensure consistent depth and clarity across a wide working range without repositioning.

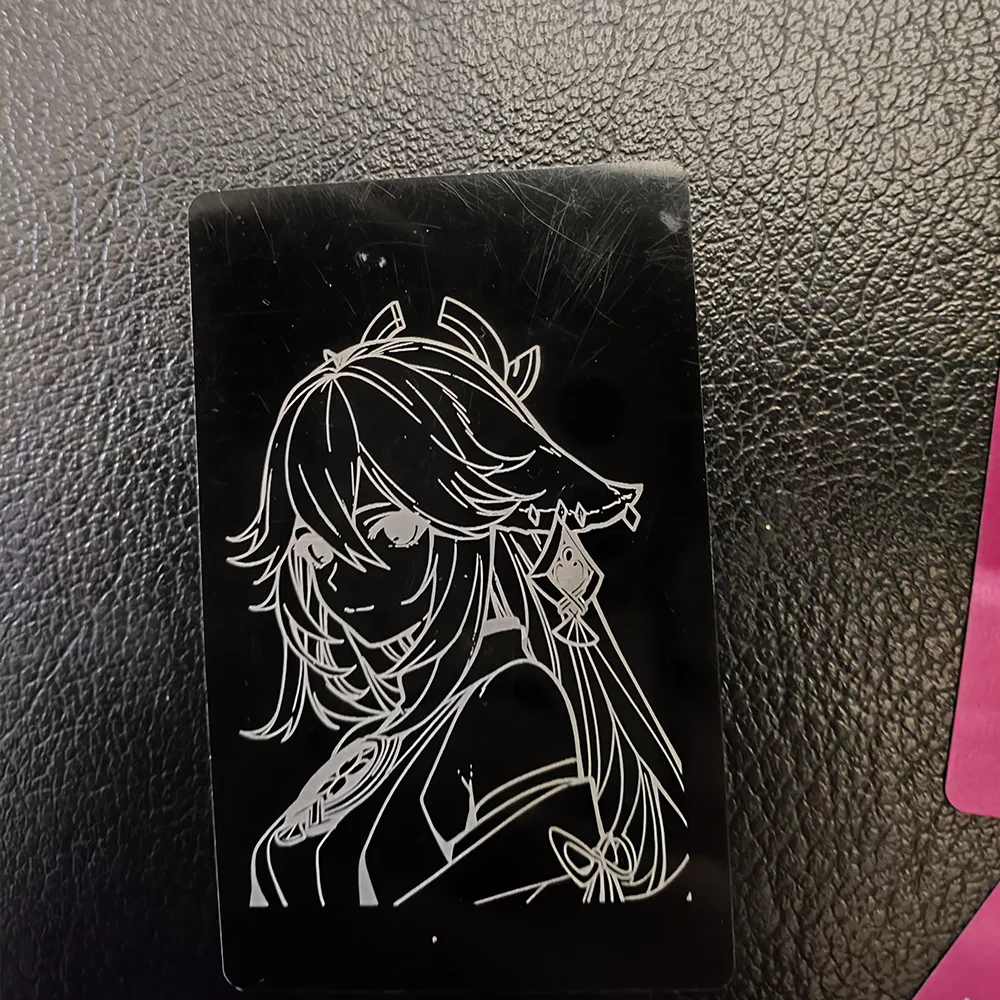

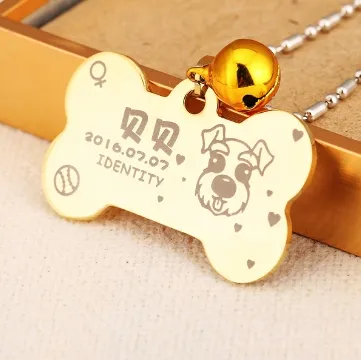

Applicable Materials: Metals (Rare metals, steel, titanium, copper), engineering plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES, and more.
Industries: Mobile components, IC, electrical appliances, sanitary ware, jewelry, auto parts, and stainless steel products.
