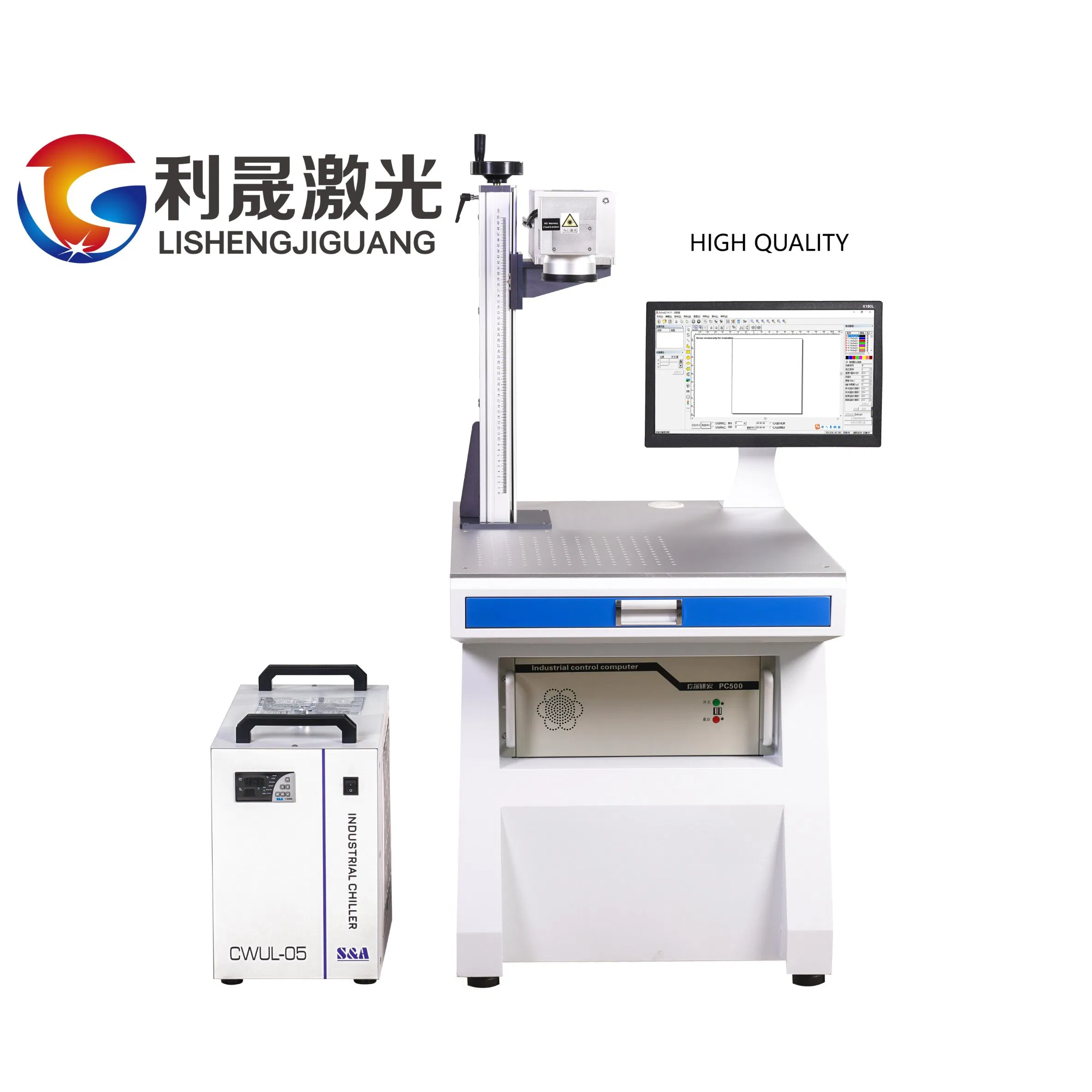

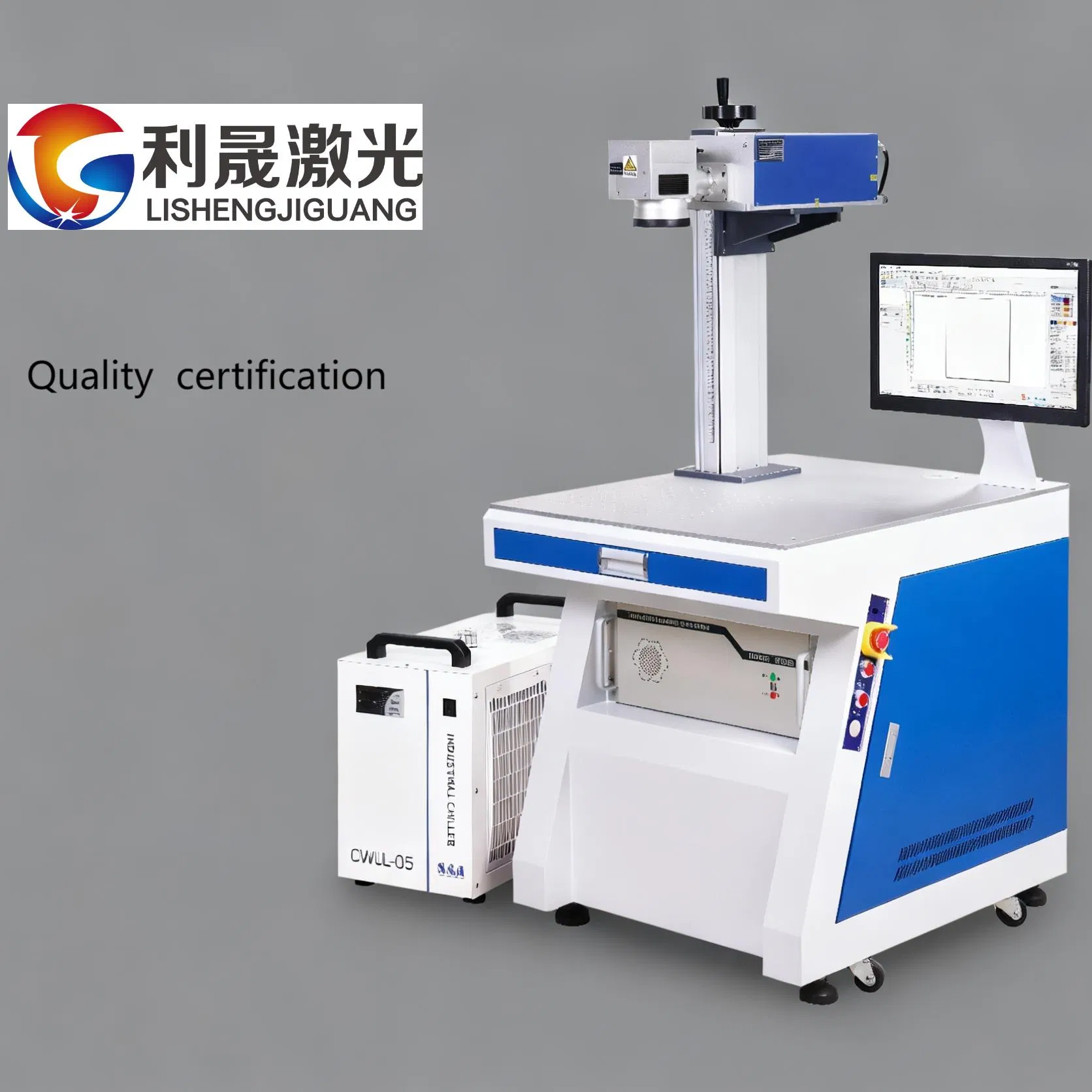

3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
1 / 5
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic
3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic

3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic

Customization: Available
After-sales Service: 24 Hours Online After-Sales
Warranty: 18 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
UV3W UV5W
Laser Visibility
Invisible
Material
Nonmetal
Cooling System
Water Cooling
Technical Class
Pulse Laser
Wavelength
Deep Ultraviolet (355nm)
Marking Speed
Max 7000mm/S
Min Line Width
0.05mm
Repeat Accuracy
±0.03mm
UV Laser Engraving Machine Overview
Product Description
Product Introduction

The UV laser marking machine is developed using a 355nm UV laser, which adopts third-order intracavity frequency doubling technology. Compared with infrared lasers, the focused spot of 355nm UV light is smaller, which can greatly reduce the mechanical deformation of materials and has small thermal impact. It is mainly used for ultra-fine marking and engraving, especially suitable for marking on food and pharmaceutical packaging materials, micro-hole drilling, high-speed dicing of glass materials, and complex pattern cutting on silicon wafers.

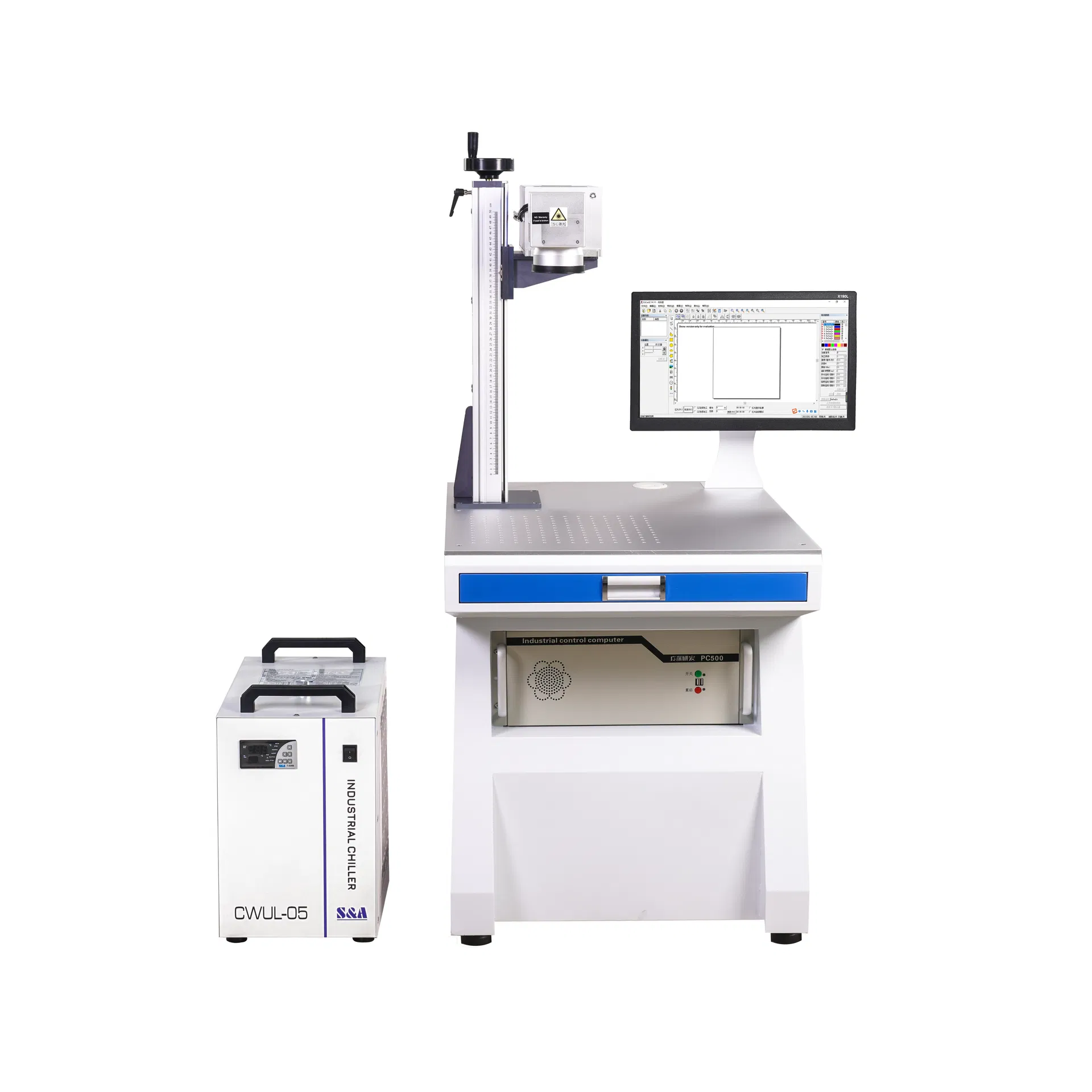

UV Marking Laser Details
Product Features
1. Stable overall performance, small size, and low power consumption.
2. High electro-optical conversion efficiency and stable laser output with long service life.
3. Extremely small laser spot output, suitable for high-precision fine graphics and text.
4. Fast response speed and high positioning accuracy via high-speed galvanometer motor.
Technical Parameters
Model LS-UV-3W LS-UV-5W LS-UV-10W
Output Power 3W 5W 10W
Laser Wavelength 355nm 355nm 355nm
Adjustable Frequency 20-100KHZ 20-100KHZ 20-100KHZ
Marking Range 140x140mm 140x140mm 140x140mm
Marking Line Speed 5000mm/s 5000mm/s 5000mm/s
Repeat Accuracy ±0.03mm ±0.03mm ±0.03mm
Cooling Method Intelligent Water Cooling Intelligent Water Cooling Intelligent Water Cooling
Application Scope
High-End Packaging: Marking on the surface of packaging bottles for medicines, cosmetics, food, and polymer materials. Clearer and firmer than ink coding.
Electronics: Marking and dicing of flexible PCB boards, micro-hole and blind-hole processing of silicon wafers.
Industrial Materials: QR code marking on LCD glass, drilling on glassware, and marking on metal coatings, plastic buttons, and electronic components.

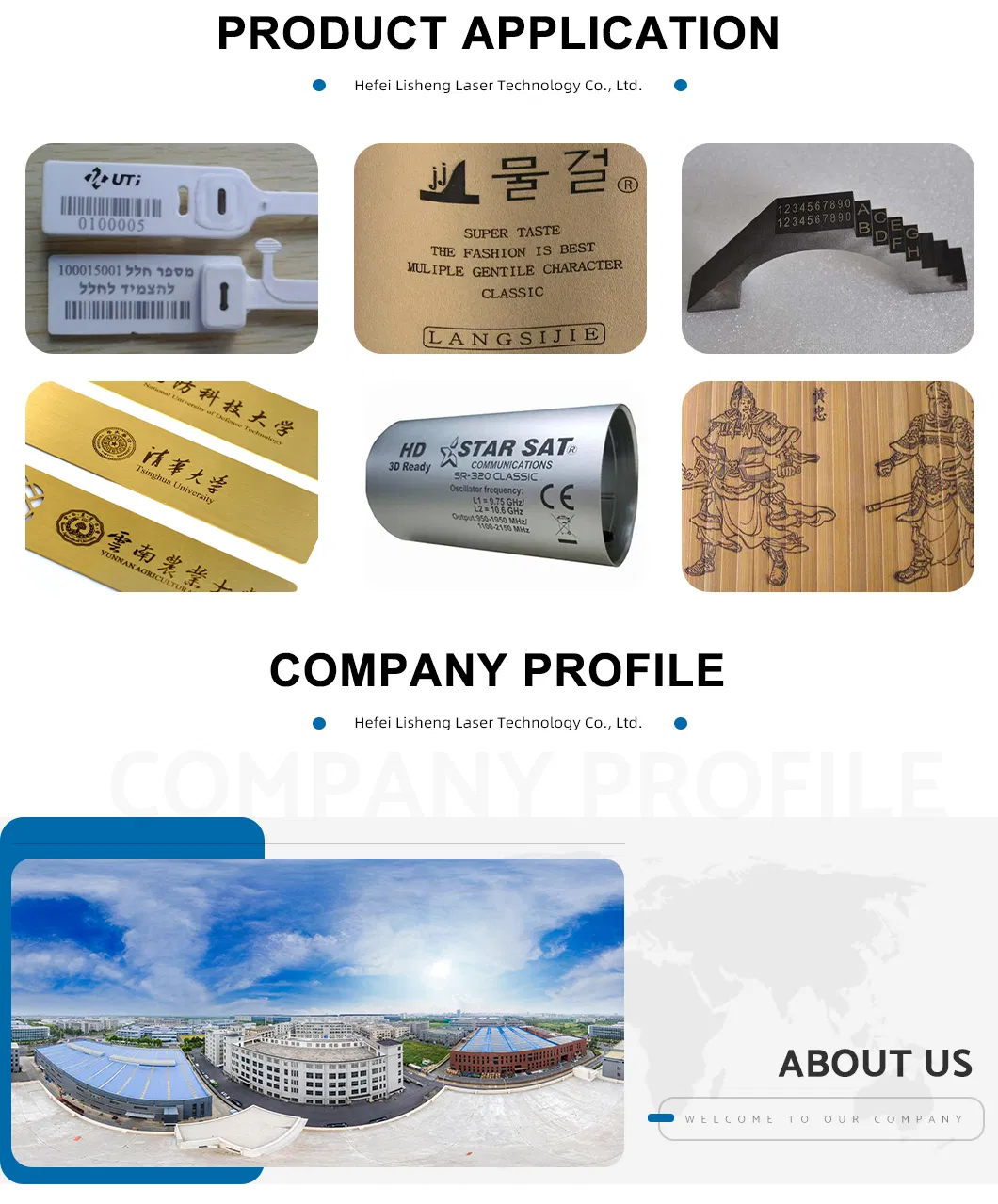

Application Examples

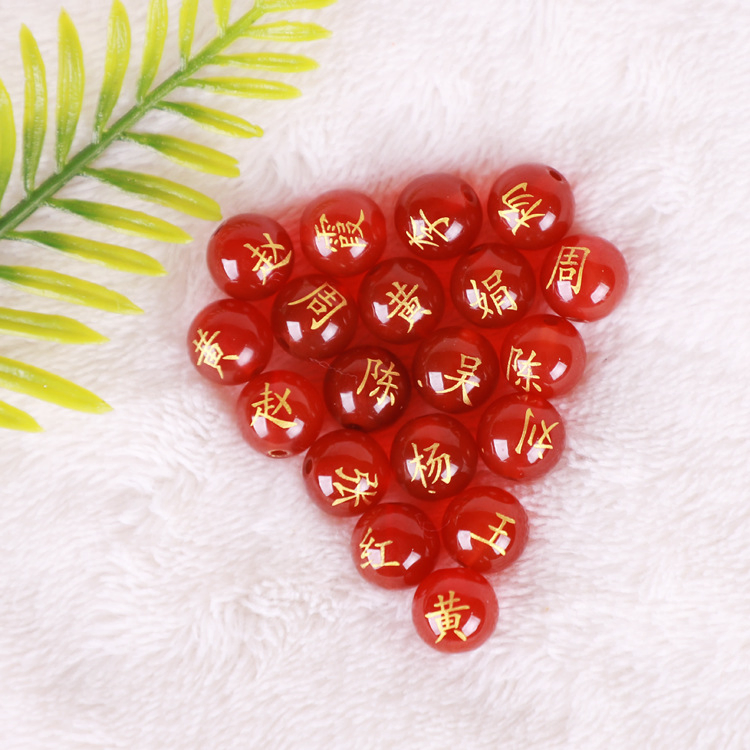

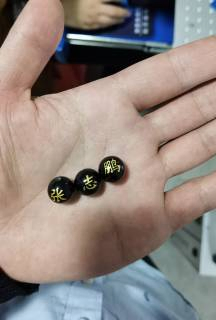

Marking Results
Packaging & Shipping
Plywood Export Packing
Package Size
100cm * 80cm * 125cm
Gross Weight
100.00kg
Frequently Asked Questions
Q1 How long is the delivery time for this UV laser machine?
For standard machines, it typically takes 7-14 days. For customized solutions based on specific requirements, delivery ranges from 15 to 30 days.
Q2 What materials are best suited for UV laser marking?
UV lasers are ideal for non-metallic materials, especially heat-sensitive products like plastics, glass, medicine packaging, and flexible PCBs, due to their "cold processing" characteristics.
Q3 What is your warranty policy?
The equipment comes with a 12-month warranty from successful debugging. Notably, the core laser generator component is covered by a 24-month warranty.
Q4 Do you provide technical support after purchase?
Yes, we have a dedicated after-sales team. Our technicians provide remote training and assistance with machine installation and operation.
Q5 How do I know if this machine is suitable for my needs?
We provide detailed specifications for reference. You can also share your specific material and marking requirements, and our technical team will recommend the most suitable model for you.
Q6 How are faulty parts handled during the warranty period?
If a component malfunctions (excluding consumables or human damage), we will repair or replace it free of charge. You can send the main components back for professional repair or receive new replacement parts.
