High-Speed Laser Cladding Equipment with High Reflection Resistance

Send Inquiry

Product Description

This solution adopts coaxial laser cladding, where the cladding material is directly fed into the laser beam, enabling simultaneous material supply and cladding. The cladding material is mainly delivered in powder form.

Laser cladding machines find application in industries including metallurgy, electric power, petroleum, chemical engineering, shipping, naval vessels, locomotives, coal machinery, and automobiles. Following cladding or remanufacturing, the products exhibit stable and reliable quality, with reduced costs and favorable social impacts.

Specification

Parameter	Technical Parameters of Laser Cladding Machine Tool
Laser Power	3000W	6000W	9000W	12000W
Laser Output Type	QBH		Q+/LOE
Laser Input Voltage	380V ± 15%
Input Voltage Frequency	47~63Hz
Laser Operating Ambient Temp	(10~40℃)
Laser Operating Relative Humidity	20%~80%
Storage Temperature	(-15~60℃)

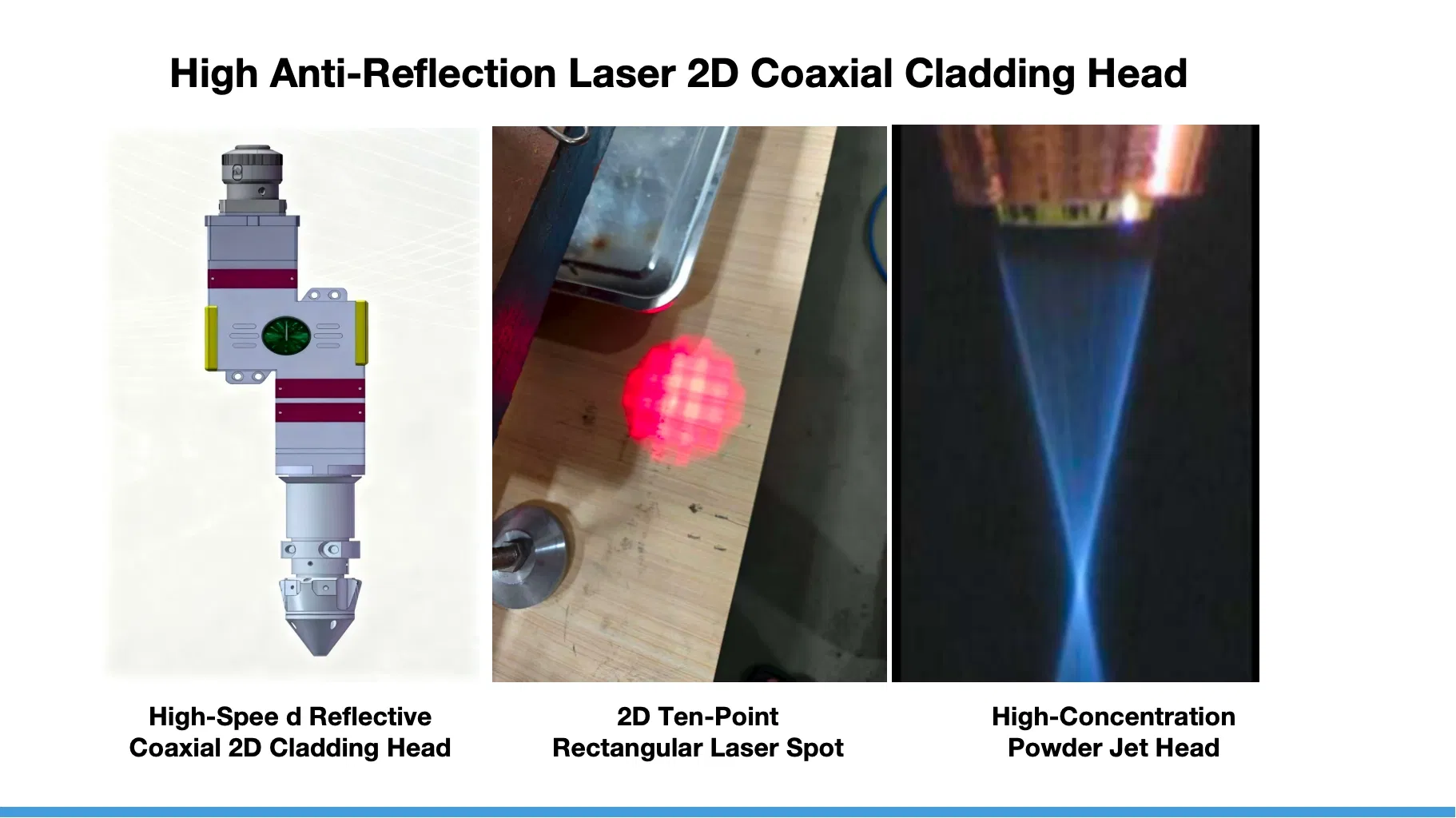

Laser Cladding Head	Matched with laser, two - dimensional rectangular spot cladding

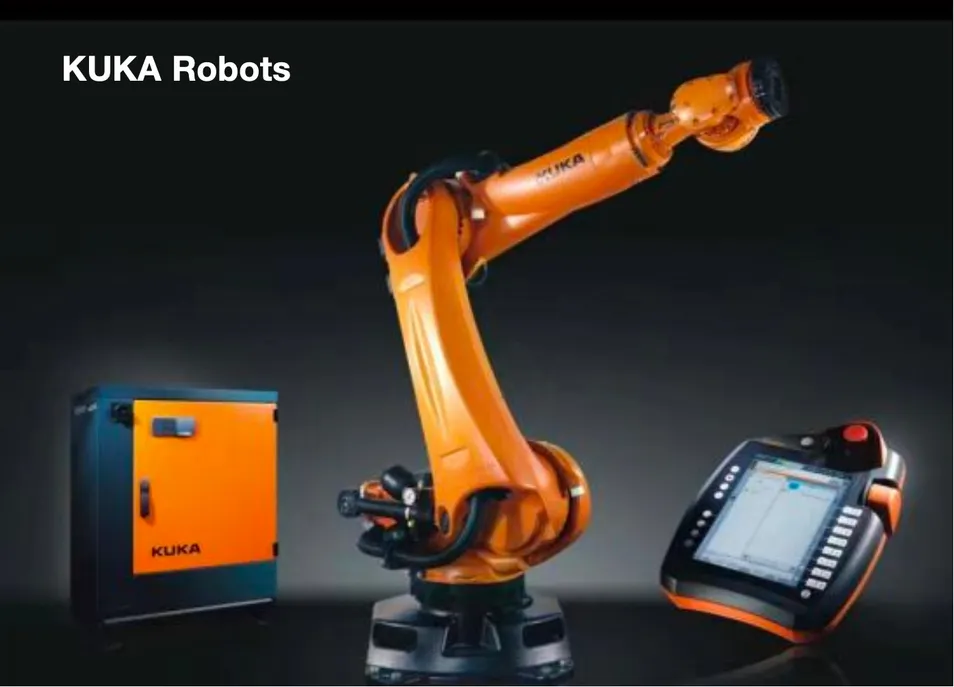

Robot	Imported KUKA KR30

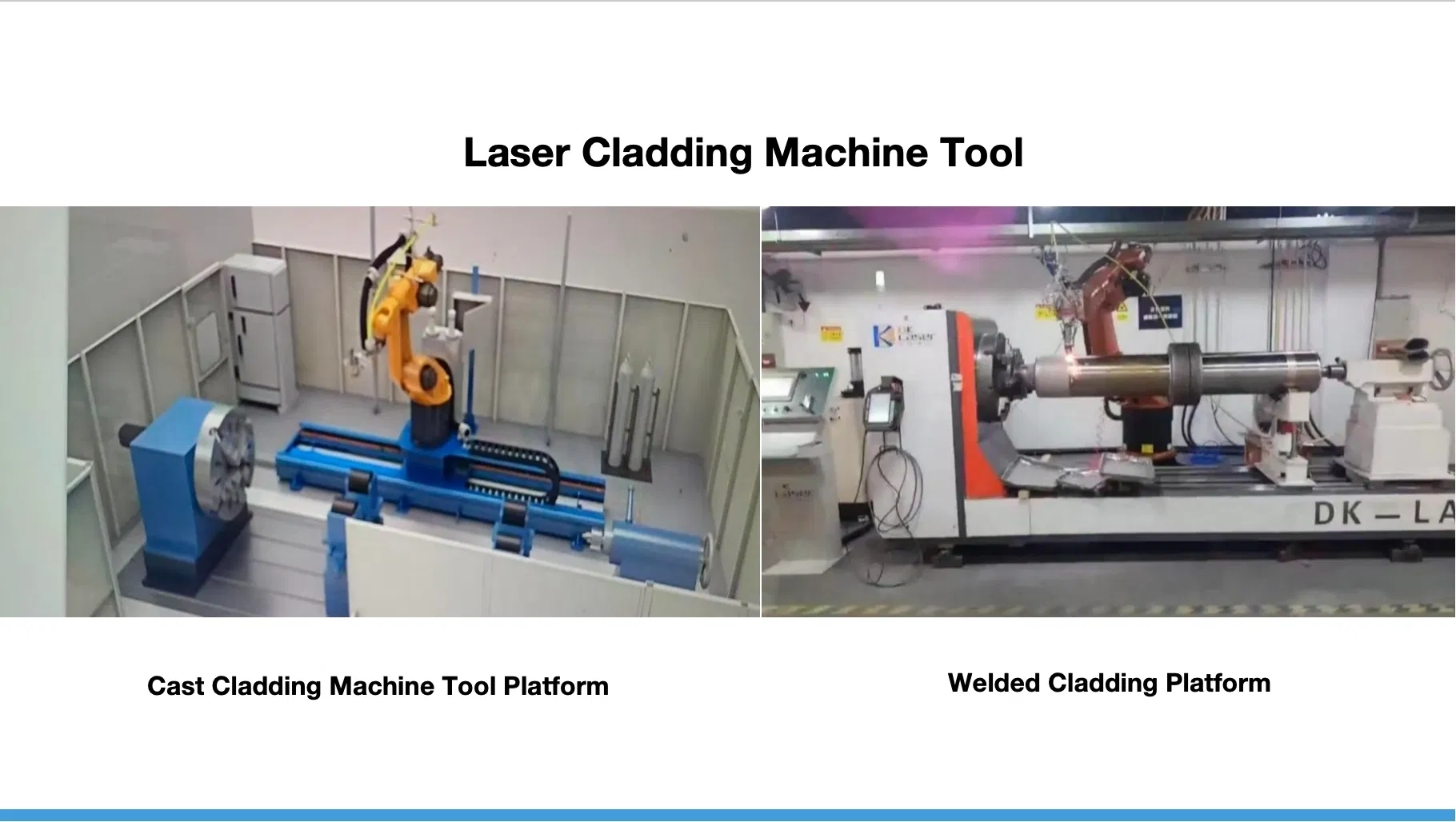

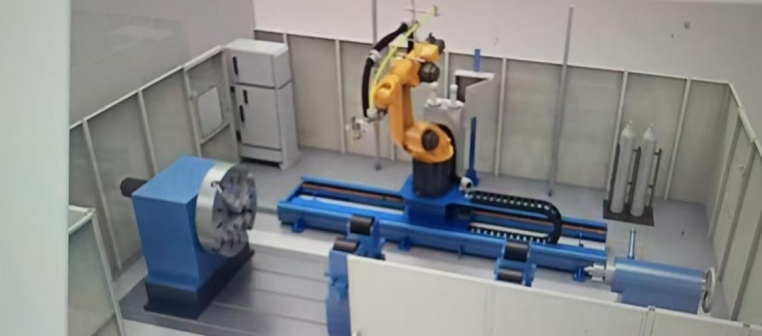

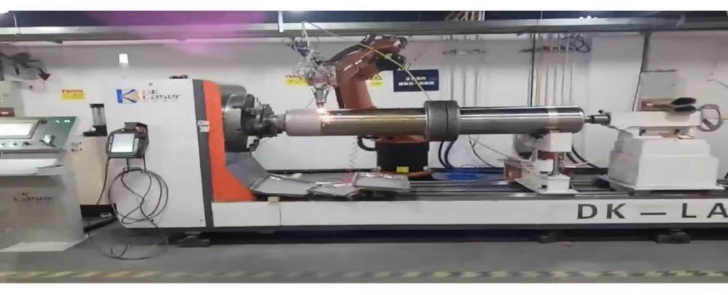

Cladding Machine Tool	Multifunctional cladding platform

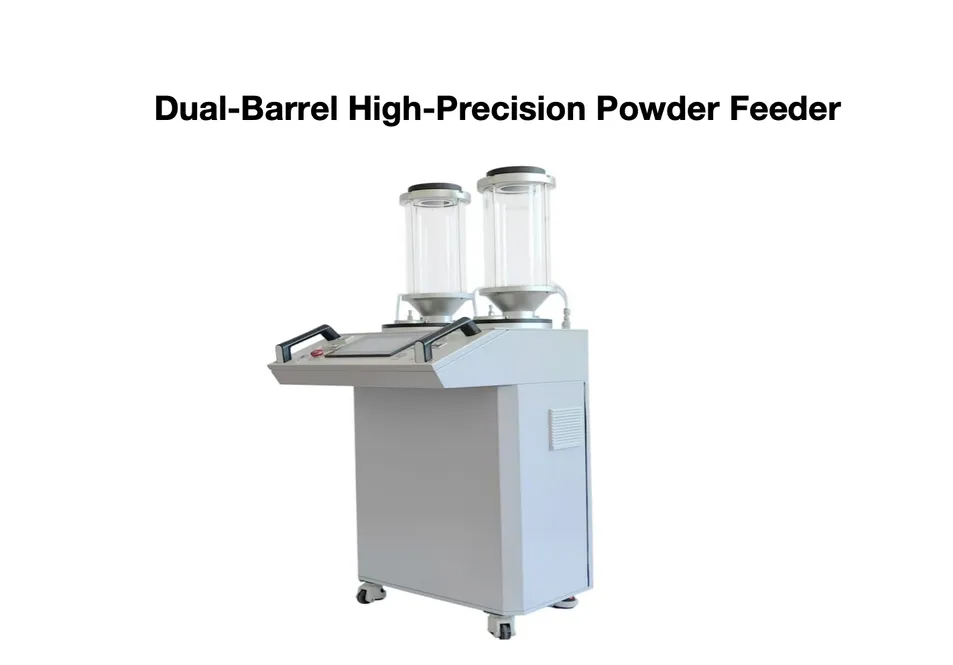

Powder Feeder	Single - barrel/dual - barrel/three - barrel optional, 10L per barrel, powder feeding accuracy ± 2%, powder feeding distance ≤ 10 meters.
Water Chiller	Matched with laser
Stabilized Power Supply	100KVA
Control System	Special - purpose cladding system (with built - in cladding algorithm)
Spare Parts	Protective lenses, powder feeder sliders, laser protective glasses, powder feeding tubes, etc.

After Sales Service

FAQ

Q This is the first time I use this kind of machine, is it easy operate?

Don't worry, we will provide customers with videos of using guidance and English user's manuals. If you still have doubts, our customer service team can connect you with our engineer who is available 24/7 to discuss and resolve any issues you may have in a timely manner.

Q Do you provide after-sales service and warranty?

Certainly, We ensure a prompt online response within two hours to provide warranty services. We also provide customers with comprehensive warranty manuals for reference. In the event that any issues persist, you can send the faulty components back to us for repair.

Q What industries can benefit from this laser cladding machine?

Our laser cladding solutions are widely applied in metallurgy, electric power, petroleum, chemical engineering, shipping, naval vessels, locomotives, coal machinery, and automotive industries to restore parts and enhance overall performance.

Q What laser power options are supported by the system?

The cladding system supports various laser power outputs to fit different project requirements, including 3000W, 6000W, 9000W, and 12000W models.

Q What are the specifications of the integrated powder feeding system?

It features single-barrel, dual-barrel, or three-barrel options with a 10L capacity per barrel. It boasts a high feeding accuracy of ±2% and allows a feeding distance of up to 10 meters.

Q Which robotic system is integrated with the laser cladding machine?

The system comes integrated with an imported KUKA KR30 robot, ensuring high precision, reliability, and smooth operations for multi-dimensional cladding paths.
