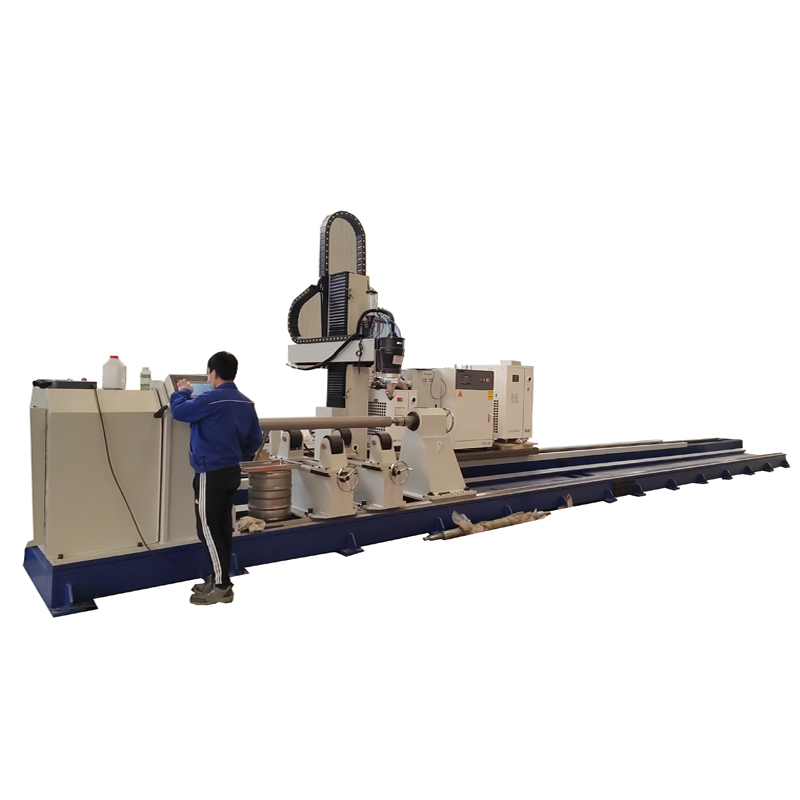

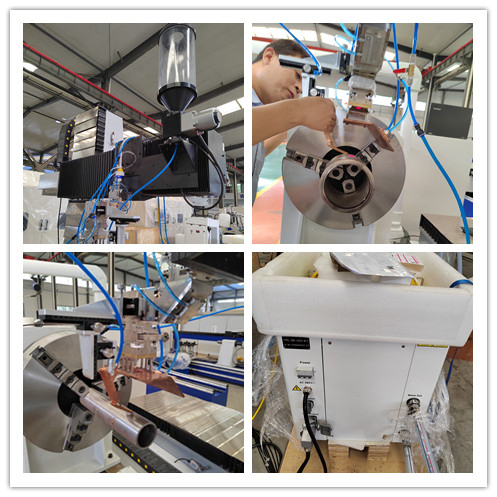

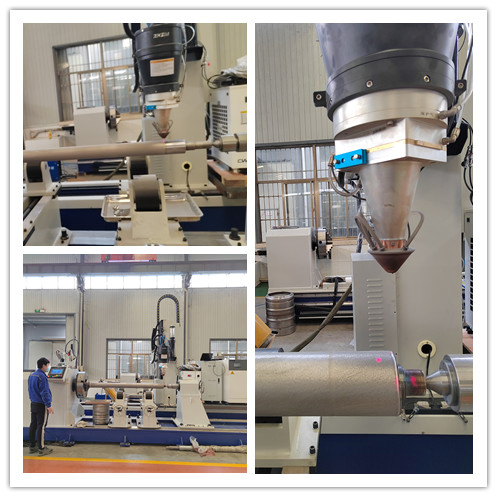

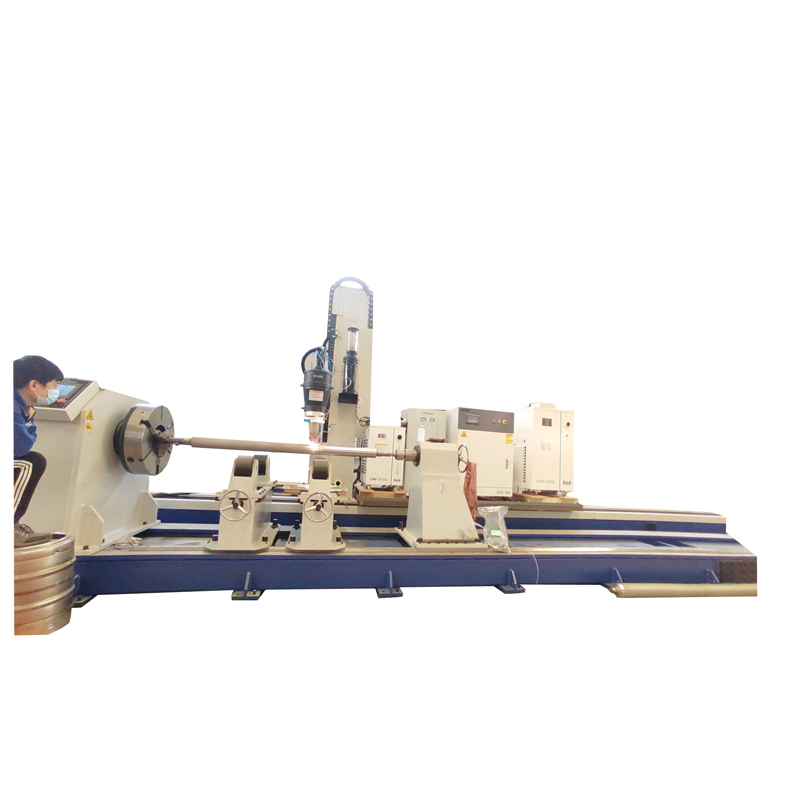

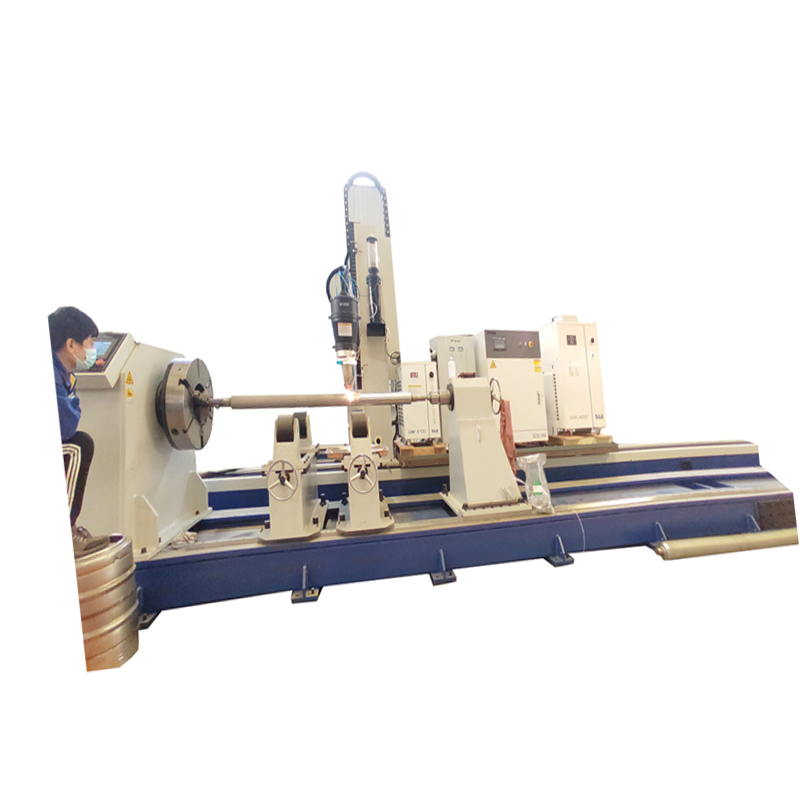

Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
1 / 5
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine
Jinan Haoyu CNC Laser Cladding Machine

Jinan Haoyu CNC Laser Cladding Machine

Customization: Available
After-sales Service: Oversea Service Available
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
NZC-HAB
Application
Powder Metallurgy, Manufacturing, Mining
Technical Class
Continuous Wave Laser
Control System
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Automatic Laser Welding Machine
Product Name
CNC Fiber Laser Cladding Machine
Welding Mode
Fiber Laser
Drive Mode
Servo
Control Mode
CNC 4 Axis
Laser Source
Raycus
Chiller
Hanli
Laser Head
Depends
Powder Feeder
Depends
Length Range
3000-6000mm
Diameter
50-500mm
Transport Package
Plywood Case
Specification
3000-6000mm
Origin
China
HS Code
8515319900
Production Capacity
100 Sets Per Year

High Speed 4 Axis CNC Fiber Laser Cladding Machine

Advanced Industrial Metal Coating & Surface Processing System

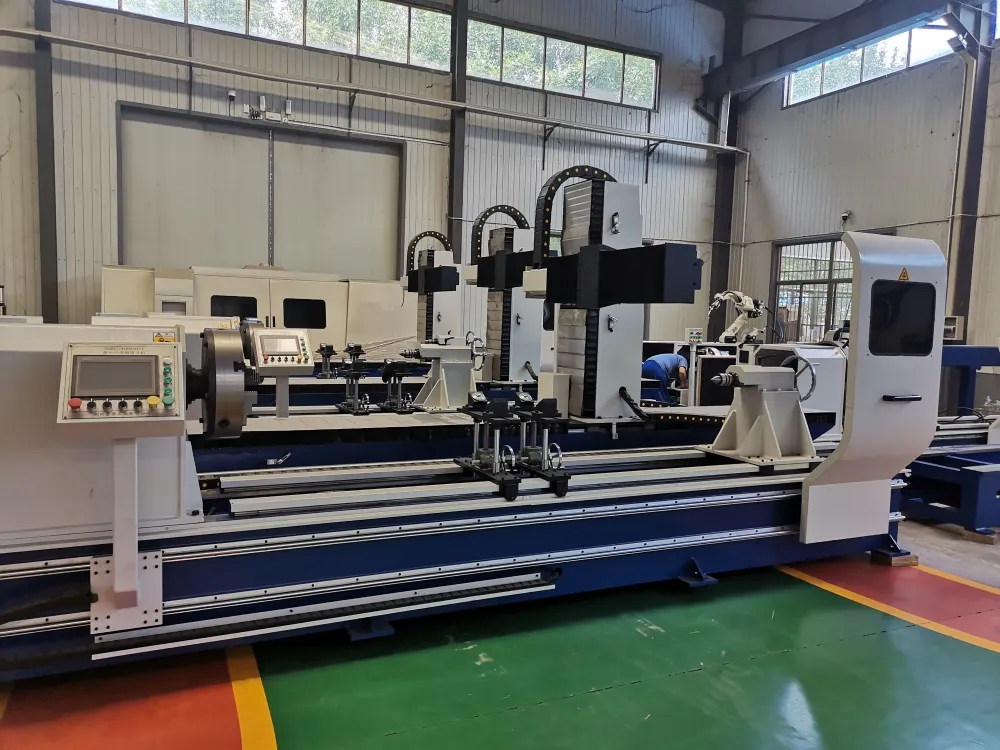

CNC Fiber Laser Cladding Machine
1
Workpiece Diameter: 50 - 500mm
2
Workpiece Length: 300-6000mm
3
Workpiece Weight capacity: < 2000kg
4
Single Side Cladding Thickness: 0.5 - 2.5mm
Detailed Technical Specifications
Parameter Item Specification Detail
Rotating Speed 0-150 r.p.m Stepless Adjustment
Workpiece Length 300-5000 mm
Work Piece Diameter 50-400 mm
3 Jaw Chuck Size Φ500mm
Y, Z Travel Speed 0-30mm/sec
Z Axis Laser Head Load Capacity 20kg
Y Axis Travel Range 500mm
Z Axis Travel Range 500mm
X Axis Travel Range 3000mm
Rotate Spindle Center to Ground Height 900mm
Concentricity of Main Shaft and Tailstock < 0.08mm
Circular Runout of Rotating Workpiece < 0.12mm/m
Spindle Servo Motor Power 7.5kw
X Axis Servo Motor Power 0.75kw
Y Axis Servo Motor Power 0.4kw
Z Axis Servo Motor Power 0.75kw with brake
System Structure Overview

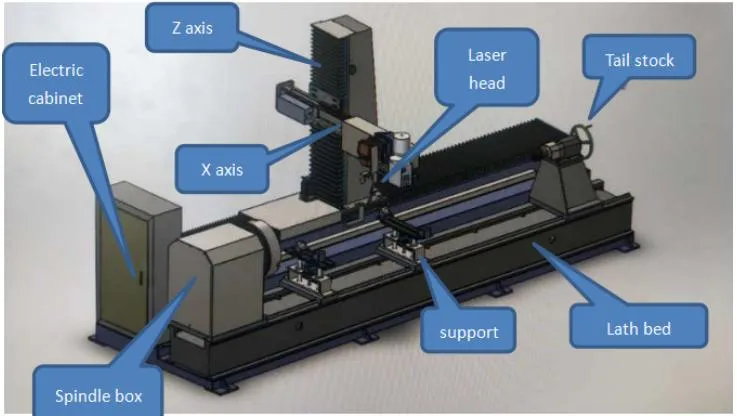

CNC Laser Cladding Machine Structure Diagram
Key Features & Composition
Machine Body Construction
Built upon a robust cast bed with welded base and cross structures. Adopts one mountain and one moment layout structure, processed by rigorous casting, tempering, stress relief, guide rail quenching, finishing, and grinding. The headstock is driven by a high-grade servo motor and star reducer, and is transmitted to the spindle chuck via synchronous belt.
Linkage Control System
The X-axis uses a precise gear rack drive with guide rails to manage the longitudinal travel of the laser gun. The Y-axis controls front-to-rear positioning, and the Z-axis provides vertical movement via a high-precision ball screw. Together, they achieve 4-axis linkage.
Environmental Enclosure
Equipped with a closed protective cover featuring a large base. Features four split sliding doors on the front to accommodate workpieces up to 3 meters. Double-shielded with professional arc-proof glass for safe inspection, along with specialized maintenance access doors and an integrated exhaust outlet for dust or gas collection.
Electric Control System
Equipped with a highly reliable PLC to handle smooth, error-free program execution. Precise travel feedback is maintained through closed-loop rotary encoders, and mechanical boundary monitoring utilizes reliable proximity limit sensors.
Work Cycle & Operation Modes
1
Setup: Place workpiece on the support frame, clamp lightly with the 4-jaw chuck, secure with pneumatic tailstock, and lock the main chuck.
2
Execution: Close the safety door, set coordinates and parameters on the centralized panel box, and press start.
3
Cladding: The Z-axis drops the laser head, Y-axis aligns, and the spindle rotates as the X-axis feeds horizontally to form a uniform spiral cladding path.
Adjustment Mode
Designed for machine set-up, testing, and alignment. Enables independent control of pneumatic elements, startup processes, and manual repositioning.
Automatic Mode
Facilitates automatic sequencing: including automatic arc-striking of the power supply, immediate spindle rotation, pneumatic stabilization clamping, continuous laser pathway tracking, and auto-home return upon cycle completion.
Product Showcase

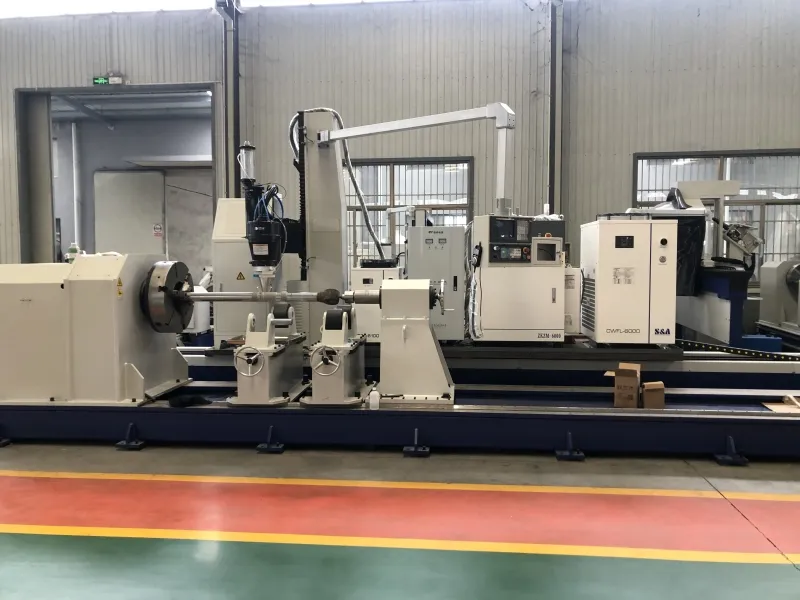

CNC Laser Cladding Machine Front View

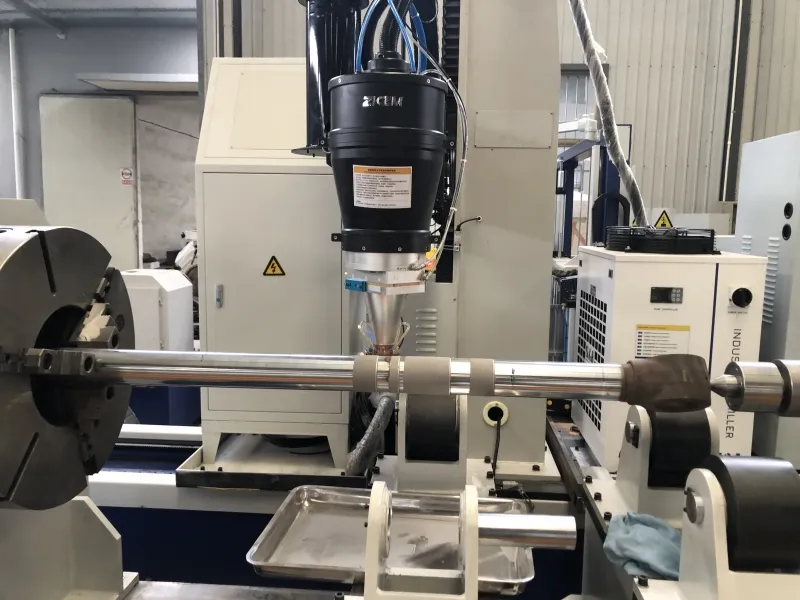

CNC Laser Cladding Machine Close-up View

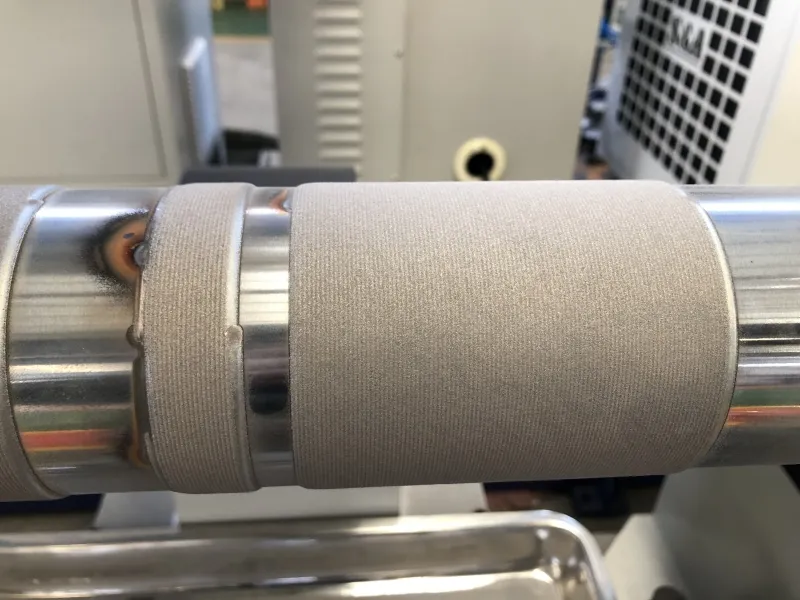

Laser Cladding Spindle Unit

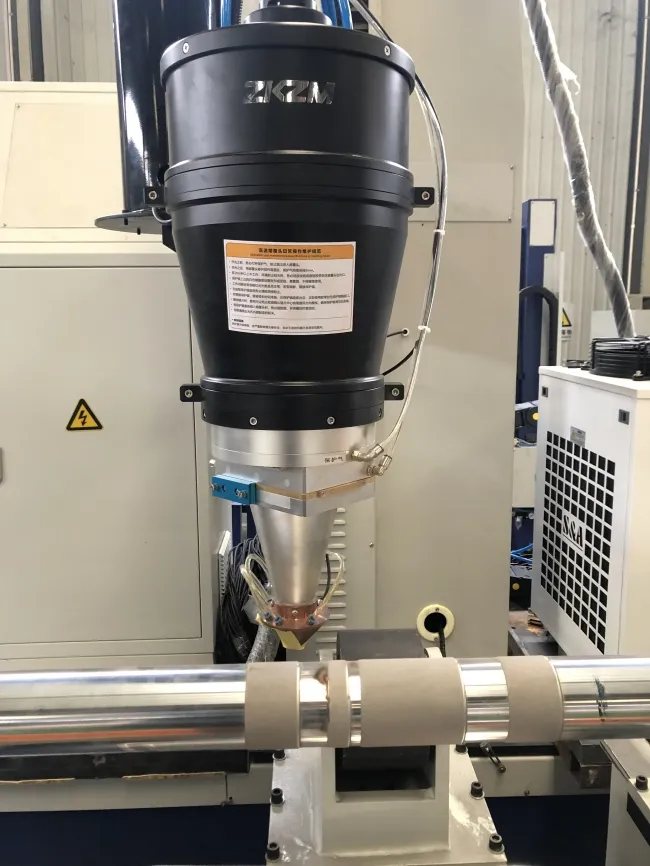

Laser Cladding Machine Side Assembly
Frequently Asked Questions
What are the compatible workpiece sizes for this laser cladding machine?
This system supports workpieces with diameters ranging from 50mm to 500mm and lengths between 300mm to 6000mm, handling structural weights up to 2000 kg.
What is the typical single-side cladding thickness achievable?
The machine produces high-precision, single-side cladding layers ranging in thickness from 0.5mm to 2.5mm, depending on processing configurations.
How is safety and environment handled during processing?
The machine features a fully-enclosed protective environment with arc-proof observation glass, plus an integrated top exhaust duct port designed to couple with professional dust collection and filtration systems.
What control modes does the system feature?
The control console provides an intuitive touchscreen with dual operations modes: "Adjustment Mode" for quick setup and testing of mechanics, and "Automatic Mode" for fully sequential, automated batch production runs.
How is precise mechanical alignment and feedback achieved?
Through standard multi-axis servo motors, the spindle rotation and linear axes interface with closed-loop rotary encoders and advanced proximity switches, providing high-precision structural concentricity below 0.08mm.
