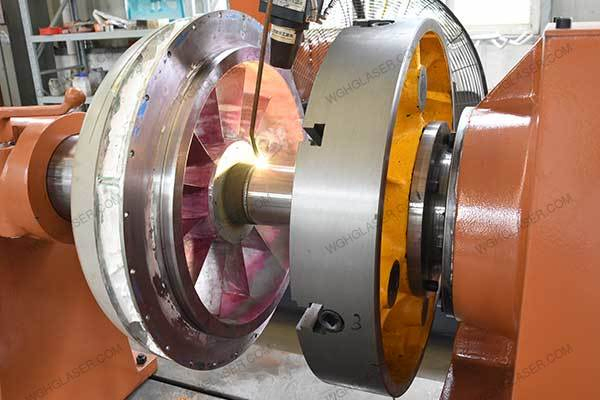

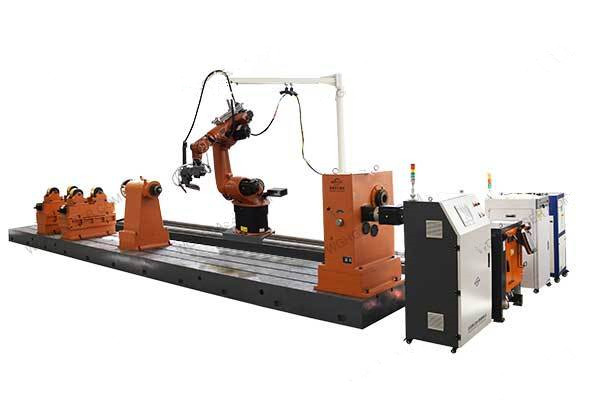

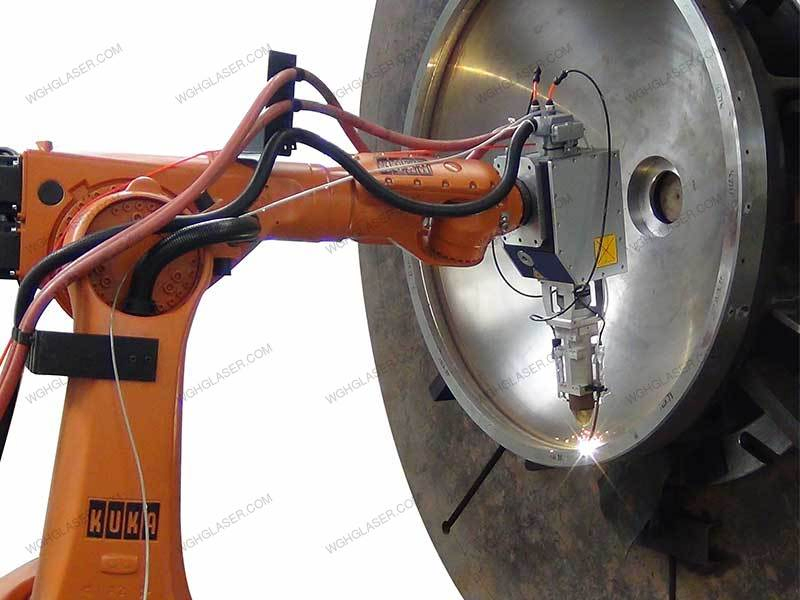

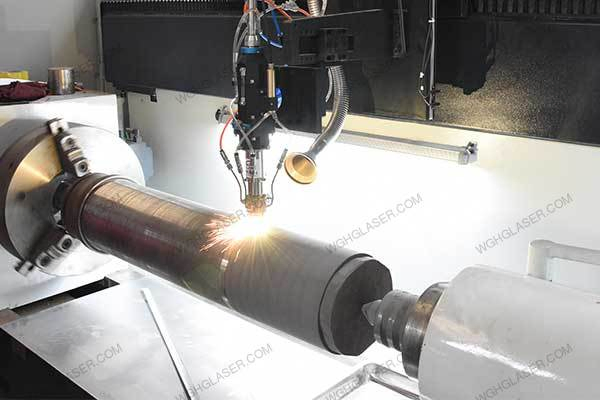

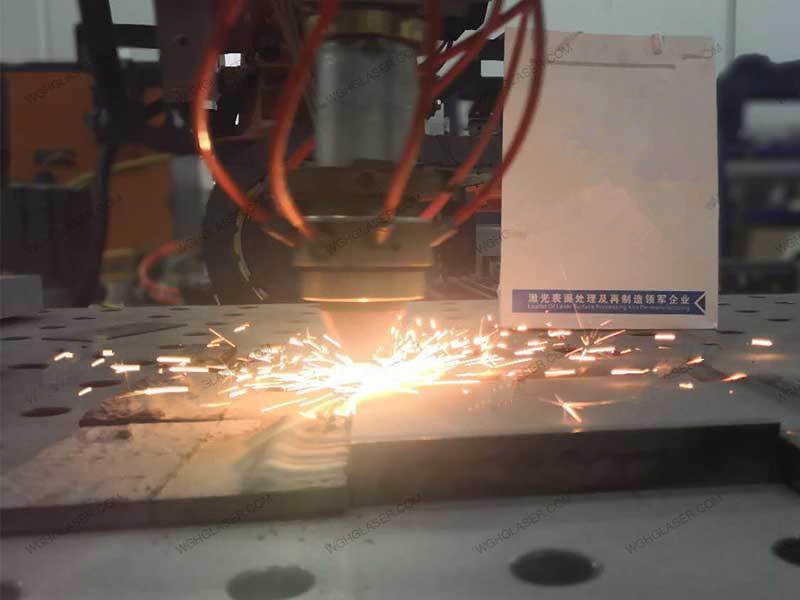

Advanced laser, six-axis robot and control system, multi-axis linkage flexible processing system to meet the surface of metal workpiece surface with laser quenching, laser alloying, laser cladding / re-manufacturing(Ultra high speed laser cladding, Conventional laser cladding, Wide spot laser cladding, Laser cladding of inner hole), laser additive manufacturing (laser 3D printing) and other advanced manufacturing process requirements.
General-purpose equipment for laser surface strengthening and re-manufacturing of metallurgy, automotive molds, mine machinery, coal machinery, petrochemical machinery, generator sets and other parts. Suitable for light industry, energy, transportation, and hardware tools.
Equipped with high-performance laser source for superior processing.
Built for long-term industrial operations with consistent output.
High flexibility for processing complex geometric workpieces.
Good system openness for various process customizations.
| Content | Parameters |
|---|---|
| Laser Source | 0.5-20kW, fiber, semiconductor, disc, etc. |
| Robot System | Holding weight 16-150kg, wingspan 1600-3700mm (KUKA, ABB, FANUC, YASKAWA, etc.) |
| Processing Head | 0.8-50mm round, square spot (customizable), coaxial/paraxonic powder feeder |
| Powder Feeder | Gravity conveying, accuracy ≤±2%, amount 10-150 g/min, single/double units |
| Cooling System | Single/dual temperature cooling capacity based on laser selection |
| Optional Accessories | Inner hole cladding head, temperature closed loop, online/distance detection, offline programming |
| Input Voltage | 360-480V Three-Phase Five-Wire System @50-60Hz |
