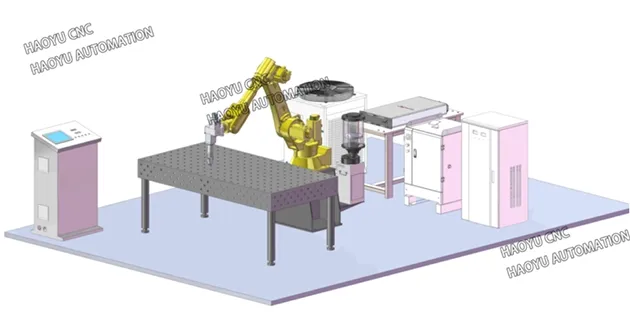

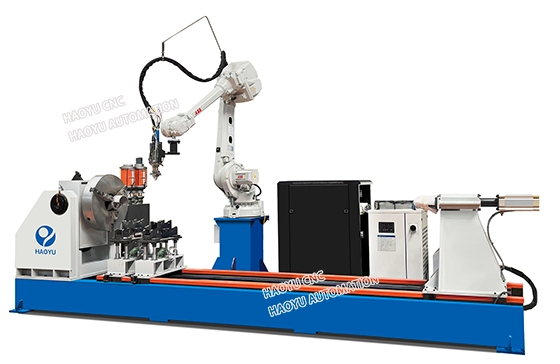

The YDGD-6000 is a professional-grade solution integrated with a 6000W cladding fiber laser, transmission coaxial ring laser cladding head, and high-precision powder feeder. Featuring a FANUC M-20iD/25 robot with an 1831mm arm span, the system is managed by a centralized PLC control system for precise monitoring of the six-axis robot, laser, and protective lens temperature.
| Item | YDGD-6000 Specifications |
|---|---|
| Laser Power | 6000W |
| Powder Feeder | Pneumatic split high precision powder feeder (9L) |
| Cladding Head | Transmission coaxial annular cladding head (focal spot 3-5mm) |
| Six-axis Robot | Arm span: 1820mm; Load: 20kg |
| Control System | PLC (with 10-inch touch screen) |
| Category | Requirement | Consumption |
|---|---|---|
| Power | Three-phase 380V ± 10%, 50Hz; Single-phase AC 220V ± 10% | Approx. 40KW |
| Energy | Protective gas: Argon/Nitrogen | Process dependent |
| Cooling water | Pure water for laser and chiller | 50L |
| Environment | Foundation strength ≥ C25; Thickness ≥ 260mm; Temp: 10-45ºC | - |
Warranty Period: 12 months from the date of Bill of Lading. The seller ensures machine quality and performance, handling repairs or part replacements for non-wearable components within 15 days of notification.
Service Conditions: For on-site installation and training, the buyer is responsible for travel, accommodation, and translator services. Post-warranty technical support and labor costs are calculated at 100 USD per person/day.
